Lumi Acoustic
ECHO PANEL S

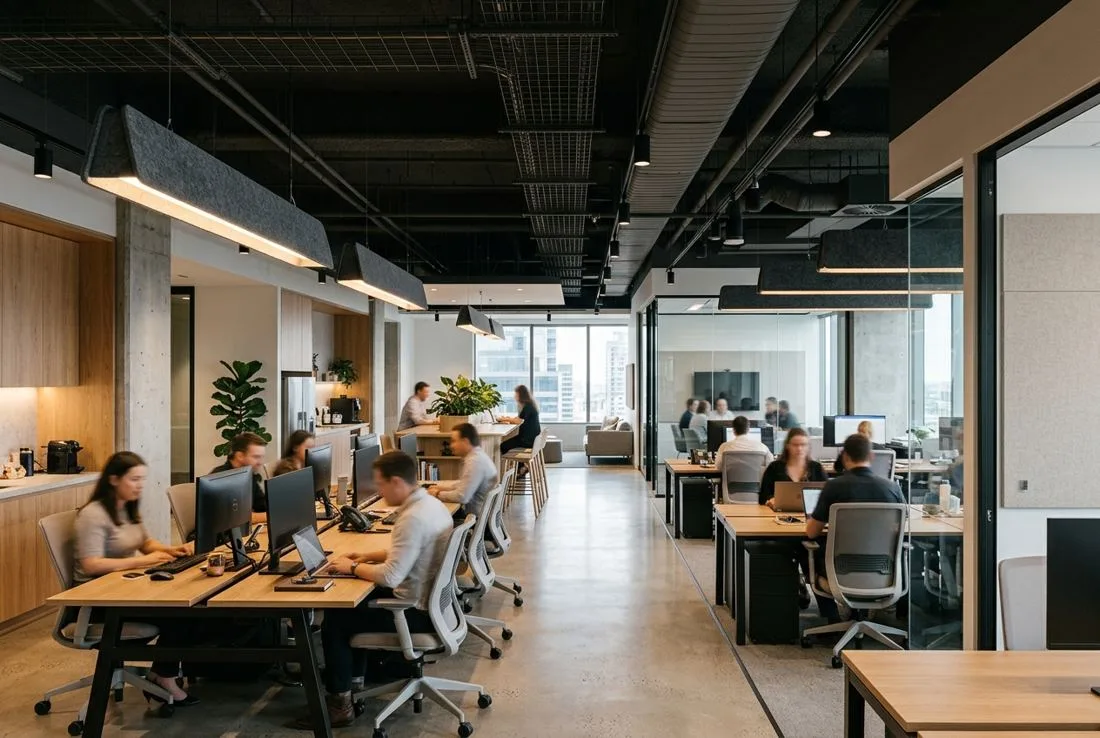

Application inspiration · not a project reference
ECHO PANEL S is part of Lumi Acoustic. Coordinate the selected article’s dimensions, installation details and configuration with the project specification; these details can vary between models in the same family.
Acoustic Lighting
ECHO PANEL S
ECHO PANEL S is a acoustic lighting family within the LUMIBRIGHT Lumi Acoustic collection. The current catalogue groups 1 article codes under this family, including LAC0003. For LAC0003, published values include power: 24W; colour temperature: 4000K; dimensions: L1200×W800×H30mm. Each article represents its own physical model; dimensions and electrical or optical options must be checked against that exact code. Compare the ECHO PANEL S articles using the specification table and individual model pages before adding them to a lighting schedule. Wattage, colour temperature, protection rating and installation dimensions are catalogue values, not a guarantee that every combination can be ordered. Where a value is not published, request the relevant model documentation rather than assuming it matches another article. Confirm the selected configuration, driver requirements, installation detail and project documentation with the specification team before ordering.
Model specifications
| Article | Wattage | CCT | IP | Dimensions | Cut-out |
|---|---|---|---|---|---|
| LAC0003 | Wattage24W | CCT4000K | IPNot published | DimensionsL1200×W800×H30mm | Cut-outNot published |
Selected Variant
LAC0003
ECHO PANEL S LAC0003 - ACOUSTIC LIGHTING
Configuration
Select Specification
Exact match: LAC0003
All Variants (1)
| Code | Power | CCT | Size | |
|---|---|---|---|---|
| LAC0003 | 24W | 4000K | L1200×W800×H30mm |
Dimensions
Technical Drawing
Drawing and sizes shown for model LAC0003.
Size — model LAC0003
L1200×W800×H30mm
Technical Data
Full Specification
| Dimensions | L1200×W800×H30mm |
|---|---|
| Cut-out | Not published — technical review required |
| Power | 24W |
| Lumen output | 2040-2160lm |
| Efficacy | Not published — technical review required |
| Optics / beam angle | 50° |
| Colour temperature | 4000K |
| CRI Ra | Not published — technical review required |
| R9 | Not published — technical review required |
| TM-30 Rf / Rg | Not published — technical review required |
| UGR | Not published — technical review required |
| IP rating | IP20 |
| IK rating | Not published — technical review required |
| Ambient temperature (Ta) | Not published — technical review required |
| Driver | Not published — technical review required |
| Dimming / control | Not published — technical review required |
| Input voltage | Not published — technical review required |
| Light source | Not published — technical review required |
| Material | Aluminium+PMMA/+PET |
| Finish | Not published — technical review required |
| Mounting / installation | Not published — technical review required |
| Net weight | Not published — technical review required |
| Certification | Not published — technical review required |
| Lifetime | Not published — technical review required |
| Warranty | Not published — technical review required |
| Lead time | Not published — technical review required |
7 of 26 specification rows published from the 2026 master data. Values vary by model; missing test data is not estimated. Select an exact model for approval.
Specifications
At a Glance
24W
Power
4000K
Colour Temperature
L1200×W800×H30mm
Dimensions
Configure your product
LAC0003
Order code
Listed configurationLAC0003.940.AC17.50
1 listed configurations · availability requires confirmation
