ENTRAZE is part of Lumi Arc. Coordinate the selected article’s dimensions, installation details and configuration with the project specification; these details can vary between models in the same family.
Projector Light
ENTRAZE

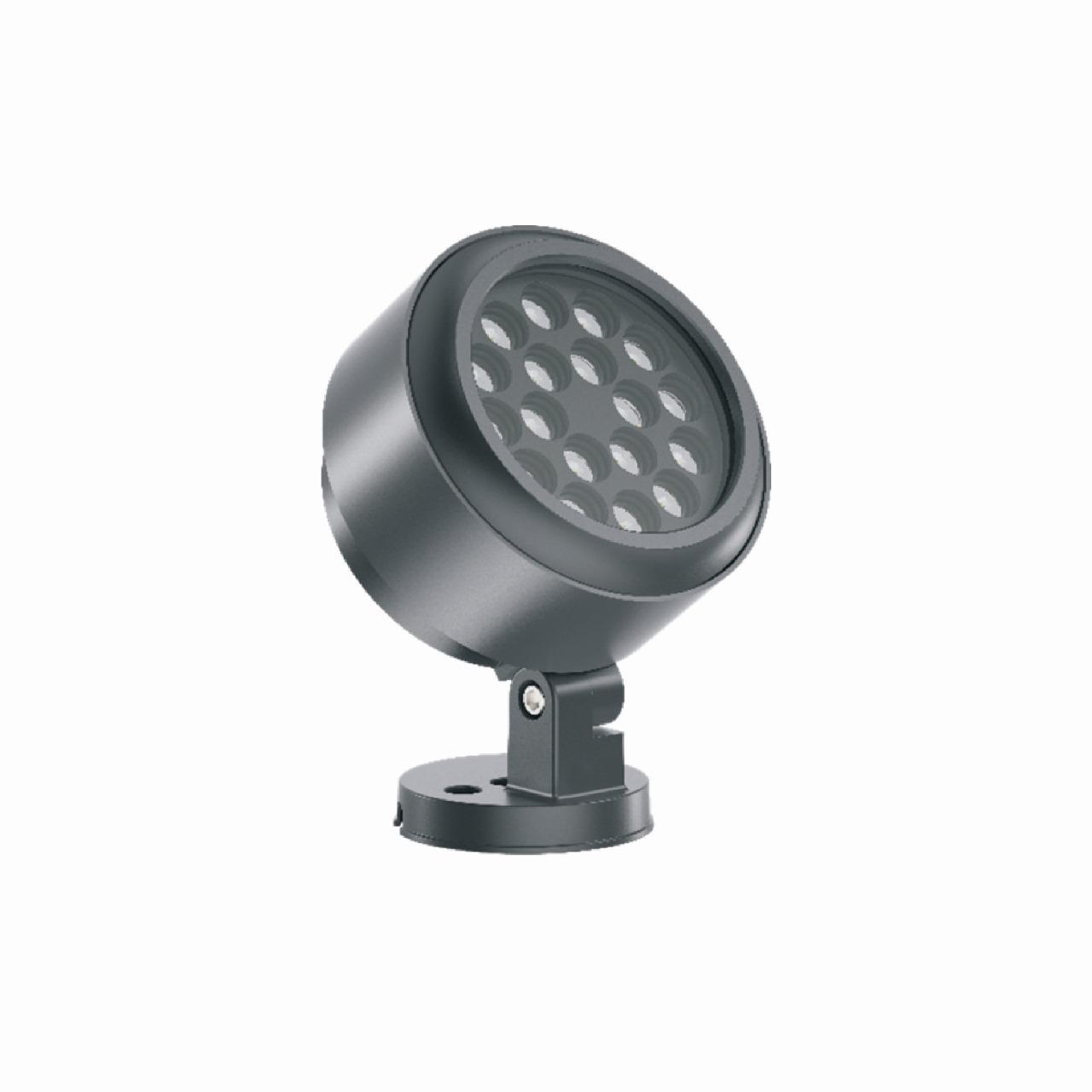

ENTRAZE is a projector light family within the LUMIBRIGHT Lumi Arc collection. The current catalogue groups 1 article codes under this family, including LA9157. For LA9157, published values include power: 50W; colour temperature: RGBW(3000K); IP rating: IP66; dimensions: Ø175x268mm. Each article represents its own physical model; dimensions and electrical or optical options must be checked against that exact code. Compare the ENTRAZE articles using the specification table and individual model pages before adding them to a lighting schedule. Wattage, colour temperature, protection rating and installation dimensions are catalogue values, not a guarantee that every combination can be ordered. Where a value is not published, request the relevant model documentation rather than assuming it matches another article. Confirm the selected configuration, driver requirements, installation detail and project documentation with the specification team before ordering.
Model specifications
| Article | Wattage | CCT | IP | Dimensions | Cut-out |
|---|---|---|---|---|---|
| LA9157 | Wattage50W | CCTRGBW(3000K) | IPIP66 | DimensionsØ175x268mm | Cut-outNot published |
Configuration
Select Specification
Select attributes to narrow down variants
All Variants (12)
| Code | Power | CCT | Beam | CRI | Finish | Size | |
|---|---|---|---|---|---|---|---|
| LA9157 | — | 3000K | — | — | — | — | |
| LA9157 | 50W | — | 15° | 80 | black | Ø175x268mm | |
| LA9157 | 50W | — | 30° | 80 | black | Ø175x268mm | |
| LA9157 | 50W | — | 45° | 80 | black | Ø175x268mm | |
| LA9157 | 50W | — | 60° | 80 | black | Ø175x268mm | |
| LA9157 | 50W | — | 90° | 80 | black | Ø175x268mm | |
| LA9157 | 50W | — | 15° | 80 | white | Ø175x268mm | |
| LA9157 | 50W | — | 30° | 80 | white | Ø175x268mm | |
| LA9157 | 50W | — | 45° | 80 | white | Ø175x268mm | |
| LA9157 | 50W | — | 60° | 80 | white | Ø175x268mm | |
| LA9157 | 50W | — | 90° | 80 | white | Ø175x268mm | |
| LA9157 | 50W | — | — | 80 | — | Ø175x268mm |
Dimensions
Technical Drawing
Drawing and sizes shown for model LA9157.
Size — model LA9157
Ø175x268mm
Technical Data
Full Specification
| Dimensions | Ø175x268mm |
|---|---|
| Cut-out | Not published — technical review required |
| Power | 50W |
| Lumen output | Not published — technical review required |
| Efficacy | Not published — technical review required |
| Optics / beam angle | 15° · 30° · 45° · 60° +1 more |
| Colour temperature | 3000K |
| CRI Ra | 80 |
| R9 | Not published — technical review required |
| TM-30 Rf / Rg | Not published — technical review required |
| UGR | Not published — technical review required |
| IP rating | IP66 |
| IK rating | Not published — technical review required |
| Ambient temperature (Ta) | Not published — technical review required |
| Driver | Not published — technical review required |
| Dimming / control | Not published — technical review required |
| Input voltage | 24VDC |
| Light source | Not published — technical review required |
| Material | Not published — technical review required |
| Finish | black · white |
| Mounting / installation | Not published — technical review required |
| Net weight | Not published — technical review required |
| Certification | Not published — technical review required |
| Lifetime | Not published — technical review required |
| Warranty | Not published — technical review required |
| Lead time | Not published — technical review required |
8 of 26 specification rows published from the 2026 master data. Values vary by model; missing test data is not estimated. Select an exact model for approval.
Specifications
At a Glance
50W
Power
5 options
Beam Angle
3000K
Colour Temperature
CRI 80
Colour Rendering
IP66
Protection Rating
2 finishes
Body Finish
Ø175x268mm
Dimensions
Configure your product
LA9157
Order code
Listed configurationLA9157.X.RGBW.830.WBK.90
10 listed configurations · availability requires confirmation
