Linear System
LINTO
LINTO is a linear system family within the LUMIBRIGHT Lumi Arc collection. The current catalogue groups 3 article codes under this family, including LA1394, LA1395, LA1396. For LA1394, published values include power: 15W; colour temperature: 3000K; IP rating: IP65; dimensions: L1000x24xH55mm. Each article represents its own physical model; dimensions and electrical or optical options must be checked against that exact code. Compare the LINTO articles using the specification table and individual model pages before adding them to a lighting schedule. Wattage, colour temperature, protection rating and installation dimensions are catalogue values, not a guarantee that every combination can be ordered. Where a value is not published, request the relevant model documentation rather than assuming it matches another article. Confirm the selected configuration, driver requirements, installation detail and project documentation with the specification team before ordering.
Model specifications
| Article | Wattage | CCT | IP | Dimensions | Cut-out |
|---|---|---|---|---|---|
| LA1394 | Wattage15W | CCT3000K | IPIP65 | DimensionsL1000x24xH55mm | Cut-outNot published |

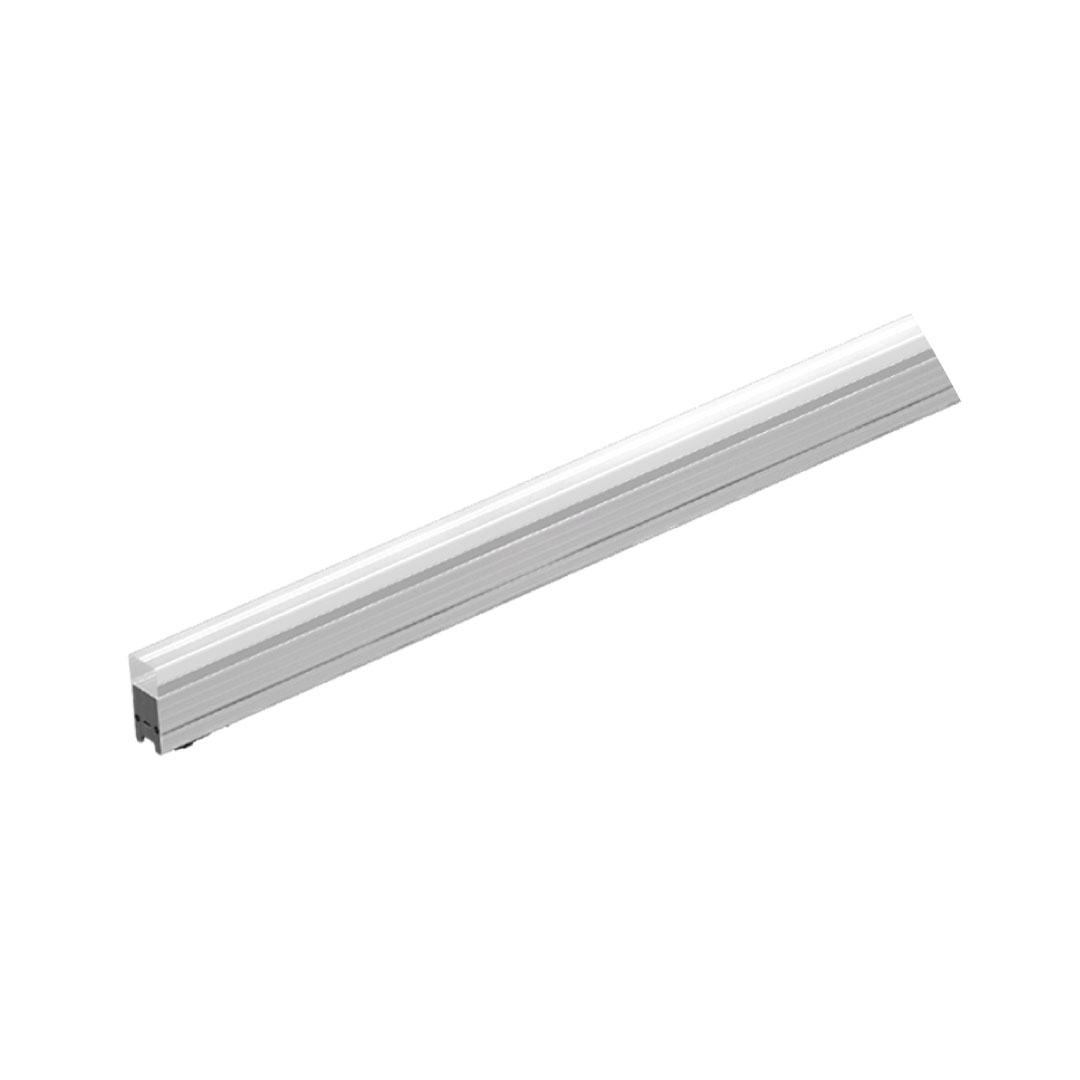

| LA1395 | Wattage15W | CCTNot published | IPIP65 | DimensionsL1000x24xH55mm | Cut-outNot published |
| LA1396 | Wattage15W | CCT3000K | IPIP66 | DimensionsL1000x30xH35mm | Cut-outNot published |
Technical Data
Full Specification
| Dimensions | L1000x24xH55mm · L1000x30xH35mm |
|---|---|
| Cut-out | Not published — technical review required |
| Power | 15W |
| Lumen output | Not published — technical review required |
| Efficacy | Not published — technical review required |
| Optics / beam angle | 120° |
| Colour temperature | 3000K |
| CRI Ra | 80 |
| R9 | Not published — technical review required |
| TM-30 Rf / Rg | Not published — technical review required |
| UGR | Not published — technical review required |
| IP rating | IP65 · IP66 |
| IK rating | Not published — technical review required |
| Ambient temperature (Ta) | Not published — technical review required |
| Driver | Not published — technical review required |
| Dimming / control | Not published — technical review required |
| Input voltage | 24VDC |
| Light source | Not published — technical review required |
| Material | Not published — technical review required |
| Finish | silver · light-grey · grey |
| Mounting / installation | Not published — technical review required |
| Net weight | Not published — technical review required |
| Certification | Not published — technical review required |
| Lifetime | Not published — technical review required |
| Warranty | Not published — technical review required |
| Lead time | Not published — technical review required |
8 of 26 specification rows published from the 2026 master data. Values vary by model; missing test data is not estimated. Select an exact model for approval.
Configuration
Select Specification
Select attributes to narrow down variants
Dimensions
Technical Drawing
Drawing and sizes shown for model LA1394. This family has 3 models with different dimensions — select a model above, or open its row in the variant table, for its own drawing.
Size — model LA1394
L1000x24xH55mm
Specifications
At a Glance
15W
Power Range
1 options
Beam: 120°
1 CCT
3000K
CRI 80
Colour Rendering
IP65 / IP66
Protection Rating
3 finishes
Body Finish Options
2 sizes
L1000x24xH55mm, L1000x30xH35mm
Configure your product
LA1394
Order code
Listed configurationLA1394.W.830.SLV.120
1 listed configurations · availability requires confirmation
