Wall Washer
LUMIARC
LUMIARC is a wall washer family within the LUMIBRIGHT Lumi Arc collection. Explore 30 models, including LA1115, LA1160, LA1340, with model-specific specifications and configuration choices. LA1115 specifications include colour temperature: 3000K; IP rating: IP67. Compare the LUMIARC range by power, colour temperature, protection rating and dimensions using the technical table below. Open an individual model to explore its available finishes and optics, select a listed order code and prepare a specification sheet where configuration data is available. Keep the chosen model reference with your project schedule so the lighting and installation teams can coordinate the same selection. For additional drawings, photometry or project-specific requirements, contact the LUMIBRIGHT specification team with your model code.
Model specifications
| Article | Wattage | CCT | IP | Dimensions | Cut-out |
|---|---|---|---|---|---|
| LA1115 | WattageNot published | CCT3000K | IPIP67 | DimensionsNot published | Cut-outNot published |

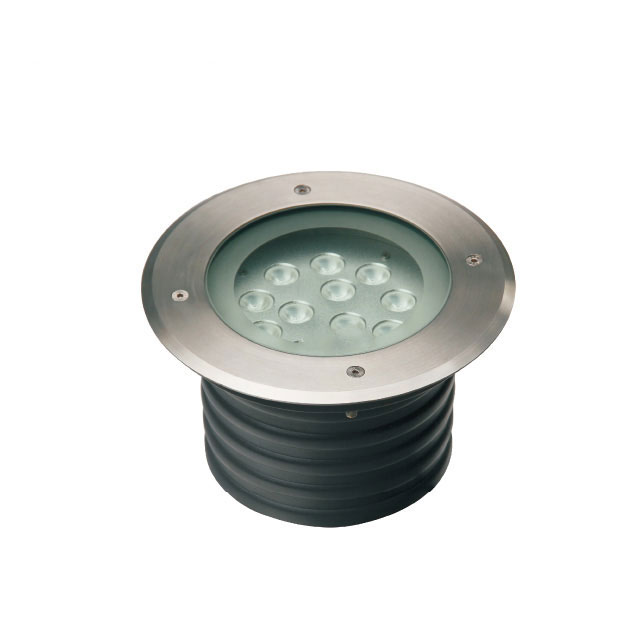

| LA1160 | WattageNot published | CCTRGB | IPIP67 | DimensionsNot published | Cut-outNot published |

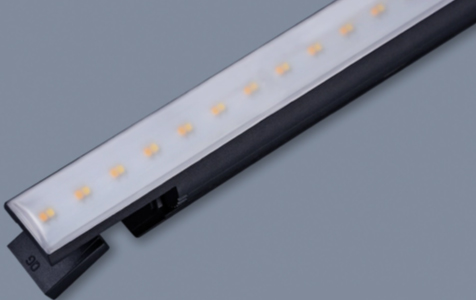

| LA1340 | WattageNot published | CCTNot published | IPIP20 | DimensionsNot published | Cut-outNot published |

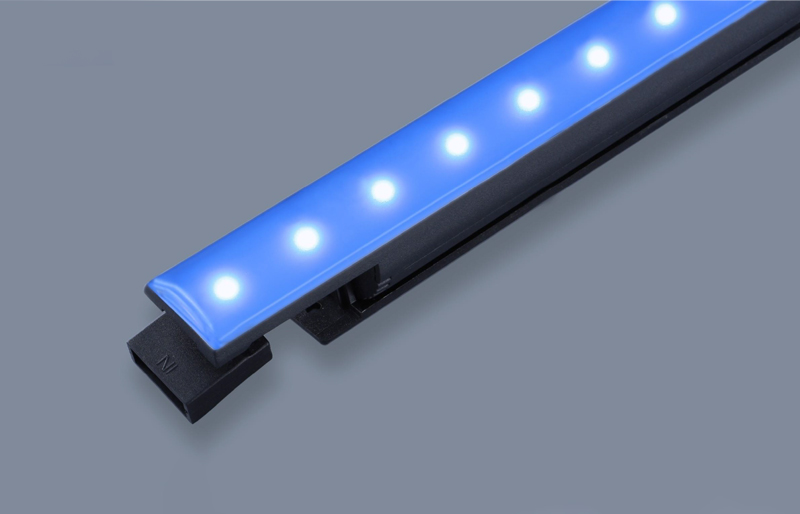

| LA1341 | Wattage18W | CCTRGB | IPIP20 | DimensionsL330xW40xH46mm | Cut-outNot published |

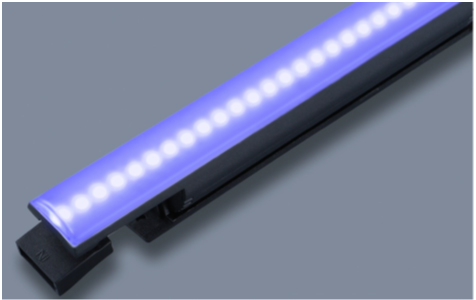

| LA1342 | Wattage10W | CCTRGBW(3000K) | IPIP20 | Dimensions46x330x40mm | Cut-outNot published |

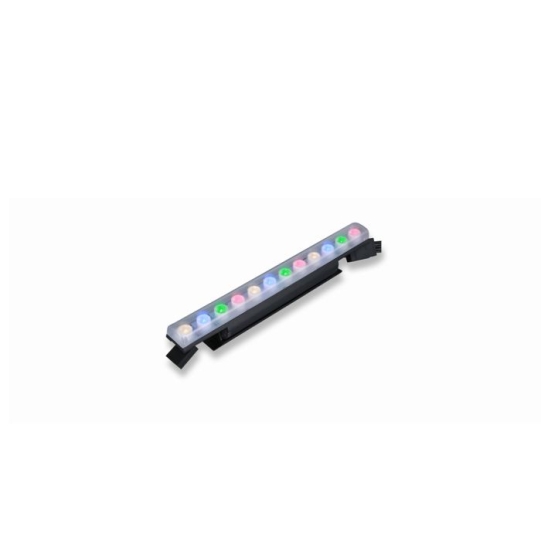

| LA1343 | Wattage9W | CCTRGB | IPIP20 | Dimensions55x330x40mm | Cut-outNot published |
| LA1344 | WattageNot published | CCTRGBW(3000K) | IPIP20 | DimensionsNot published | Cut-outNot published |
| LA1379 | Wattage6-12W | CCTNot published | IPIP20 | Dimensions46x330x40mm | Cut-outNot published |
| LA1392 | Wattage15W | CCTRGB | IPIP66 | Dimensions1000xW35xH45mm | Cut-outNot published |

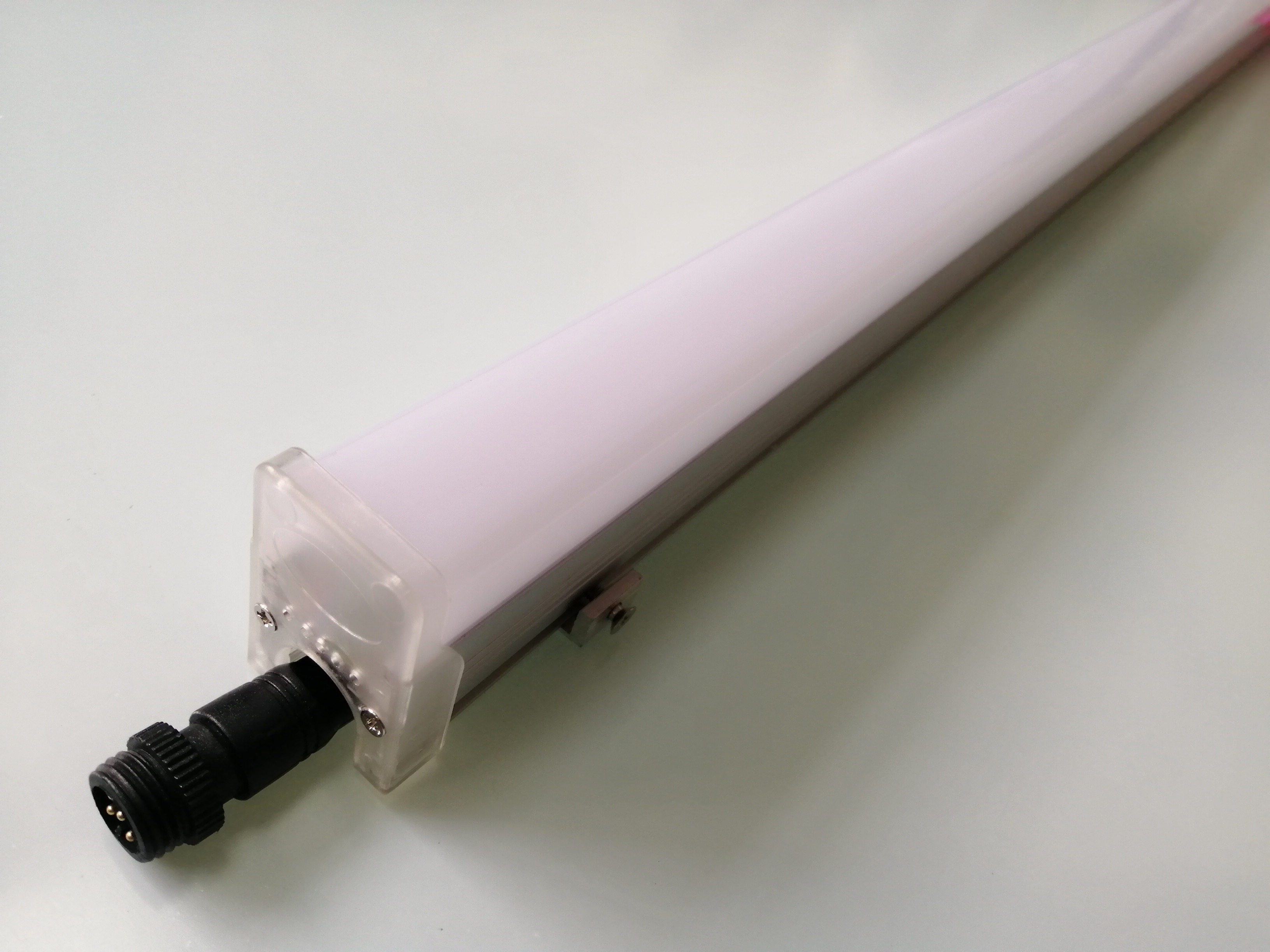

| LA1393 | Wattage15W | CCT3000K | IPIP66 | Dimensions1000xW35xH45mm | Cut-outNot published |

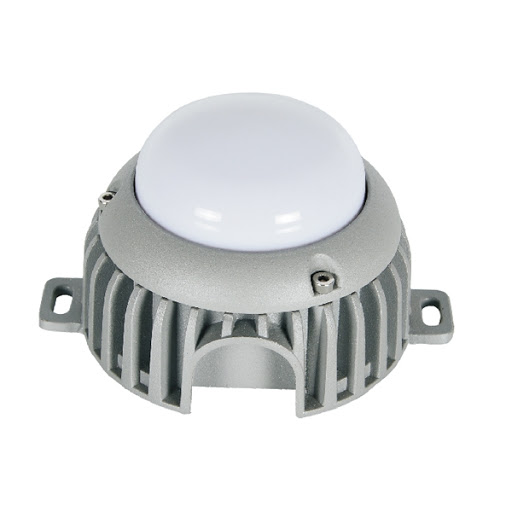

| LA3500 | Wattage9W | CCT6000K | IPIP67 | DimensionsØ90x62mm | Cut-outNot published |

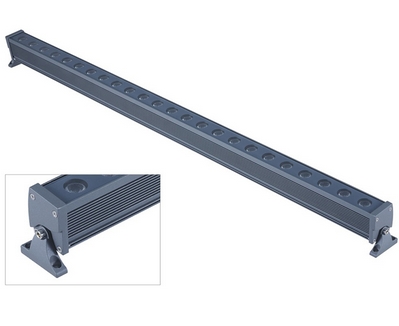

| LA7101 | WattageNot published | CCT3000K | IPIP65 | DimensionsNot published | Cut-outNot published |
| LA7107 | WattageNot published | CCT2700K, RGB | IPIP68 | DimensionsNot published | Cut-outNot published |

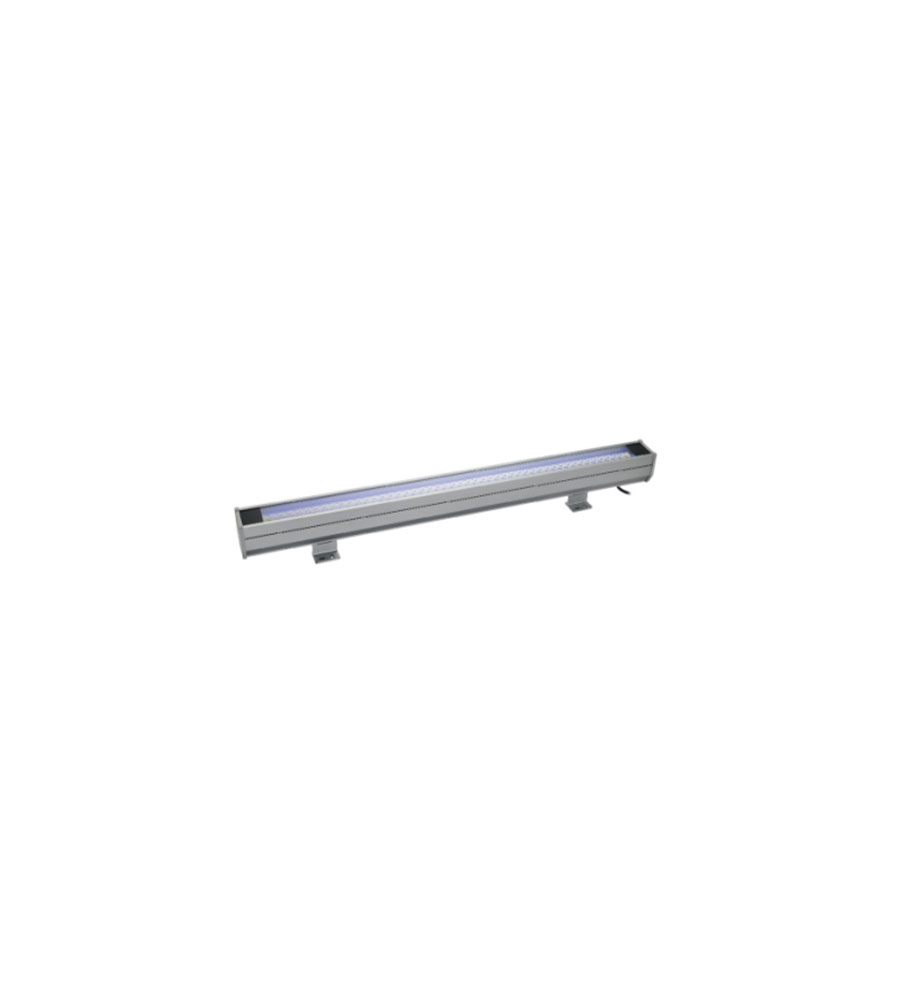

| LA7108 | Wattage65W | CCTRGBW(3000K) | IPIP65 | Dimensions1000x73x80mm | Cut-outNot published |
| LA7109 | Wattage65W | CCT6000K | IPIP65 | Dimensions1000x73x80mm | Cut-outNot published |

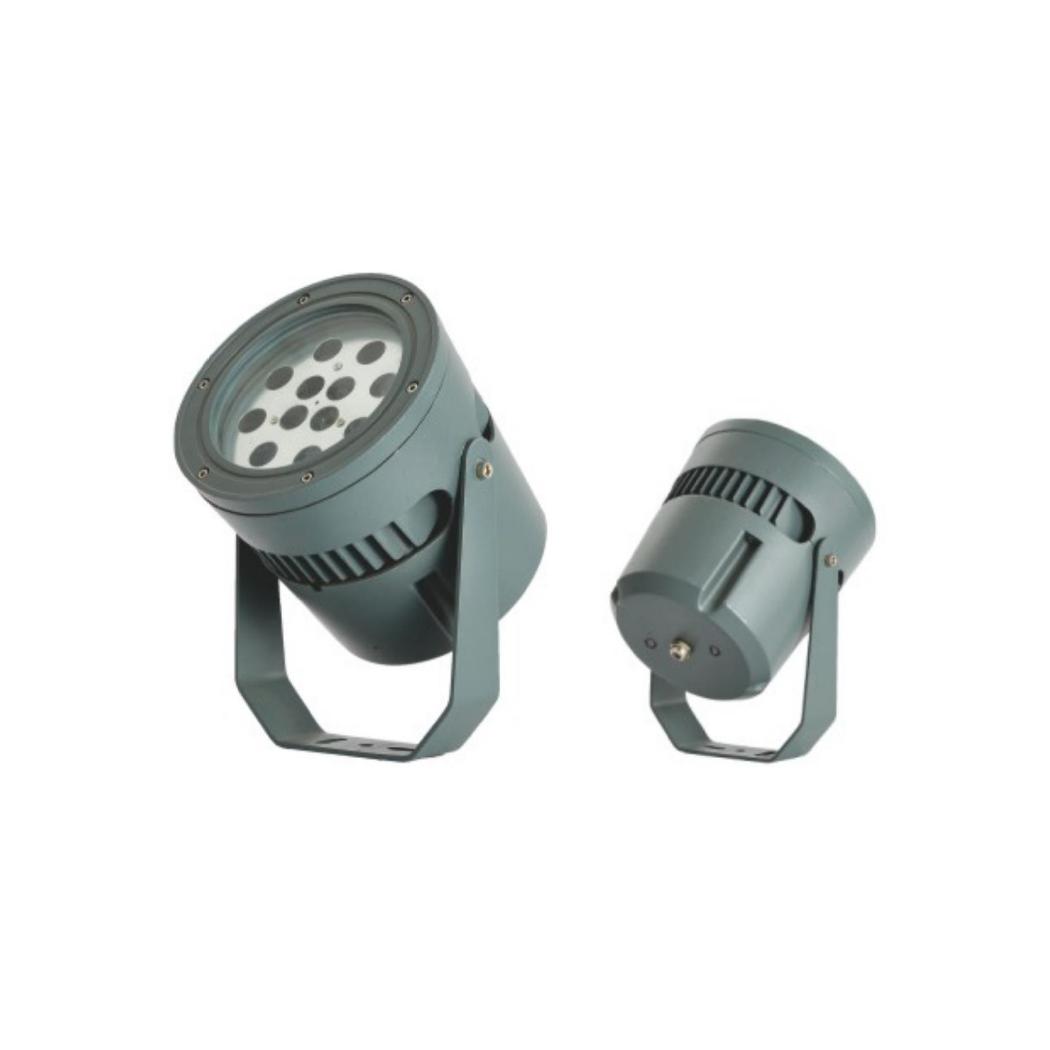

| LA9155 | WattageNot published | CCT4000K | IPIP66 | DimensionsNot published | Cut-outNot published |

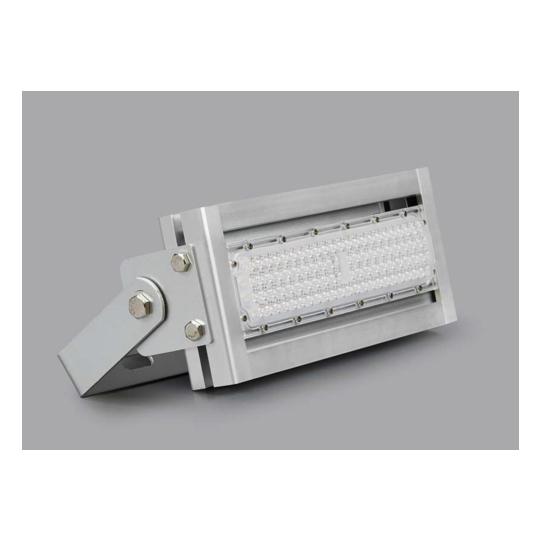

| LA9156 | Wattage50W | CCT3000K | IPIP66 | Dimensions293x130x85mm | Cut-outNot published |

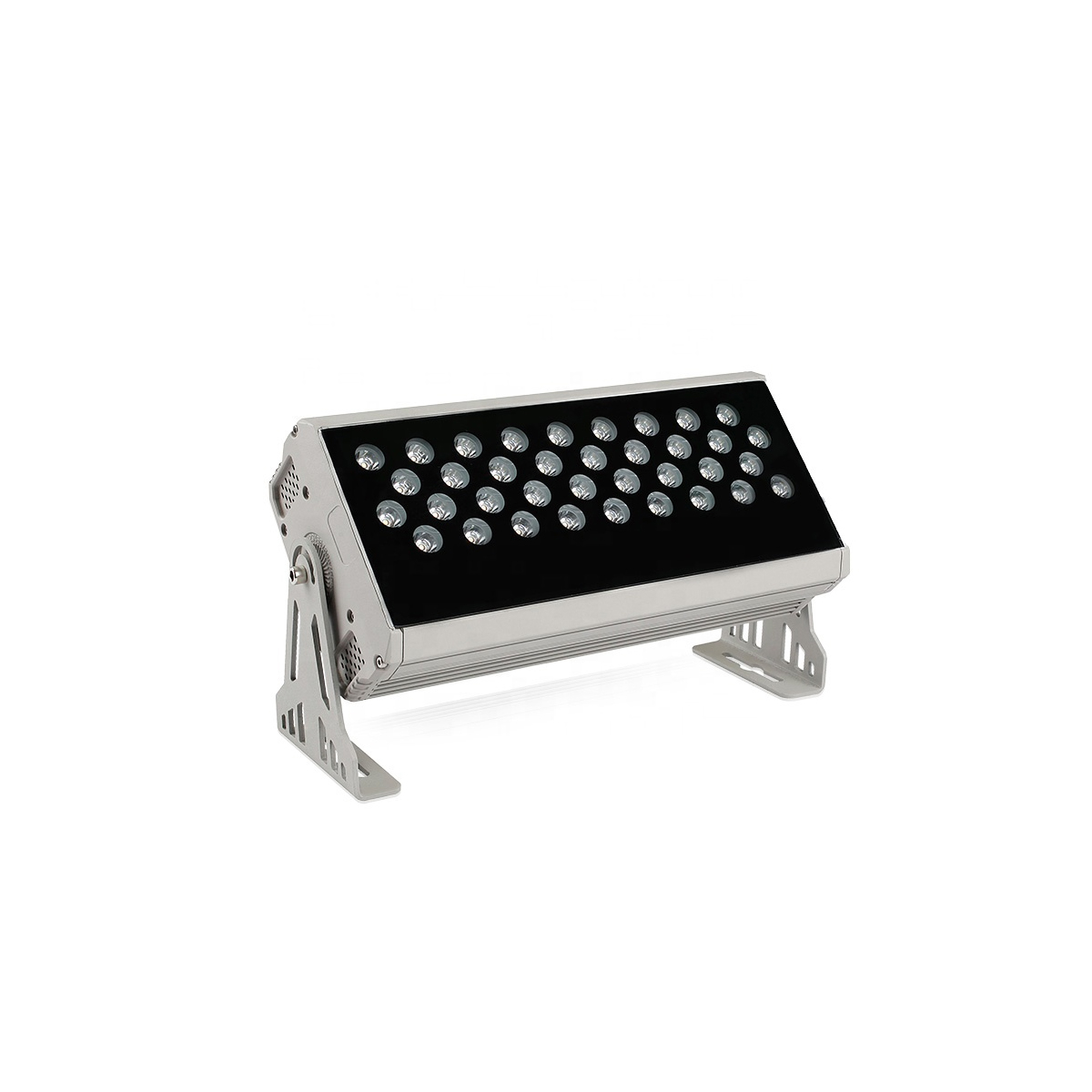

| LA9402 | WattageNot published | CCTRGB | IPIP65 | DimensionsNot published | Cut-outNot published |
| LA9404 | Wattage1000W | CCT6000K | IPIP66 | Dimensions616x422x280mm | Cut-outNot published |
| LA9405 | Wattage720W | CCT3000K | IPIP66 | Dimensions660x505x180mm | Cut-outNot published |

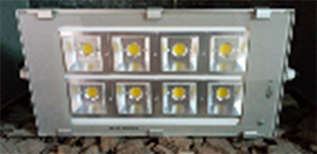

| LA9406 | Wattage480W | CCT5000K | IPIP65 | Dimensions635x280x150mm | Cut-outNot published |

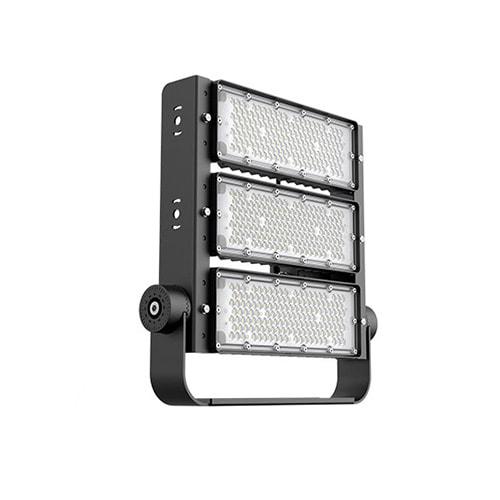

| LA9407 | WattageNot published | CCT3000K | IPIP66 | DimensionsNot published | Cut-outNot published |

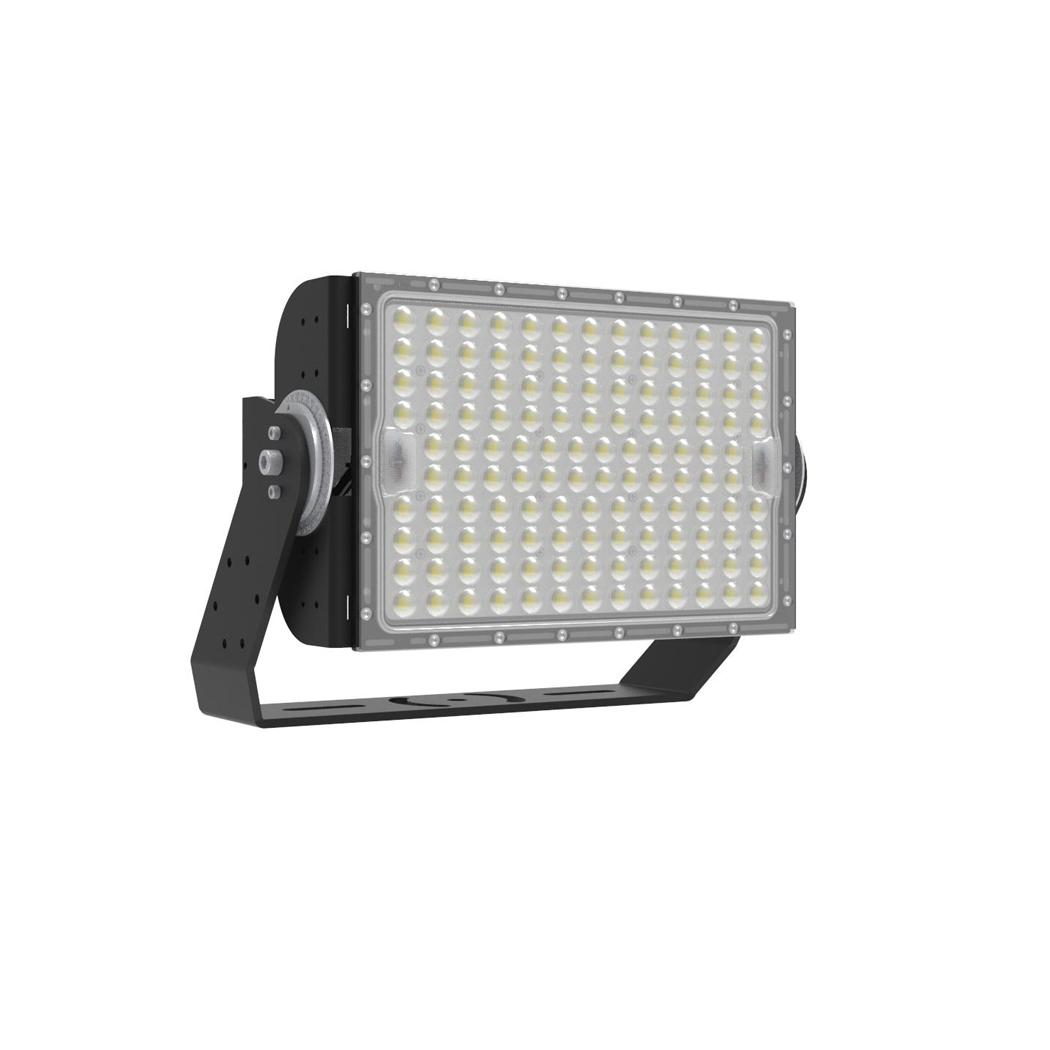

| LA9408 | Wattage240W | CCT2700K | IPIP66 | Dimensions344x184x238mm | Cut-outNot published |

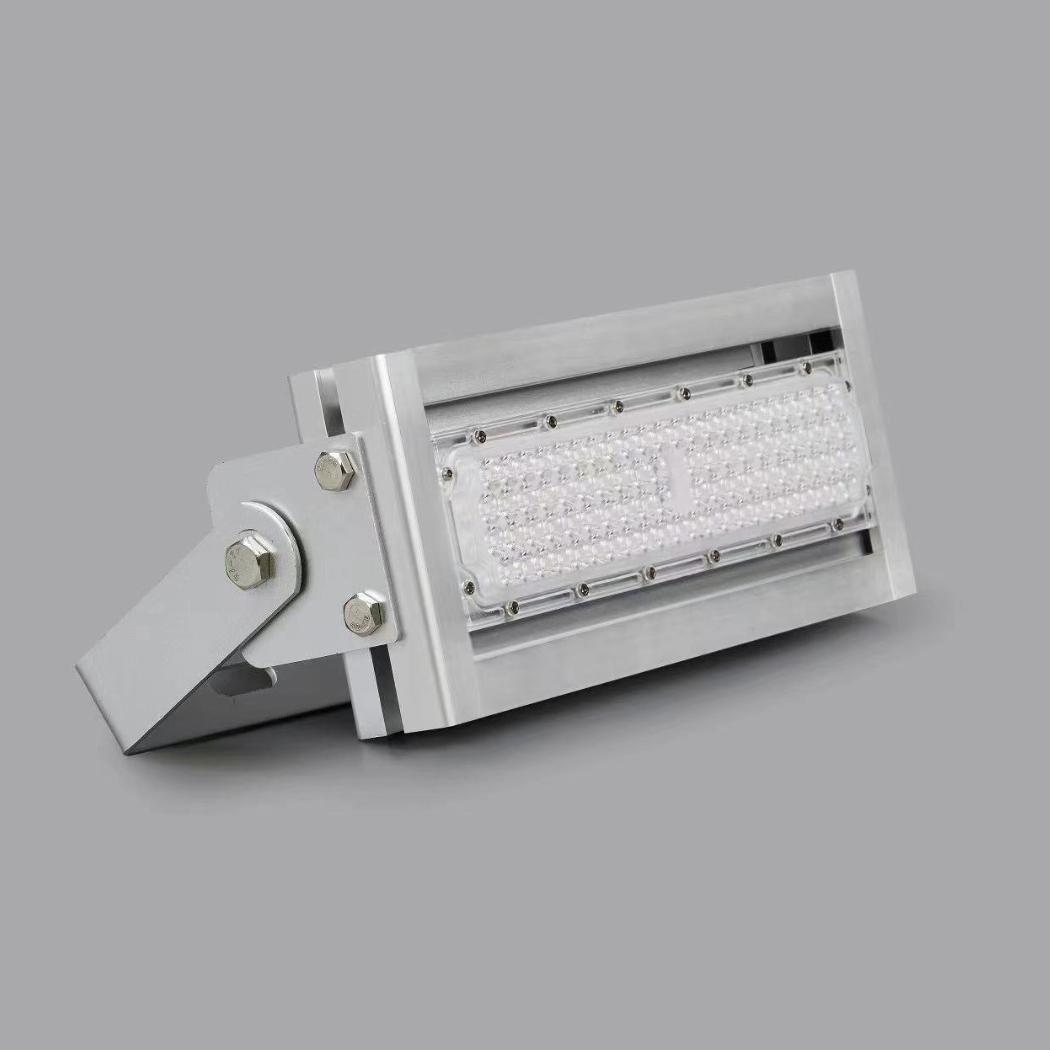

| LA9409 | Wattage50W | CCT3000K | IPIP66 | Dimensions293x130x85mm | Cut-outNot published |

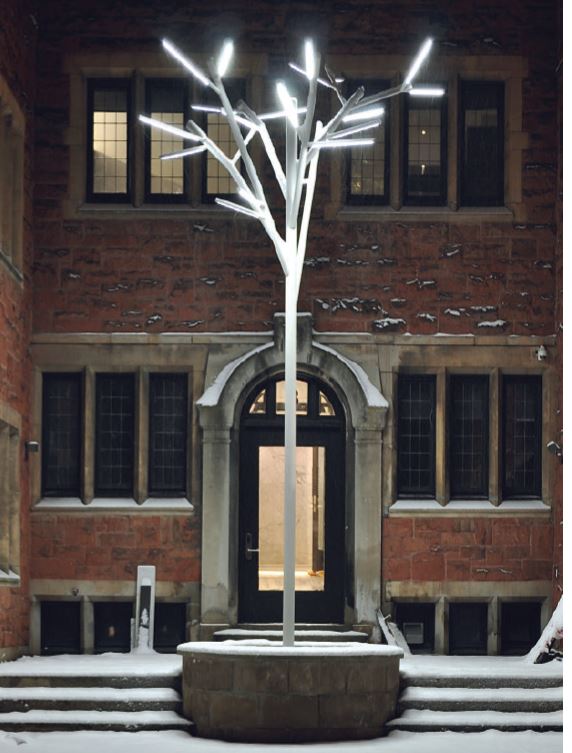

| LA9627 | WattageNot published | CCT2700K | IPIP65 | DimensionsNot published | Cut-outNot published |

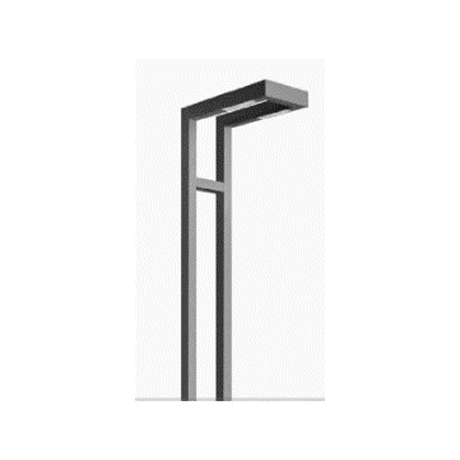

| LA9629 | Wattage54W | CCT2700K | IPIP65 | DimensionsH4000xW460mm | Cut-outNot published |

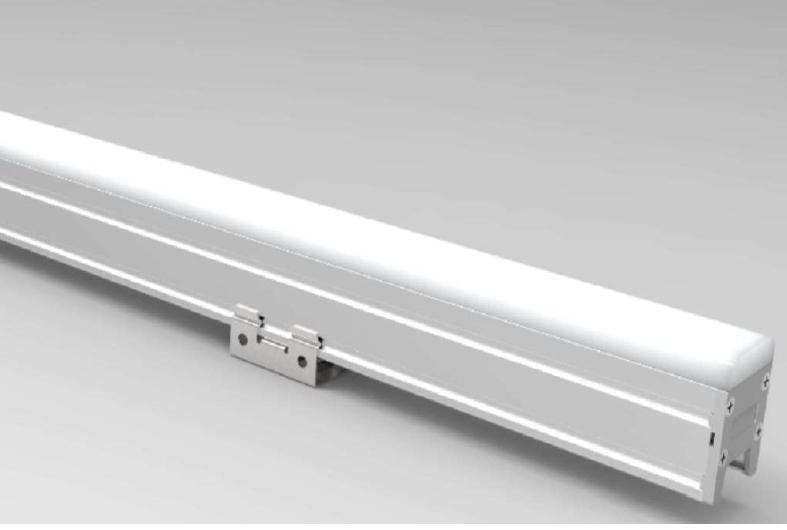

| LAT1300 | WattageNot published | CCTRGBW(3000K) | IPIP67 | DimensionsNot published | Cut-outNot published |

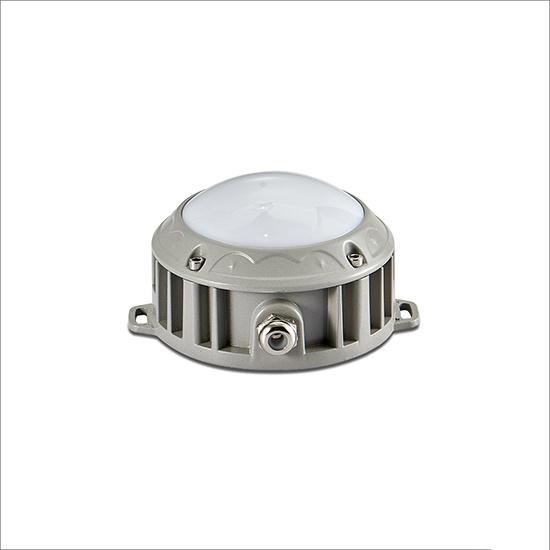

| LAT1301 | WattageNot published | CCTRGBW(3000K), RGBW(6000K) | IPIP67 | DimensionsNot published | Cut-outNot published |
| TEMP-LA9366 | WattageNot published | CCTNot published | IPNot published | DimensionsNot published | Cut-outNot published |

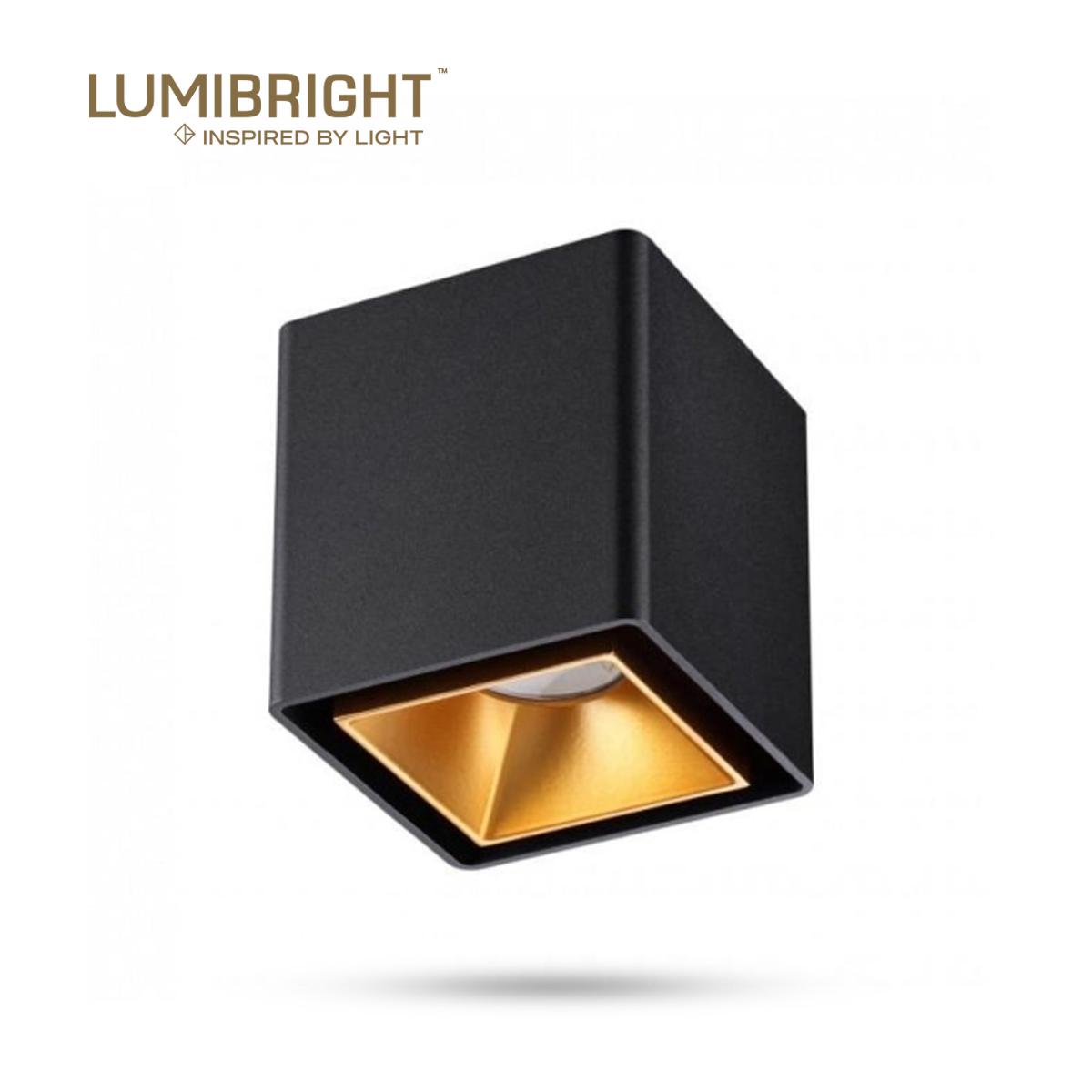

| TEMP-LB2831 | WattageNot published | CCT2700, 3000, 4000 | IPNot published | DimensionsNot published | Cut-outNot published |
Technical Data
Full Specification
| Dimensions | L1000xW30x70mm · Ø210x124mm · 46x330x40mm · L330xW40xH46mm +18 more |
|---|---|
| Cut-out | Not published — technical review required |
| Power | 9W · 10W · 12W · 15W +7 more |
| Lumen output | Not published — technical review required |
| Efficacy | Not published — technical review required |
| Optics / beam angle | 10° · 15° · 30° · 60° +1 more |
| Colour temperature | 2700K · 3000K · 4000K · 6000K +2 more |
| CRI Ra | 80 · 90 |
| R9 | Not published — technical review required |
| TM-30 Rf / Rg | Not published — technical review required |
| UGR | Not published — technical review required |
| IP rating | IP68 · IP20 · IP65 · IP66 +1 more |
| IK rating | Not published — technical review required |
| Ambient temperature (Ta) | Not published — technical review required |
| Driver | Not published — technical review required |
| Dimming / control | Not published — technical review required |
| Input voltage | 24VDC · 12VDC · 100-240VAC · AC +1 more |
| Light source | Not published — technical review required |
| Material | Not published — technical review required |
| Finish | grey-sand · aluminium · black · black-sand +7 more |
| Mounting / installation | Not published — technical review required |
| Net weight | Not published — technical review required |
| Certification | Not published — technical review required |
| Lifetime | Not published — technical review required |
| Warranty | Not published — technical review required |
| Lead time | Not published — technical review required |
8 of 26 specification rows published from the 2026 master data. Values vary by model; missing test data is not estimated. Select an exact model for approval.
Configuration
Select Specification
Select attributes to narrow down variants
Product Lines
30 Products
Dimensions
Technical Drawing
Drawing and sizes shown for model LA1392. This family has 30 models with different dimensions — select a model above, or open its row in the variant table, for its own drawing.
Size — model LA1392
1000xW35xH45mm
Specifications
At a Glance
3–1000W
Power Range
6 options
Beam: 10°, 15°, 30°, 60°, 90°, 120°
6 CCT
2700K, 3000K, 4000K, 5000K, 6000K, 6500K
CRI 70/80/90
Colour Rendering
IP20 / IP65 / IP66 / IP67 / IP68
Protection Rating
11 finishes
Body Finish Options
22 sizes
1000x60x77, 1000x73x80mm, 1000x85x48, 1000xW35xH45mm, 165x180x280mm, 2800x2737x5500mm, 293x130x85mm, 344x184x238mm, 420x320x180mm, 422.5x168x182.5mm, 46x330x40mm, 55x330x40mm, 616x422x280mm, 635x280x150mm, 660x505x180mm, H4000xW460mm, L1000xW28xH52.3mm, L1000xW30x70mm, L330xW40xH46mm, Ø210x124mm, Ø71xH41mm, Ø90x62mm
Configure your product
LA1340
Order code
Listed configurationLA1340.T.9TU.PAB.120
1 listed configurations · availability requires confirmation
Accessories & components
All accessories ↗
LA011
LUMIARC LA011 - LIGHTING ACCESSORIES
LA007
LUMIARC LA007 - LIGHTING ACCESSORIES
LA012
LUMIARC LA012 - LIGHTBOX ACCESSORIES
LA001
LUMIARC LA001 - LIGHTING ACCESSORIES

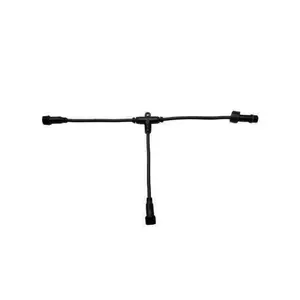

LA008
LUMIARC LA008 - LIGHTING ACCESSORIES
LA009
LUMIARC LA009 - LIGHTING ACCESSORIES

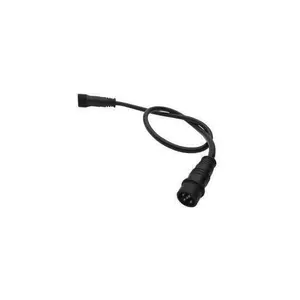

LA010
LUMIARC LA010 - LIGHTING ACCESSORIES

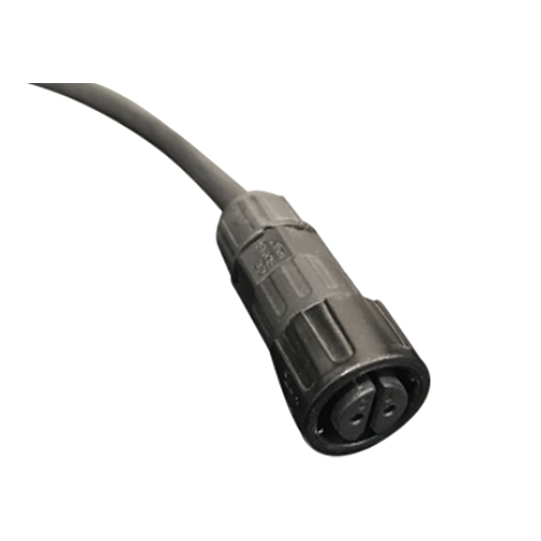

LA001
LUMIARC POWER INPUT CABLE 1M LA001

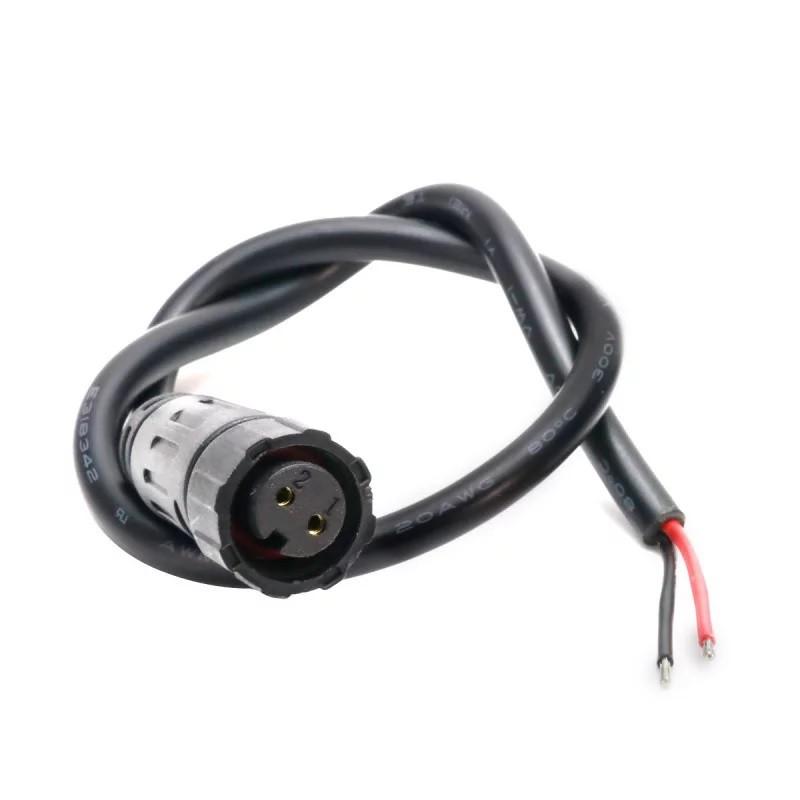

LA012
LUMIARC MALE CONNECTOR WITH CABLE LENGTH 2000MM LA012
LA010
LUMIARC WATERPROOF 5-PIN BLACK FEMALE CONNECTOR
LA011

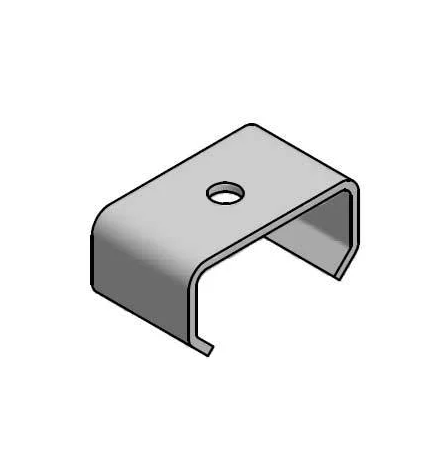

LUMIARC STEEL TYPE CLIP FOR FIXING LINAER LIGHT LA011
