Pendant Light
DUNE
DUNE is a pendant light family within the LUMIBRIGHT Lumi Deco collection. The current catalogue groups 8 article codes under this family, including LD133501S, LD133502S, LD133503S. For LD133501S, published values include power: 32W; colour temperature: 3000K; IP rating: IP20; dimensions: Ø360x1200mm. Each article represents its own physical model; dimensions and electrical or optical options must be checked against that exact code. Compare the DUNE articles using the specification table and individual model pages before adding them to a lighting schedule. Wattage, colour temperature, protection rating and installation dimensions are catalogue values, not a guarantee that every combination can be ordered. Where a value is not published, request the relevant model documentation rather than assuming it matches another article. Confirm the selected configuration, driver requirements, installation detail and project documentation with the specification team before ordering.
Model specifications
| Article | Wattage | CCT | IP | Dimensions | Cut-out |
|---|---|---|---|---|---|

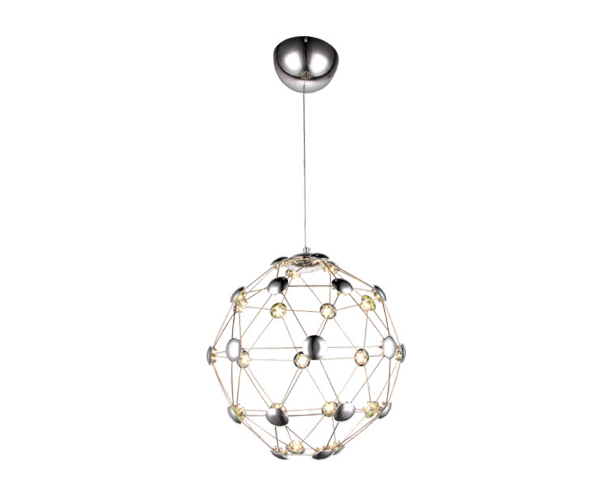

| LD133501S | Wattage32W | CCT3000K | IPIP20 | DimensionsØ360x1200mm | Cut-outNot published |

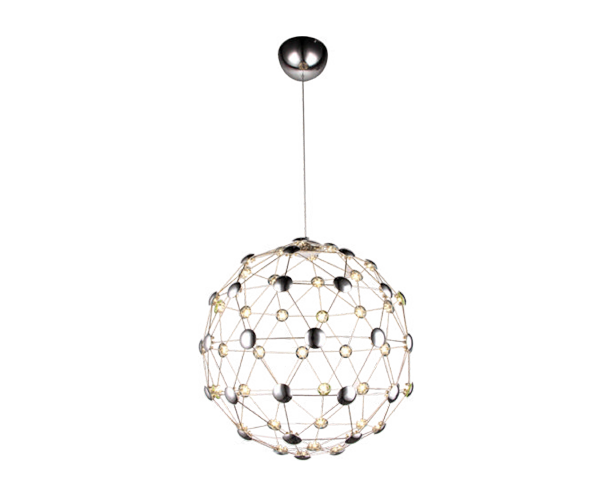

| LD133502S | Wattage60W | CCT3000K | IPIP20 | DimensionsØ550x1200mm | Cut-outNot published |

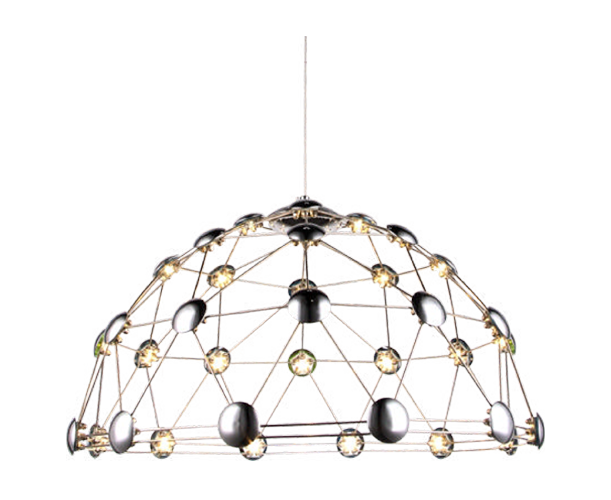

| LD133503S | Wattage36W | CCT3000K | IPIP20 | DimensionsØ550x1200mm | Cut-outNot published |

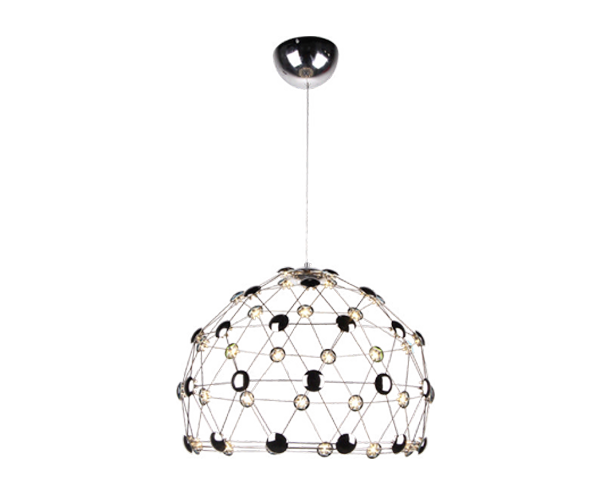

| LD133504S | Wattage48W | CCT3000K | IPIP20 | DimensionsØ550x1200mm | Cut-outNot published |

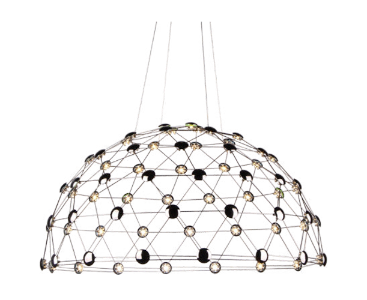

| LD133505S | Wattage72W | CCT3000K | IPIP20 | DimensionsØ820x1200mm | Cut-outNot published |

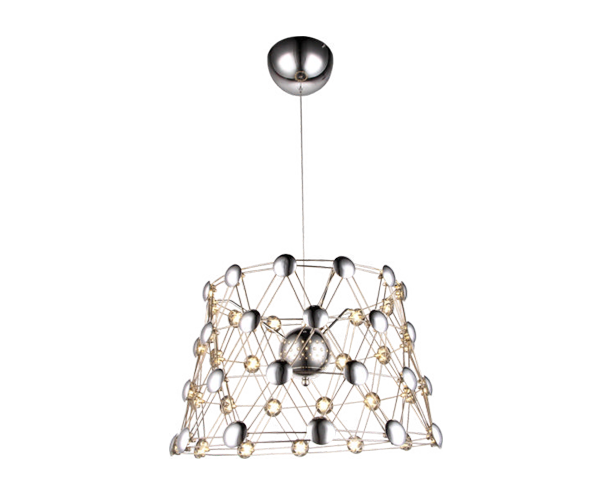

| LD133506S | Wattage48W | CCT3000K | IPIP20 | DimensionsØ450x1200mm | Cut-outNot published |

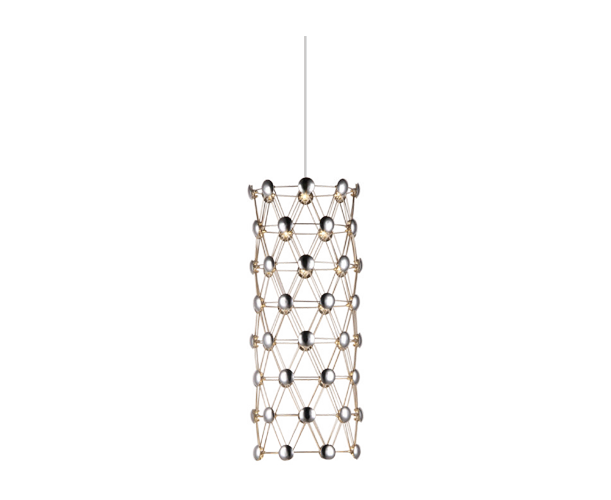

| LD133507S | Wattage21.6W | CCT3000K | IPIP20 | DimensionsØ260x1200mm | Cut-outNot published |

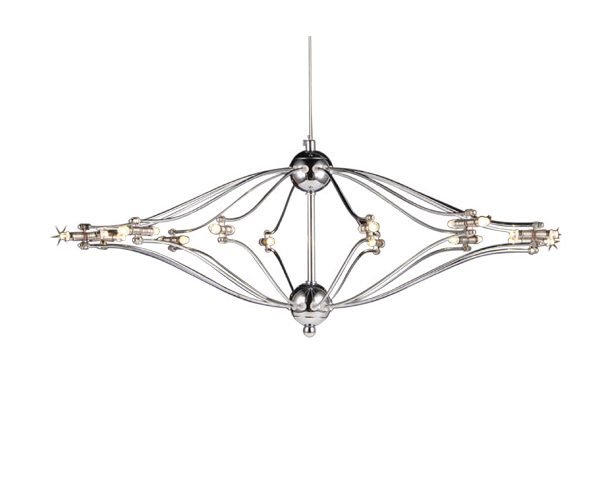

| LD133508S | Wattage4.8W | CCT3000K | IPIP20 | DimensionsØ600x230mm | Cut-outNot published |
Technical Data
Full Specification
| Dimensions | Ø360x1200mm · Ø550x1200mm · Ø820x1200mm · Ø450x1200mm +2 more |
|---|---|
| Cut-out | Not published — technical review required |
| Power | 4.8W · 21.6W · 32W · 36W +3 more |
| Lumen output | Not published — technical review required |
| Efficacy | Not published — technical review required |
| Optics / beam angle | Not published — technical review required |
| Colour temperature | 3000K |
| CRI Ra | 80 · ≥80 |
| R9 | Not published — technical review required |
| TM-30 Rf / Rg | Not published — technical review required |
| UGR | Not published — technical review required |
| IP rating | IP20 |
| IK rating | Not published — technical review required |
| Ambient temperature (Ta) | Not published — technical review required |
| Driver | Not published — technical review required |
| Dimming / control | Not published — technical review required |
| Input voltage | 100-240VAC |
| Light source | Not published — technical review required |
| Material | Stainless Steel+Wire+Iron+Acrylic |
| Finish | chrome · nickel |
| Mounting / installation | Not published — technical review required |
| Net weight | Not published — technical review required |
| Certification | Not published — technical review required |
| Lifetime | Not published — technical review required |
| Warranty | 3 Years |
| Lead time | Not published — technical review required |
9 of 26 specification rows published from the 2026 master data. Values vary by model; missing test data is not estimated. Select an exact model for approval.
Configuration
Select Specification
Select attributes to narrow down variants
Product Lines
8 Products
Dimensions
Technical Drawing
Drawing and sizes shown for model LD133501S. This family has 8 models with different dimensions — select a model above, or open its row in the variant table, for its own drawing.
Size — model LD133501S
Ø360x1200mm
Specifications
At a Glance
4.8–72W
Power Range
1 CCT
3000K
CRI 80
Colour Rendering
IP20
Protection Rating
2 finishes
Body Finish Options
6 sizes
Ø260x1200mm, Ø360x1200mm, Ø450x1200mm, Ø550x1200mm, Ø600x230mm, Ø820x1200mm
