Pendant Light
LUMIDECO
218 product lines·364 total variants·luminaire·suspended
LUMIDECO is a pendant light family within the LUMIBRIGHT Lumi Deco collection. The current catalogue groups 218 article codes under this family, including LD110701S, LD110718W, LD111207S. For LD110701S, published values include dimensions: Ø80x1000mm. Each article represents its own physical model; dimensions and electrical or optical options must be checked against that exact code. Compare the LUMIDECO articles using the specification table and individual model pages before adding them to a lighting schedule. Wattage, colour temperature, protection rating and installation dimensions are catalogue values, not a guarantee that every combination can be ordered. Where a value is not published, request the relevant model documentation rather than assuming it matches another article. Confirm the selected configuration, driver requirements, installation detail and project documentation with the specification team before ordering.
Model specifications
| Article | Wattage | CCT | IP | Dimensions | Cut-out |
|---|---|---|---|---|---|

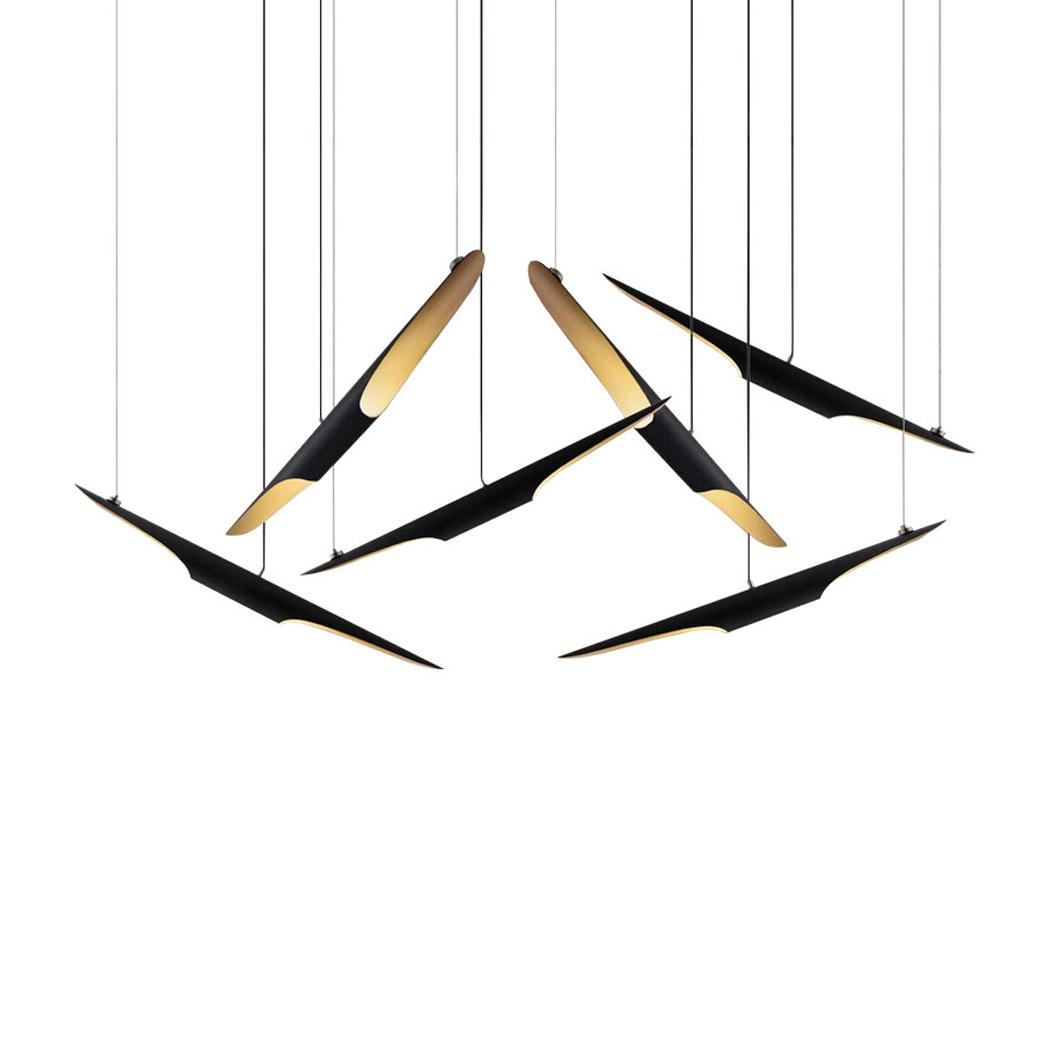

| LD110701S | WattageNot published | CCTNot published | IPNot published | DimensionsØ80x1000mm | Cut-outNot published |
| LD110718W | Wattage16W | CCT3000K | IPNot published | Dimensions100x95x980mm | Cut-outNot published |
| LD111207S | Wattage8W | CCT3000K | IPNot published | DimensionsØ260xH240mm | Cut-outNot published |
| LD111208S | Wattage8W | CCT3000K | IPNot published | DimensionsØ330xH170mm | Cut-outNot published |
| LD111301S | Wattage12W | CCT4000K, 3000K | IPIP20 | DimensionsØ245x2000 | Cut-outNot published |
| LD112104S | WattageNot published | CCT3000K | IPIP20 | Dimensions1560x2670mm | Cut-outNot published |

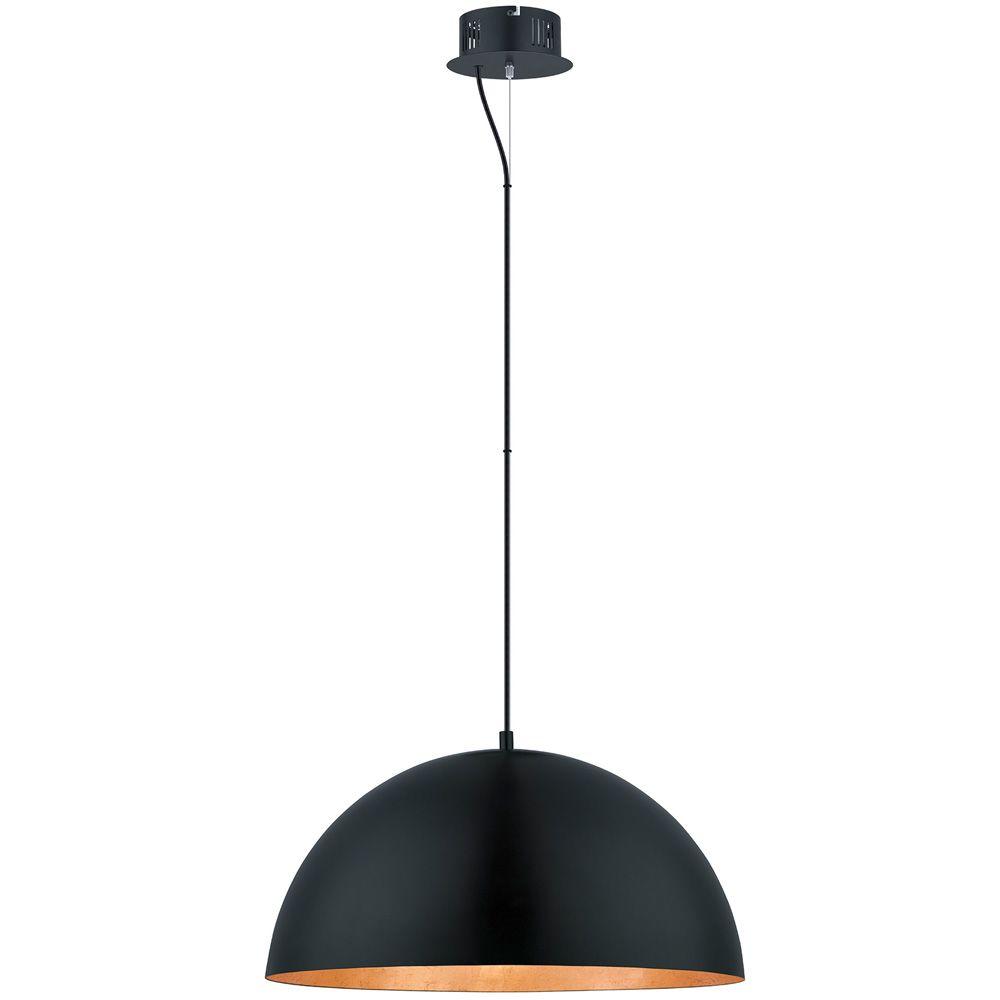

| LD113107S | Wattage24W | CCT3000K | IPNot published | DimensionsØ530x1100mm | Cut-outNot published |
| LD113117S | Wattage24W | CCT3000K | IPNot published | DimensionsØ350xH205mm | Cut-outNot published |
| LD113118S | Wattage36W | CCT3000K | IPNot published | DimensionsØ500xH250mm | Cut-outNot published |
| LD113119C | Wattage24W | CCT3000K | IPNot published | DimensionsØ350xH230mm | Cut-outNot published |
| LD113120C | Wattage36W | CCT3000K | IPNot published | DimensionsØ500xH300mm | Cut-outNot published |
| LD113121C | Wattage24W | CCT3000K | IPNot published | DimensionsØ350xH190mm | Cut-outNot published |
| LD113122C | Wattage36W | CCT3000K | IPNot published | DimensionsØ500xH240mm | Cut-outNot published |
| LD114413S | Wattage88W | CCT3000K | IPNot published | DimensionsØ600+Ø450+Ø300mm | Cut-outNot published |
| LD118406S | Wattage20W | CCT3000K | IPIP20 | DimensionsØ600x400mm, Ø60xW400mm | Cut-outNot published |
| LD121001S | Wattage3W | CCT3000K | IPNot published | DimensionsØ100mm | Cut-outNot published |
| LD122504S | Wattage3W | CCTNot published | IPIP20 | DimensionsØ900xH4000mm | Cut-outNot published |
| LD125531W | Wattage3W | CCTNot published | IPIP20 | DimensionsØ30x110x110mm | Cut-outNot published |
| LD125532W | Wattage3W | CCT3000K | IPIP20 | DimensionsØ25x350x60mm | Cut-outNot published |
| LD133412S | Wattage80W | CCT3000K | IPNot published | Dimensions900x350x400mm | Cut-outNot published |

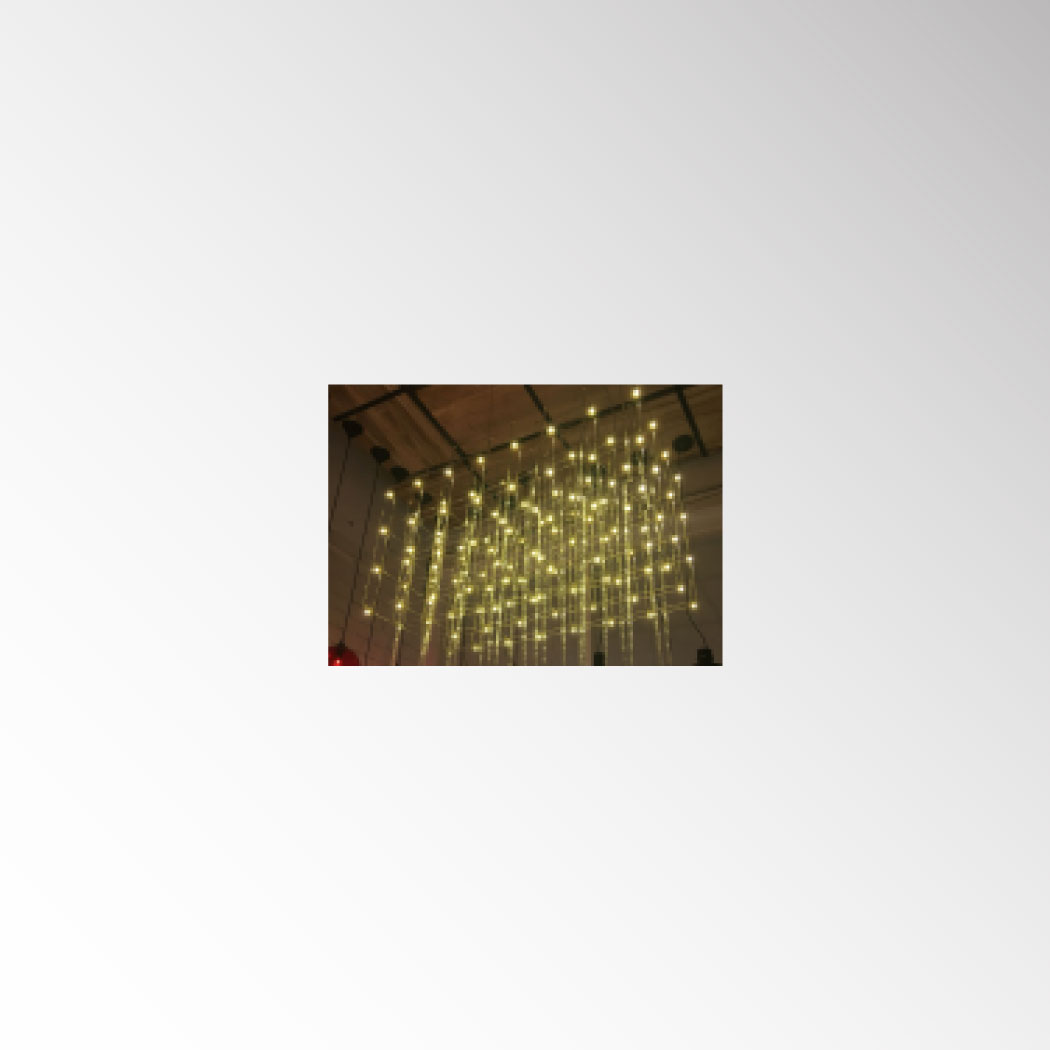

| LD133413S | Wattage200W | CCT3000K | IPNot published | Dimensions1250x650x520m | Cut-outNot published |
| LD133414S | Wattage300W | CCT3000K | IPNot published | Dimensions1950x1000x1420mm | Cut-outNot published |
| LD139713S | Wattage136W, 155W | CCT3000K | IPIP20 | DimensionsØ1200x1800MM | Cut-outNot published |
| LD139720S | Wattage53W | CCT3000K | IPIP20 | Dimensions1930x917x1500mm, L1930xW914xH1500mm | Cut-outNot published |
| LD140806S | Wattage5W | CCT3000K | IPIP20 | DimensionsØ32xH500mm | Cut-outNot published |
| LD142805S | Wattage3x5W | CCT3000K | IPIP20 | DimensionsØ110+Ø130+Ø150mm | Cut-outNot published |
| LD144817W | Wattage8W | CCT3000K | IPNot published | Dimensions115x400mm | Cut-outNot published |
| LD144818W | Wattage8W | CCT3000K | IPNot published | DimensionsØ350xH130mm | Cut-outNot published |
| LD145912S | Wattage3W, 5W | CCT3000K | IPIP20 | Dimensions300x330x22mm | Cut-outNot published |
| LD145932S | Wattage6W | CCT3000K | IPIP20 | DimensionsØ400x22x430mm | Cut-outNot published |

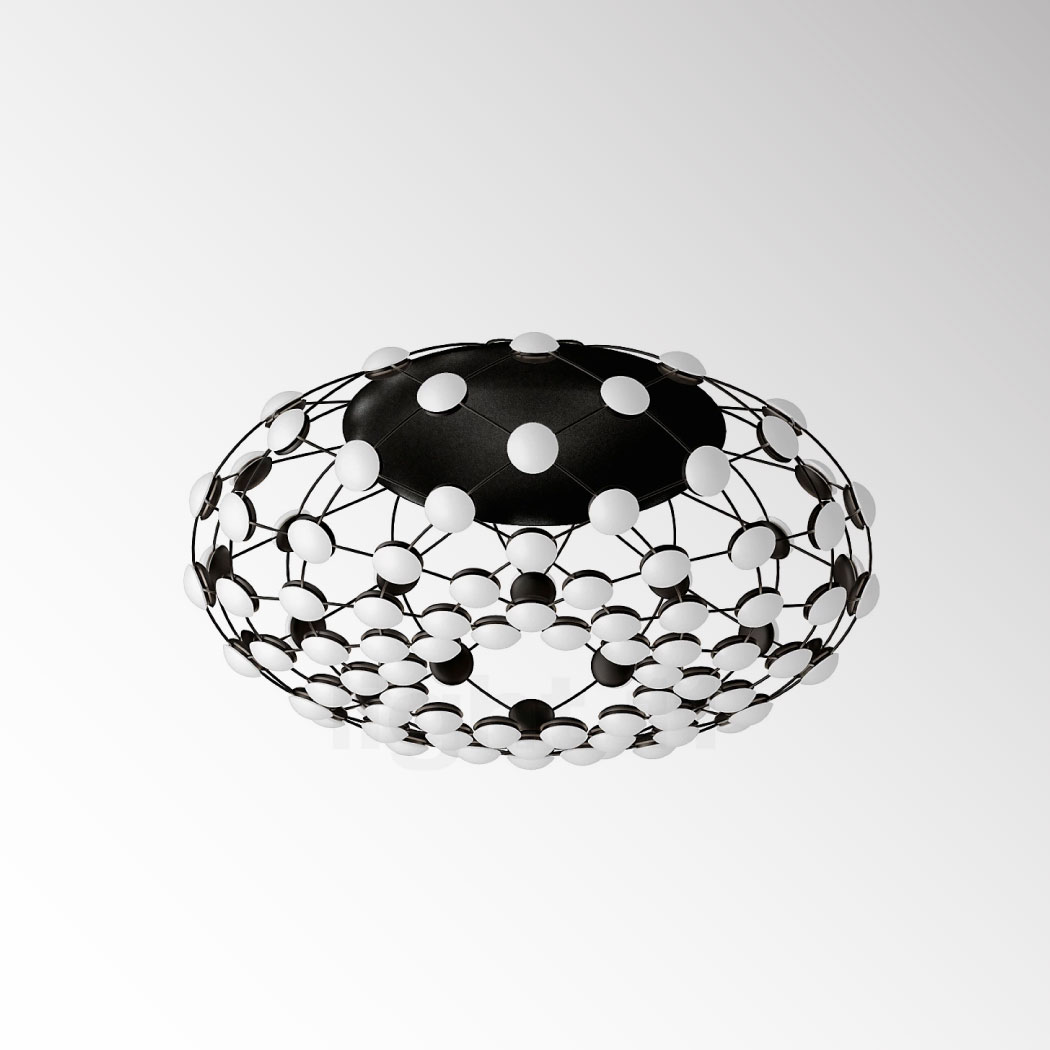

| LD146003C | Wattage100W | CCT3000K | IPNot published | DimensionsØ800x370mm | Cut-outNot published |

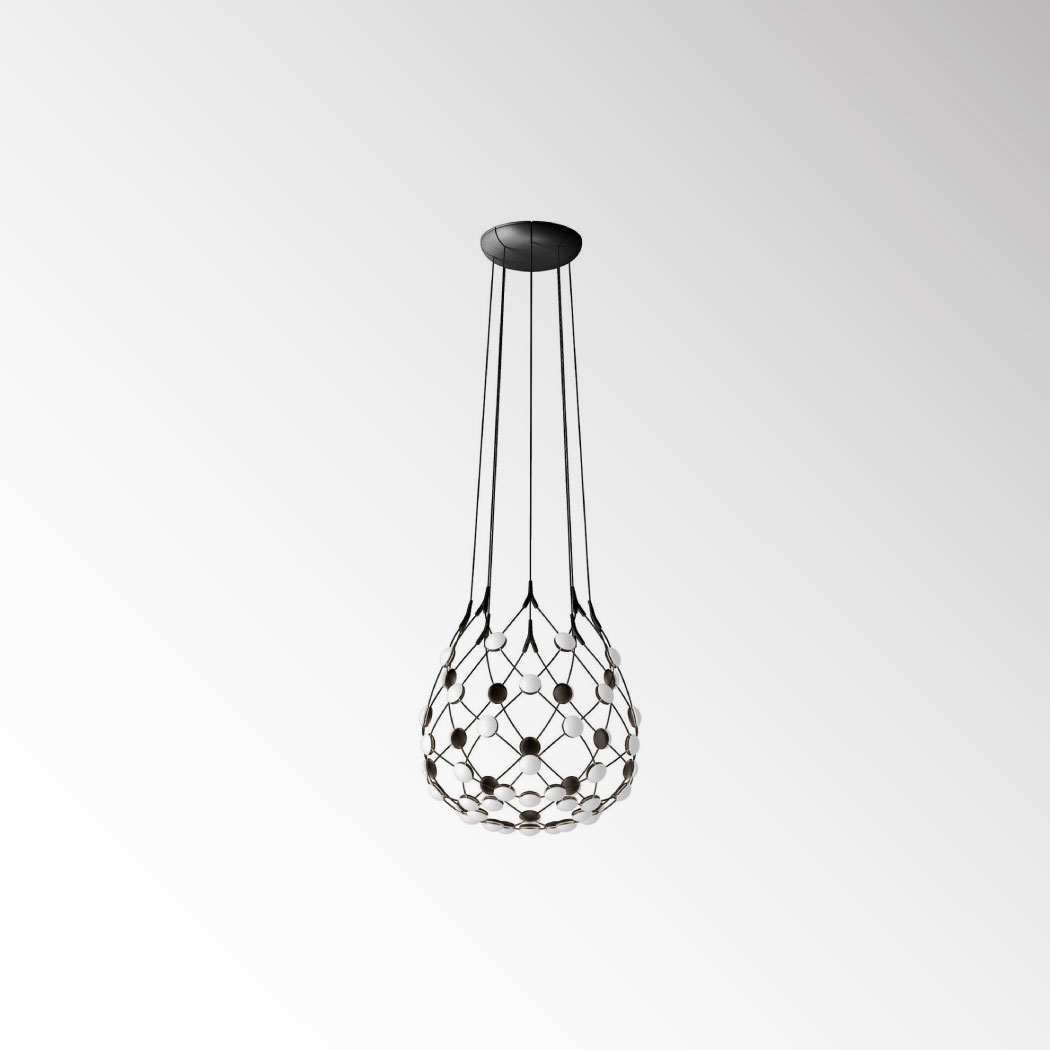

| LD146004S | Wattage50W | CCT3000K | IPNot published | DimensionsØ600x470mm | Cut-outNot published |

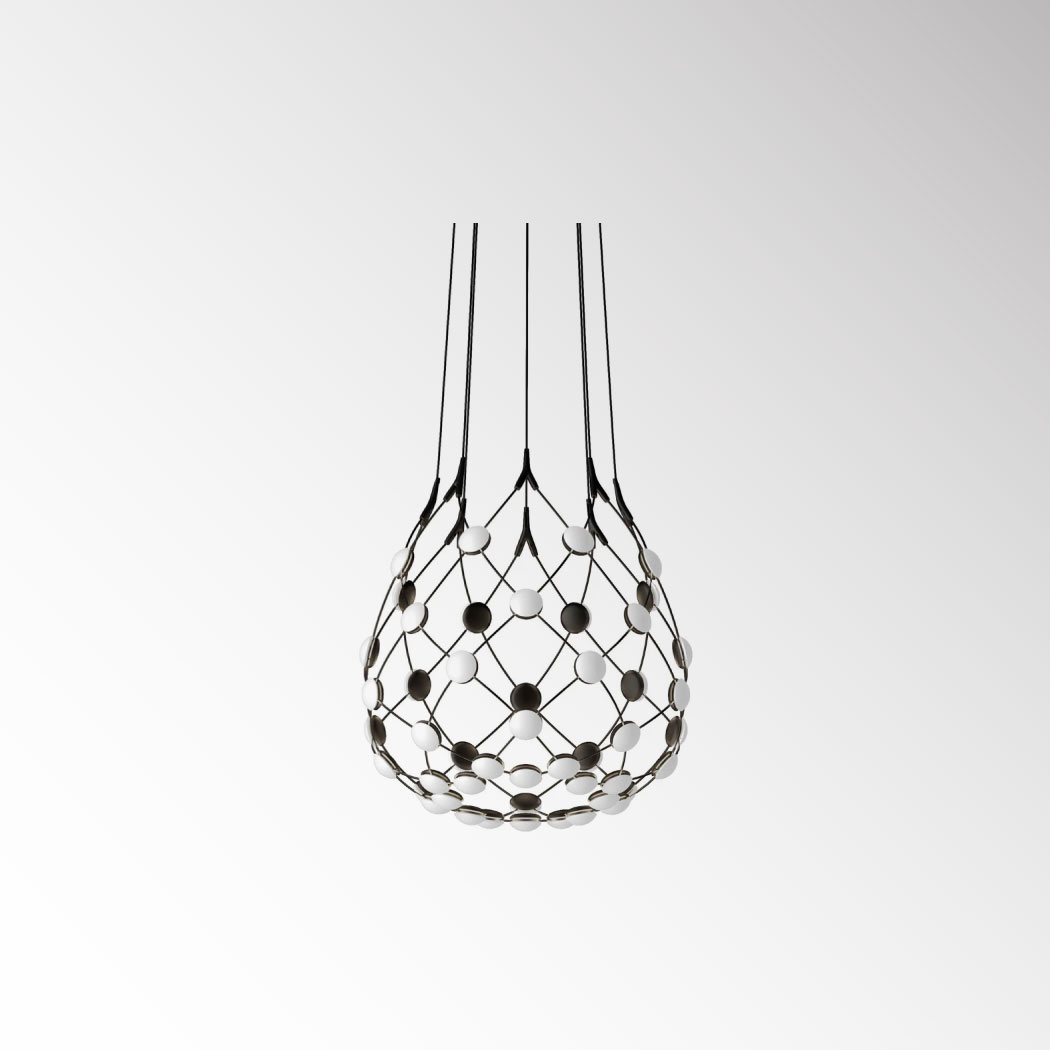

| LD146005S | Wattage100W | CCT3000K | IPNot published | DimensionsØ800x620mm | Cut-outNot published |

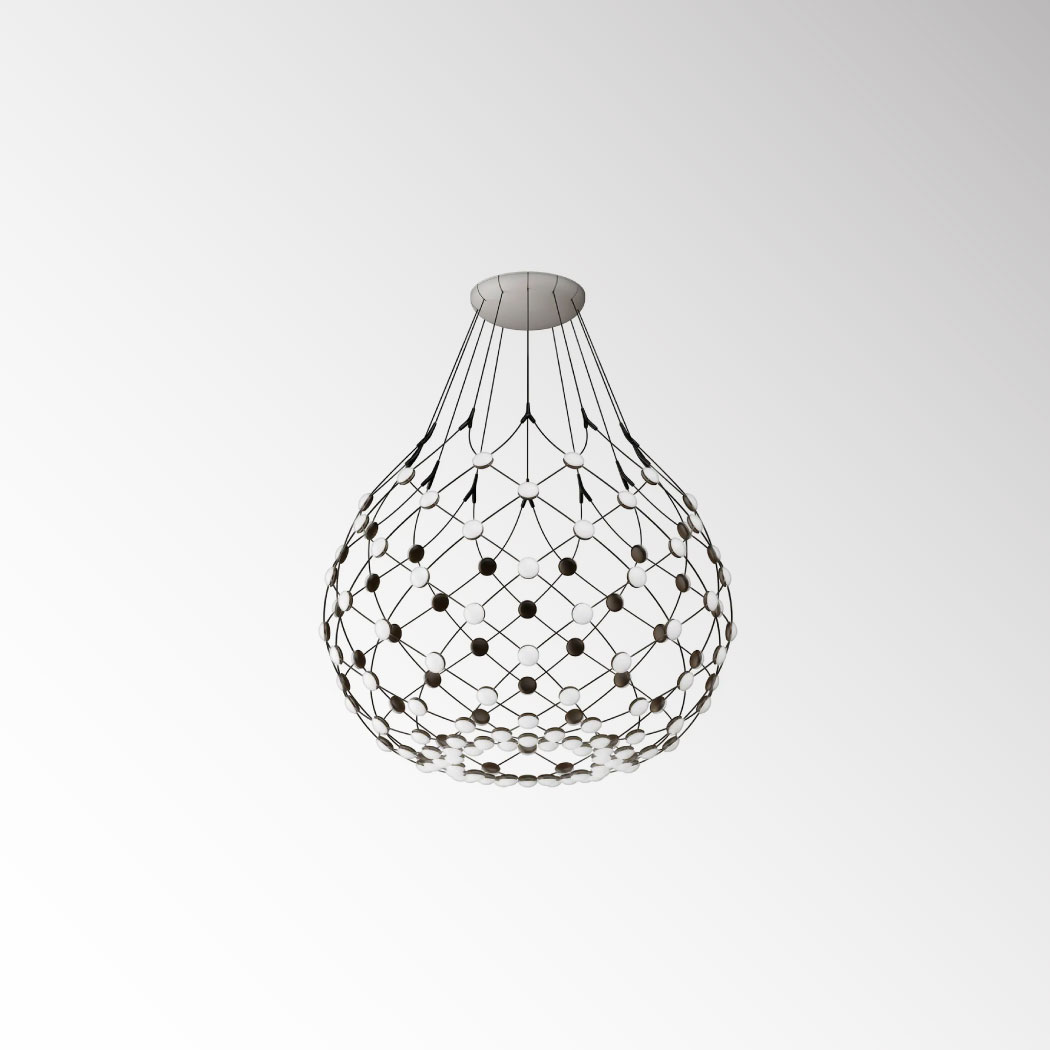

| LD146006S | Wattage120W | CCT3000K | IPNot published | DimensionsØ1050x750mm | Cut-outNot published |
| LD147206S | Wattage80W | CCT3000K | IPNot published | Dimensions680x1200mm | Cut-outNot published |
| LD150116S | Wattage98W | CCTNot published | IPNot published | DimensionsØ800+Ø1000mm | Cut-outNot published |
| LD150208S | WattageNot published | CCT3000K | IPNot published | DimensionsØ600+800+1000mm | Cut-outNot published |

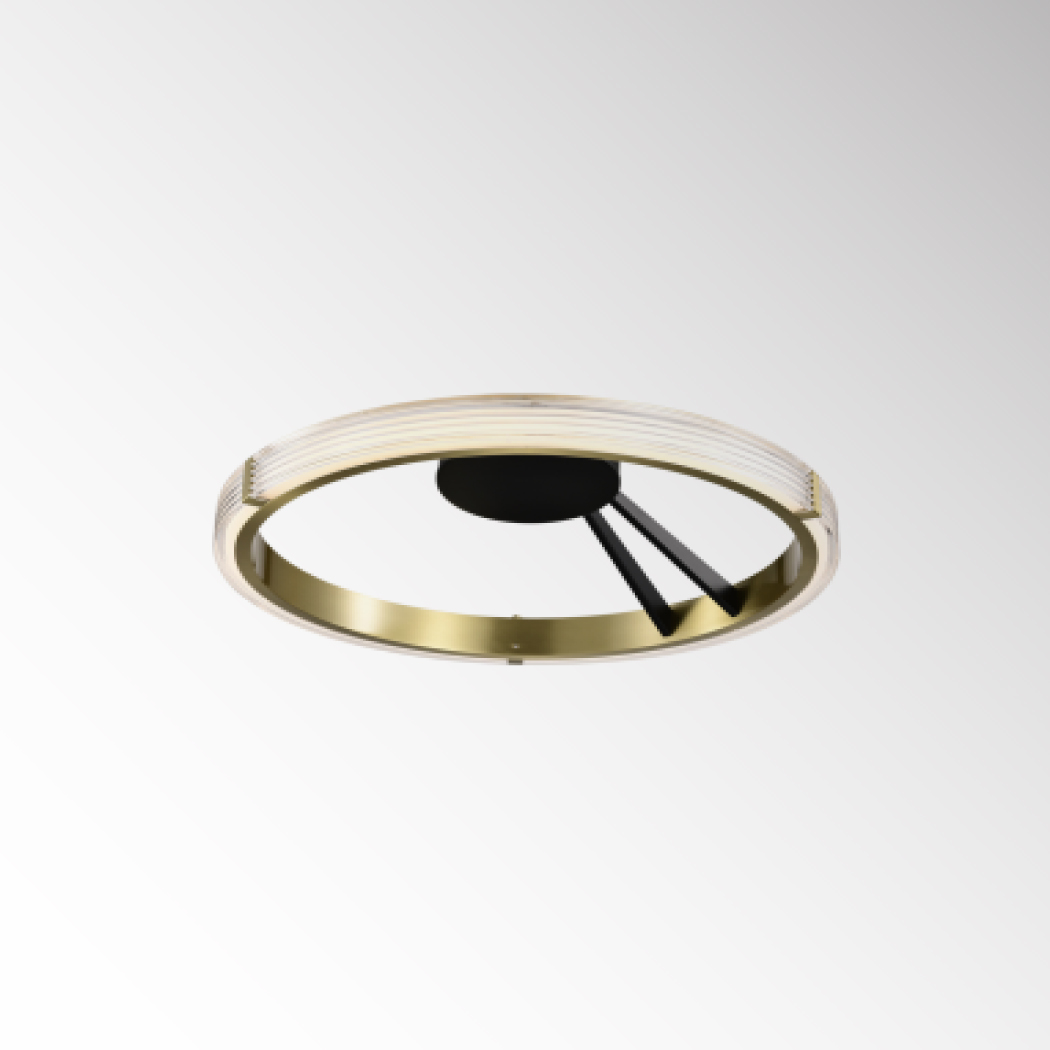

| LD150309C | Wattage30W | CCT3000K | IPNot published | DimensionsØ600xH135mm | Cut-outNot published |
| LD151703S | Wattage30W | CCT3000K | IPIP20 | DimensionsL1300mm | Cut-outNot published |
| LD152503W | Wattage3W | CCT3000K | IPIP20 | DimensionsH500mm | Cut-outNot published |
| LD152504W | Wattage3W | CCT3000K | IPNot published | Dimensions600x80mm | Cut-outNot published |
| LD152603W | Wattage3W | CCT3000K | IPIP20 | Dimensions200x310x65mm | Cut-outNot published |

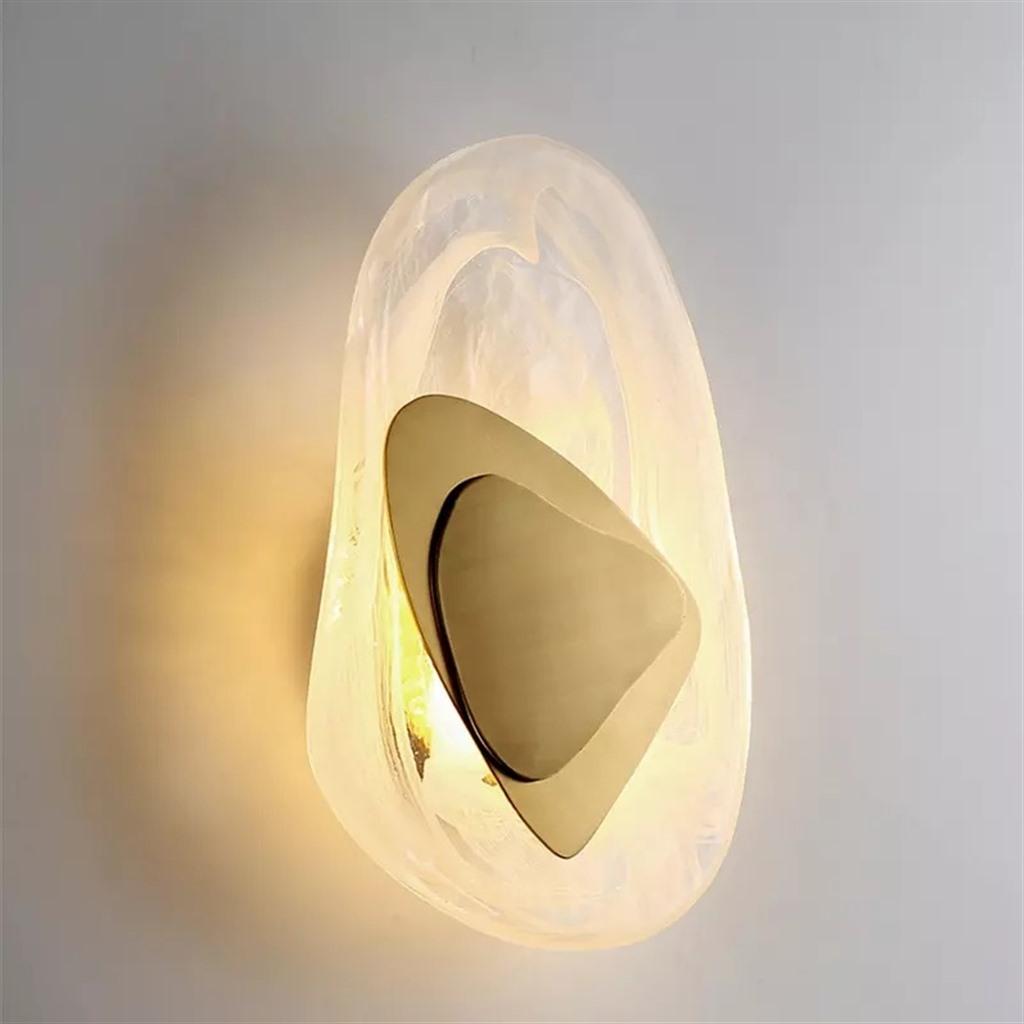

| LD152604W | Wattage9W | CCT3000K | IPIP20 | DimensionsL200xH310xmm | Cut-outNot published |
| LD153002S | Wattage5W | CCT3000K | IPIP20 | DimensionsD300xH300mm, Ø300xH300mm | Cut-outNot published |
| LD153015S | Wattage5W | CCT3000K | IPIP20 | DimensionsØ310xH125mm, Ø310xH125x1500mm | Cut-outNot published |
| LD153111S | Wattage7W | CCT3000K | IPNot published | DimensionsØ200x259mm, Ø200xH259mm | Cut-outNot published |
| LD153410S | Wattage2W, 6W | CCT3000K | IPIP20 | DimensionsØ25x300mm | Cut-outNot published |

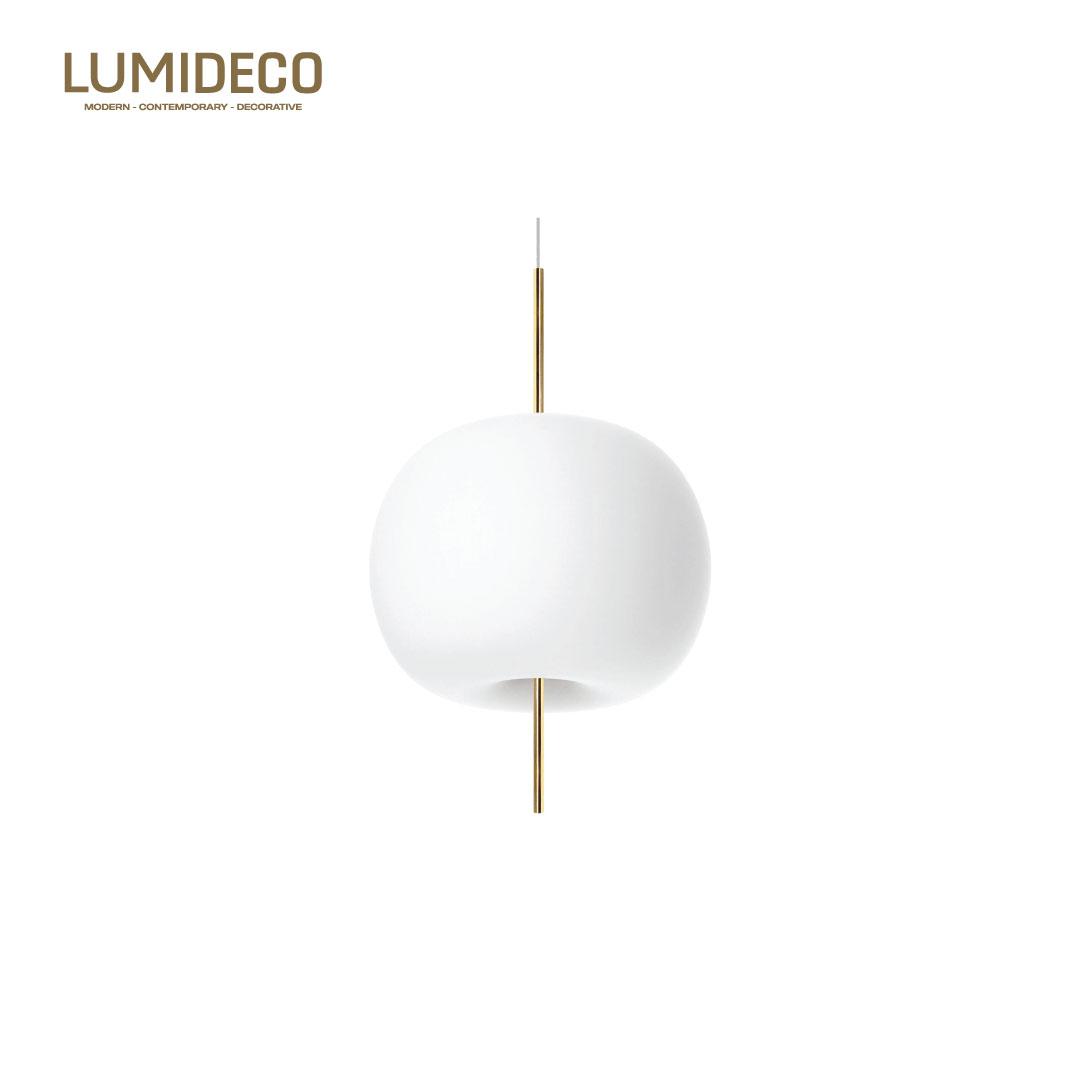

| LD153611S | Wattage8W | CCT3000K | IPIP20 | DimensionsØ160x180mm | Cut-outNot published |

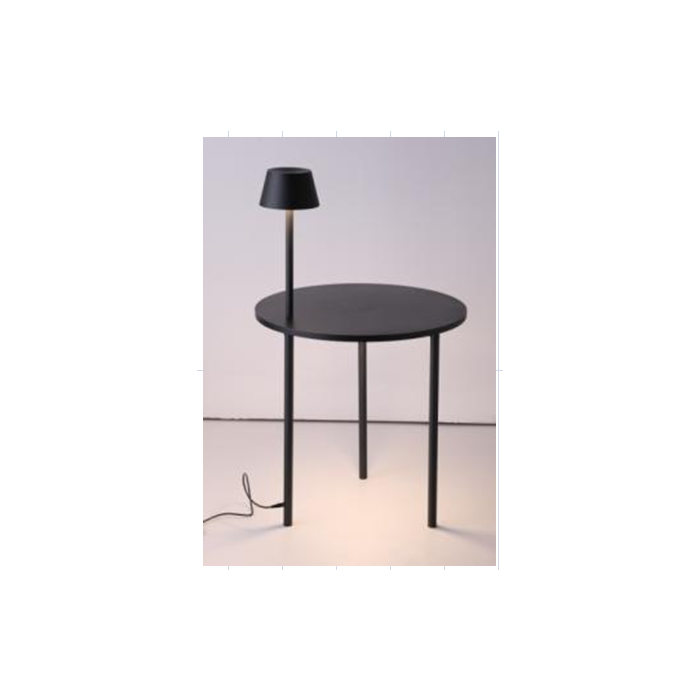

| LD153703F | WattageNot published | CCTNot published | IPNot published | DimensionsNot published | Cut-outNot published |
| LD153902S | Wattage24W | CCT3000K | IPIP20 | DimensionsØ600x150mm | Cut-outNot published |
| LD153904S | Wattage48W | CCT3000K | IPIP20 | Dimensions1000x150mm | Cut-outNot published |
| LD153912S | Wattage50W | CCT3000K | IPNot published | DimensionsD1300mm/D900mm/D600mm | Cut-outNot published |
| LD154105S | Wattage63x0.3W | CCT3000K | IPNot published | DimensionsØ980xH650mm | Cut-outNot published |
| LD155004S | Wattage5W | CCTNot published | IPNot published | DimensionsØ260x230x1500mm | Cut-outNot published |

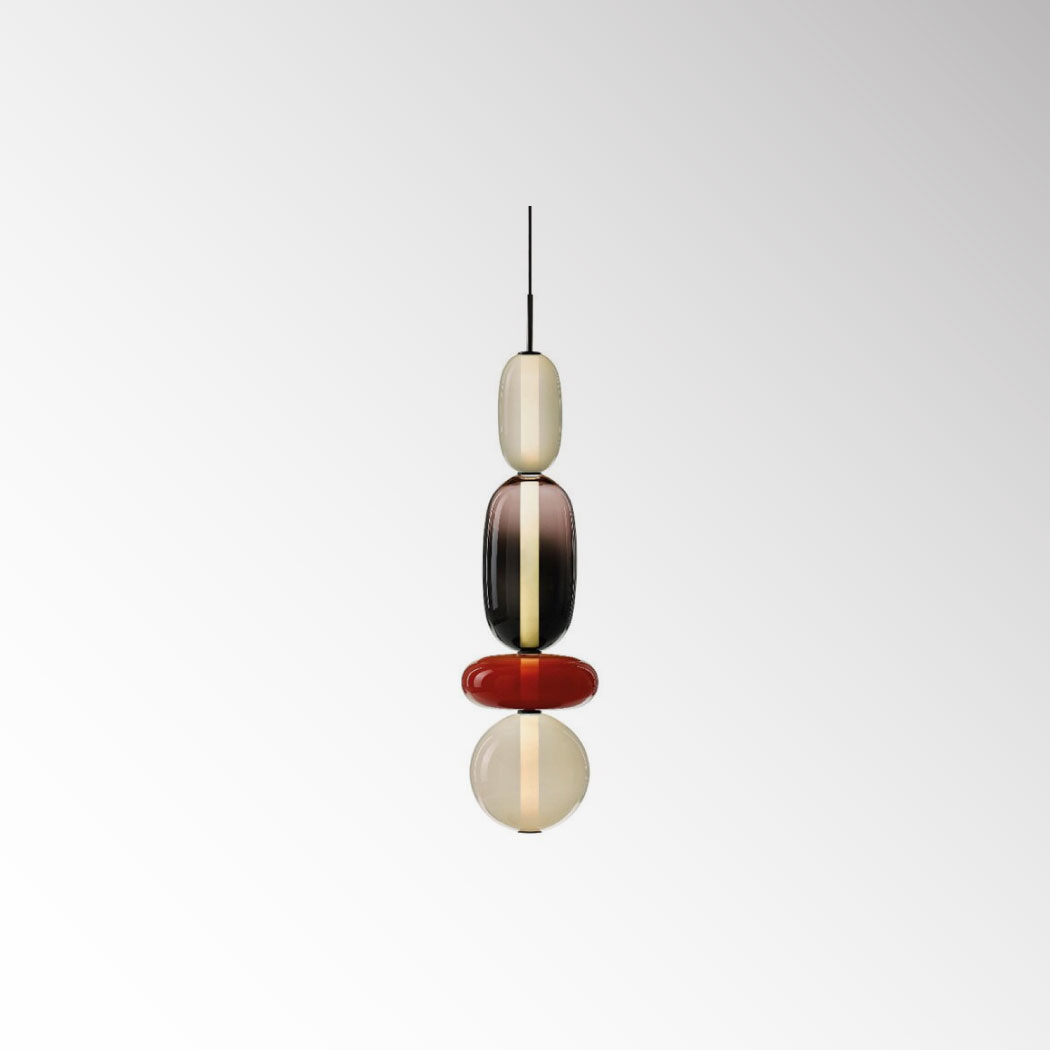

| LD155504S | Wattage20W | CCT3000K | IPNot published | DimensionsØ140x670mm | Cut-outNot published |

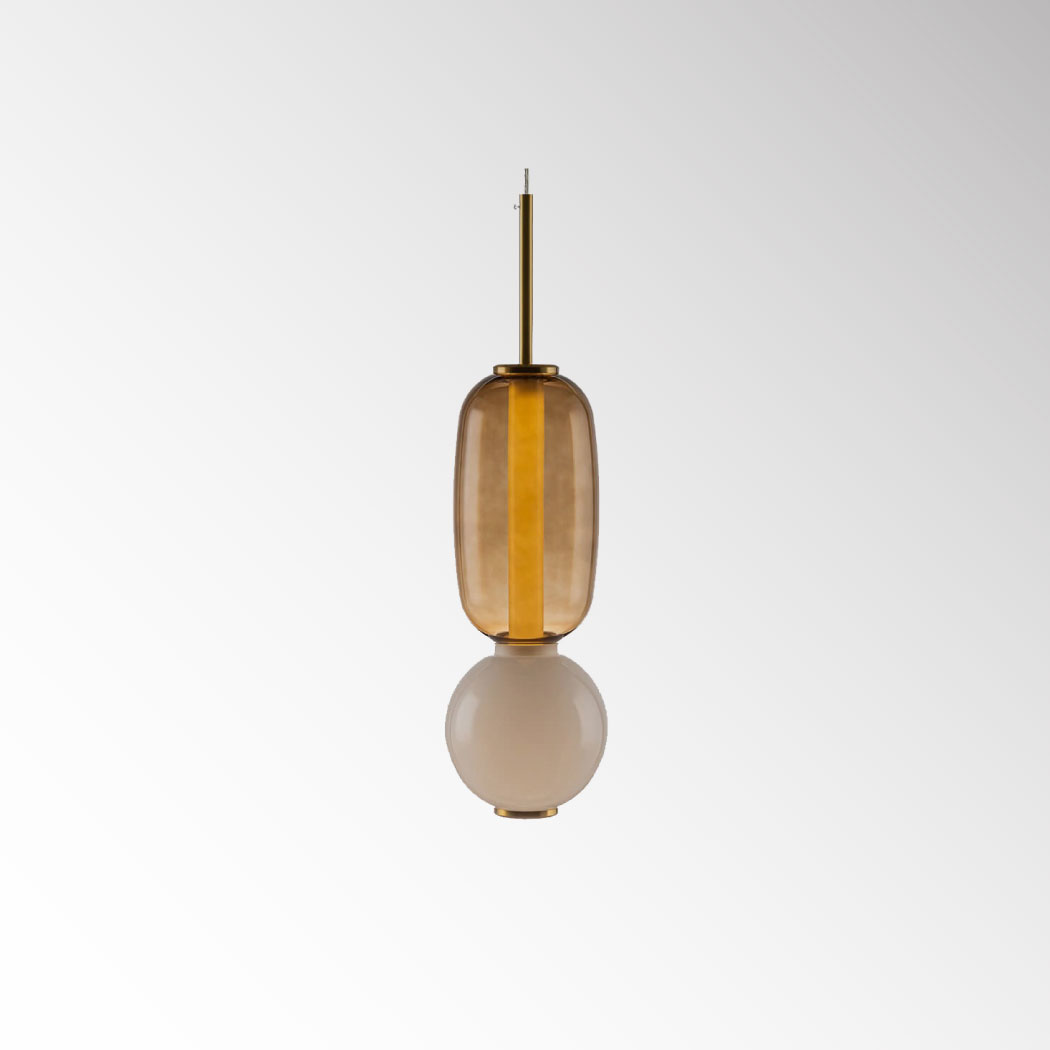

| LD155505S | Wattage10W | CCT3000K | IPNot published | DimensionsØ140x400mm | Cut-outNot published |

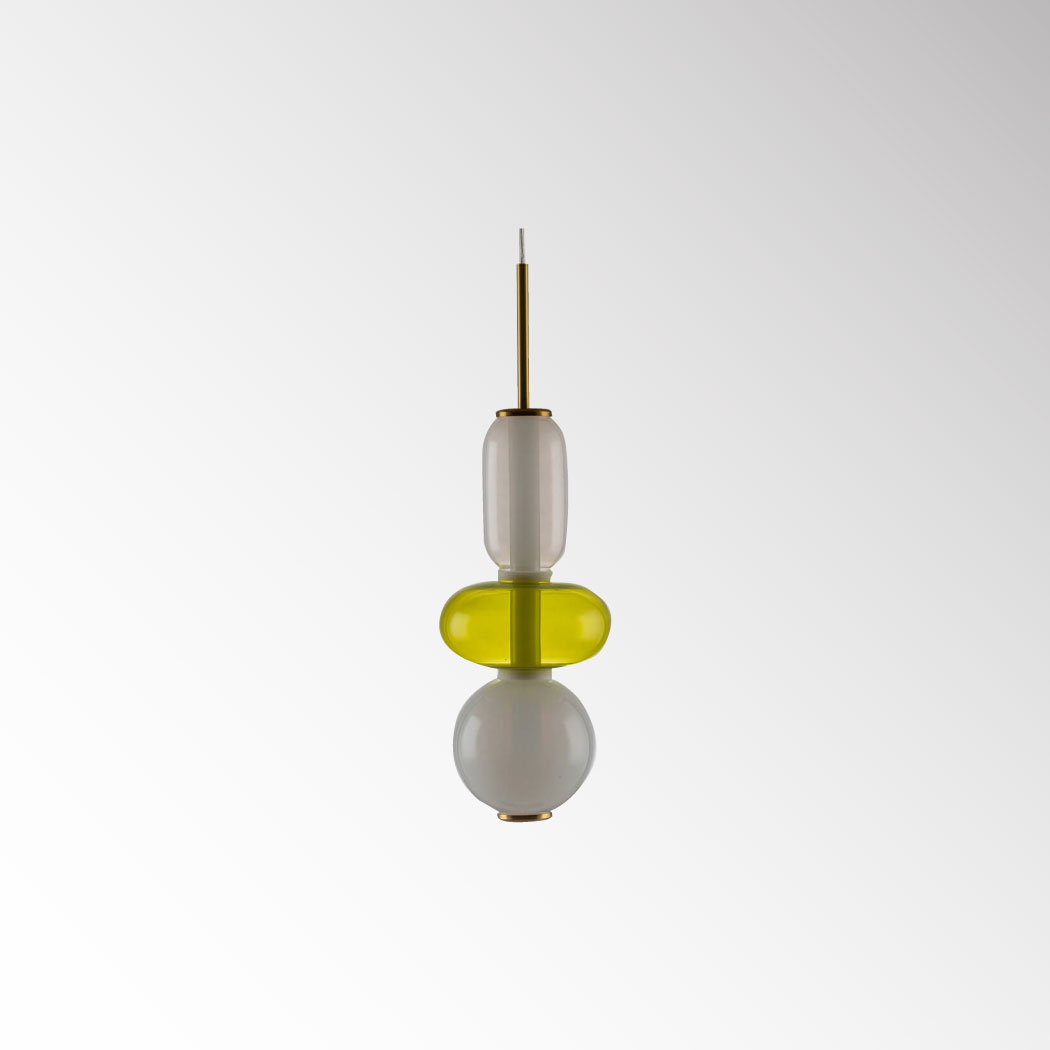

| LD155506S | Wattage10W | CCT3000K | IPNot published | DimensionsØ140x430mm | Cut-outNot published |

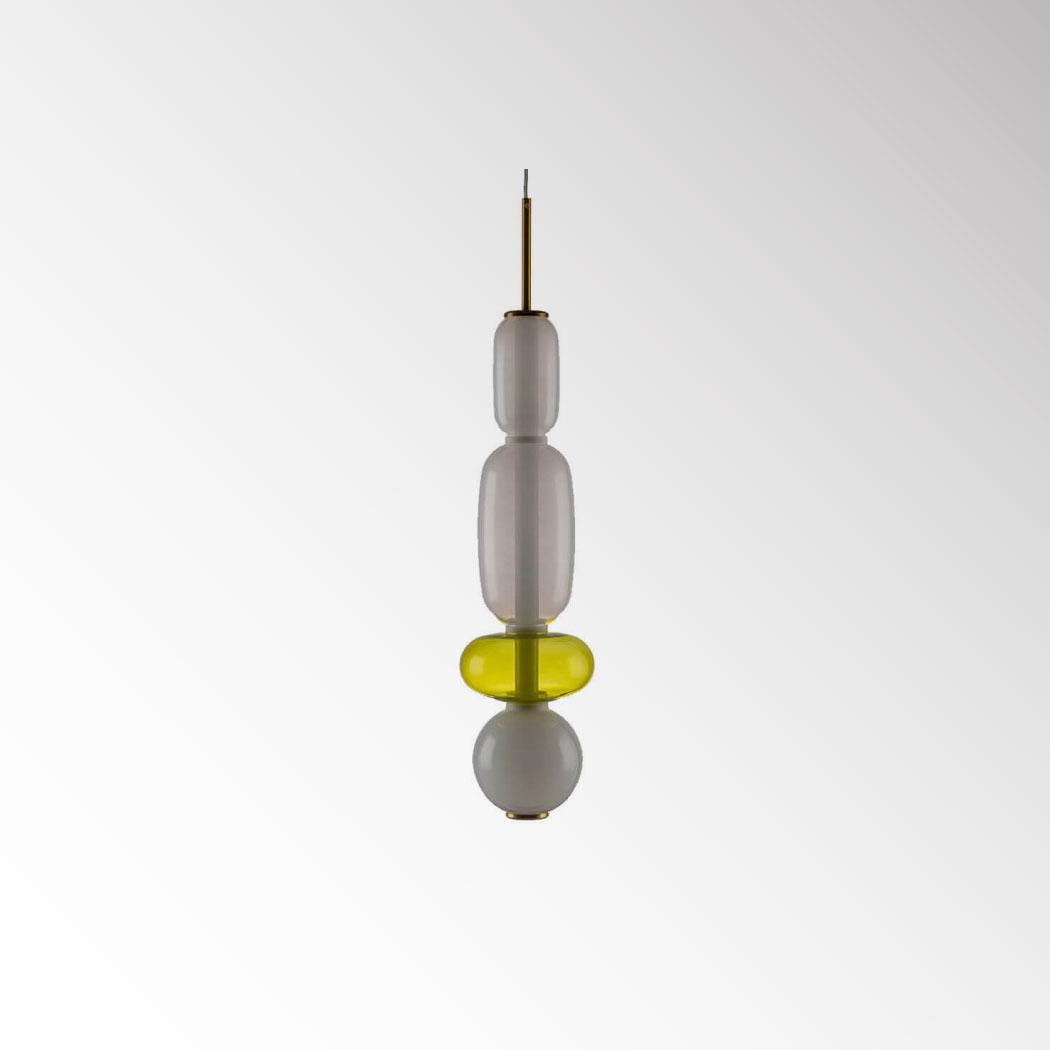

| LD155507S | Wattage20W | CCT3000K | IPNot published | DimensionsØ140x670mm | Cut-outNot published |

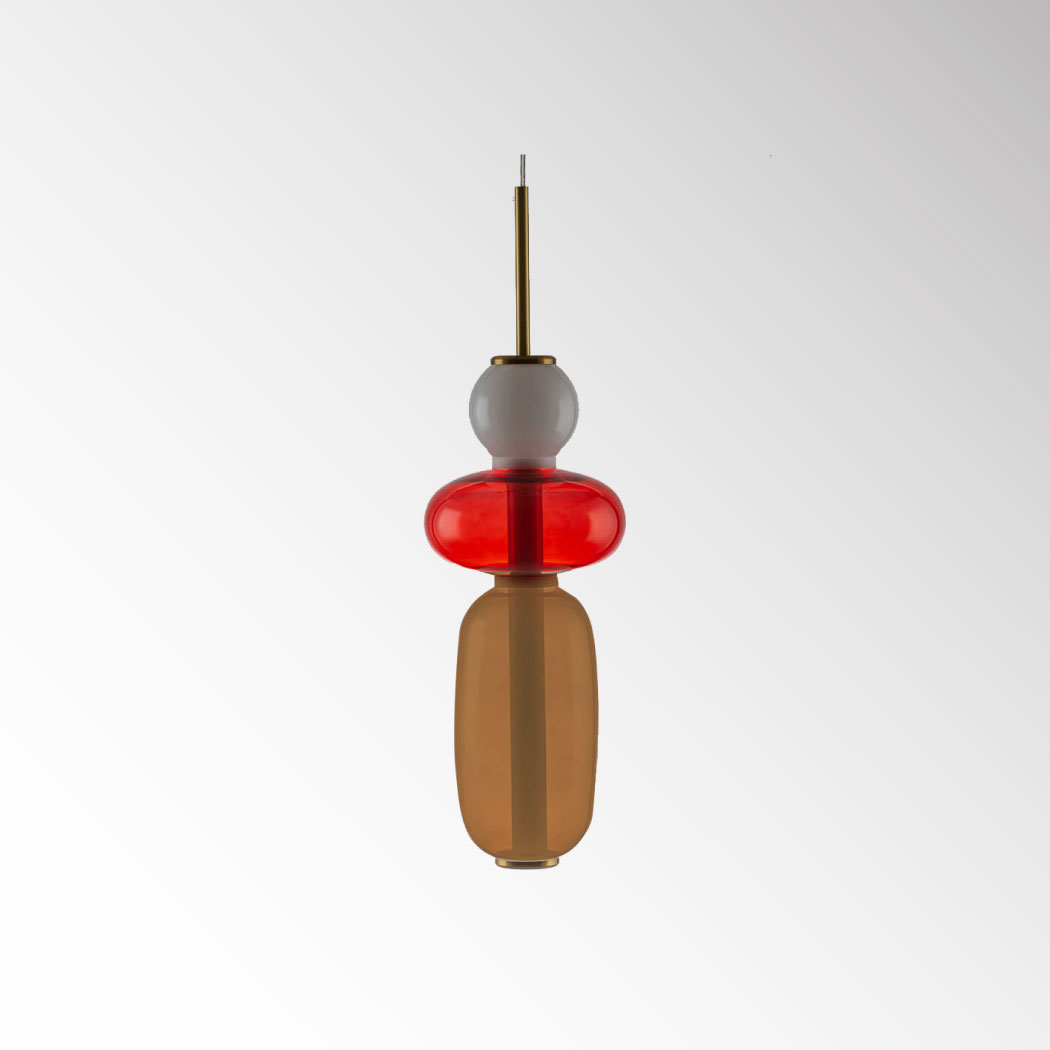

| LD155508S | Wattage10W | CCT3000K | IPNot published | DimensionsØ140x440mm | Cut-outNot published |
| LD155601S | Wattage8W | CCT3000K | IPIP20 | DimensionsØ300xH350mm, Ø300xH530mm | Cut-outNot published |
| LD155803S | Wattage3x3W | CCT3000K | IPNot published | DimensionsL180XW90XH60mm | Cut-outNot published |
| LD156001S | Wattage11W | CCT3000K | IPIP20 | DimensionsØ180xH375mm | Cut-outNot published |

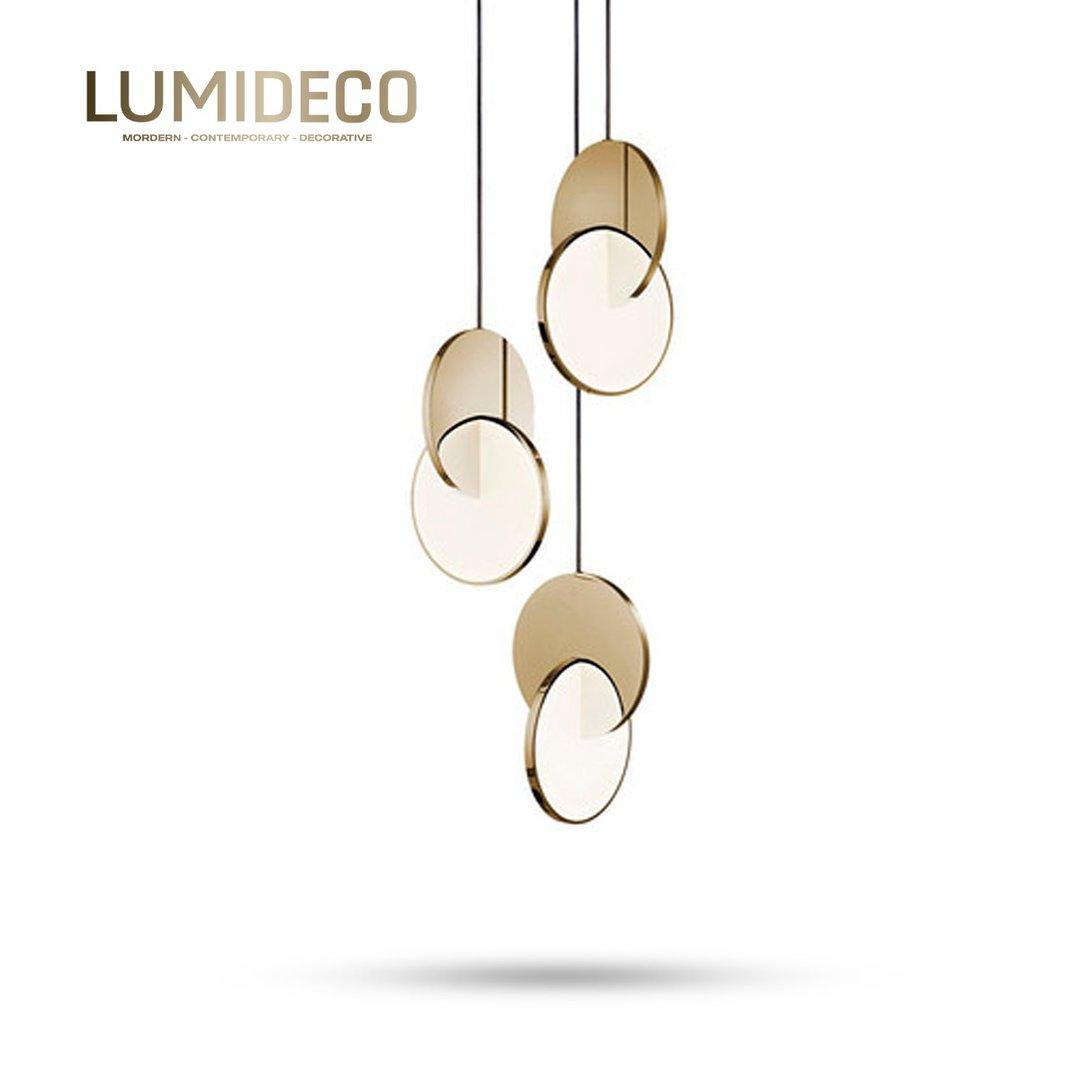

| LD156002S | Wattage11W | CCT3000K | IPIP20 | DimensionsØ250xH375mm | Cut-outNot published |
| LD156005S | Wattage13W | CCT3000K | IPNot published | DimensionsØ250xH375mm | Cut-outNot published |
| LD157101S | Wattage20W | CCT3000K | IPIP20 | Dimensions980x280mm, L980xH280mm | Cut-outNot published |

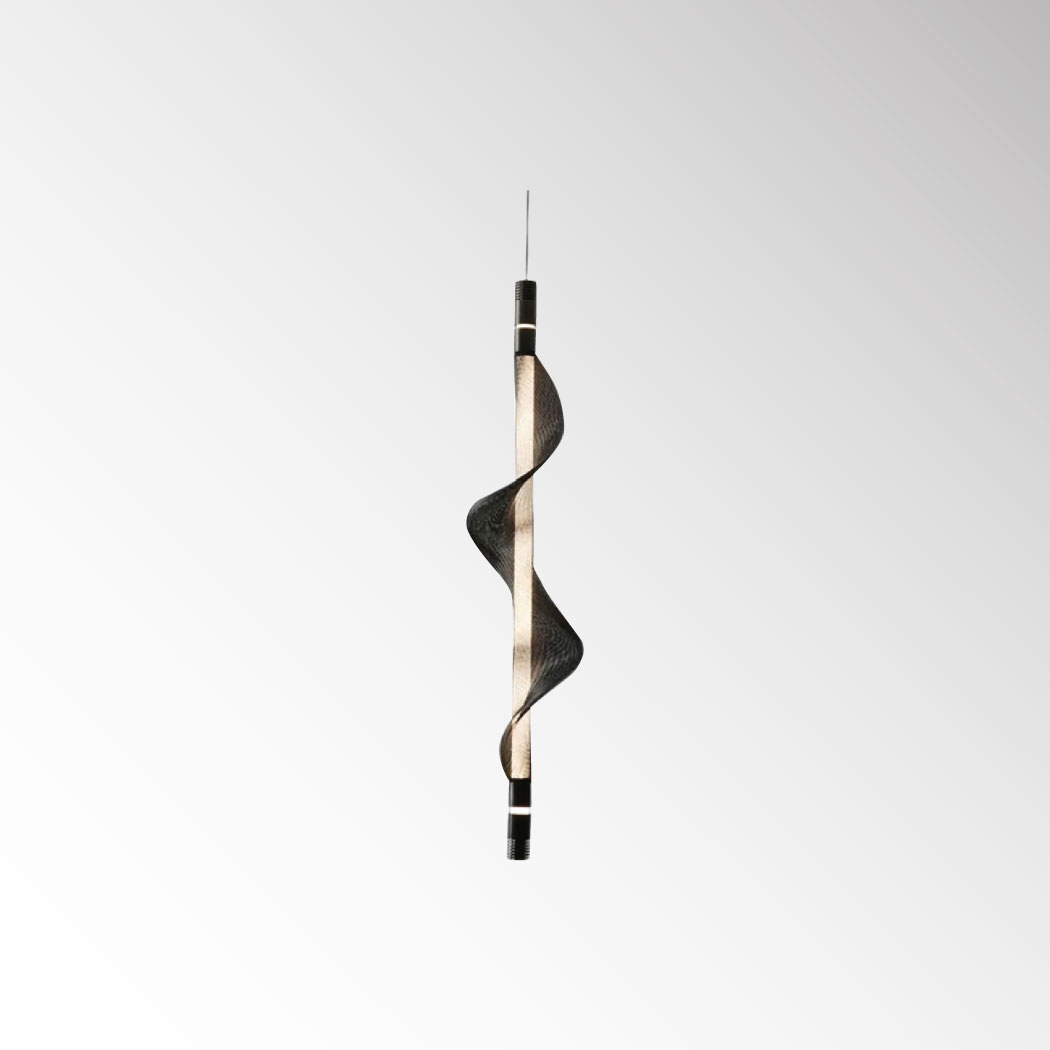

| LD157103S | Wattage30W | CCT3000K | IPNot published | DimensionsØ280x1300mm | Cut-outNot published |

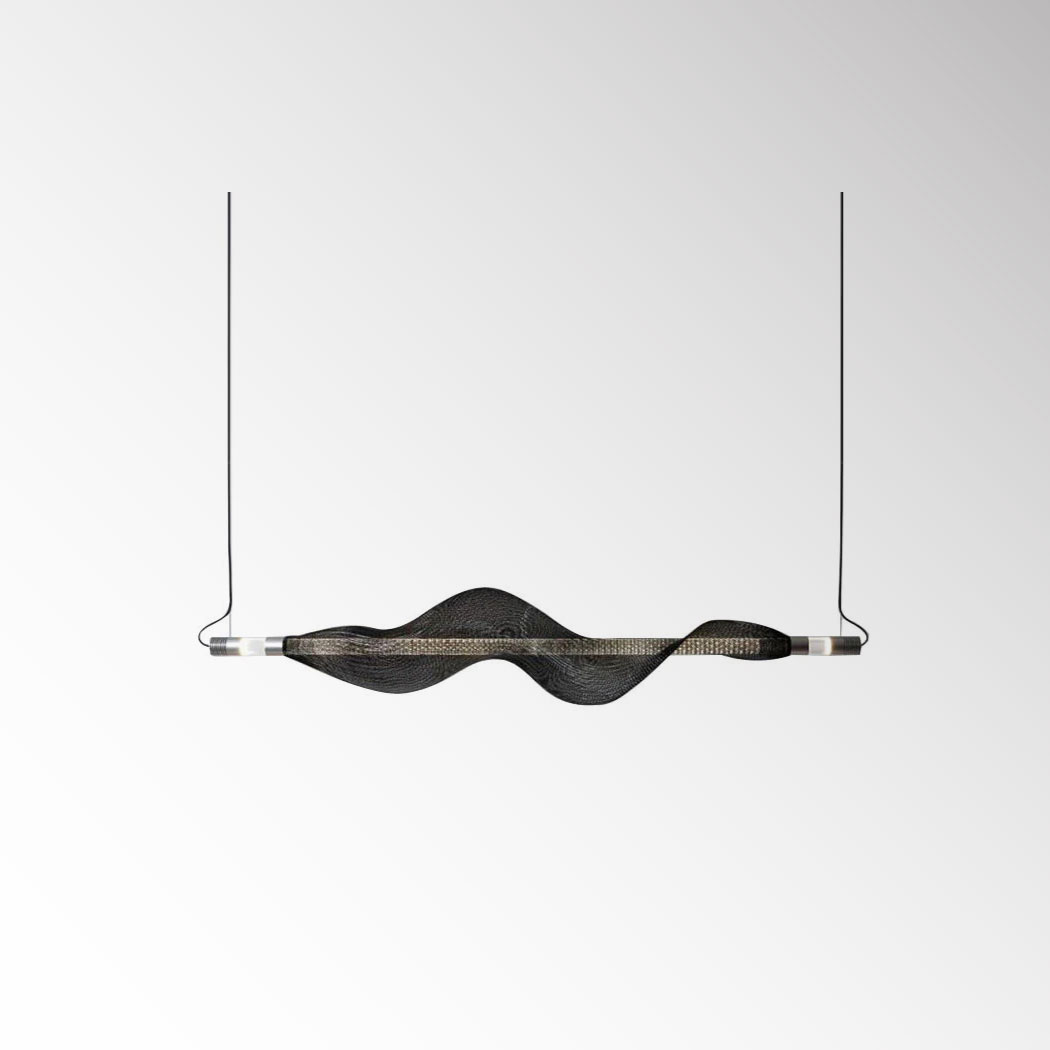

| LD157104S | Wattage30W | CCT3000K | IPNot published | Dimensions1300x280mm | Cut-outNot published |

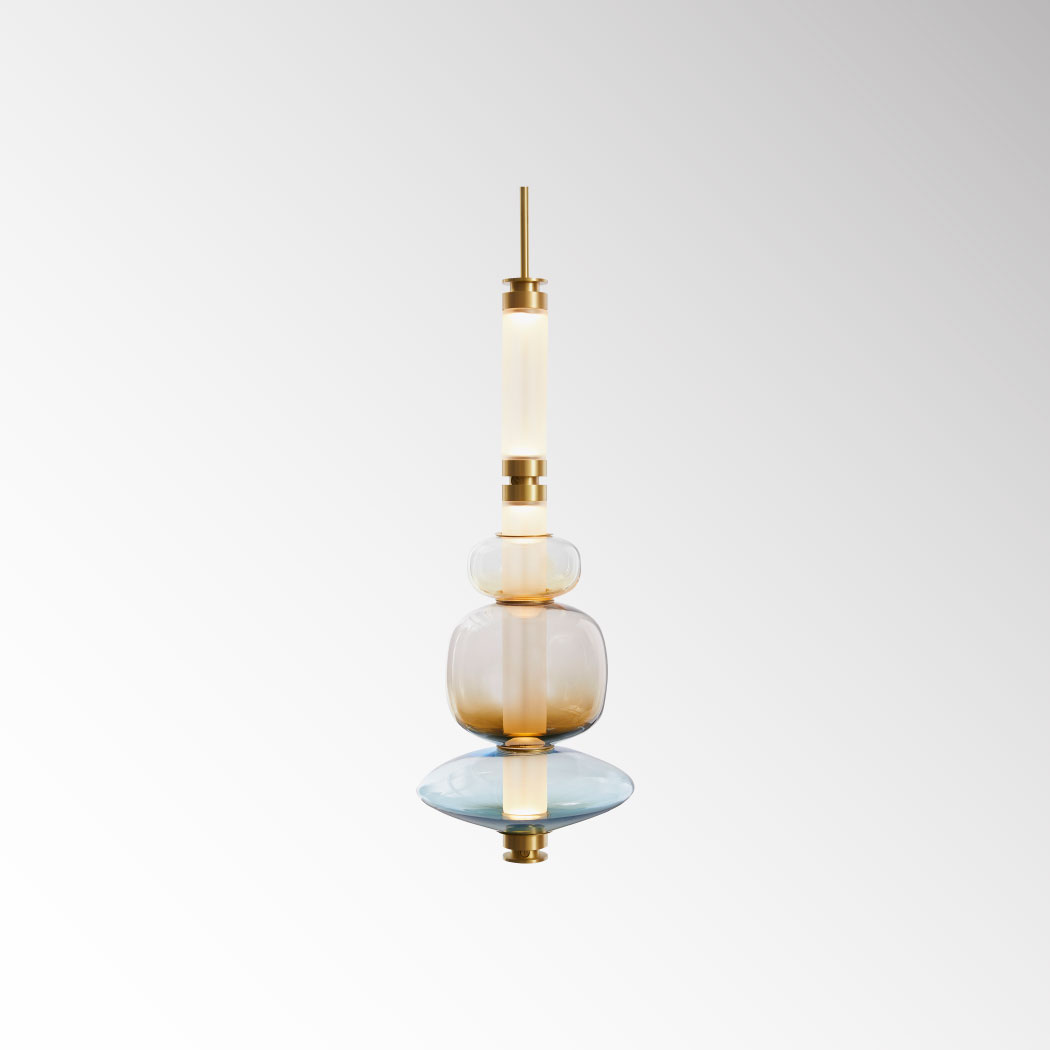

| LD157402S | Wattage20W | CCT3000K | IPNot published | DimensionsØ250x650mm | Cut-outNot published |

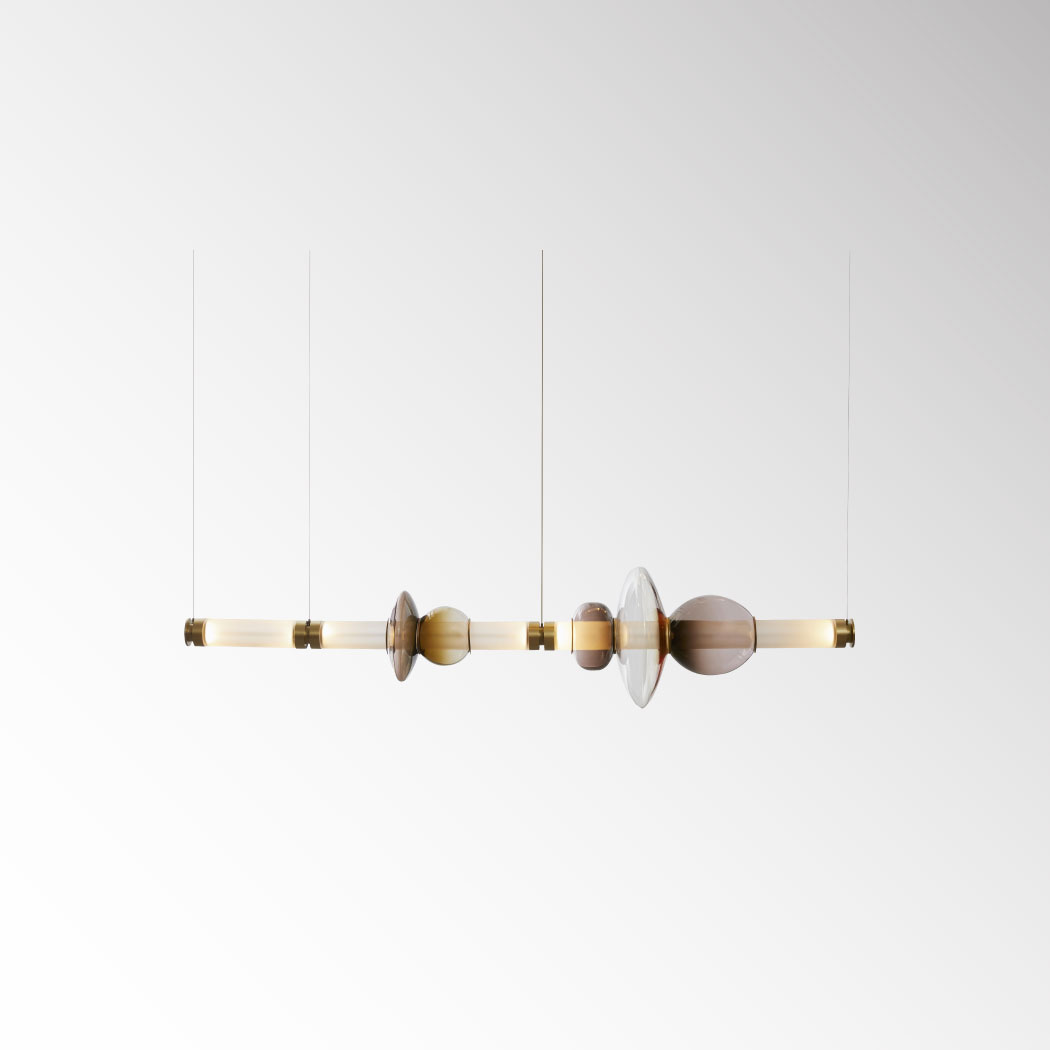

| LD157403S | Wattage30W | CCT3000K | IPNot published | Dimensions1180x170x170mm | Cut-outNot published |
| LD157404S | Wattage60W | CCT3000K | IPNot published | Dimensions1180x440x420mm | Cut-outNot published |
| LD159614W | Wattage3W | CCT3000K | IPNot published | DimensionsL155xW50mm | Cut-outNot published |
| LD159704W | Wattage3W | CCT3000K | IPIP20 | DimensionsL190xW80mm | Cut-outNot published |
| LD159810W | Wattage3W | CCT3000K | IPNot published | DimensionsØ30x525mm | Cut-outNot published |
| LD159811W | Wattage3W | CCT3000K | IPNot published | Dimensions400x100x29mm | Cut-outNot published |
| LD160301W | Wattage8W | CCT3000K | IPNot published | DimensionsØ134x85mm | Cut-outNot published |
| LD160302W | Wattage8W | CCT3000K | IPNot published | DimensionsØ134x81mm | Cut-outNot published |
| LD160401S | Wattage7W | CCT3000K | IPNot published | DimensionsL200xW25xH1800mm | Cut-outNot published |
| LD160402S | Wattage7W | CCT3000K | IPNot published | DimensionsL200xW25xH1800mm | Cut-outNot published |
| LD160403S | Wattage15W | CCT3000K | IPNot published | DimensionsØ500x1500mm | Cut-outNot published |
| LD160404S | Wattage25W | CCT3000K | IPNot published | DimensionsL1200xW200xH1500mm | Cut-outNot published |
| LD160405S | Wattage30W | CCT3000K | IPNot published | DimensionsL1230xW200xH1500mm | Cut-outNot published |
| LD160406S | Wattage50W | CCT3000K | IPNot published | DimensionsL1500xW500xH6000mm | Cut-outNot published |
| LD160501S | Wattage6W, 7W | CCT3000K | IPNot published | Dimensions300xH1500mm, Ø300xH1500mm | Cut-outNot published |
| LD160502S | Wattage6W | CCT3000K | IPNot published | DimensionsØ35x300X1800mm, Ø35x300x1800mm, Φ35x300Hx1800mm | Cut-outNot published |
| LD160503S | Wattage6W | CCT3000K | IPNot published | DimensionsØ35x600X1800mm, Φ35x600Hx1800mm | Cut-outNot published |
| LD160504S | Wattage6W | CCT3000K | IPNot published | DimensionsØ35x345x1800mm, Φ35x345Hx1800mm | Cut-outNot published |

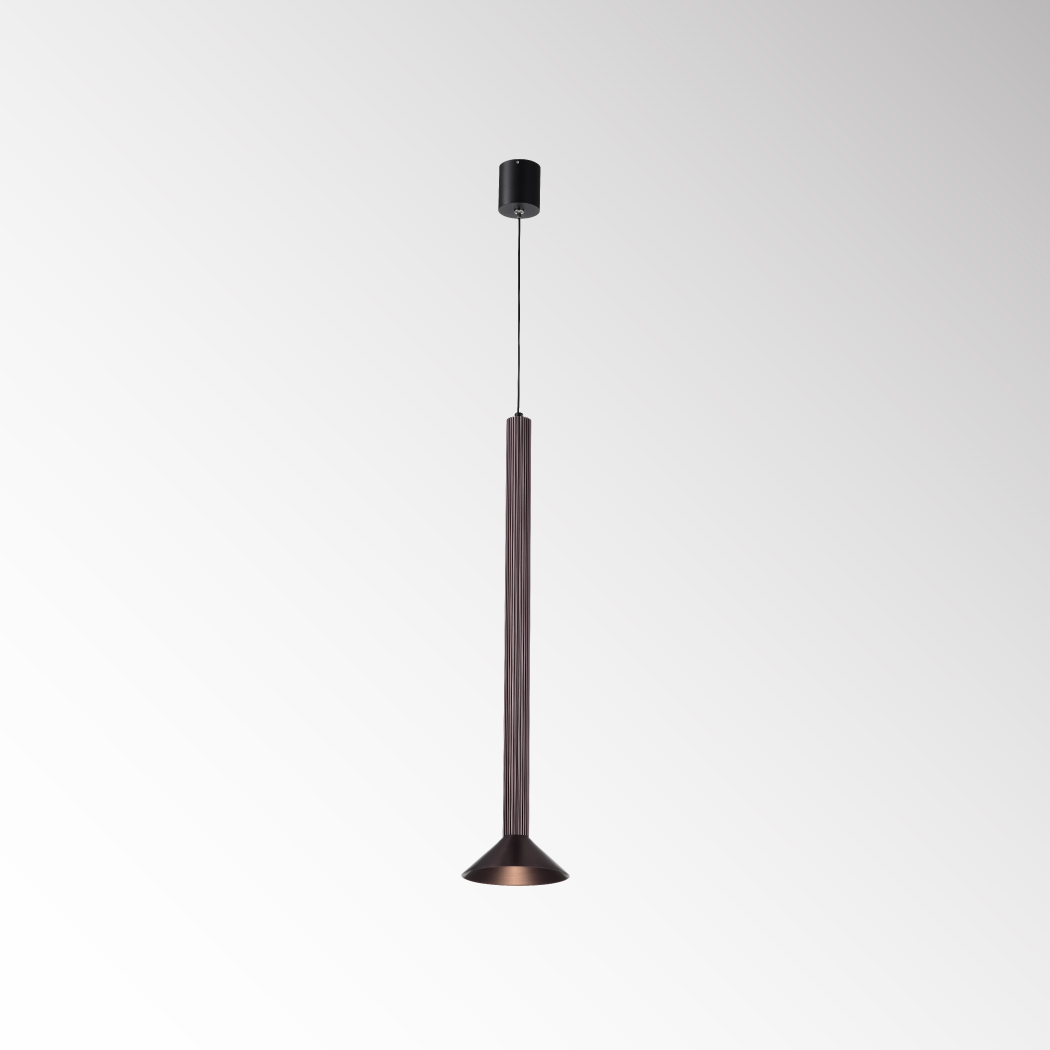

| LD160505S | Wattage6W | CCT3000K | IPNot published | DimensionsØ35x645x1800mm, Φ35x645Hx1800mm | Cut-outNot published |
| LD160506S | Wattage6W | CCT3000K | IPNot published | DimensionsΦ35x900Hx1800mm | Cut-outNot published |
| LD160601S | Wattage6W | CCT3000K | IPNot published | DimensionsØ80x1800mm, Φ80x1800mm | Cut-outNot published |

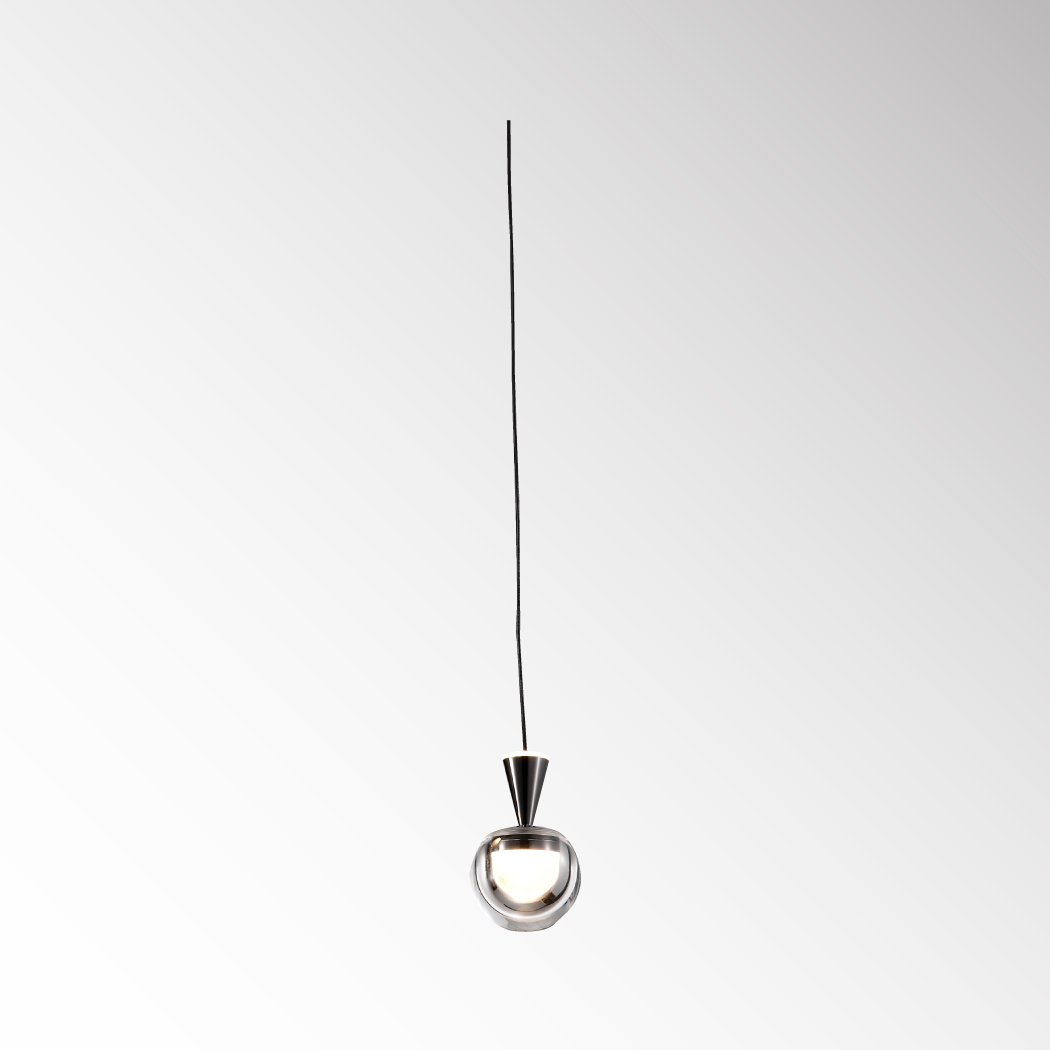

| LD160602S | Wattage6W | CCT3000K | IPNot published | DimensionsØ98x1800mm, Φ98x1800mm | Cut-outNot published |

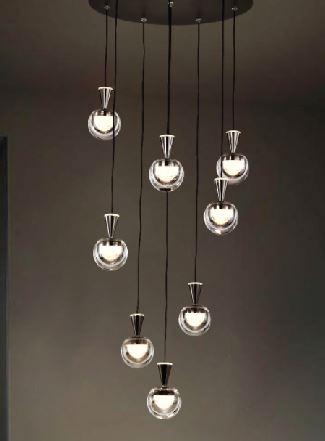

| LD160603S | Wattage30W | CCT3000K | IPNot published | DimensionsØ400x1500mm, Φ400x1500mm | Cut-outNot published |

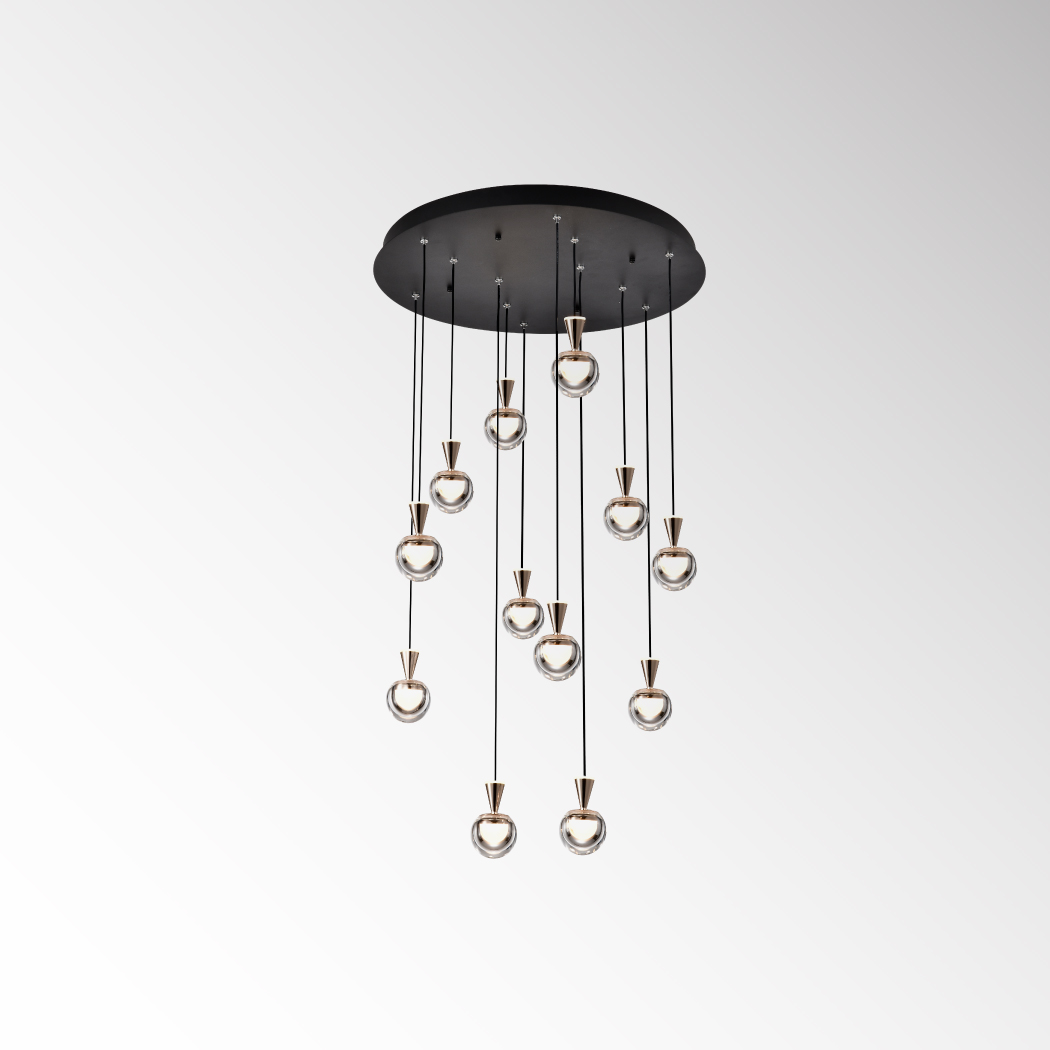

| LD160604S | Wattage40W | CCTNot published | IPNot published | DimensionsΦ600x1500mm | Cut-outNot published |
| LD160605S | Wattage120W | CCTNot published | IPNot published | DimensionsΦ1000x4000mm | Cut-outNot published |

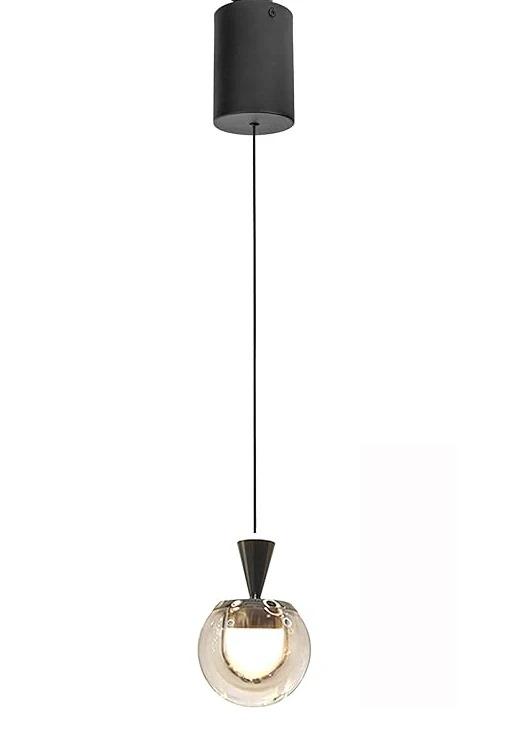

| LD160606S | Wattage6W | CCTNot published | IPNot published | DimensionsΦ80xH1800mm | Cut-outNot published |

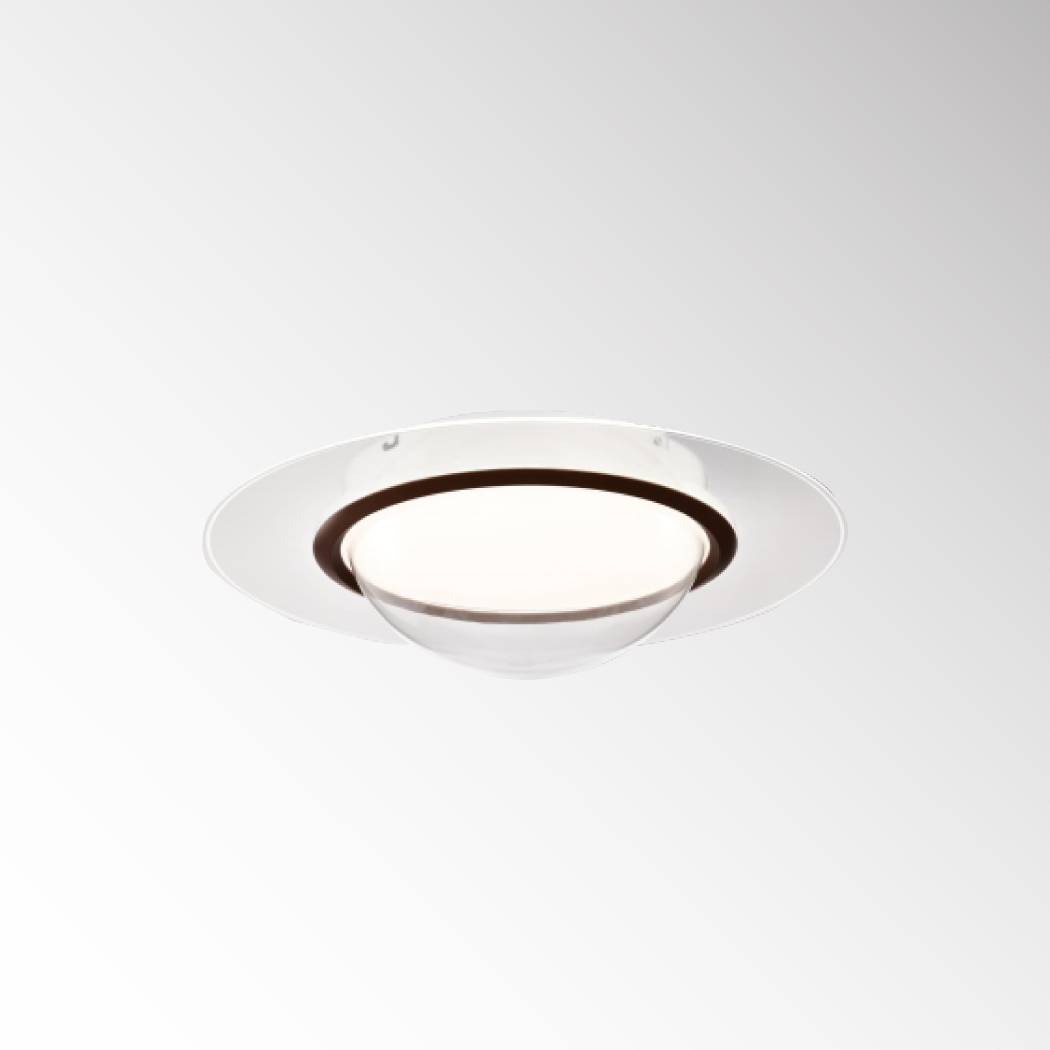

| LD160704C | Wattage30W+20W | CCTSwitch(3000K-4000K-6000K) | IPNot published | DimensionsØ582xH178mm | Cut-outNot published |
| LD160801S | Wattage25W | CCT3000K | IPNot published | DimensionsØ400xH1500mm | Cut-outNot published |
| LD160802S | Wattage30W | CCT3000K | IPNot published | DimensionsØ500xH1500mm | Cut-outNot published |
| LD160803S | Wattage34W | CCT3000K | IPNot published | DimensionsØ600xH1500mm | Cut-outNot published |
| LD160804S | Wattage42W | CCT3000K | IPNot published | DimensionsØ800xH1500mm | Cut-outNot published |
| LD160805S | Wattage51W | CCT3000K | IPNot published | DimensionsØ600+Ø400xH1500mm | Cut-outNot published |
| LD160806S | Wattage65W | CCT3000K | IPNot published | DimensionsØ800+Ø500xH1500mm | Cut-outNot published |
| LD160807S | Wattage85W | CCT3000K | IPNot published | Dimensions400+600+800xH1500mm, Ø400+Ø600+Ø800xH1500mm | Cut-outNot published |

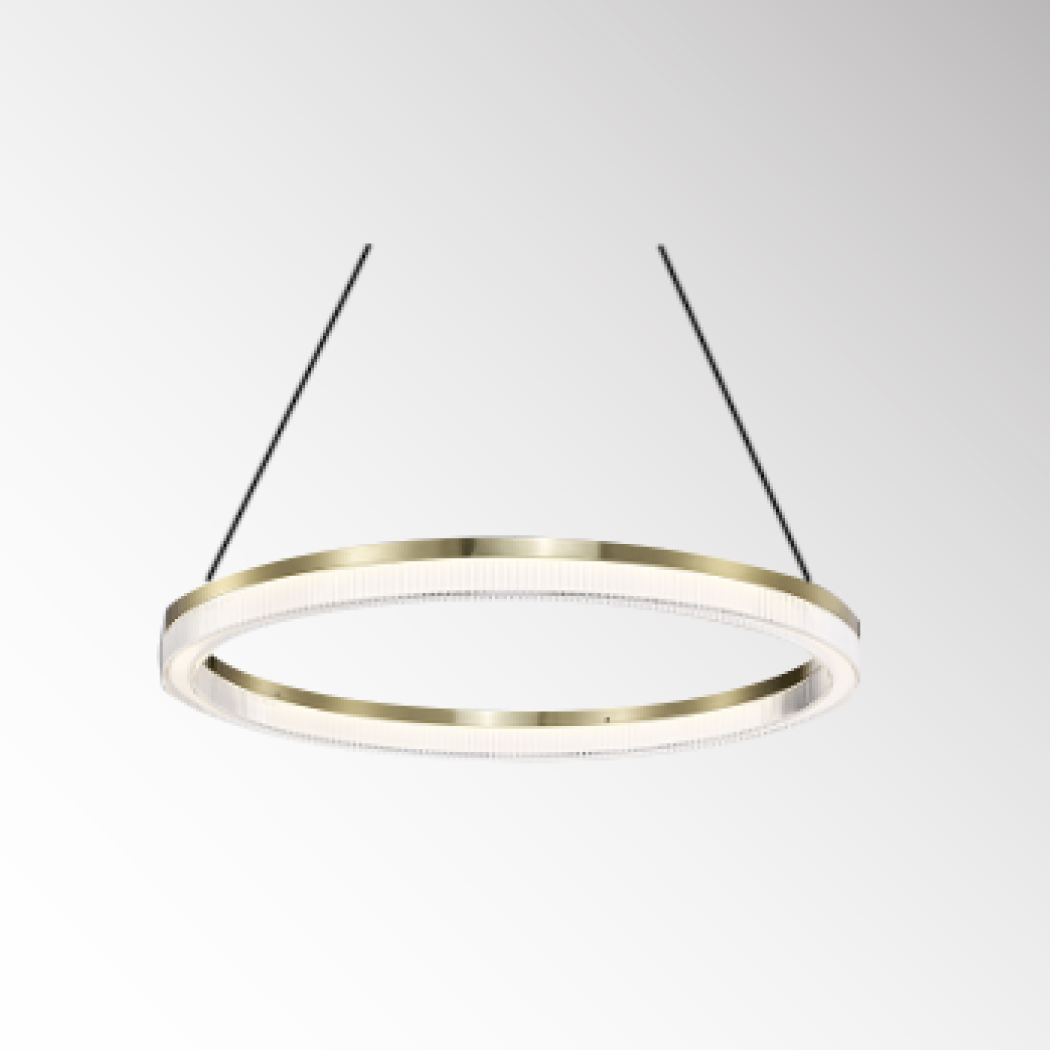

| LD160808S | Wattage42W | CCT3000K | IPNot published | Dimensions∅800xH1500mm | Cut-outNot published |

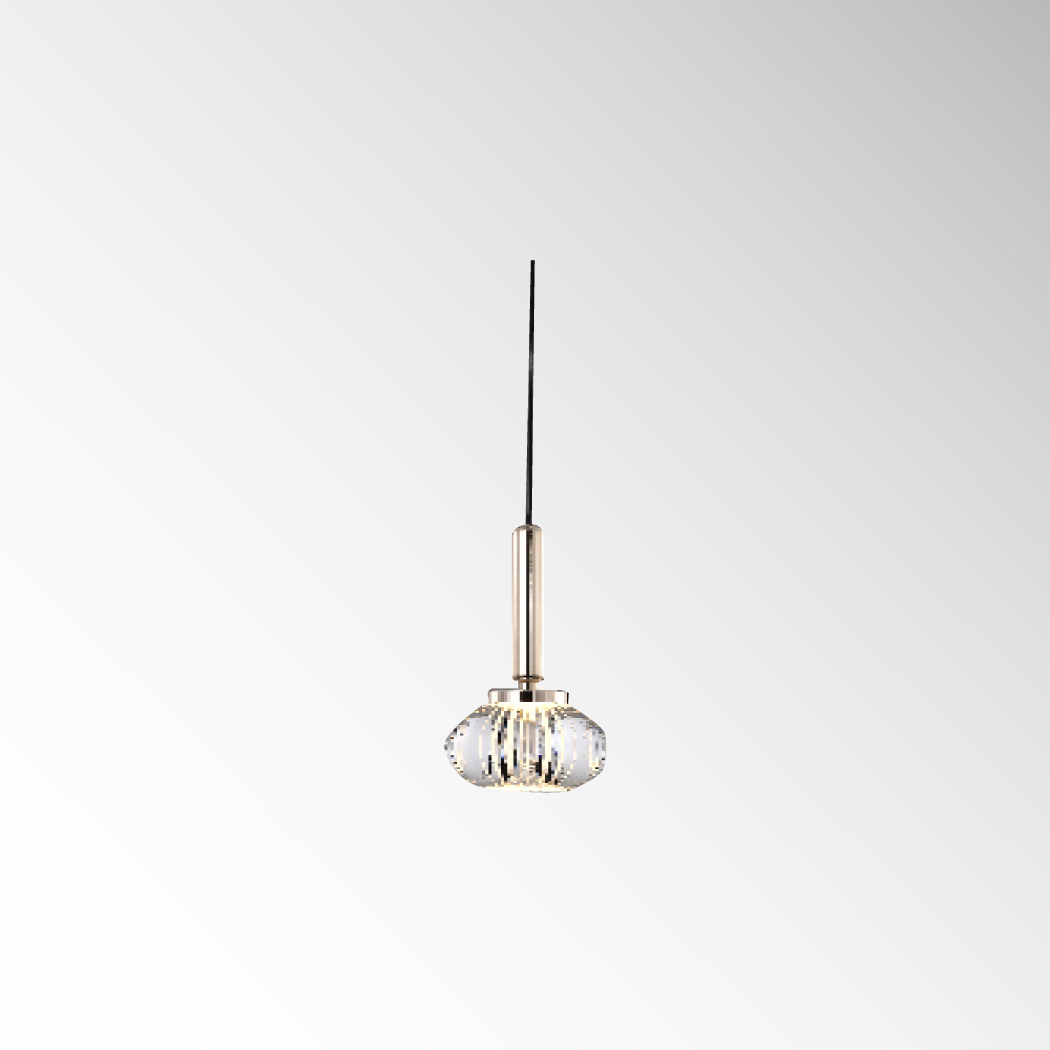

| LD160901S | Wattage7W | CCT3000K | IPNot published | DimensionsØ95xH1800mm | Cut-outNot published |

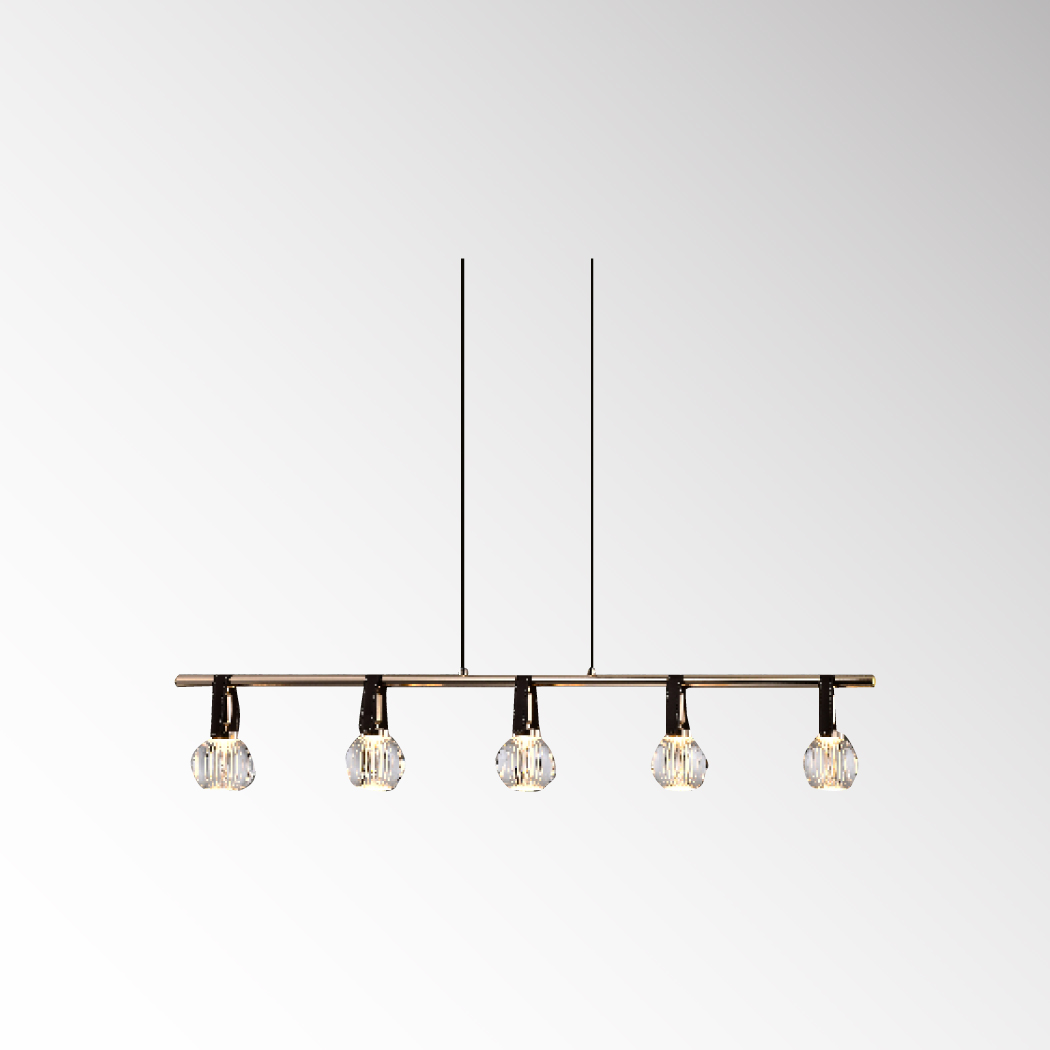

| LD160902S | Wattage25W | CCT3000K | IPNot published | DimensionsØ650xH1200mm | Cut-outNot published |

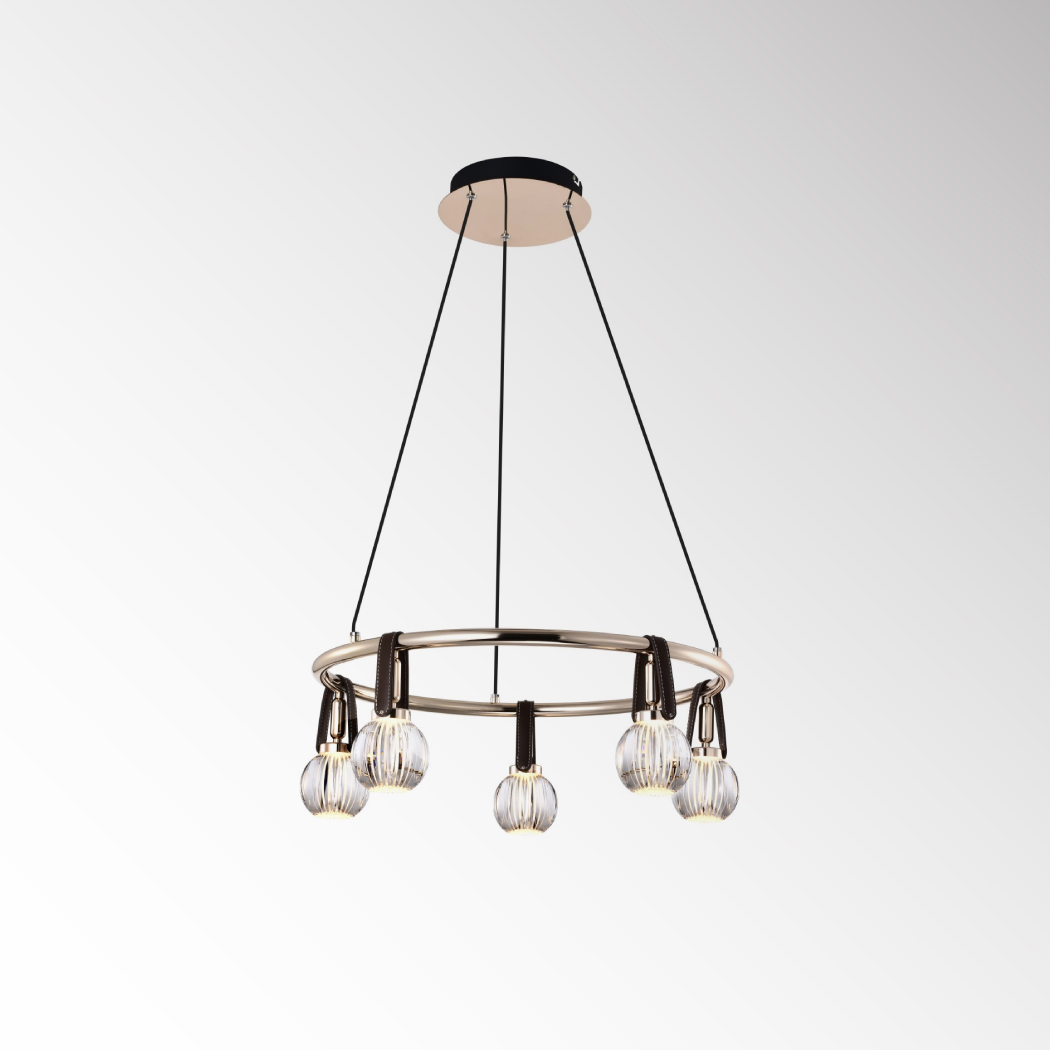

| LD160903S | Wattage25W | CCT3000K | IPNot published | DimensionsL1200xW95xH1200mm | Cut-outNot published |
| LD160904S | Wattage5x5W | CCT3000K | IPNot published | DimensionsL1200xW95xH1200mm | Cut-outNot published |
| LD160905S | Wattage80W | CCT3000K | IPIP20 | DimensionsØ880*3200mm | Cut-outNot published |
| LD160906S | Wattage120W | CCT3000K | IPIP20 | DimensionsØ880*3000mm | Cut-outNot published |
| LD160907S | Wattage150W | CCT3000K | IPIP20 | DimensionsØ1000*3000mm | Cut-outNot published |

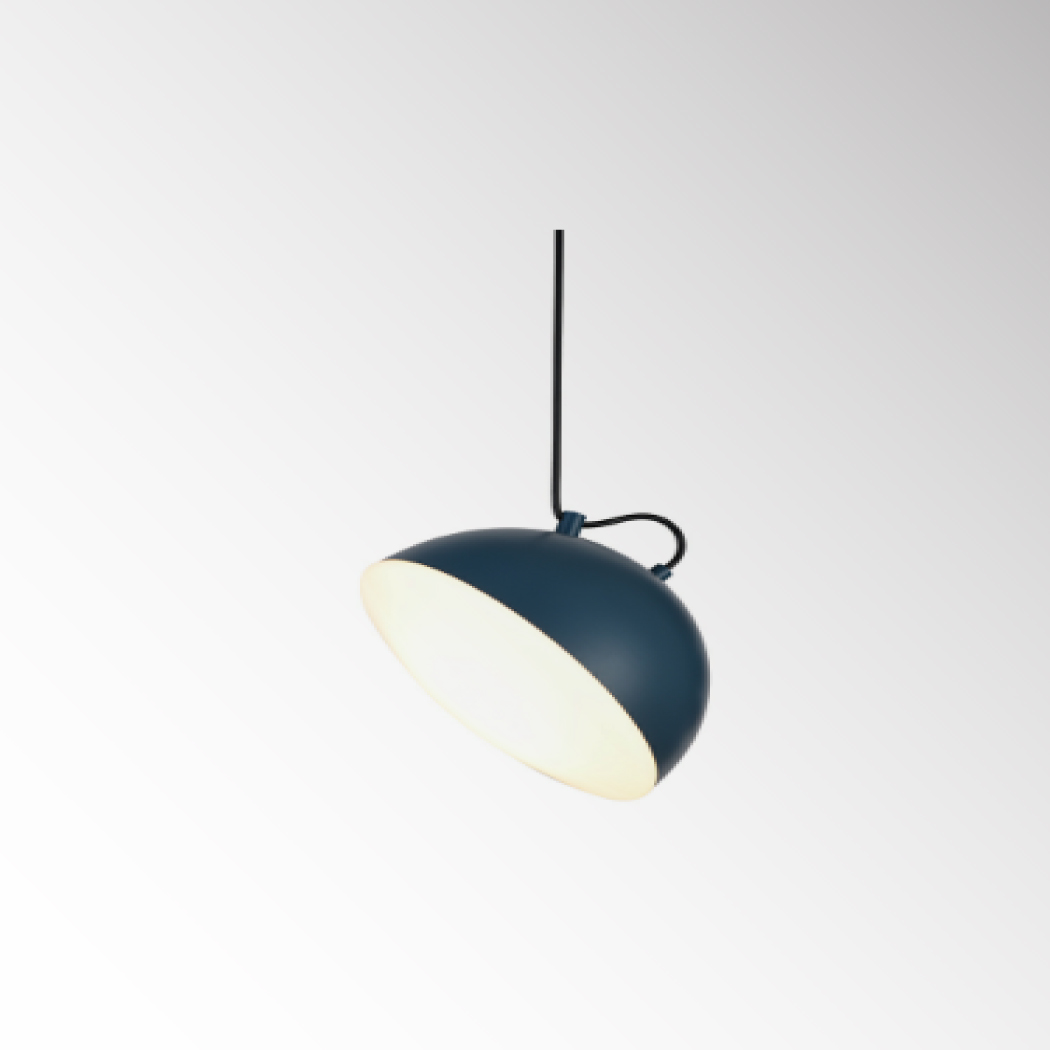

| LD161001S | Wattage20W | CCT3000K | IPNot published | DimensionsØ250xH180mm | Cut-outNot published |

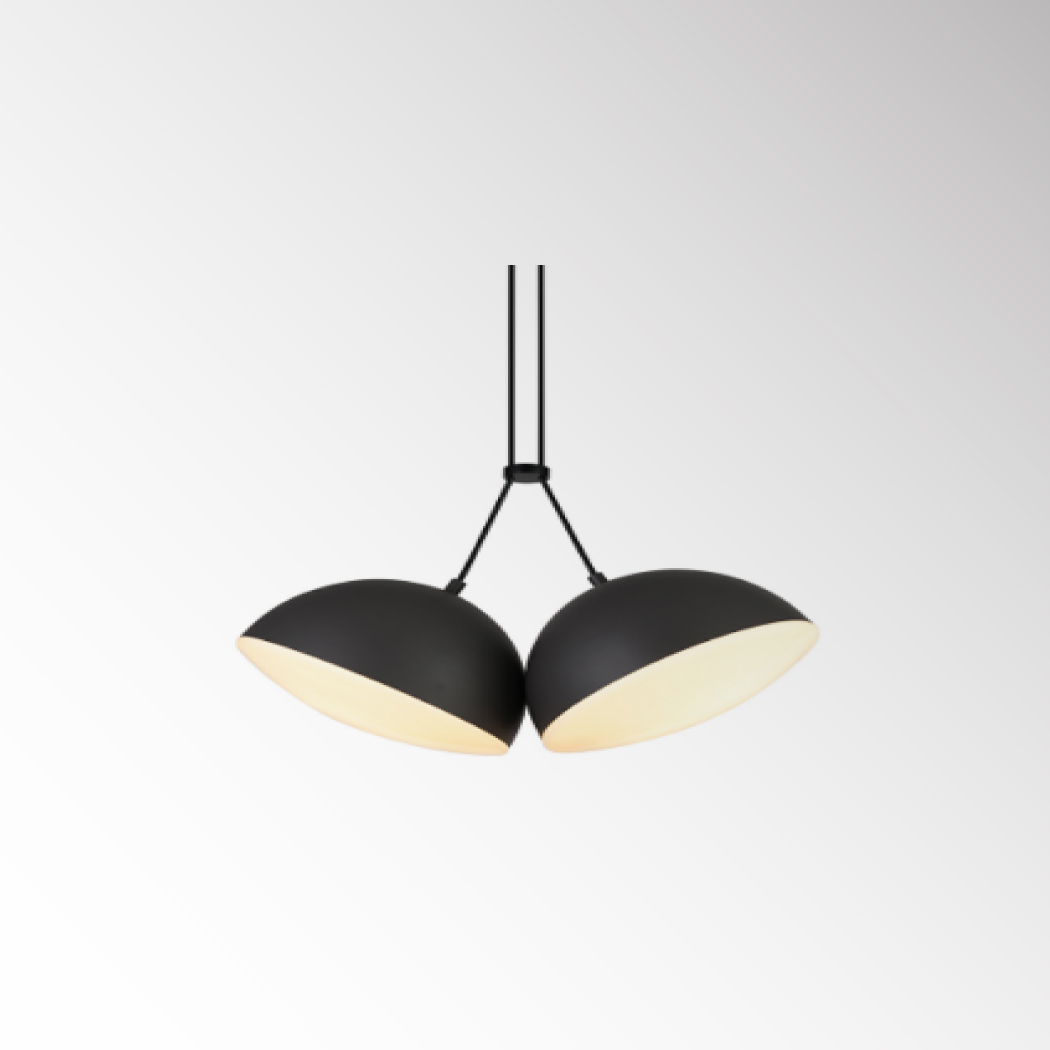

| LD161002S | Wattage2x20W | CCT3000K | IPNot published | DimensionsØ490xH185mm | Cut-outNot published |

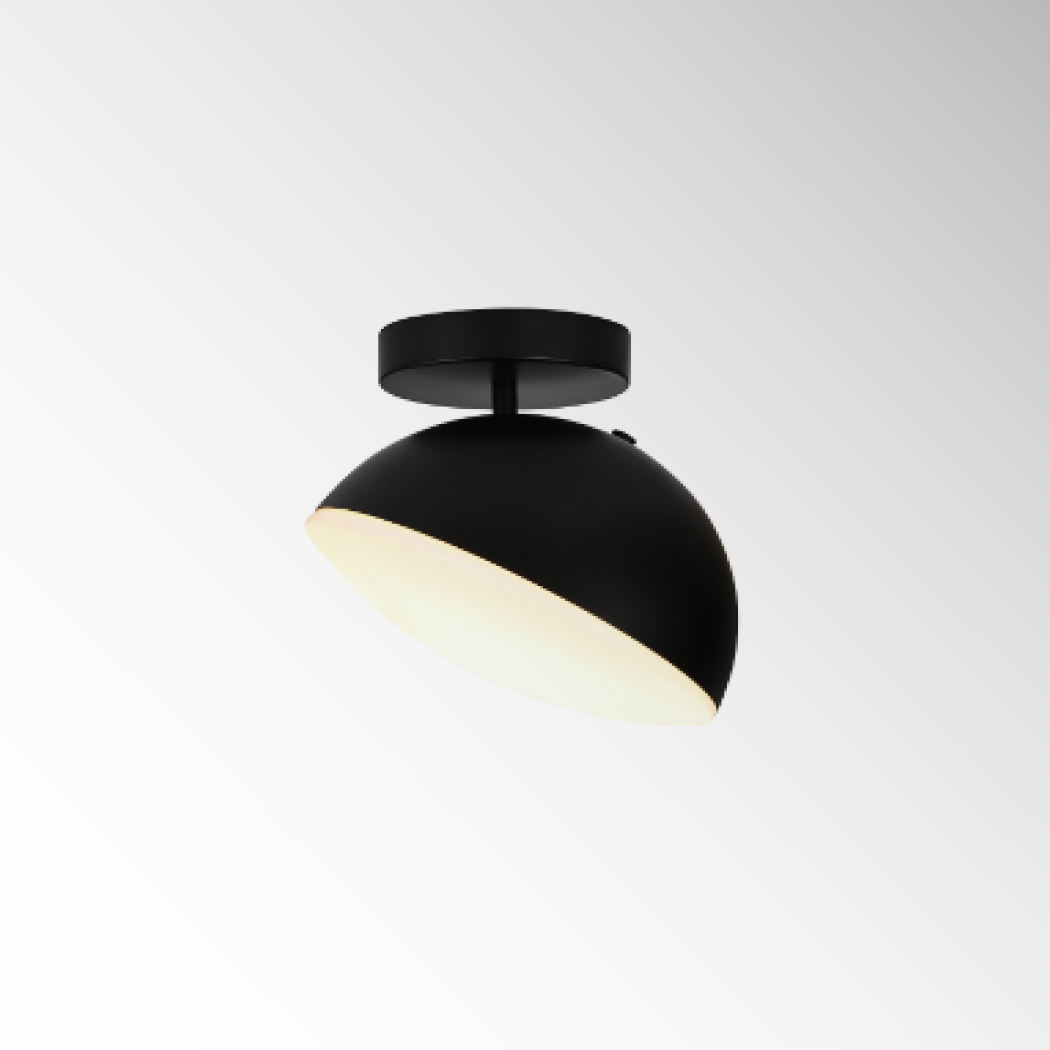

| LD161003C | Wattage20W | CCT3000K | IPNot published | DimensionsØ250xH250mm | Cut-outNot published |

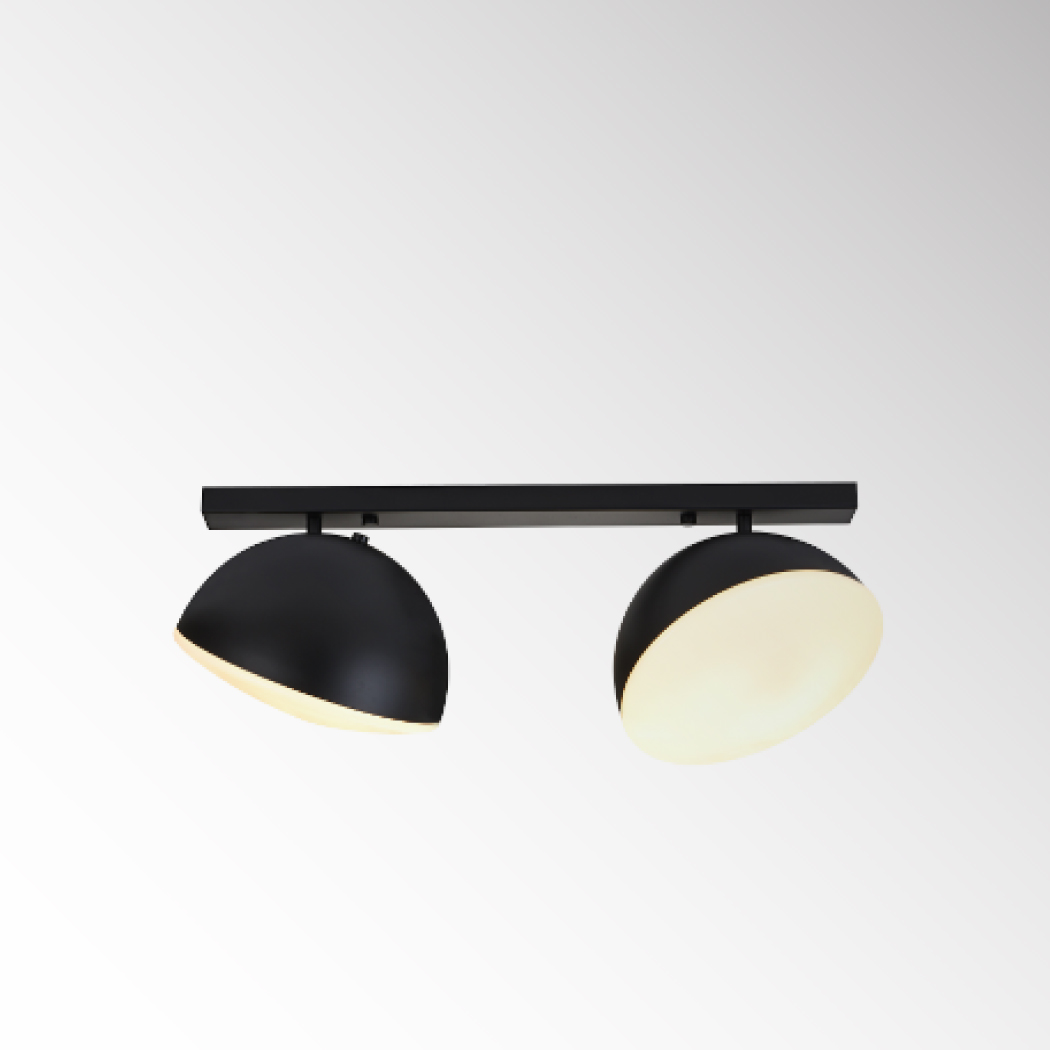

| LD161004C | Wattage2x20W | CCT3000K | IPNot published | Dimensions650x250xH245mm | Cut-outNot published |
| LD161101S | Wattage7W | CCT3000K | IPNot published | DimensionsØ200mm | Cut-outNot published |

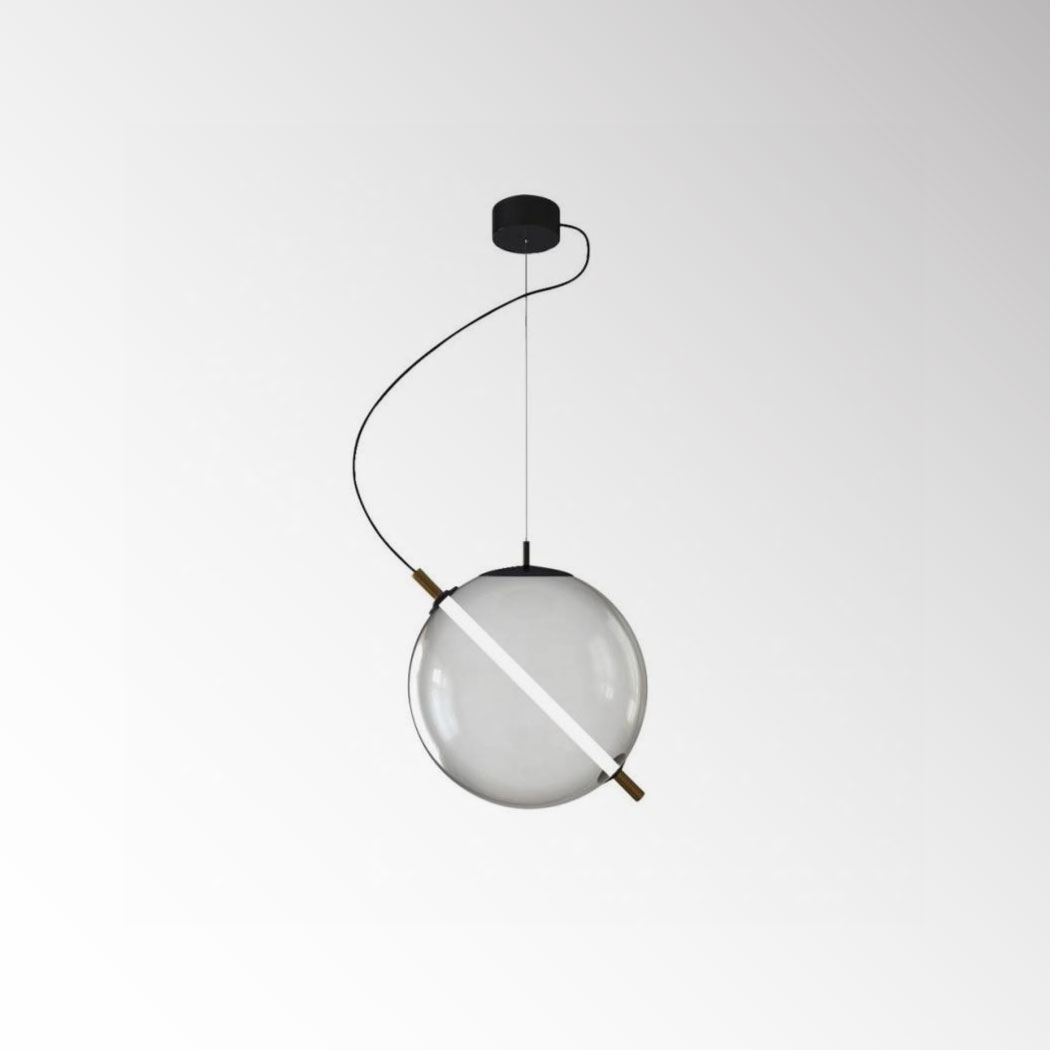

| LD161102S | Wattage7W | CCT3000K | IPNot published | DimensionsØ250mm | Cut-outNot published |
| LD161103S | Wattage7W | CCT3000K | IPNot published | DimensionsØ300mm | Cut-outNot published |
| LD161212S | Wattage12W | CCT3000K, 6000K | IPIP20 | DimensionsØ200mm, φ200mm | Cut-outNot published |
| LD161213S | Wattage18W | CCT3000K | IPNot published | DimensionsØ300mm | Cut-outNot published |
| LD161214S | Wattage42W | CCT3000K, 6000K | IPNot published | DimensionsØ400mm, φ400mm | Cut-outNot published |
| LD161215S | Wattage42W | CCT5000K | IPNot published | DimensionsØ500mm | Cut-outNot published |
| LD161216S | Wattage92W | CCT3000K | IPIP20 | DimensionsØ600mm | Cut-outNot published |
| LD161217S | Wattage92W | CCT3000K, 6000K | IPNot published | DimensionsØ700mm, φ700mm | Cut-outNot published |
| LD161218S | Wattage92W | CCT3000K | IPIP20 | DimensionsØ800mm | Cut-outNot published |
| LD161219S | Wattage162W | CCT6000K | IPIP20 | DimensionsØ900mm, φ900mm | Cut-outNot published |
| LD161220S | Wattage162W | CCT3000K | IPIP20 | DimensionsØ1000mm | Cut-outNot published |
| LD161221S | Wattage252W | CCT3000K, 6000K | IPIP20 | DimensionsØ1200mm, φ1200mm | Cut-outNot published |
| LD161222S | Wattage252W | CCT3000K | IPIP20 | DimensionsØ1500mm | Cut-outNot published |
| LD161301S | Wattage150W | CCT3000K | IPNot published | DimensionsØ600+Ø400mm | Cut-outNot published |

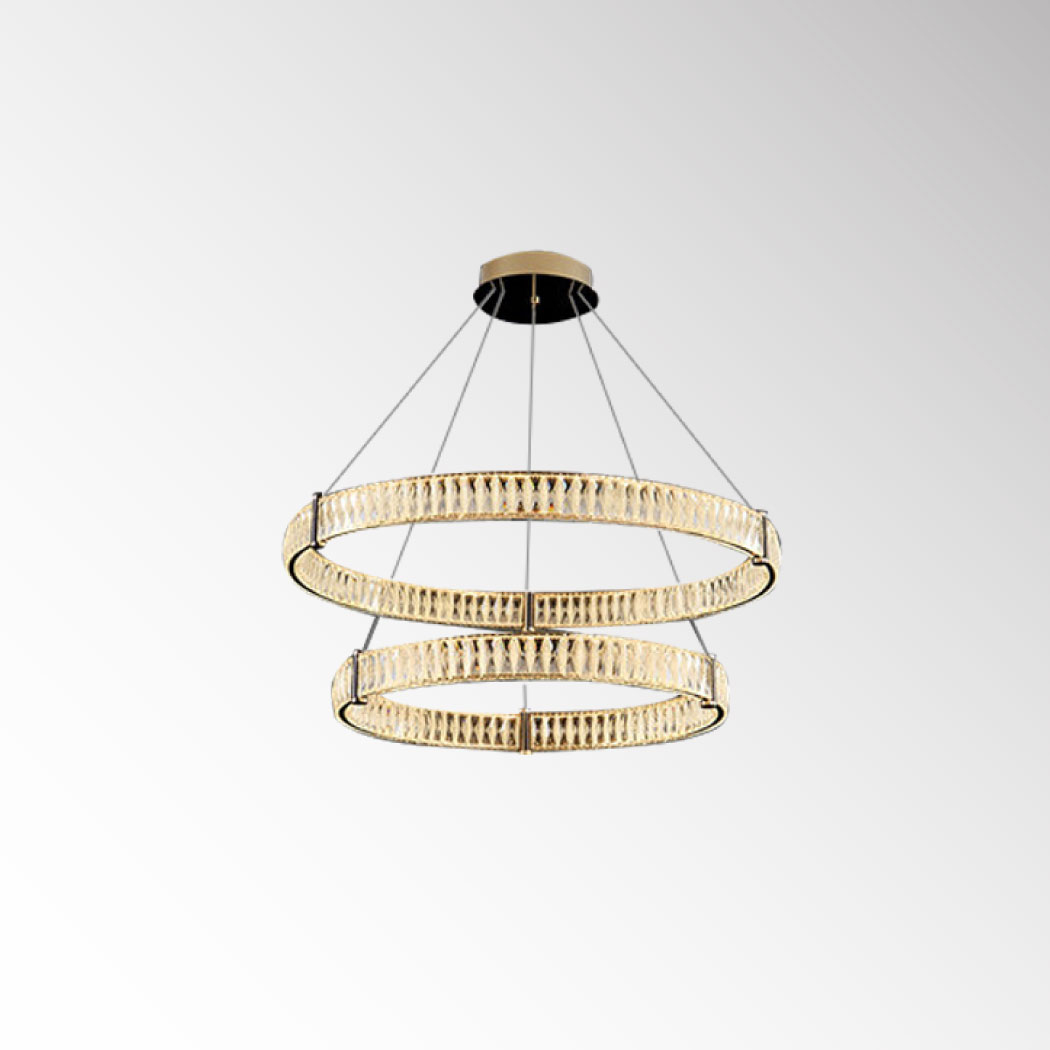

| LD161302S | Wattage150W | CCT3000K | IPNot published | DimensionsØ800+Ø500mm | Cut-outNot published |
| LD161303S | Wattage50W | CCT3000K | IPNot published | DimensionsØ400mm | Cut-outNot published |

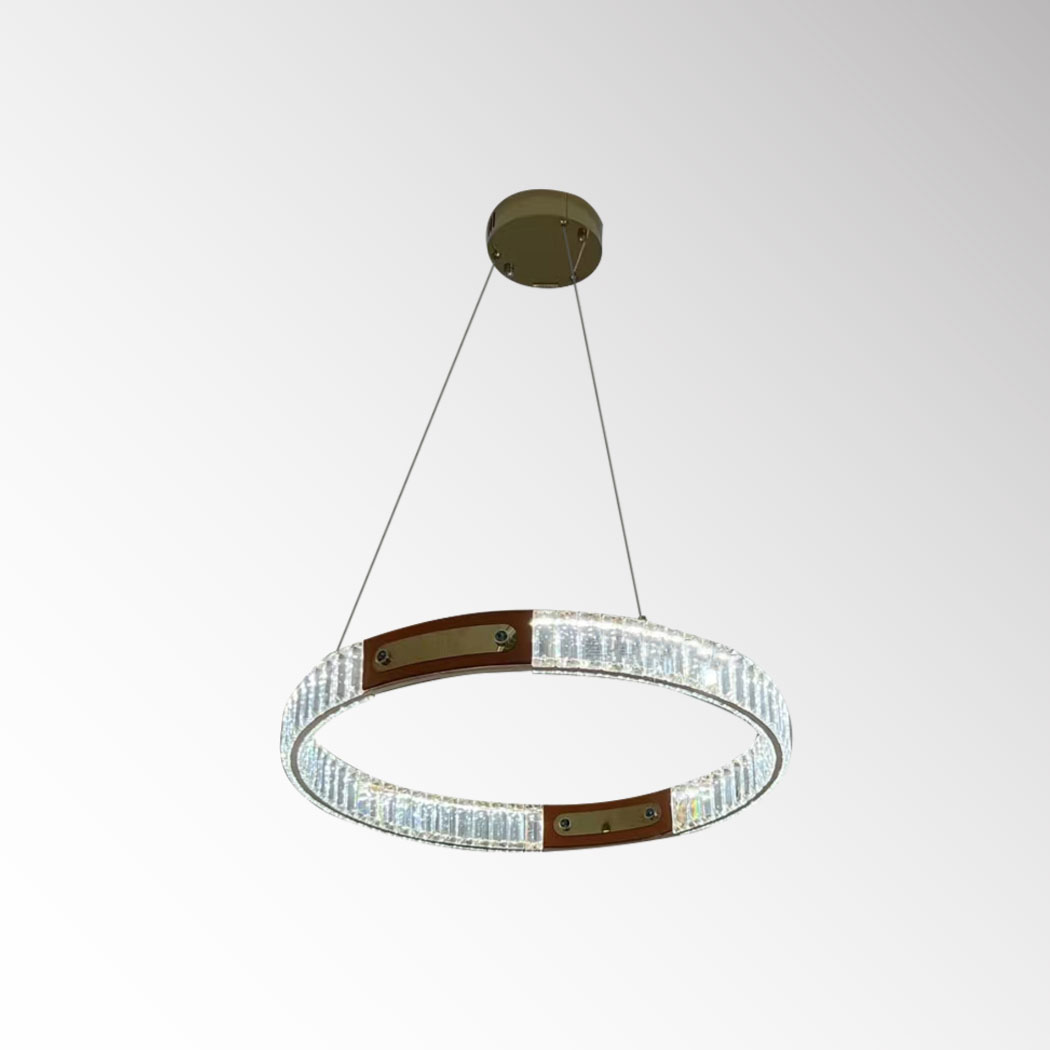

| LD161304S | Wattage70W | CCT3000K | IPNot published | DimensionsØ600mm | Cut-outNot published |
| LD161305S | Wattage90W | CCT3000K | IPNot published | DimensionsØ800mm | Cut-outNot published |
| LD161306S | Wattage100W | CCT3000K | IPNot published | DimensionsØ1000mm | Cut-outNot published |

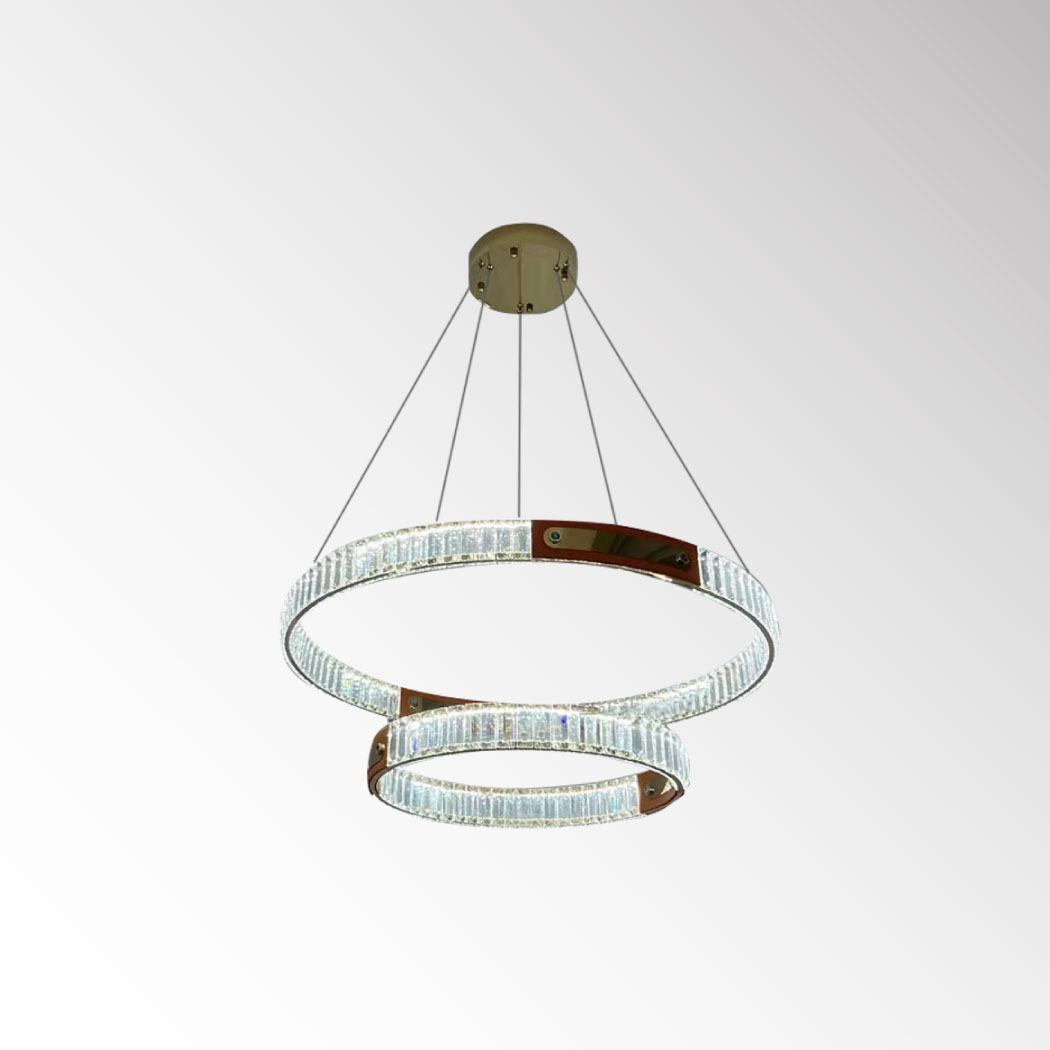

| LD161307S | Wattage100W | CCT3000K | IPNot published | DimensionsØ600+Ø400mm | Cut-outNot published |
| LD161308S | Wattage150W | CCT3000K | IPNot published | DimensionsØ800+Ø500mm | Cut-outNot published |
| LD161309S | Wattage150W | CCT3000K | IPNot published | DimensionsØ1000+Ø600mm | Cut-outNot published |

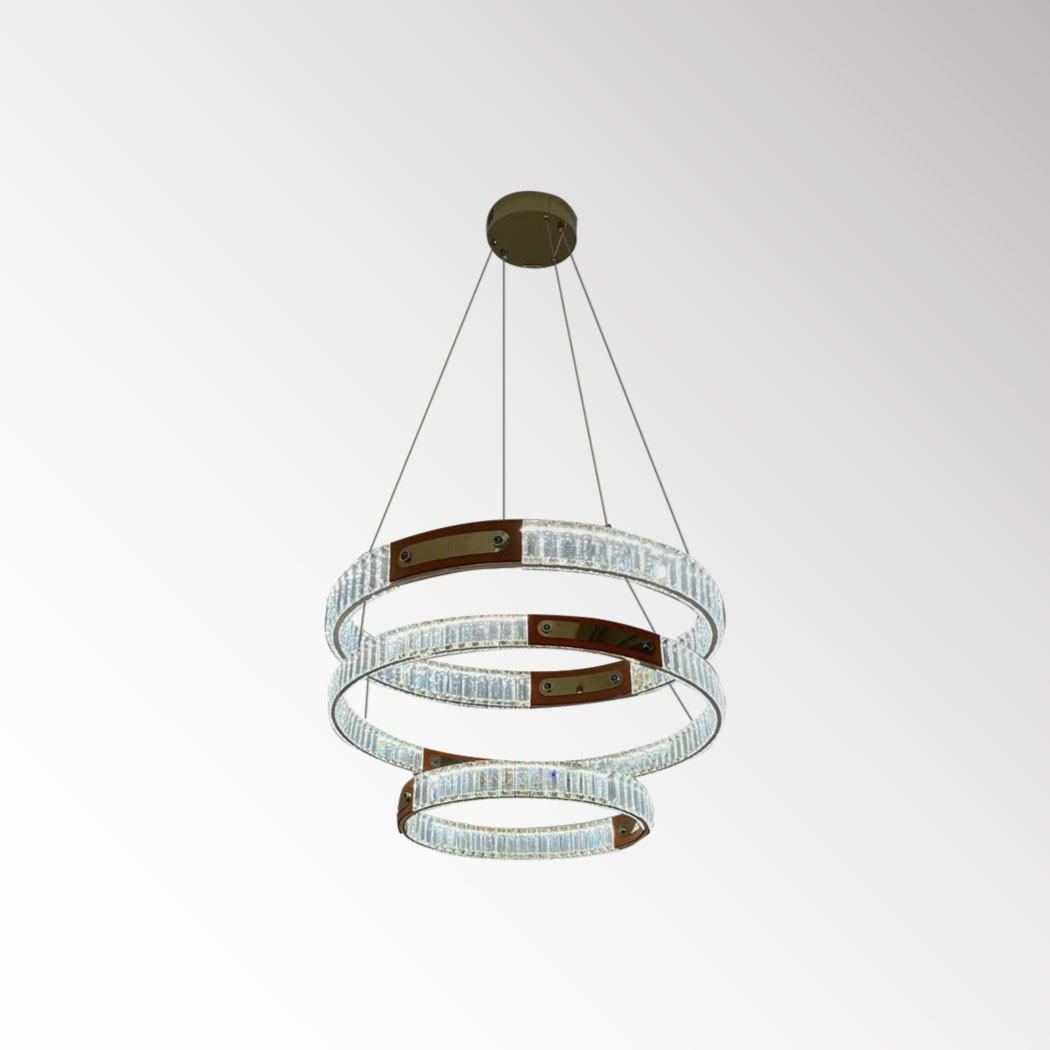

| LD161310S | Wattage210W | CCT3000K | IPNot published | DimensionsØ800+Ø600+Ø400mm | Cut-outNot published |

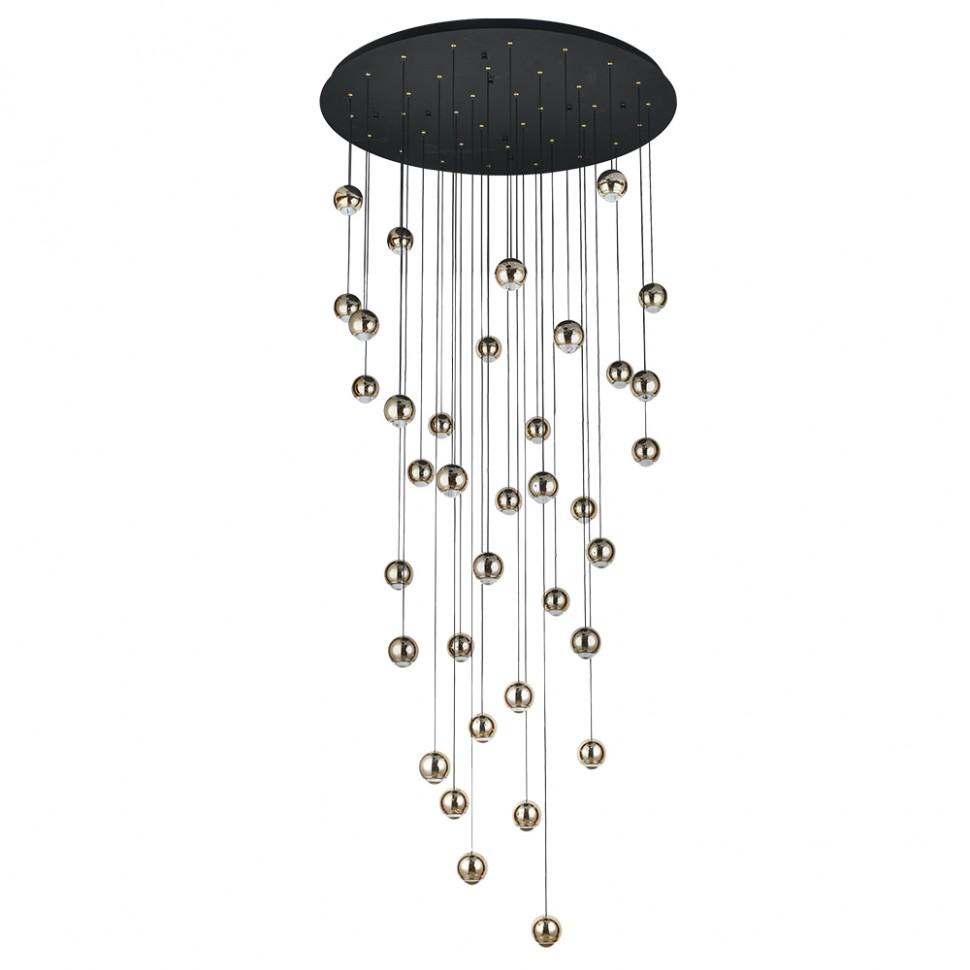

| LD161401S | Wattage140W | CCT3000K | IPNot published | DimensionsØ1000 | Cut-outNot published |
| LD161402S | Wattage110W | CCT3000K | IPNot published | DimensionsØ750 | Cut-outNot published |
| LD161403S | Wattage40W | CCT3000K | IPNot published | DimensionsØ800 | Cut-outNot published |
| LD161404S | Wattage25W | CCT3000K | IPNot published | DimensionsØ600 | Cut-outNot published |
| LD161405S | Wattage4W | CCT3000K | IPNot published | DimensionsØ80 | Cut-outNot published |

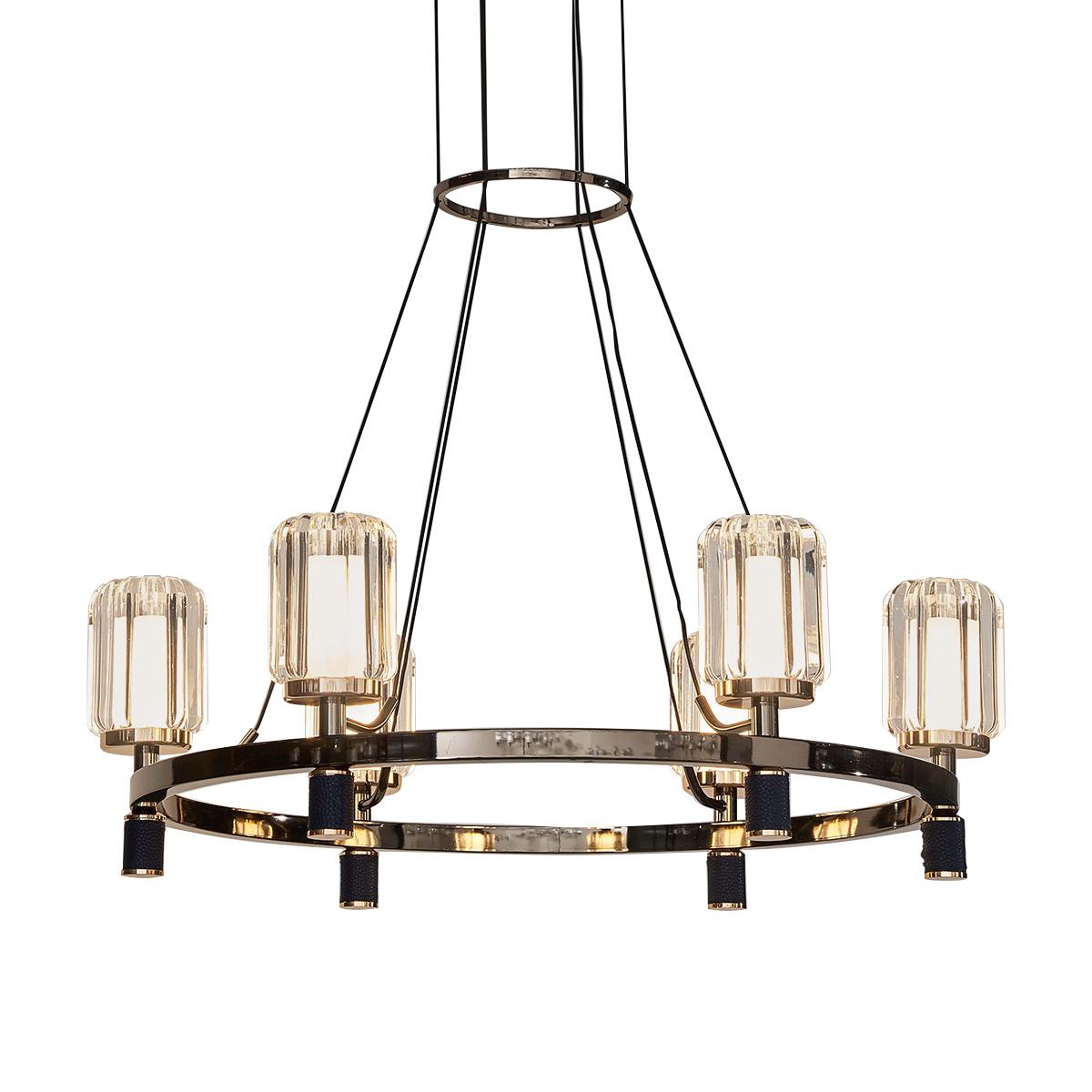

| LD161501S | Wattage8x10W | CCT3000K | IPNot published | DimensionsØ92xH21xH130CM | Cut-outNot published |
| LD161502S | Wattage12x10W | CCT3000K | IPNot published | DimensionsØ92xH42xH130CM | Cut-outNot published |
| LD161503S | Wattage16x10W | CCT3000K | IPNot published | DimensionsØ92xH66xH130CM | Cut-outNot published |
| LD161601T | Wattage6W | CCT3000K | IPNot published | DimensionsØ490xH470MM | Cut-outNot published |
| LD161602T | Wattage6W | CCT3000K | IPNot published | DimensionsØ490x470MM | Cut-outNot published |
| LD161603T | Wattage5W | CCT3000K | IPNot published | DimensionsØ300xH470MM | Cut-outNot published |
| LD161604W | Wattage6W | CCT3000K | IPNot published | DimensionsØ490xH470MM | Cut-outNot published |

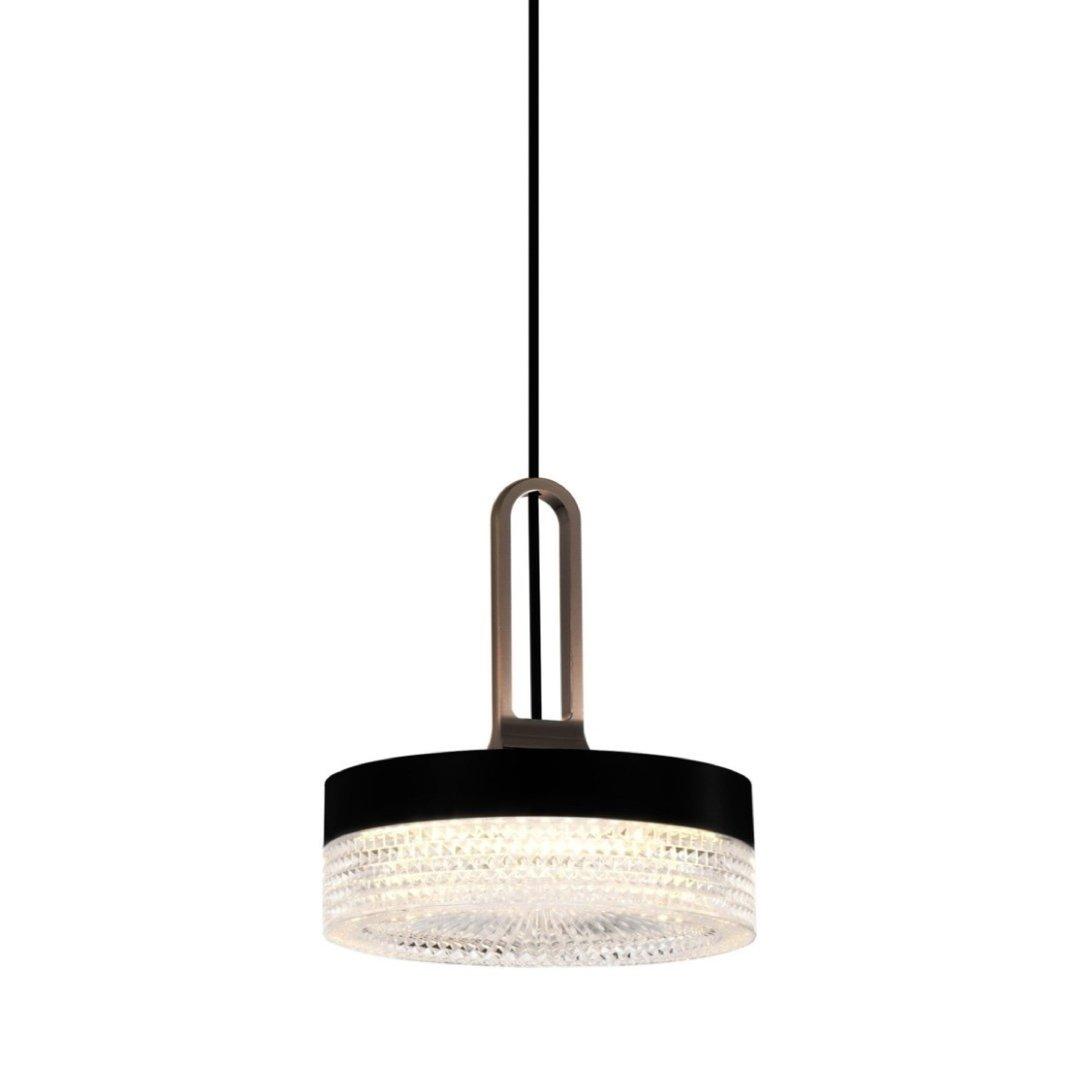

| LD161701S | Wattage8W | CCT3000K | IPNot published | DimensionsØ138xH1800MM | Cut-outNot published |
| LD161702S | Wattage20W | CCT3000K | IPNot published | DimensionsØ138xH1800MM | Cut-outNot published |
| LD161703S | Wattage25W | CCT3000K | IPNot published | DimensionsØ1240xW140x1200MM | Cut-outNot published |
| LD161704S | Wattage30W | CCT3000K | IPNot published | DimensionsØ800x1200MM | Cut-outNot published |
| LD161705S | Wattage40W | CCT3000K | IPNot published | DimensionsØ1000x1200MM | Cut-outNot published |
| LD161801S | Wattage180W | CCT3000K | IPIP20 | DimensionsD1000 | Cut-outNot published |

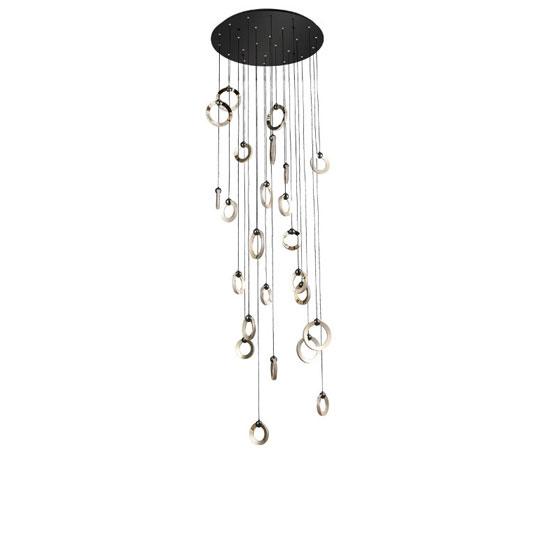

| LD161802S | Wattage120W | CCT3000K | IPIP20 | DimensionsD750 | Cut-outNot published |
| LD161803S | Wattage40W | CCT3000K | IPIP20 | DimensionsL800 | Cut-outNot published |

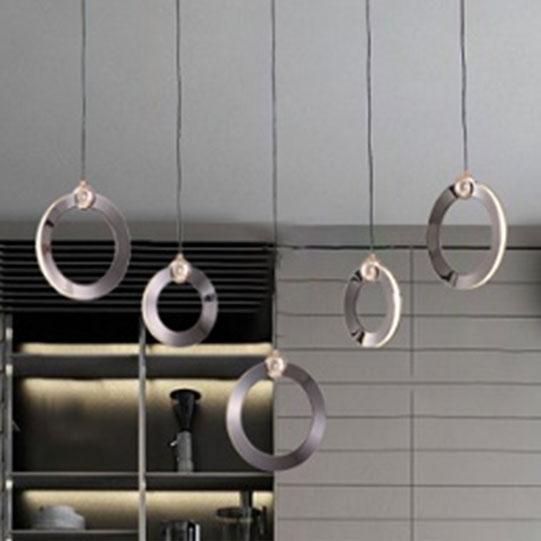

| LD161804S | WattageNot published | CCTNot published | IPNot published | DimensionsNot published | Cut-outNot published |
| LD161805S | WattageNot published | CCTNot published | IPNot published | DimensionsNot published | Cut-outNot published |
| LD161901S | Wattage10x5W | CCT3000K | IPIP20 | DimensionsD10608xH1500 | Cut-outNot published |
| LD161903S | Wattage5W | CCT3000K | IPIP20 | DimensionsL1200xH1500 | Cut-outNot published |
| LD162001S | Wattage40W | CCT3000K | IPIP20 | Dimensions∅600xH1500mm | Cut-outNot published |
| LD162002S | Wattage50W | CCT3000K | IPIP20 | Dimensions∅800xH1500mm | Cut-outNot published |
| LD162003S | Wattage60W | CCT3000K | IPIP20 | Dimensions∅1000xH1500mm | Cut-outNot published |
| LD162101W | Wattage12W | CCT3000K | IPIP20 | Dimensions600x70x38 | Cut-outNot published |
| LD162102W | Wattage20W | CCT3000K | IPIP20 | Dimensions900x70x38 | Cut-outNot published |
| LD162103W | Wattage20W | CCT3000K | IPIP20 | Dimensions1200x70x38 | Cut-outNot published |
| LD162201W | Wattage20W | CCT3000K | IPIP54 | DimensionsL520xW90xH130mm | Cut-outNot published |
| LD162301T | Wattage15W | CCT3000K | IPIP20 | DimensionsΦ270x500H | Cut-outNot published |
| LD162302F | Wattage20W | CCT3000K | IPIP20 | DimensionsΦ345x1620H | Cut-outNot published |
| LD162401F | Wattage12W | CCTNot published | IPNot published | Dimensions350xH1800mm | Cut-outNot published |
| LD162402F | Wattage18W | CCT3000K | IPNot published | DimensionsØ500xH2500mm | Cut-outNot published |
| LD162601W | Wattage4W | CCT3000K | IPNot published | DimensionsØ240x210mm | Cut-outNot published |
| LD162701S | Wattage80W | CCTCCT TUNABLE | IPNot published | Dimensions2000x950mm | Cut-outNot published |
| LD162901S | Wattage3W | CCTTUNABLE(3000K,4000K,6000K) | IPNot published | DimensionsNot published | Cut-outNot published |
| LD163001F | Wattage10W | CCT3000K | IPNot published | DimensionsØ400xH1540mm | Cut-outNot published |
| LD163101S | Wattage196W | CCT3000K | IPIP20 | DimensionsØ1200*350*3000mm | Cut-outNot published |
| LD50121 | Wattage48W | CCT3000K | IPNot published | DimensionsØ600x128x1500mm | Cut-outNot published |
| LDMB100 | Wattage48VDC 5W | CCT3000K, 3500K, 4000K | IPIndoor | Dimensions∅200xH130mm | Cut-outNot published |
| LDMB101 | Wattage48VDC 5W | CCT3000K, 3500K, 4000K | IPIndoor | Dimensions∅300xH200mm | Cut-outNot published |
| LDMB102 | Wattage48VDC 5W | CCT3000K, 3500K, 4000K | IPIndoor | Dimensions∅100xH100mm | Cut-outNot published |
| LDMB103 | Wattage12W | CCT3000K | IPNot published | Dimensions∅100xH100mm | Cut-outNot published |
| LDMB104 | Wattage48VDC 5W | CCT3000K, 3500K, 4000K | IPIndoor | DimensionsL280xW34xH65mm | Cut-outNot published |
| LDMB105 | Wattage48VDC 5W | CCT3000K, 3500K, 4000K | IPIndoor | DimensionsL545xW34xH65mm | Cut-outNot published |
| LDMB106 | Wattage48VDC 5W | CCT3000K, 3500K, 4000K | IPIndoor | DimensionsL1075xW34xH65mm | Cut-outNot published |
| LDMB107 | Wattage48VDC 5W | CCT3000K, 3500K, 4000K | IPIndoor | DimensionsL1000x34xH44mm | Cut-outNot published |
| LDMB108 | Wattage48VDC 5W | CCT3000K, 3500K, 4000K | IPIndoor | DimensionsL2000x34xH44mm, LDMB108.13.002 | Cut-outNot published |
| LDMB109 | Wattage48VDC 5W | CCT3000K, 3500K, 4000K | IPIndoor | Dimensions∅800xH230mm | Cut-outNot published |
| LDMB110 | Wattage48VDC 5W | CCT3000K, 3500K, 4000K | IPIndoor | Dimensions∅600xH160mm | Cut-outNot published |
| LDMB111 | Wattage48VDC 5W | CCT3000K, 3500K, 4000K | IPIndoor | Dimensions∅200xH200mm | Cut-outNot published |
| LDMB112 | Wattage48VDC 5W | CCT3000K, 3500K, 4000K | IPIndoor | Dimensions∅300xH310mm | Cut-outNot published |
| LDMB113 | Wattage48VDC 5W | CCT3000K, 3500K, 4000K | IPIndoor | DimensionsL34x17xH2000mm | Cut-outNot published |
| LDMB114 | Wattage48VDC 5W | CCT3000K, 3500K, 4000K | IPIndoor | DimensionsL34x17xH3000mm | Cut-outNot published |
| LDMB115 | Wattage48VDC 5W | CCT3000K, 3500K, 4000K | IPIndoor | Dimensions∅400mm | Cut-outNot published |
| LDMB116 | Wattage48VDC 5W | CCT3000K, 3500K, 4000K | IPIndoor | Dimensions∅600mm | Cut-outNot published |
| LDMB117 | Wattage48VDC 5W | CCT3000K, 3500K, 4000K | IPIndoor | Dimensions∅800mm | Cut-outNot published |
| LDMB118 | Wattage48VDC 5W | CCT3000K, 3500K, 4000K | IPIndoor | Dimensions∅1200mm | Cut-outNot published |
| LDMB119 | Wattage48VDC 5W | CCT3000K, 3500K, 4000K | IPIndoor | Dimensions∅230x190H | Cut-outNot published |
| LDMB120 | Wattage48VDC 5W | CCT3000K, 3500K, 4000K | IPIndoor | Dimensions∅330x270H | Cut-outNot published |
| LDMB121 | Wattage48VDC 5W | CCT3000K, 3500K, 4000K | IPIndoor | Dimensions∅200x200H | Cut-outNot published |
| LDMB122 | Wattage48VDC 5W | CCT3000K, 3500K, 4000K | IPIndoor | Dimensions∅450x80H | Cut-outNot published |
| LDMB123 | Wattage48VDC 5W | CCT3000K, 3500K, 4000K | IPIndoor | Dimensions∅450x88H | Cut-outNot published |
| LDMB124 | Wattage48VDC 5W | CCT3000K, 3500K, 4000K | IPIndoor | Dimensions∅100x105H | Cut-outNot published |
| LDMB125 | Wattage48VDC 5W | CCT3000K, 3500K, 4000K | IPIndoor | Dimensions∅100x95H | Cut-outNot published |
| LDMB126 | Wattage48VDC 5W | CCT3000K, 3500K, 4000K | IPIndoor | Dimensions∅100x120H | Cut-outNot published |
| LDMB127 | Wattage48VDC 5W | CCT3000K, 3500K, 4000K | IPIndoor | Dimensions∅100x120H | Cut-outNot published |
| LDMBA100 | WattageNot published | CCT3000K, 3500K, 4000K | IPIndoor | Dimensions∅60xH45mm | Cut-outNot published |
| LDMBA101 | WattageNot published | CCT3000K, 3500K, 4000K | IPIndoor | Dimensions55x33x10mm | Cut-outNot published |
| LDMBA102 | WattageNot published | CCT3000K, 3500K, 4000K | IPIndoor | Dimensions∅60xH45mm | Cut-outNot published |
| LDMBA103 | WattageNot published | CCT3000K, 3500K, 4000K | IPIndoor | Dimensions∅60xH150mm | Cut-outNot published |
| LDMBA104 | Wattage100W | CCT3000K, 3500K, 4000K | IPIndoor | Dimensions205x56H | Cut-outNot published |
| LDMBA105 | WattageNot published | CCT3000K, 3500K, 4000K | IPIndoor | DimensionsNot published | Cut-outNot published |
| LDMBA106 | WattageNot published | CCT3000K, 3500K, 4000K | IPIndoor | DimensionsNot published | Cut-outNot published |
| LDMBA107 | WattageNot published | CCT3000K, 3500K, 4000K | IPIndoor | DimensionsNot published | Cut-outNot published |
| LDMBA108 | WattageNot published | CCT3000K, 3500K, 4000K | IPIndoor | DimensionsNot published | Cut-outNot published |
| LDMBA115 | WattageNot published | CCT3000K, 3500K, 4000K | IPIndoor | Dimensionsφ35x1600mm(Height-1500mm) | Cut-outNot published |
| LDMBA116 | WattageNot published | CCT3000K, 3500K, 4000K | IPIndoor | Dimensionsφ35x2000mm(Height-1500mm) | Cut-outNot published |
Technical Data
Full Specification
| Dimensions | Ø80x1000mm · 100x95x980mm · Ø260xH240mm · Ø330xH170mm +204 more |
|---|---|
| Cut-out | L95xW60xH40mm · L130xW40xH50mm · L166xW65xH63mm |
| Power | 0.3W · 3W · 4W · 5W +52 more |
| Lumen output | 600lm · 525lm · 2625lm · 3500lm |
| Efficacy | 80lm/W |
| Optics / beam angle | 30° · 130° · 180° · 360° +1 more |
| Colour temperature | 3000K · Switch(3000K-4000K-6000K) |
| CRI Ra | 80 · 85 · 90 · ≥80 |
| R9 | Not published — technical review required |
| TM-30 Rf / Rg | Not published — technical review required |
| UGR | Not published — technical review required |
| IP rating | IP20 · IP54 · IP65 |
| IK rating | Not published — technical review required |
| Ambient temperature (Ta) | Not published — technical review required |
| Driver | Not published — technical review required |
| Dimming / control | Not published — technical review required |
| Input voltage | 100-240VAC · AC · 220-240VAC · 48VDC |
| Light source | Not published — technical review required |
| Material | Stainless Steel · Metal · Iron · Iron+Glass +5 more |
| Finish | amber · antique-bronze · antique-copper+smocky · black +49 more |
| Mounting / installation | Not published — technical review required |
| Net weight | Not published — technical review required |
| Certification | Not published — technical review required |
| Lifetime | Not published — technical review required |
| Warranty | 5 Years · 1 Year · 3 Years · 2 Years |
| Lead time | Not published — technical review required |
13 of 26 specification rows published from the 2026 master data. Values vary by model; missing test data is not estimated. Select an exact model for approval.
Configuration
Select Specification
Power
Beam Angle
CCT
Colour
Finish
IP Rating
Select attributes to narrow down variants
Dimensions
Technical Drawing
Drawing and sizes shown for model LD160403S. This family has 218 models with different dimensions — select a model above, or open its row in the variant table, for its own drawing.
Size — model LD160403S
Ø500x1500mm
Specifications
At a Glance
0.3–300W
Power Range
4 options
Beam: 30°, 130°, 180°, 360°
1 CCT
3000K
Switch(3000K-4000K-6000K)
Colour Options
CRI 80/85/90
Colour Rendering
IP20 / IP54 / IP65
Protection Rating
43 finishes
Body Finish Options
209 sizes
1000x150mm, 100x95x980mm, 115x400mm, 1180x170x170mm, 1180x440x420mm, 1200x70x38, 1250x650x520m, 1300x280mm, 1560x2670mm, 1930x917x1500mm, 1950x1000x1420mm, 2000x950mm, 200x310x65mm, 205x56H, 300x330x22mm, 300xH1500mm, 350xH1800mm, 400x100x29mm, 55x33x10mm, 600x70x38, 600x80mm, 650x250xH245mm, 680x1200mm, 900x350x400mm, 900x70x38, 980x280mm, D1000, D10608xH1500, D1300mm/D900mm/D600mm, D750, H500mm, L1000x34xH44mm, L1075xW34xH65mm, L1200xH1500, L1200xW200xH1500mm, L1200xW95xH1200mm, L1230xW200xH1500mm, L1300mm, L1500xW500xH6000mm, L155xW50mm, L180XW90XH60mm, L190xW80mm, L2000x34xH44mm, L200xH310xmm, L200xW25xH1800mm, L280xW34xH65mm, L34x17xH2000mm, L34x17xH3000mm, L520xW90xH130mm, L545xW34xH65mm, L800, LDMB108.13.002, Ø1000, Ø1000*3000mm, Ø1000+Ø600mm, Ø1000mm, Ø1000x1200MM, Ø100mm, Ø1050x750mm, Ø110+Ø130+Ø150mm, Ø1200*350*3000mm, Ø1200mm, Ø1200x1800MM, Ø1240xW140x1200MM, Ø134x81mm, Ø134x85mm, Ø138xH1800MM, Ø140x400mm, Ø140x430mm, Ø140x440mm, Ø140x670mm, Ø1500mm, Ø160x180mm, Ø180xH375mm, Ø200mm, Ø200x259mm, Ø200xH259mm, Ø240x210mm, Ø245x2000, Ø250mm, Ø250x650mm, Ø250xH180mm, Ø250xH250mm, Ø250xH375mm, Ø25x300mm, Ø25x350x60mm, Ø260x230x1500mm, Ø260xH240mm, Ø280x1300mm, Ø300mm, Ø300xH1500mm, Ø300xH300mm, Ø300xH350mm, Ø300xH470MM, Ø300xH530mm, Ø30x110x110mm, Ø30x525mm, Ø310xH125x1500mm, Ø32xH500mm, Ø330xH170mm, Ø350xH130mm, Ø350xH190mm, Ø350xH205mm, Ø350xH230mm, Ø35x300X1800mm, Ø35x300x1800mm, Ø35x345x1800mm, Ø35x600X1800mm, Ø35x645x1800mm, Ø400+Ø600+Ø800xH1500mm, Ø400mm, Ø400x1500mm, Ø400x22x430mm, Ø400xH1500mm, Ø400xH1540mm, Ø490x470MM, Ø490xH185mm, Ø490xH470MM, Ø500mm, Ø500x1500mm, Ø500xH1500mm, Ø500xH240mm, Ø500xH2500mm, Ø500xH250mm, Ø500xH300mm, Ø530x1100mm, Ø582xH178mm, Ø600, Ø600+800+1000mm, Ø600+Ø400mm, Ø600+Ø400xH1500mm, Ø600+Ø450+Ø300mm, Ø600mm, Ø600x128x1500mm, Ø600x150mm, Ø600x400mm, Ø600x470mm, Ø600xH135mm, Ø600xH1500mm, Ø650xH1200mm, Ø700mm, Ø750, Ø80, Ø800, Ø800+Ø1000mm, Ø800+Ø500mm, Ø800+Ø500xH1500mm, Ø800+Ø600+Ø400mm, Ø800mm, Ø800x1200MM, Ø800x370mm, Ø800x620mm, Ø800xH1500mm, Ø80x1000mm, Ø80x1800mm, Ø880*3000mm, Ø880*3200mm, Ø900mm, Ø900xH4000mm, Ø92xH21xH130CM, Ø92xH42xH130CM, Ø92xH66xH130CM, Ø95xH1800mm, Ø980xH650mm, Ø98x1800mm, Φ1000x4000mm, Φ270x500H, Φ345x1620H, Φ35x300Hx1800mm, Φ35x345Hx1800mm, Φ35x600Hx1800mm, Φ35x645Hx1800mm, Φ35x900Hx1800mm, Φ400x1500mm, Φ600x1500mm, Φ80x1800mm, Φ80xH1800mm, Φ98x1800mm, φ1200mm, φ200mm, φ35x1600mm(Height-1500mm), φ35x2000mm(Height-1500mm), φ400mm, φ700mm, φ900mm, ∅1000xH1500mm, ∅100x105H, ∅100x120H, ∅100x95H, ∅100xH100mm, ∅1200mm, ∅200x200H, ∅200xH130mm, ∅200xH200mm, ∅230x190H, ∅300xH200mm, ∅300xH310mm, ∅330x270H, ∅400mm, ∅450x80H, ∅450x88H, ∅600mm, ∅600xH1500mm, ∅600xH160mm, ∅60xH150mm, ∅60xH45mm, ∅800mm, ∅800xH1500mm, ∅800xH230mm
3 cut-outs
L130xW40xH50mm, L166xW65xH63mm, L95xW60xH40mm
