Lumi Deco

ORIENT

Application inspiration · not a project reference

ORIENT is part of Lumi Deco. Coordinate the selected article’s dimensions, installation details and configuration with the project specification; these details can vary between models in the same family.

Wall Light

15 product lines·249 total variants·luminaire·wall mounted

ORIENT is a wall light family within the LUMIBRIGHT Lumi Deco collection. Explore 15 models, including LD125501W, LD125502W, LD125503W, with model-specific specifications and configuration choices. LD125501W specifications include power: 2.2W; colour temperature: 3000K; IP rating: IP20; dimensions: Ø90x27x80. Compare the ORIENT range by power, colour temperature, protection rating and dimensions using the technical table below. Open an individual model to explore its available finishes and optics, select a listed order code and prepare a specification sheet where configuration data is available. Keep the chosen model reference with your project schedule so the lighting and installation teams can coordinate the same selection. For additional drawings, photometry or project-specific requirements, contact the LUMIBRIGHT specification team with your model code.

Model specifications

Article	Wattage	CCT	IP	Dimensions	Cut-out
LD125501W	Wattage2.2W	CCT3000K	IPIP20	DimensionsØ90x27x80	Cut-outNot published
LD125502W	Wattage2.2W	CCT3000K	IPIP20	DimensionsØ28x80	Cut-outNot published
LD125503W	Wattage2.2W	CCT3000K	IPIP20	DimensionsØ28x80	Cut-outNot published
LD125521W	Wattage3W	CCT2700K	IPIP20	DimensionsØ28x80x110mm	Cut-outNot published
LD125522W	Wattage3W	CCT6000K	IPIP20	DimensionsØ28x80x110x110mm	Cut-outNot published
LD125523W	Wattage3W	CCT3000K	IPIP20	DimensionsØ30x110x180mm	Cut-outNot published
LD125524W	Wattage3W	CCT4000K	IPIP20	DimensionsØ24x85x150mm	Cut-outNot published
LD125525W	Wattage3W	CCT2700K	IPIP20	DimensionsØ29x110x81mm	Cut-outNot published
LD125526W	Wattage3W	CCT4000K	IPIP20	DimensionsØ60x95x100mm	Cut-outNot published
LD125527W	Wattage5W	CCT4000K	IPIP20	DimensionsØ43x127x70mm	Cut-outNot published
LD125528W	Wattage1W+3W	CCT3000K	IPIP20	DimensionsØ18x175x205mm	Cut-outNot published
LD125529W	Wattage5W	CCT2700K	IPIP20	DimensionsØ57x110x137mm	Cut-outNot published
LD125530W	Wattage5W	CCT6000K	IPIP20	DimensionsØ57x110x1390mm	Cut-outNot published
LD125531W	Wattage3W	CCTNot published	IPIP20	DimensionsØ30x110x110mm	Cut-outNot published
LD125532W	Wattage3W	CCT3000K	IPIP20	DimensionsØ25x350x60mm	Cut-outNot published

Technical Data

Full Specification

Dimensions	Ø90x27x80 · Ø28x80 · Ø28x80x110mm · Ø28x80x110x110mm +10 more
Cut-out	125x35mm
Power	1W · 3W · 5W · 2.2W +1 more
Lumen output	140lm · 120lm · 240lm · 430lm +2 more
Efficacy	Not published — technical review required
Optics / beam angle	23° · 30° · 38° · 29°
Colour temperature	2700K · 3000K · 4000K · 6000K
CRI Ra	80 · 90 · ≥80 · ≥90 +1 more
R9	Not published — technical review required
TM-30 Rf / Rg	Not published — technical review required
UGR	Not published — technical review required
IP rating	IP20
IK rating	Not published — technical review required
Ambient temperature (Ta)	Not published — technical review required
Driver	Not published — technical review required
Dimming / control	Not published — technical review required
Input voltage	100-240VAC
Light source	Not published — technical review required
Material	Aluminium · Stainless Steel · Aluminium+Iron
Finish	black · brushed-silver · chrome · gold +11 more
Mounting / installation	Not published — technical review required
Net weight	Not published — technical review required
Certification	Not published — technical review required
Lifetime	Not published — technical review required
Warranty	3 Years · 5 Years · 2 Years
Lead time	Not published — technical review required

12 of 26 specification rows published from the 2026 master data. Values vary by model; missing test data is not estimated. Select an exact model for approval.

How to compare indoor/outdoor suitability, projection, mounting and distribution →

Configuration

Select Specification

Power

Beam Angle

CCT

Finish

IP Rating

Select attributes to narrow down variants

Product Lines

15 Products

3 var.

LD125501W

LD125501W.13.014

2.2W29°IP20Ø90x27x80

3 variants

4 var.

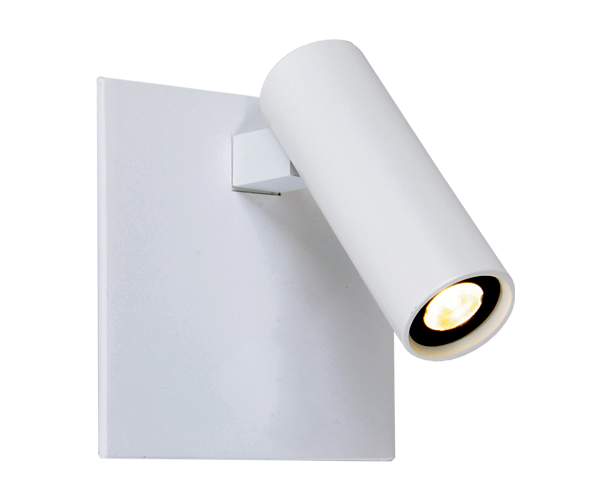

LD125502W

LD125502W.13.012

2.2W29°IP20Ø28x80

4 variants

4 var.

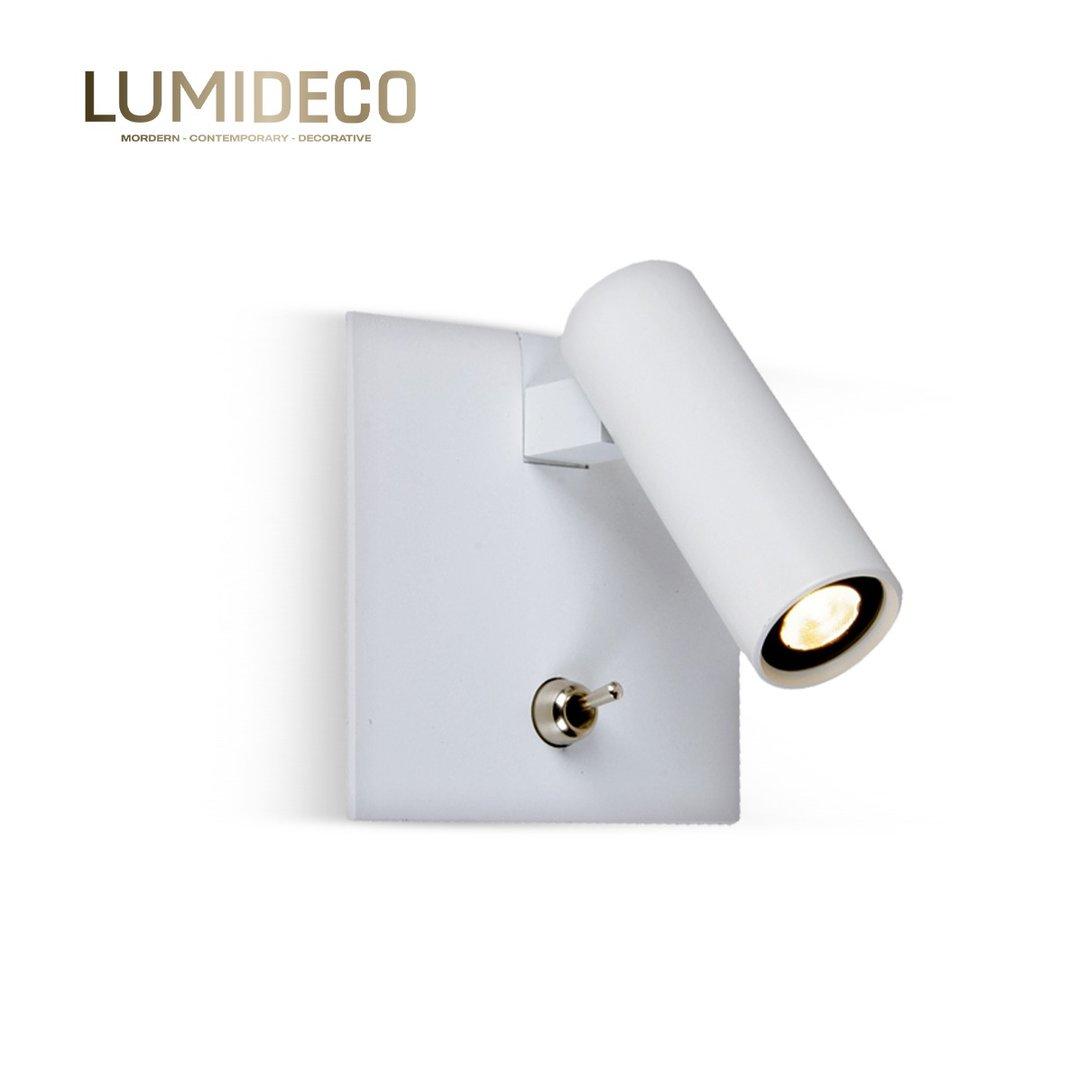

LD125503W

LD125503W.13.013

2.2W29°IP20Ø28x80

4 variants

12 var.

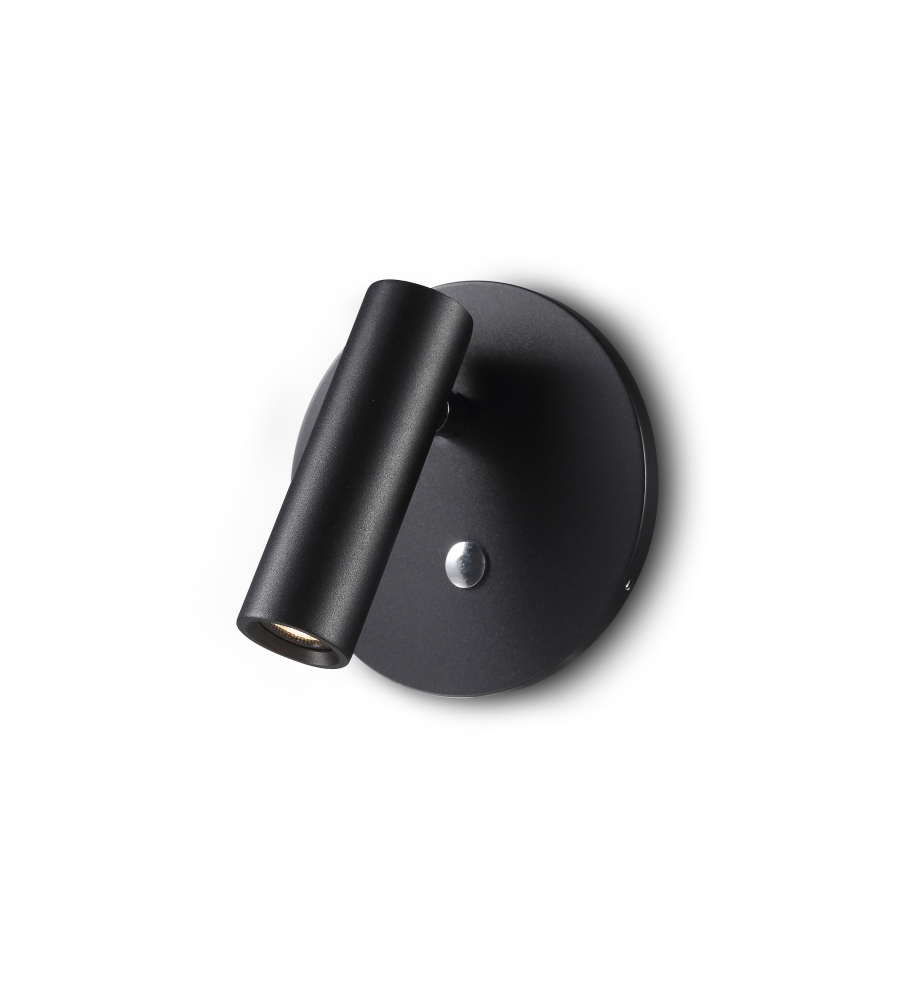

LD125521W

LD125521W.13.001

3W30°IP20Ø28x80x110mm

12 variants

24 var.

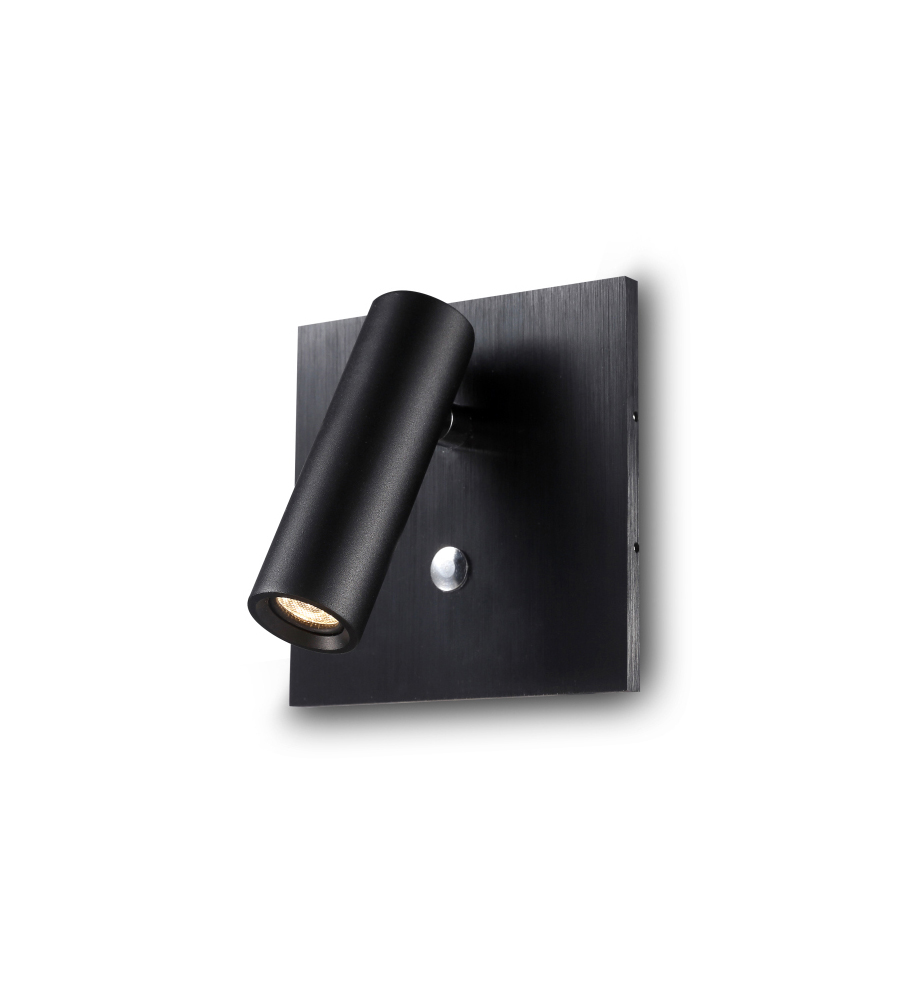

LD125522W

LD125522W.10.001

3W30°IP20Ø28x80x110x110mm

24 variants

32 var.

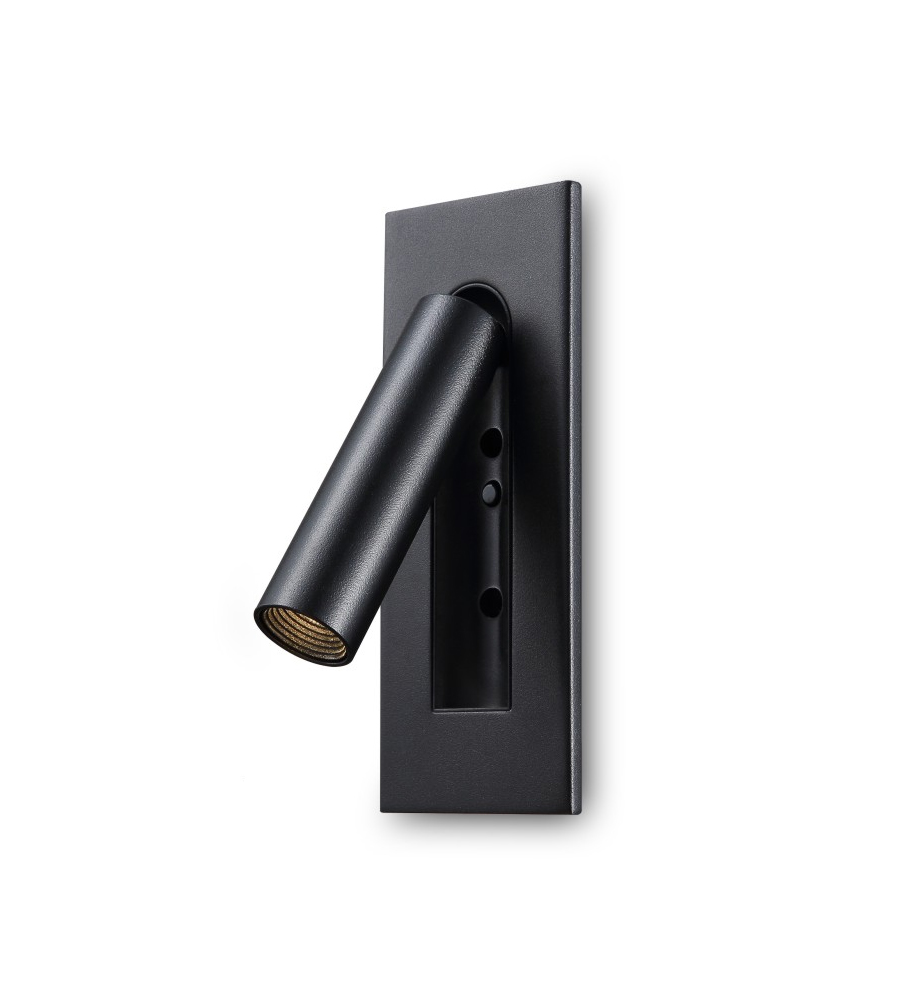

LD125523W

LD125523W.10.001

3W30°IP20Ø30x110x180mm

32 variants

32 var.

LD125524W

LD125524W.13.001

3W30°IP20Ø24x85x150mm

32 variants

32 var.

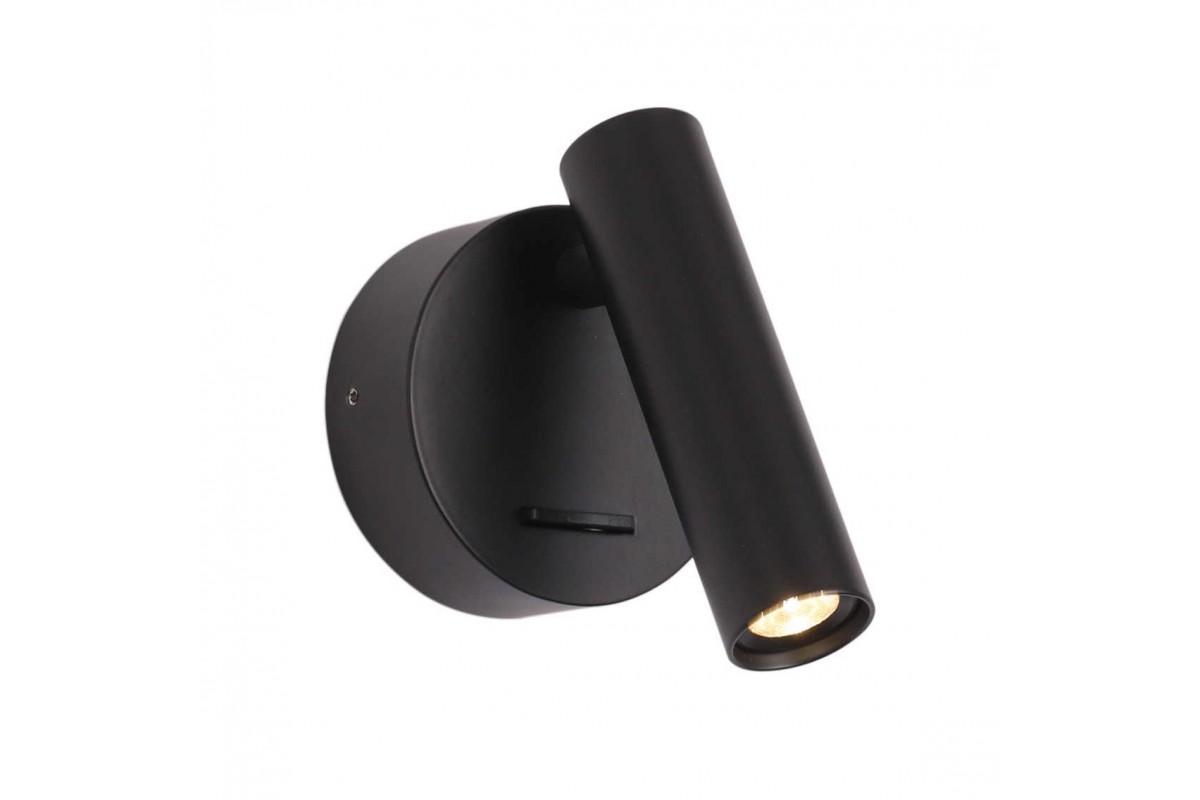

LD125525W

LD125525W.13.002

3W30°IP20Ø29x110x81mm

32 variants

32 var.

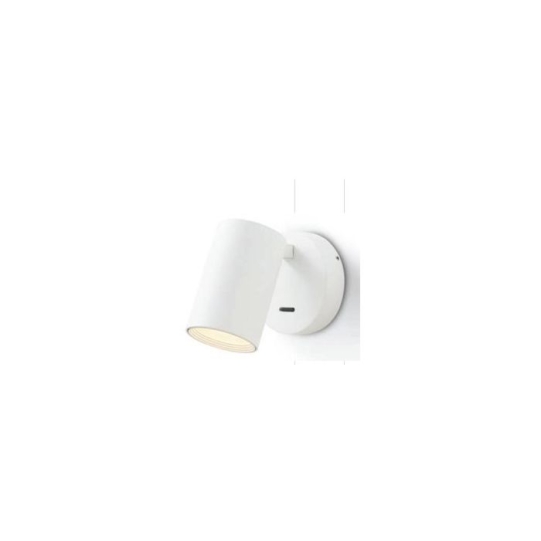

LD125526W

LD125526W.13.001

3W23°IP20Ø60x95x100mm

32 variants

32 var.

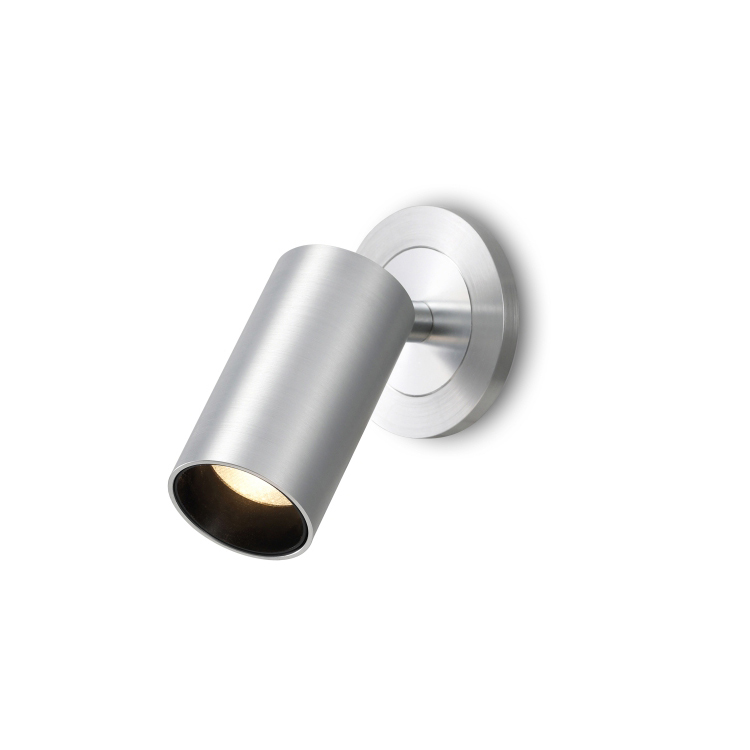

LD125527W

LD125527W.13.201

5W23°IP20Ø43x127x70mm

32 variants

16 var.

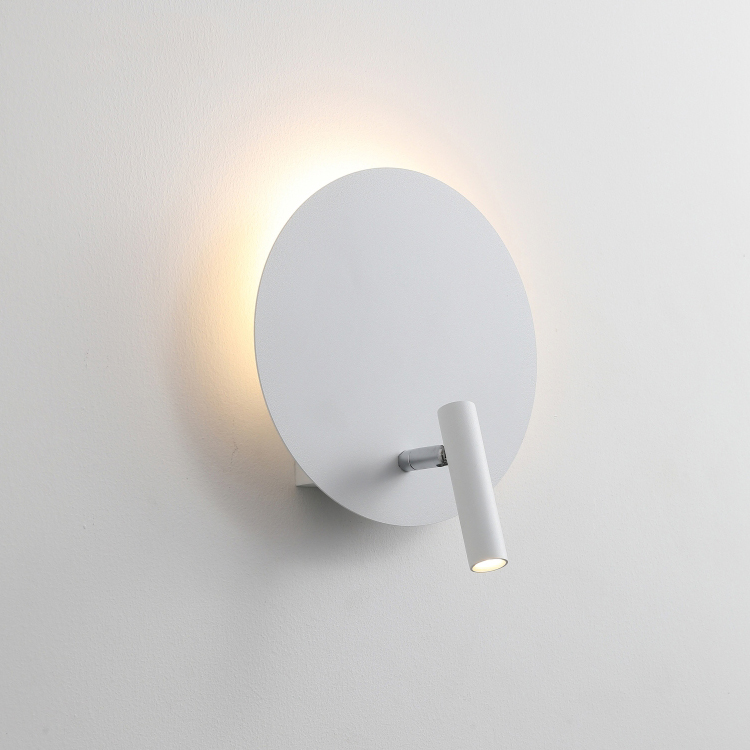

LD125528W

LD125528W.13.001

1W30°IP20Ø18x175x205mm

16 variants

16 var.

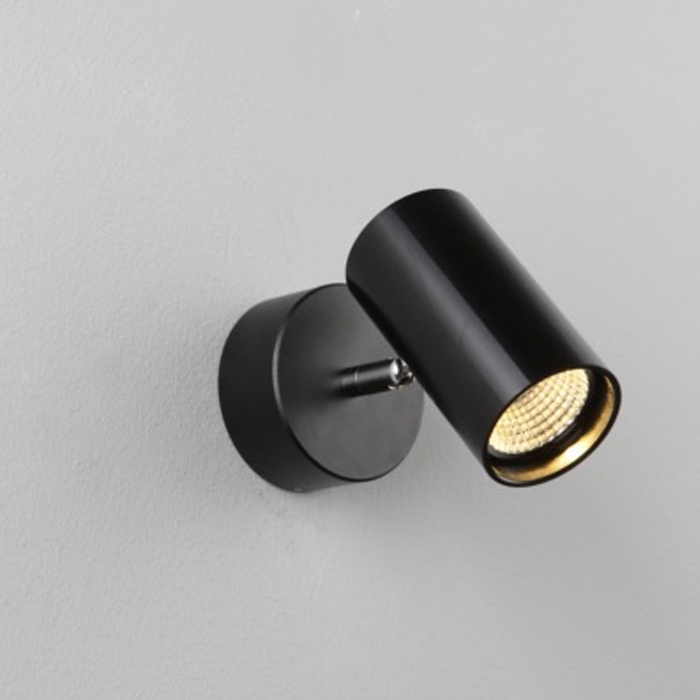

LD125529W

LD125529W.13.001

5W38°IP20Ø57x110x137mm

16 variants

8 var.

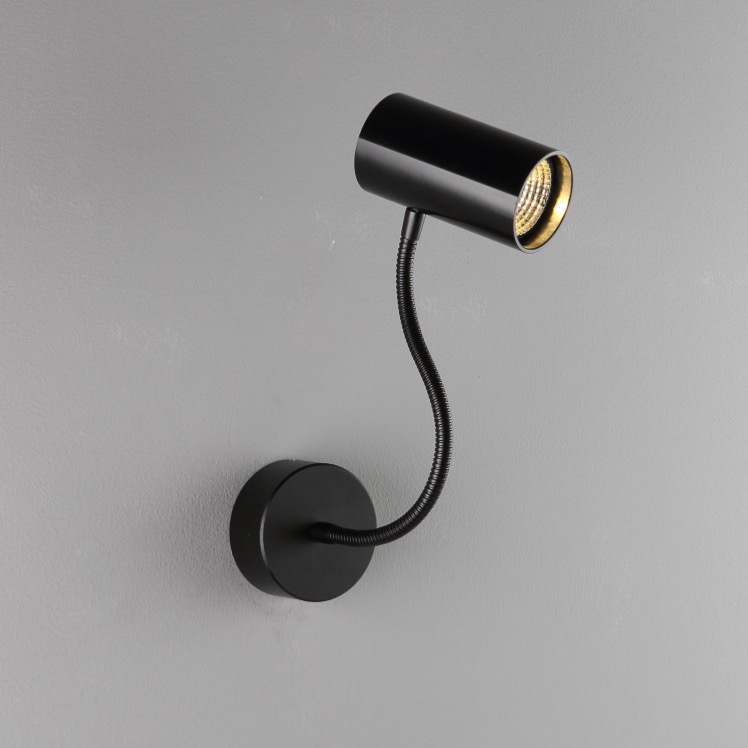

LD125530W

LD125530W.23.002

5W38°IP20Ø57x110x1390mm

8 variants

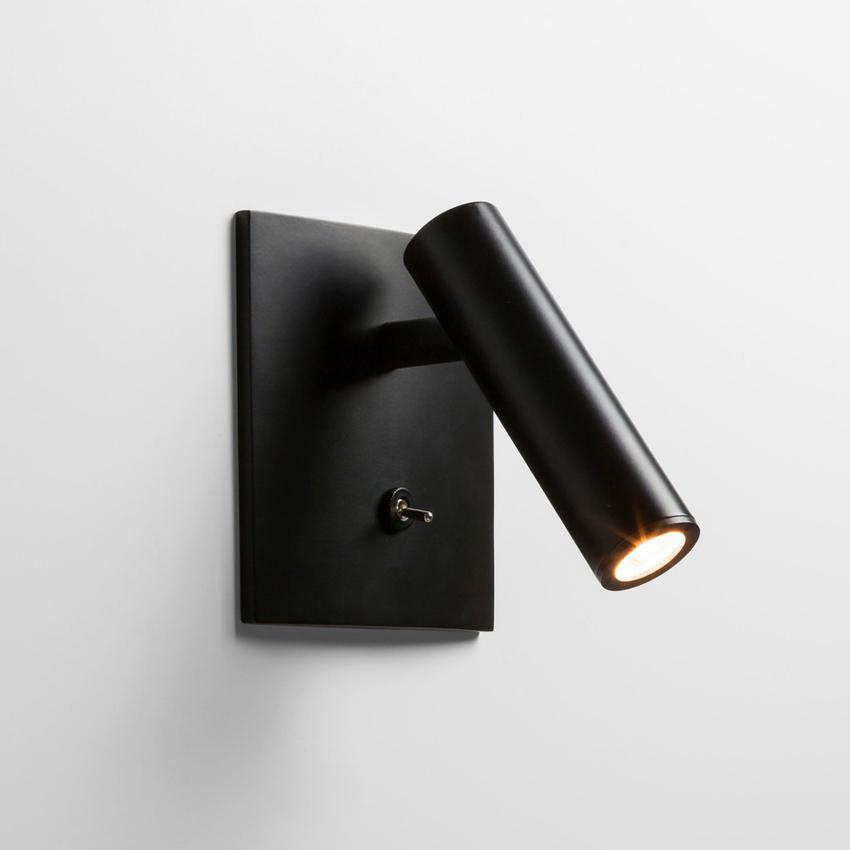

LD125531W

LUMIDECO ORIENT SERIES MATT SQUARE HOTEL HEADBOARD LED READING LIGHT LD125531W

1 variant

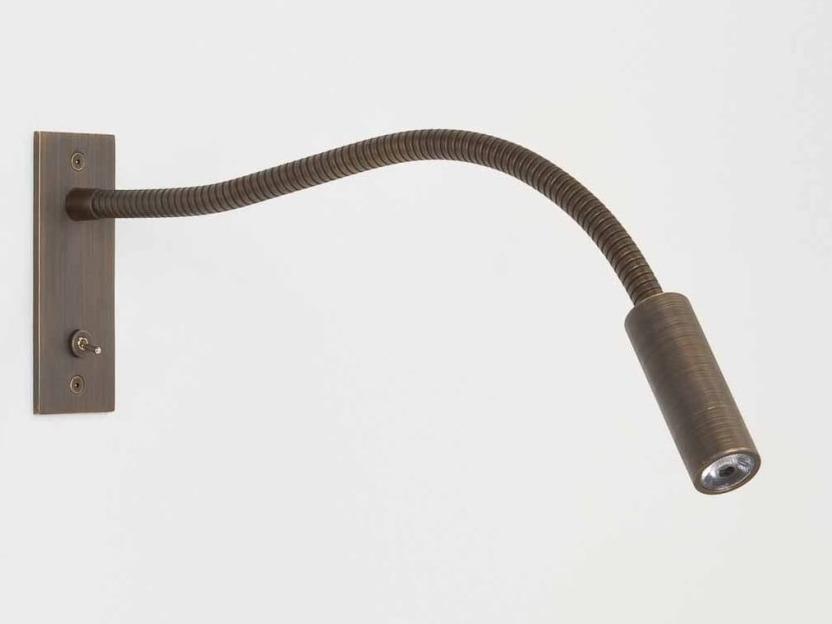

LD125532W

LUMIDECO ORIENT SERIES WALL LIGHT

1 variant

Dimensions

Technical Drawing

Drawing and sizes shown for model LD125524W. This family has 15 models with different dimensions — select a model above, or open its row in the variant table, for its own drawing.

Size — model LD125524W

Ø24x85x150mm

Cut-Out

125x35mm

Specifications

At a Glance

1–5W

Power Range

4 options

Beam: 23°, 29°, 30°, 38°

4 CCT

2700K, 3000K, 4000K, 6000K

CRI 80/90

Colour Rendering

IP20

Protection Rating

9 finishes

Body Finish Options

12 sizes

Ø18x175x205mm, Ø24x85x150mm, Ø28x80, Ø28x80x110mm, Ø28x80x110x110mm, Ø29x110x81mm, Ø30x110x180mm, Ø43x127x70mm, Ø57x110x137mm, Ø57x110x1390mm, Ø60x95x100mm, Ø90x27x80

125x35mm

Cut-Out
