Lumi Deco
QUAIN
Application inspiration · not a project reference
QUAIN is part of Lumi Deco. Coordinate the selected article’s dimensions, installation details and configuration with the project specification; these details can vary between models in the same family.
Pendant Light
QUAIN
QUAIN is a pendant light family within the LUMIBRIGHT Lumi Deco collection. Explore 7 models, including LD111301S, LD111302S, LD111303S, with model-specific specifications and configuration choices. LD111301S specifications include power: 12W; colour temperature: 3000K; IP rating: IP20; dimensions: Ø245x2000. Compare the QUAIN range by power, colour temperature, protection rating and dimensions using the technical table below. Open an individual model to explore its available finishes and optics, select a listed order code and prepare a specification sheet where configuration data is available. Keep the chosen model reference with your project schedule so the lighting and installation teams can coordinate the same selection. For additional drawings, photometry or project-specific requirements, contact the LUMIBRIGHT specification team with your model code.
Model specifications
| Article | Wattage | CCT | IP | Dimensions | Cut-out |
|---|---|---|---|---|---|
| LD111301S | Wattage12W | CCT3000K | IPIP20 | DimensionsØ245x2000 | Cut-outNot published |

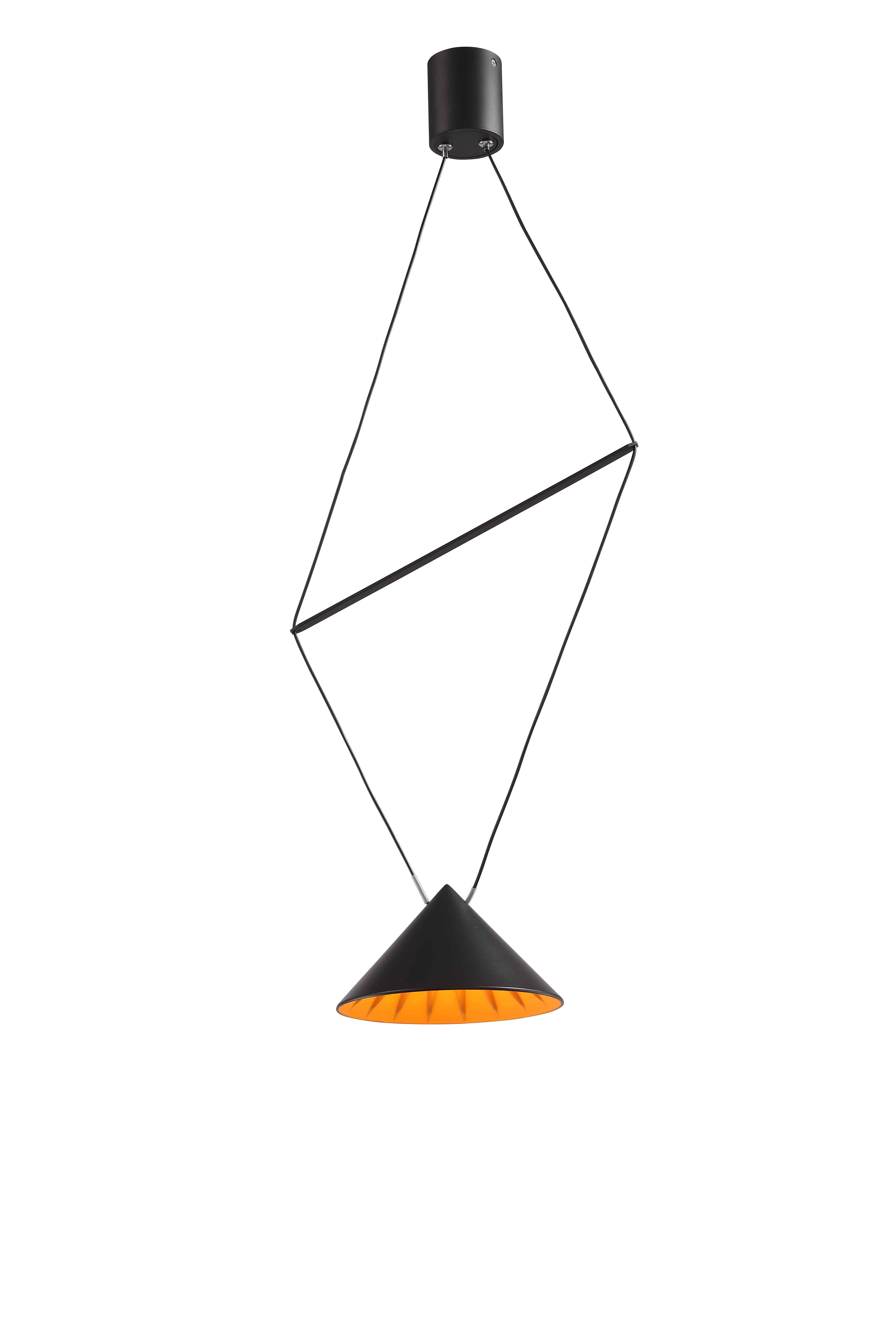

| LD111302S | Wattage12W | CCT3000K | IPIP20 | DimensionsØ200mm | Cut-outNot published |

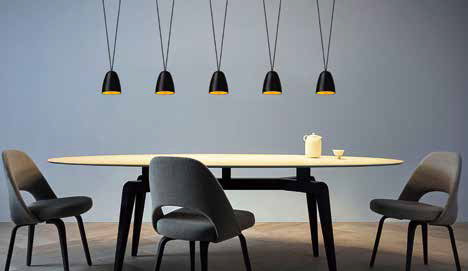

| LD111303S | Wattage42W | CCT3000K | IPIP20 | DimensionsØ75mm | Cut-outNot published |

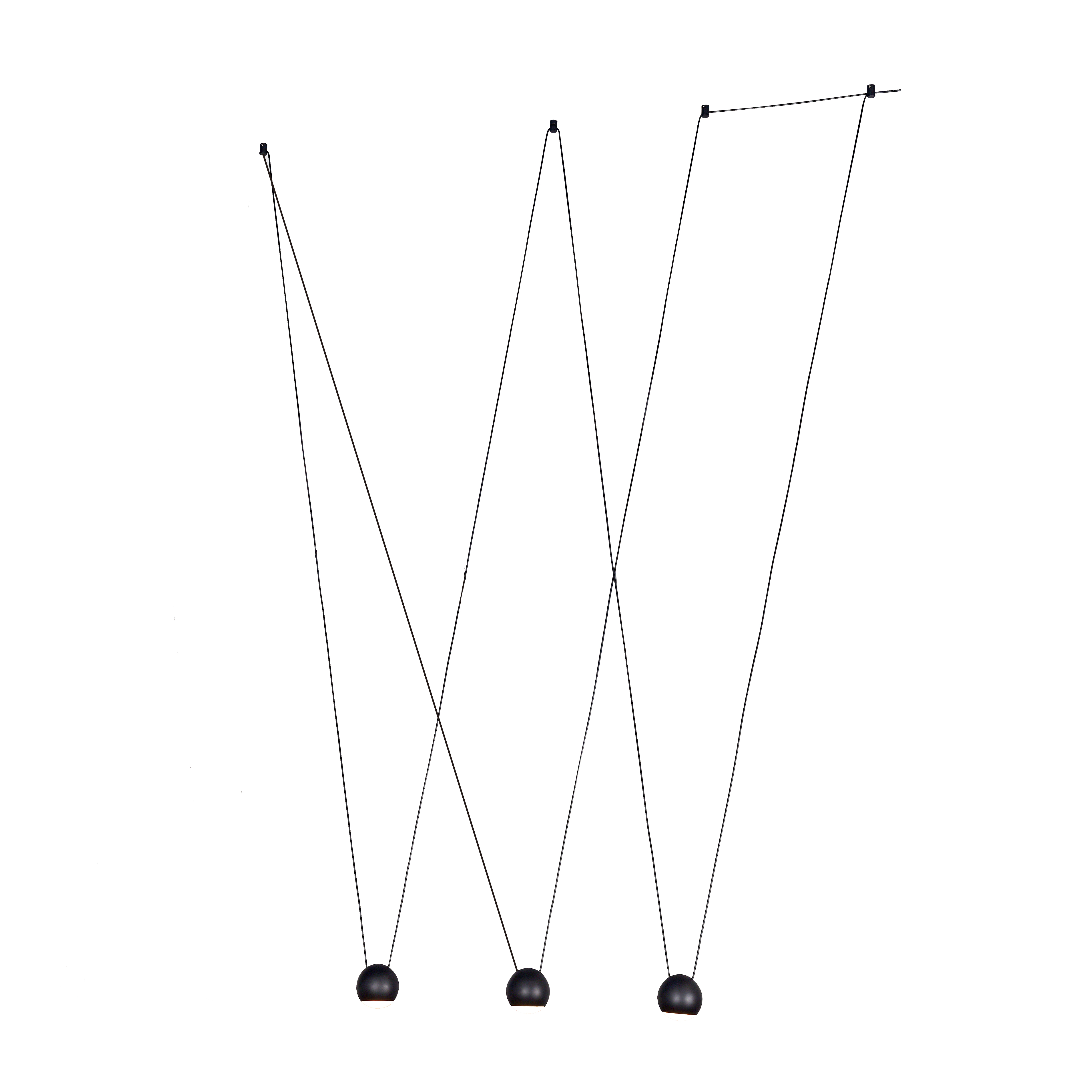

| LD111304S | Wattage14W | CCT3000K | IPIP20 | Dimensions97xL783xH79mm | Cut-outNot published |

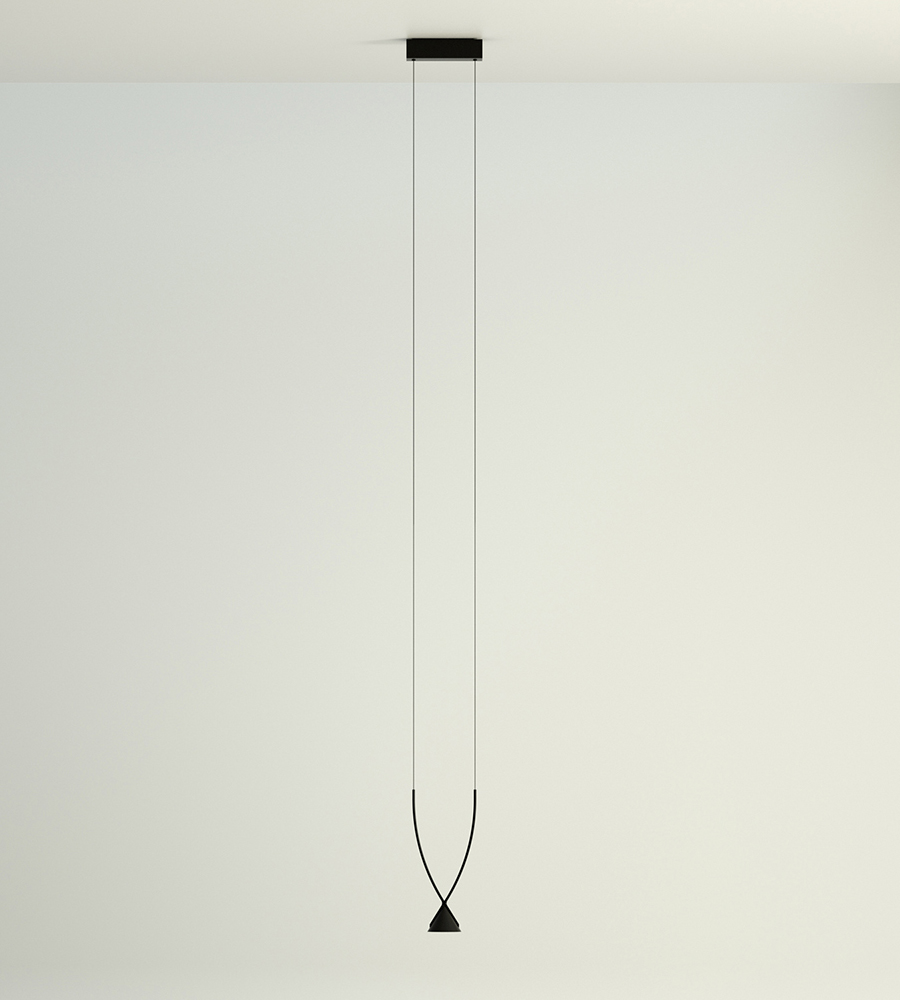

| LD111310S | Wattage3W | CCT2700K | IPIP20 | DimensionsØ90xH200mm | Cut-outNot published |

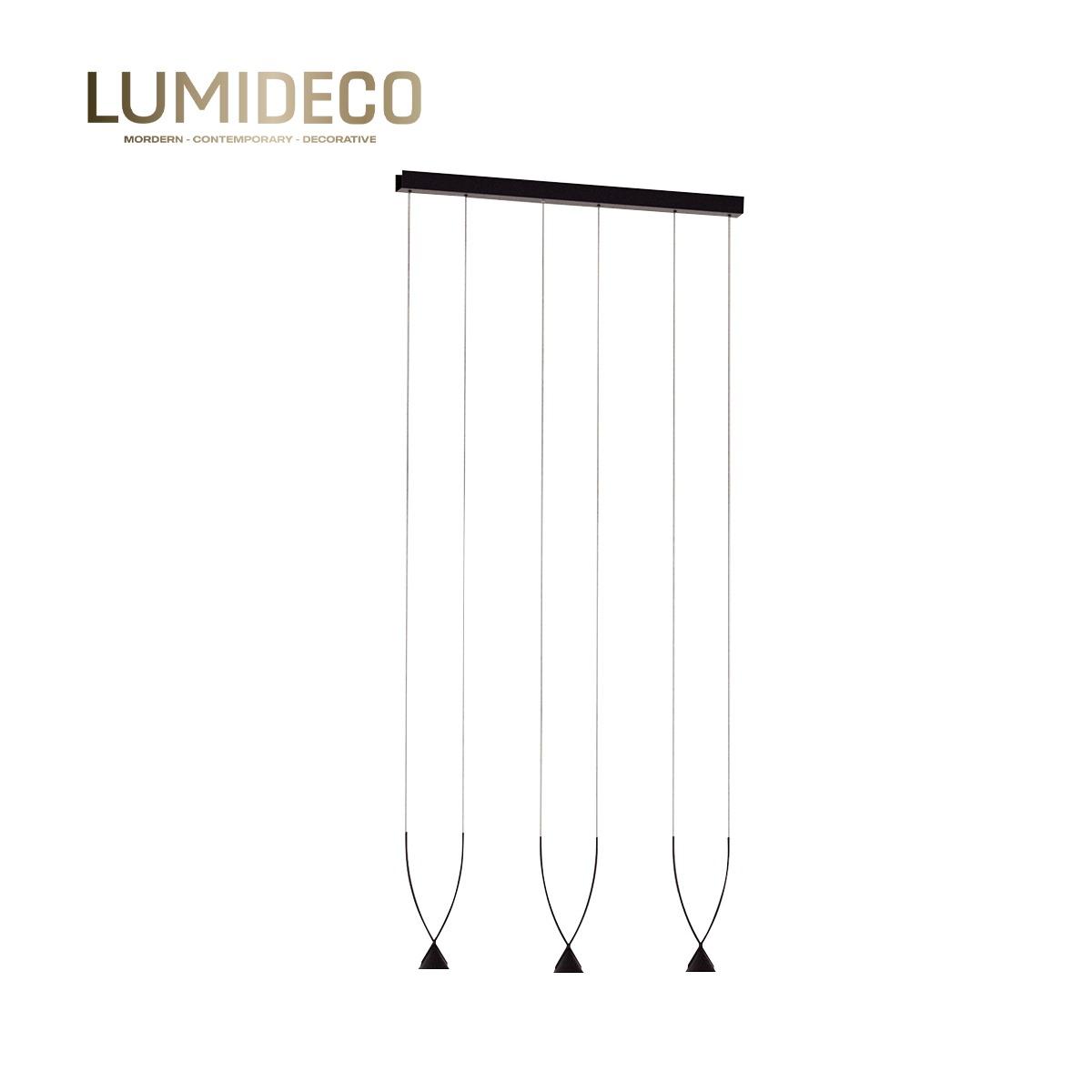

| LD111311S | Wattage3x3W | CCT2700K | IPIP20 | DimensionsL1000xH1500mm | Cut-outNot published |

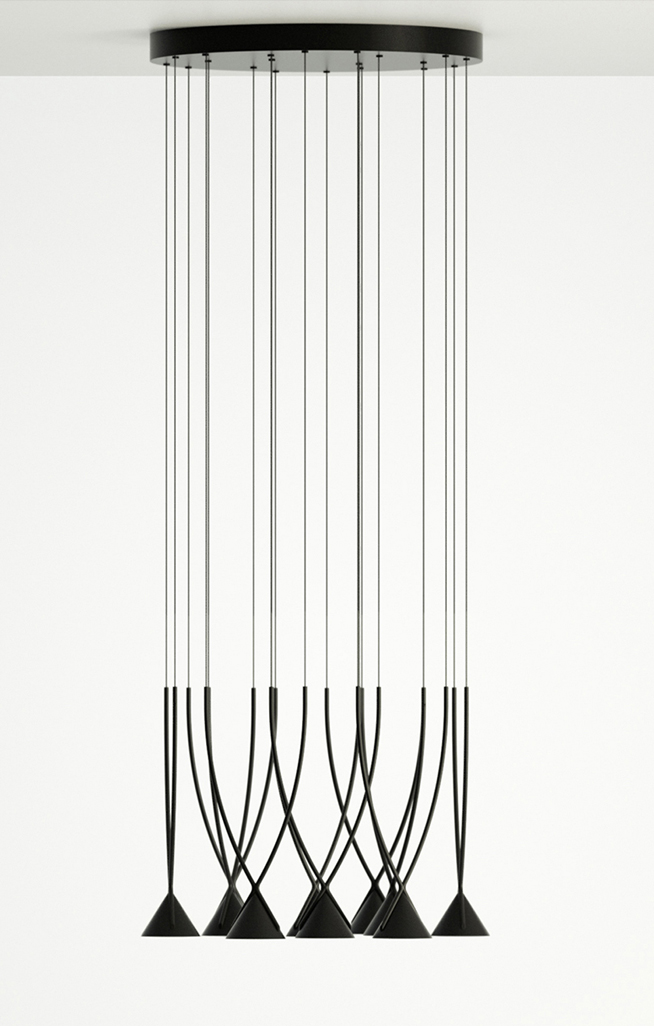

| LD111312S | Wattage10x3W | CCT2700K | IPIP20 | DimensionsØ500xH1500mm | Cut-outNot published |
Technical Data
Full Specification
| Dimensions | Ø245x2000 · Ø200mm · Ø75mm · 97xL783xH79mm +3 more |
|---|---|
| Cut-out | Not published — technical review required |
| Power | 3W · 12W · 14W · 42W +2 more |
| Lumen output | 960lm · 3360lm · 1100lm |
| Efficacy | Not published — technical review required |
| Optics / beam angle | Not published — technical review required |
| Colour temperature | 2700K · 3000K · 4000K |
| CRI Ra | 80 |
| R9 | Not published — technical review required |
| TM-30 Rf / Rg | Not published — technical review required |
| UGR | Not published — technical review required |
| IP rating | IP20 |
| IK rating | Not published — technical review required |
| Ambient temperature (Ta) | Not published — technical review required |
| Driver | Not published — technical review required |
| Dimming / control | Not published — technical review required |
| Input voltage | 100-240VAC · AC |
| Light source | Not published — technical review required |
| Material | Aluminium |
| Finish | black · black+golden · black+orange · gold +2 more |
| Mounting / installation | Not published — technical review required |
| Net weight | Not published — technical review required |
| Certification | Not published — technical review required |
| Lifetime | Not published — technical review required |
| Warranty | 5 Years · 3 Years |
| Lead time | Not published — technical review required |
10 of 26 specification rows published from the 2026 master data. Values vary by model; missing test data is not estimated. Select an exact model for approval.
Configuration
Select Specification
Select attributes to narrow down variants
Product Lines
7 Products
Dimensions
Technical Drawing
Drawing and sizes shown for model LD111301S. This family has 7 models with different dimensions — select a model above, or open its row in the variant table, for its own drawing.
Size — model LD111301S
Ø245x2000
Specifications
At a Glance
3–42W
Power Range
2 CCT
2700K, 3000K
CRI 80
Colour Rendering
IP20
Protection Rating
6 finishes
Body Finish Options
7 sizes
97xL783xH79mm, L1000xH1500mm, Ø200mm, Ø245x2000, Ø500xH1500mm, Ø75mm, Ø90xH200mm
Configure your product
LD111302S
Order code
Listed configurationLD111302S.13.142
1 listed configurations · availability requires confirmation
