Lumi Deco
STECA
Application inspiration · not a project reference
STECA is part of Lumi Deco. Coordinate the selected article’s dimensions, installation details and configuration with the project specification; these details can vary between models in the same family.
Pendant Light
STECA
STECA is a pendant light family within the LUMIBRIGHT Lumi Deco collection. Explore 5 models, including LB5068, LB5069, LB5069W, with model-specific specifications and configuration choices. LB5068 specifications include power: 28W; colour temperature: 3000K; IP rating: IP20; dimensions: Ø270xH510mm. Compare the STECA range by power, colour temperature, protection rating and dimensions using the technical table below. Open an individual model to explore its available finishes and optics, select a listed order code and prepare a specification sheet where configuration data is available. Keep the chosen model reference with your project schedule so the lighting and installation teams can coordinate the same selection. For additional drawings, photometry or project-specific requirements, contact the LUMIBRIGHT specification team with your model code.
Model specifications
| Article | Wattage | CCT | IP | Dimensions | Cut-out |
|---|---|---|---|---|---|

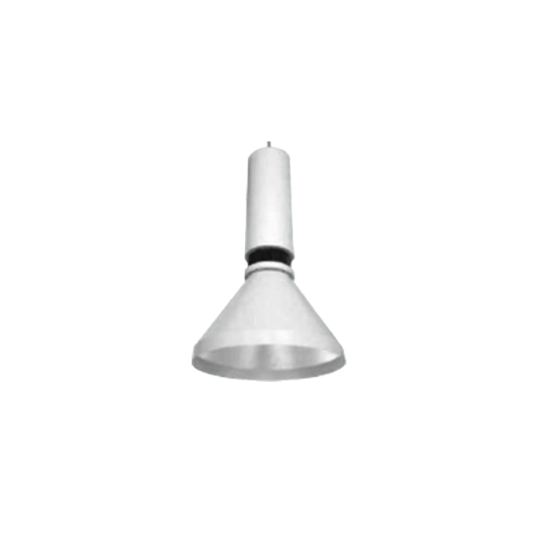

| LB5068 | Wattage28W | CCT3000K | IPIP20 | DimensionsØ270xH510mm | Cut-outNot published |
| LB5069 | Wattage42W | CCT3000K | IPIP20 | DimensionsNot published | Cut-outNot published |
| LB5069W | Wattage42W | CCT3000K | IPNot published | DimensionsNot published | Cut-outNot published |
| LB5070 | Wattage42W | CCT6000K | IPIP20 | DimensionsØ282x440mm | Cut-outNot published |
| LB5071 | WattageNot published | CCTNot published | IPNot published | DimensionsNot published | Cut-outNot published |
Technical Data
Full Specification
| Dimensions | Ø270xH510mm · Ø282x440mm |
|---|---|
| Cut-out | Not published — technical review required |
| Power | 42W |
| Lumen output | Not published — technical review required |
| Efficacy | Not published — technical review required |
| Optics / beam angle | 30° · 48° · 70° |
| Colour temperature | 3000K · 4000K · 5000K · 6000K |
| CRI Ra | ≥80 |
| R9 | Not published — technical review required |
| TM-30 Rf / Rg | Not published — technical review required |
| UGR | Not published — technical review required |
| IP rating | IP20 |
| IK rating | Not published — technical review required |
| Ambient temperature (Ta) | Not published — technical review required |
| Driver | Not published — technical review required |
| Dimming / control | Not published — technical review required |
| Input voltage | 100-240VAC |
| Light source | Not published — technical review required |
| Material | Aluminium |
| Finish | black · White · black-sand |
| Mounting / installation | Not published — technical review required |
| Net weight | Not published — technical review required |
| Certification | Not published — technical review required |
| Lifetime | Not published — technical review required |
| Warranty | 5 Years |
| Lead time | Not published — technical review required |
10 of 26 specification rows published from the 2026 master data. Values vary by model; missing test data is not estimated. Select an exact model for approval.
Configuration
Select Specification
Select attributes to narrow down variants
Product Lines
5 Products
Dimensions
Technical Drawing

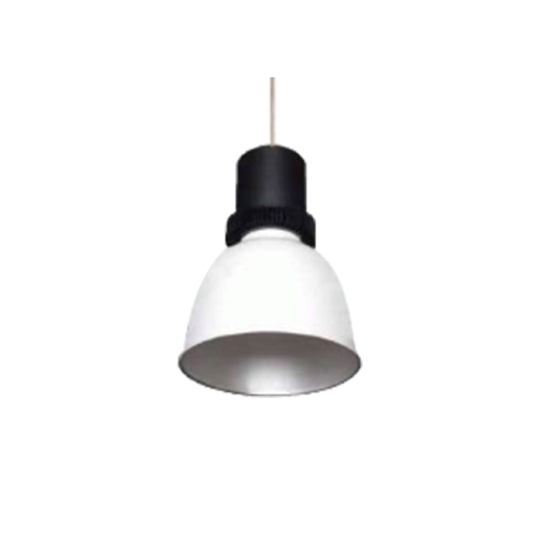

Drawing and sizes shown for model LB5070. This family has 5 models with different dimensions — select a model above, or open its row in the variant table, for its own drawing.
Size — model LB5070
Ø282x440mm
Specifications
At a Glance
28–42W
Power Range
3 options
Beam: 48°, 70°, 100°
3 CCT
3000K, 4000K, 6000K
CRI 80
Colour Rendering
IP20
Protection Rating
3 finishes
Body Finish Options
2 sizes
Ø270xH510mm, Ø282x440mm
Configure your product
LB5069W
Colour temperature
3000K
CRI
≥80
Body finish
White
Power
42W
The published options are not mapped to a confirmed order code. Technical review is required before issuing a configuration-specific specification sheet.
