Spot Light
ABAJO
ABAJO is a spot light family within the LUMIBRIGHT Lumi Indoor collection. Explore 5 models, including LB2246, LB2799, LB2808, with model-specific specifications and configuration choices. LB2246 specifications include power: 10W; colour temperature: 4000K; IP rating: IP20; dimensions: Ø90x110mm. Compare the ABAJO range by power, colour temperature, protection rating and dimensions using the technical table below. Open an individual model to explore its available finishes and optics, select a listed order code and prepare a specification sheet where configuration data is available. Keep the chosen model reference with your project schedule so the lighting and installation teams can coordinate the same selection. For additional drawings, photometry or project-specific requirements, contact the LUMIBRIGHT specification team with your model code.
Model specifications
| Article | Wattage | CCT | IP | Dimensions | Cut-out |
|---|---|---|---|---|---|

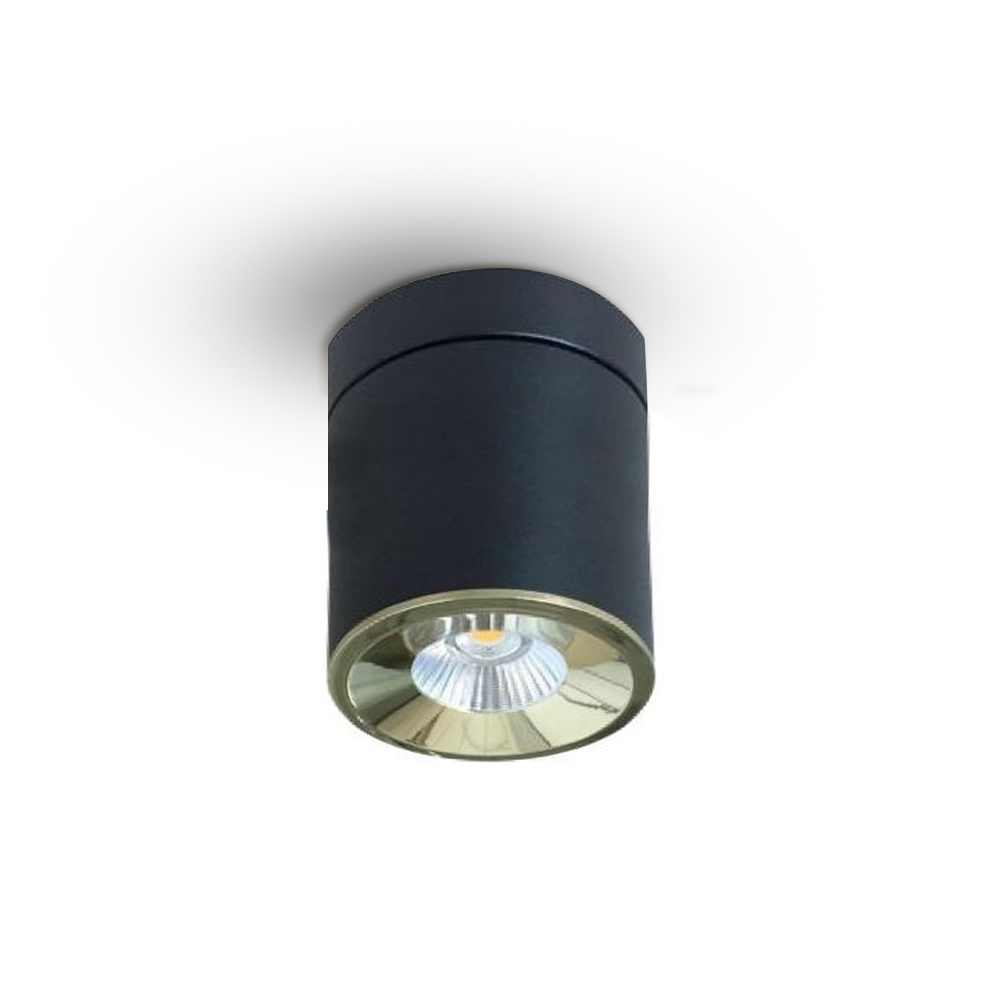

| LB2246 | Wattage10W | CCT4000K | IPIP20 | DimensionsØ90x110mm | Cut-outNot published |

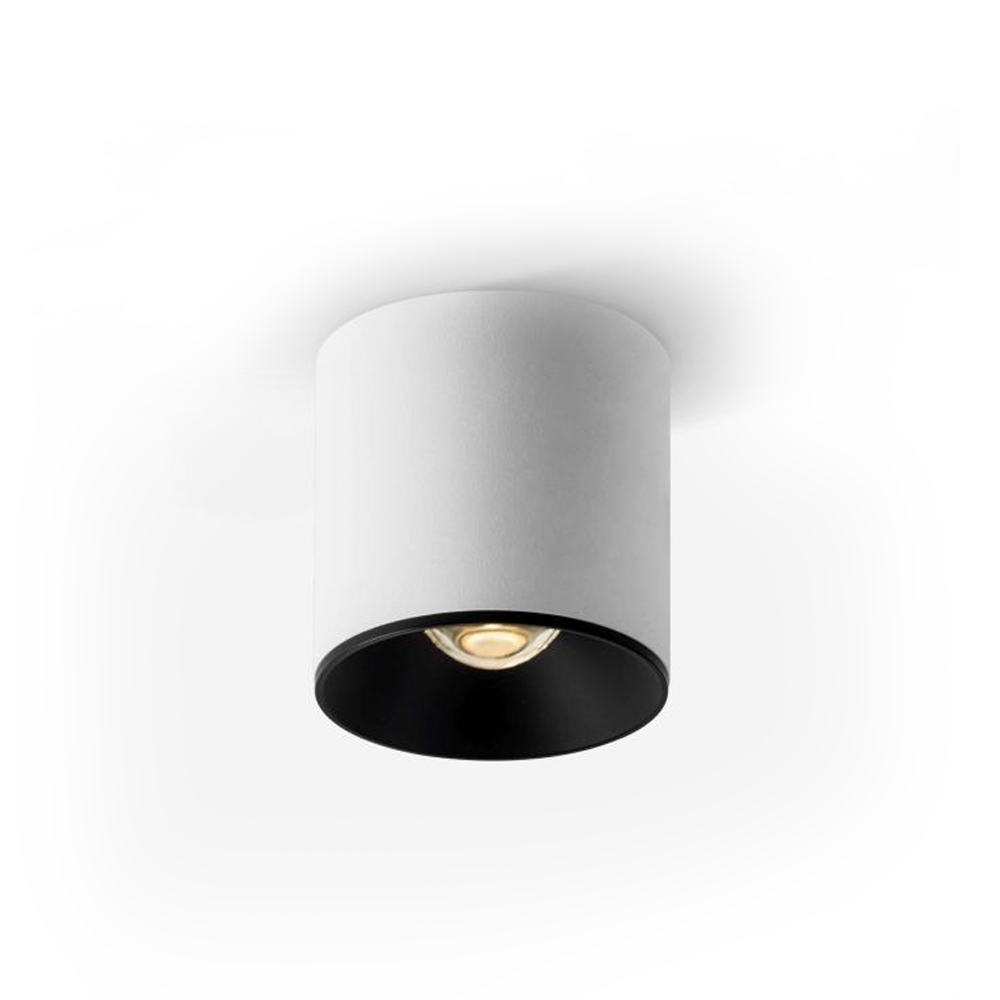

| LB2799 | Wattage5W | CCT3000K | IPIP54 | DimensionsØ68.5x62mm | Cut-outNot published |

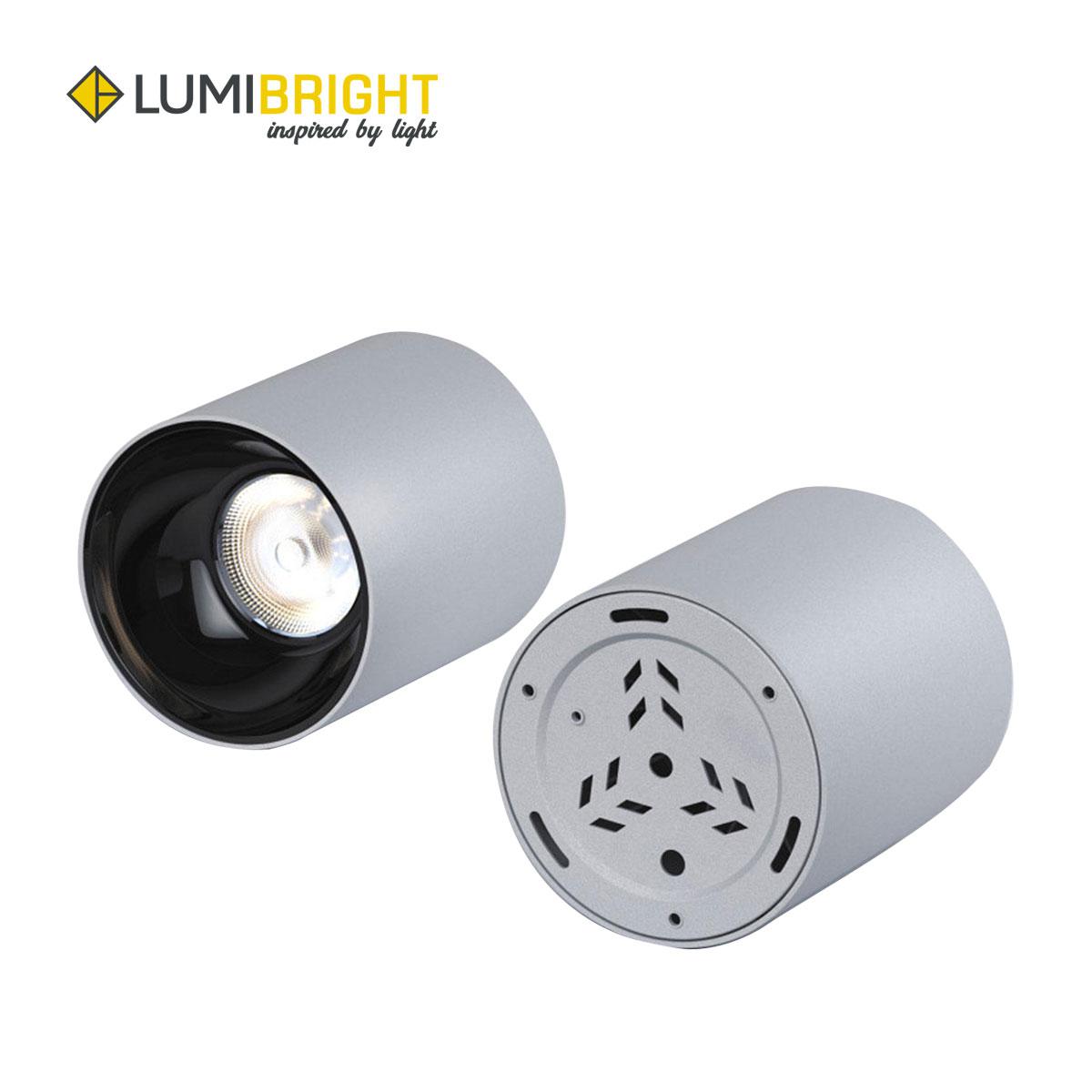

| LB2808 | Wattage7W | CCT2700K/3000K/4000K/5000K | IPIP65 | DimensionsØ75x100mm | Cut-outNot published |

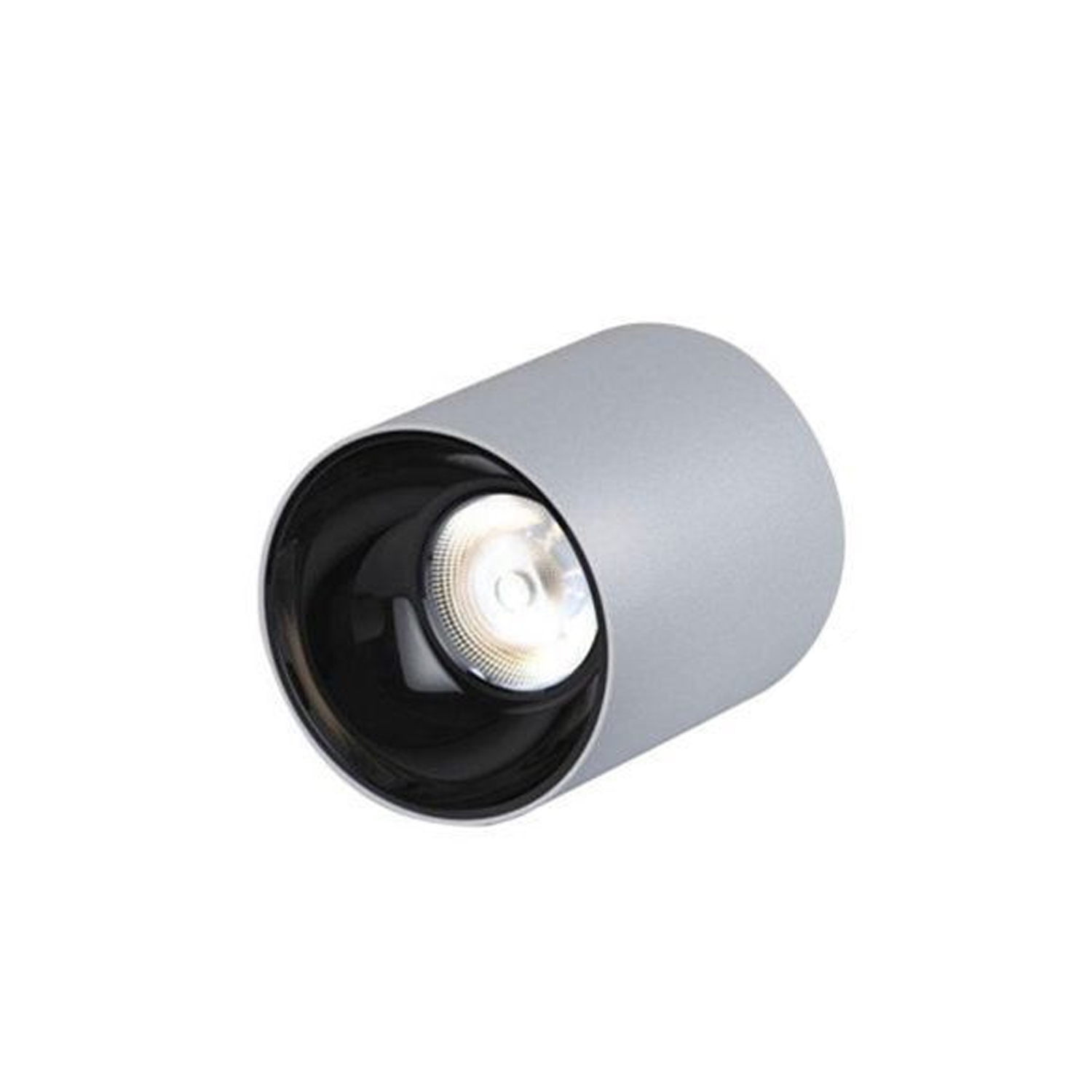

| LB2949 | Wattage30W | CCT3000K | IPIP65 | DimensionsØ140x162mm | Cut-outNot published |

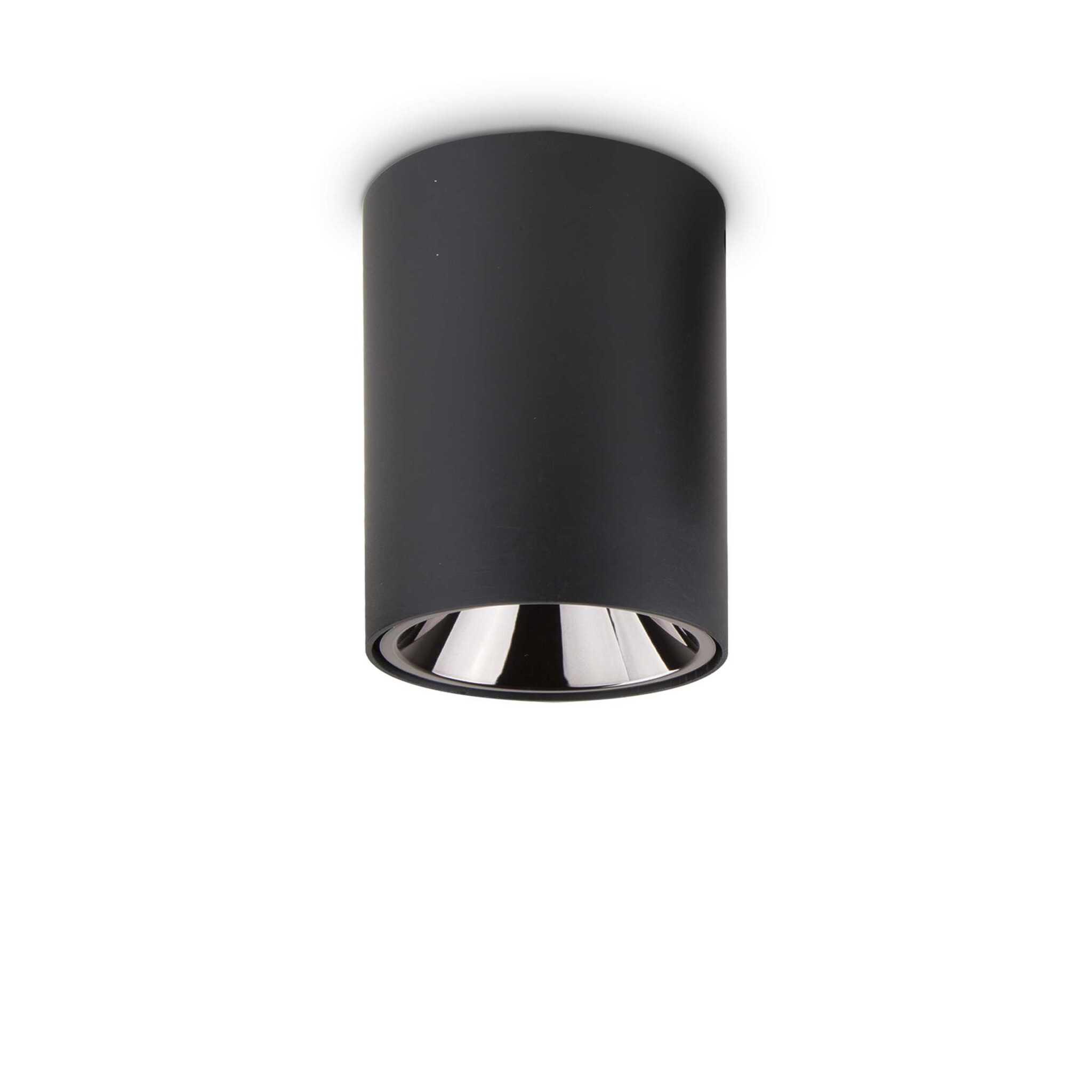

| LBT2096 | Wattage10W | CCT3000K, 4000K, 5000K | IPIP65 | DimensionsØ75xH100mm | Cut-outNot published |
Technical Data
Full Specification
| Dimensions | Ø75x100mm · Ø90x110mm · Ø68.5x62mm · Ø140x162mm +1 more |
|---|---|
| Cut-out | Not published — technical review required |
| Power | 7W · 5W · 30W |
| Lumen output | 323lm · 90-100lm/ |
| Efficacy | Not published — technical review required |
| Optics / beam angle | 20° · 24° · 40° · 36° +1 more |
| Colour temperature | 2700K · 3000K · 4000K · 5000K |
| CRI Ra | 90 · ≥80 · ≥90 · >90 +2 more |
| R9 | Not published — technical review required |
| TM-30 Rf / Rg | Not published — technical review required |
| UGR | Not published — technical review required |
| IP rating | IP65 · IP20 · IP54 |
| IK rating | Not published — technical review required |
| Ambient temperature (Ta) | Not published — technical review required |
| Driver | Not published — technical review required |
| Dimming / control | Not published — technical review required |
| Input voltage | 200-250VAC · 42VDC · 220-240VAC · AC |
| Light source | Not published — technical review required |
| Material | Dis-casting Aluminium |
| Finish | White · Black+Golden · White+Black · White+Golden +7 more |
| Mounting / installation | Not published — technical review required |
| Net weight | Not published — technical review required |
| Certification | Not published — technical review required |
| Lifetime | Not published — technical review required |
| Warranty | Not published — technical review required |
| Lead time | Not published — technical review required |
10 of 26 specification rows published from the 2026 master data. Values vary by model; missing test data is not estimated. Select an exact model for approval.
Configuration
Select Specification
Select attributes to narrow down variants
Product Lines
5 Products
Dimensions
Technical Drawing
Drawing and sizes shown for model LB2808. This family has 5 models with different dimensions — select a model above, or open its row in the variant table, for its own drawing.
Size — model LB2808
Ø75x100mm
Specifications
At a Glance
5–30W
Power Range
5 options
Beam: 20°, 24°, 36°, 40°, 60°
4 CCT
2700K, 3000K, 4000K, 5000K
CRI 80/90
Colour Rendering
IP20 / IP54 / IP65
Protection Rating
8 finishes
Body Finish Options
5 sizes
Ø140x162mm, Ø68.5x62mm, Ø75x100mm, Ø75xH100mm, Ø90x110mm
Configure your product
LB2808
Order code
Listed configurationLB2808.W.830.PAB.20
50 listed configurations · availability requires confirmation
