Lumi Indoor
AGIMO
Application inspiration · not a project reference
AGIMO is part of Lumi Indoor. Coordinate the selected article’s dimensions, installation details and configuration with the project specification; these details can vary between models in the same family.
Spot Light
AGIMO
AGIMO is a spot light family within the LUMIBRIGHT Lumi Indoor collection. The current catalogue groups 1 article codes under this family, including LB2803. For LB2803, published values include power: 1x6.6W; colour temperature: 2700K/3000K/4000K/5000K/6000K; IP rating: IP20; dimensions: Ø64xH83mm. Each article represents its own physical model; dimensions and electrical or optical options must be checked against that exact code. Compare the AGIMO articles using the specification table and individual model pages before adding them to a lighting schedule. Wattage, colour temperature, protection rating and installation dimensions are catalogue values, not a guarantee that every combination can be ordered. Where a value is not published, request the relevant model documentation rather than assuming it matches another article. Confirm the selected configuration, driver requirements, installation detail and project documentation with the specification team before ordering.
Model specifications
| Article | Wattage | CCT | IP | Dimensions | Cut-out |
|---|---|---|---|---|---|
| LB2803 | Wattage1x6.6W | CCT2700K/3000K/4000K/5000K/6000K | IPIP20 | DimensionsØ64xH83mm | Cut-outØ57mm |

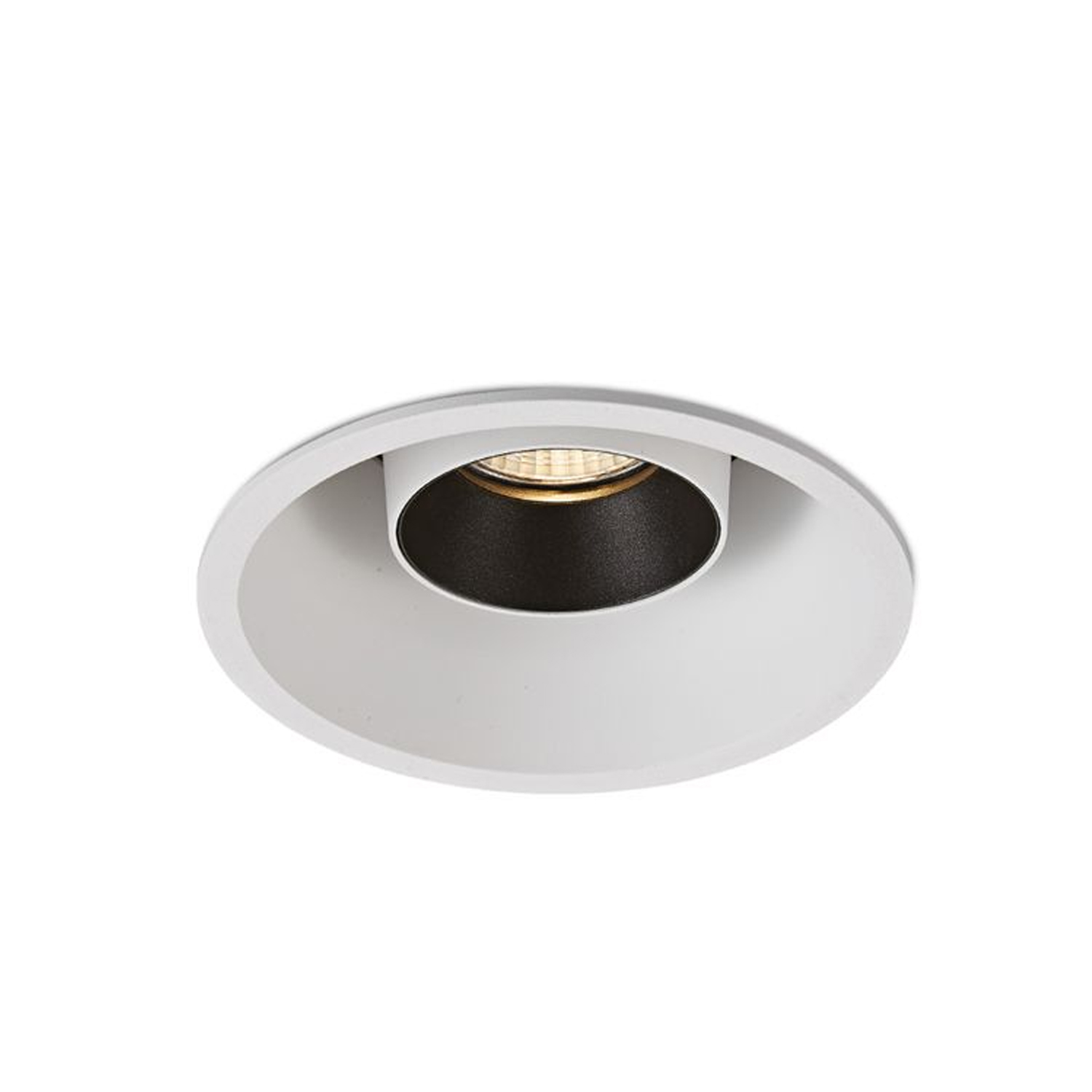

Product View
Configuration
Select Specification
Select attributes to narrow down variants
All Variants (4)
Dimensions
Technical Drawing
Drawing and sizes shown for model LB2803.
Size — model LB2803
Ø64xH83mm
Cut-Out
Ø57mm
Technical Data
Full Specification
| Dimensions | Ø64xH83mm |
|---|---|
| Cut-out | Ø57mm |
| Power | 6.6W · 1x6.6W |
| Lumen output | 668lm |
| Efficacy | Not published — technical review required |
| Optics / beam angle | 24° · 32° · 44° |
| Colour temperature | 2700K · 3000K · 4000K · 5000K +1 more |
| CRI Ra | 90 · >80,>90 |
| R9 | Not published — technical review required |
| TM-30 Rf / Rg | Not published — technical review required |
| UGR | Not published — technical review required |
| IP rating | IP20 |
| IK rating | Not published — technical review required |
| Ambient temperature (Ta) | Not published — technical review required |
| Driver | Not published — technical review required |
| Dimming / control | Not published — technical review required |
| Input voltage | constant-current |
| Light source | Not published — technical review required |
| Material | Aluminium+PC |
| Finish | black-sand · White · Black With Sand |
| Mounting / installation | Not published — technical review required |
| Net weight | Not published — technical review required |
| Certification | Not published — technical review required |
| Lifetime | Not published — technical review required |
| Warranty | Not published — technical review required |
| Lead time | Not published — technical review required |
11 of 26 specification rows published from the 2026 master data. Values vary by model; missing test data is not estimated. Select an exact model for approval.
Specifications
At a Glance
6.6W
Power
32°
Beam Angle
5 CCT
2700K, 3000K, 4000K, 5000K, 6000K
CRI 90
Colour Rendering
IP20
Protection Rating
2 finishes
Body Finish
Ø64xH83mm
Dimensions
Ø57mm
Cut-Out
Configure your product
LB2803
Order code
Listed configurationLB2803.W.927.PAB.32
2 listed configurations · availability requires confirmation
