Lumi Indoor
AISLE
Application inspiration · not a project reference
AISLE is part of Lumi Indoor. Coordinate the selected article’s dimensions, installation details and configuration with the project specification; these details can vary between models in the same family.
Spot Light
AISLE
AISLE is a wall light family within the LUMIBRIGHT Lumi Indoor collection. The current catalogue groups 7 article codes under this family, including LB4744, LB4748, LB4770. For LB4744, published values include power: 15W; colour temperature: 3000K; IP rating: IP20; dimensions: 135x170x73.5. Each article represents its own physical model; dimensions and electrical or optical options must be checked against that exact code. Compare the AISLE articles using the specification table and individual model pages before adding them to a lighting schedule. Wattage, colour temperature, protection rating and installation dimensions are catalogue values, not a guarantee that every combination can be ordered. Where a value is not published, request the relevant model documentation rather than assuming it matches another article. Confirm the selected configuration, driver requirements, installation detail and project documentation with the specification team before ordering.
Model specifications
| Article | Wattage | CCT | IP | Dimensions | Cut-out |
|---|---|---|---|---|---|
| LB4744 | Wattage15W | CCT3000K | IPIP20 | Dimensions135x170x73.5 | Cut-outNot published |
| LB4748 | Wattage15W | CCT3000K | IPIP20 | Dimensions230x65x108mm | Cut-outNot published |
| LB4770 | Wattage15W | CCT2700K, 3000K, 4000K, 6000K | IPIP20 | DimensionsNot published | Cut-outNot published |
| LB4775 | Wattage15W | CCT2700K, 3000K, 4000K, 6000K | IPIP20 | DimensionsNot published | Cut-outNot published |
| LBE2087 | Wattage7W | CCT2700K/3000K/4000K/6000K | IPIP20 | DimensionsØ56*H115mm | Cut-outNot published |
| LBE2088 | Wattage15W | CCT2700K/3000K/4000K/6000K | IPIP20 | DimensionsØ79.5*165mm | Cut-outSurface mounted |
| LBE2089 | Wattage20W | CCT2700K/3000K/4000K/6000K | IPIP20 | DimensionsØ99.5*198.5mm | Cut-outSurface mounted |
Technical Data
Full Specification
| Dimensions | Ø56*H115mm · 135x170x73.5 · 230x65x108mm · Ø79.5*165mm +1 more |
|---|---|
| Cut-out | Surface mounted |
| Power | 7W · 15W · 20W |
| Lumen output | Not published — technical review required |
| Efficacy | Not published — technical review required |
| Optics / beam angle | 15° · 24° · 36° |
| Colour temperature | 2700K · 3000K · 4000K · 5000K +1 more |
| CRI Ra | 90 |
| R9 | Not published — technical review required |
| TM-30 Rf / Rg | Not published — technical review required |
| UGR | Not published — technical review required |
| IP rating | IP20 |
| IK rating | Not published — technical review required |
| Ambient temperature (Ta) | Not published — technical review required |
| Driver | Not published — technical review required |
| Dimming / control | Not published — technical review required |
| Input voltage | 220-240VAC |
| Light source | Not published — technical review required |
| Material | Not published — technical review required |
| Finish | nickel-bronze+nickel-copper · White · Nickel Bronze+Nickel Copper |
| Mounting / installation | Not published — technical review required |
| Net weight | Not published — technical review required |
| Certification | Not published — technical review required |
| Lifetime | Not published — technical review required |
| Warranty | Not published — technical review required |
| Lead time | Not published — technical review required |
9 of 26 specification rows published from the 2026 master data. Values vary by model; missing test data is not estimated. Select an exact model for approval.
Configuration
Select Specification
Select attributes to narrow down variants
Product Lines
7 Products
Dimensions
Technical Drawing
Drawing and sizes shown for model LBE2087. This family has 7 models with different dimensions — select a model above, or open its row in the variant table, for its own drawing.
Size — model LBE2087
Ø56*H115mm
Specifications
At a Glance
6–20W
Power Range
5 options
Beam: 10°, 15°, 97°, 98°, 120°
5 CCT
2700K, 3000K, 4000K, 5000K, 6000K
CRI 90
Colour Rendering
IP20
Protection Rating
2 finishes
Body Finish Options
5 sizes
135x170x73.5, 230x65x108mm, Ø56*H115mm, Ø79.5*165mm, Ø99.5*198.5mm
Surface mounted
Cut-Out
Configure your product

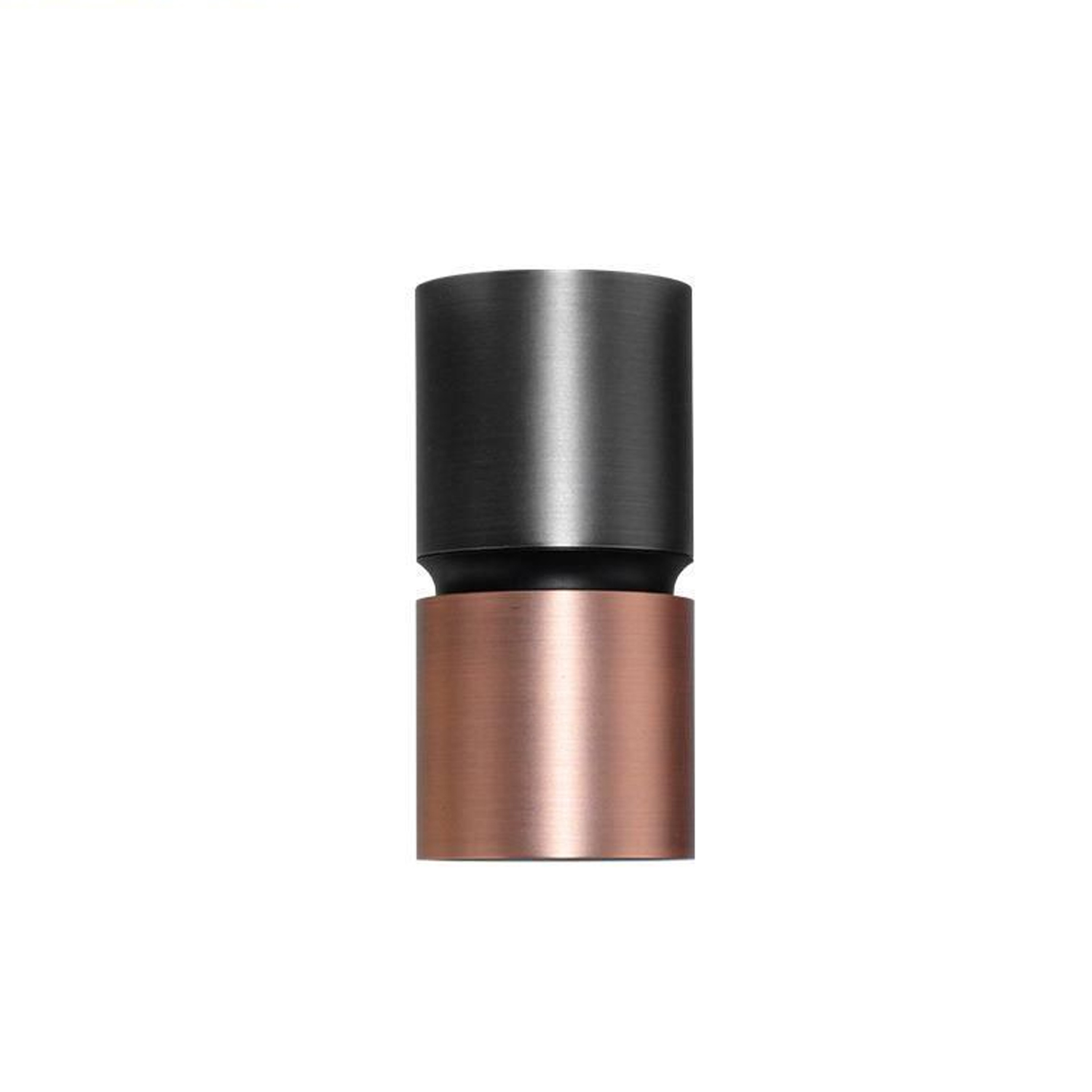

LBE2087
Order code
Listed configurationLBE2087.W.930.NBR+NCR.24
12 listed configurations · availability requires confirmation
