Track Light
ARCHIVES
ARCHIVES is a spot light family within the LUMIBRIGHT Lumi Indoor collection. The current catalogue groups 4 article codes under this family, including LBP1029, LBP1030, LBP2005. For LBP1029, published values include power: 18W; colour temperature: 2700K/3000K/4000K/6000K; IP rating: IP20. Each article represents its own physical model; dimensions and electrical or optical options must be checked against that exact code. Compare the ARCHIVES articles using the specification table and individual model pages before adding them to a lighting schedule. Wattage, colour temperature, protection rating and installation dimensions are catalogue values, not a guarantee that every combination can be ordered. Where a value is not published, request the relevant model documentation rather than assuming it matches another article. Confirm the selected configuration, driver requirements, installation detail and project documentation with the specification team before ordering.
Model specifications
| Article | Wattage | CCT | IP | Dimensions | Cut-out |
|---|---|---|---|---|---|

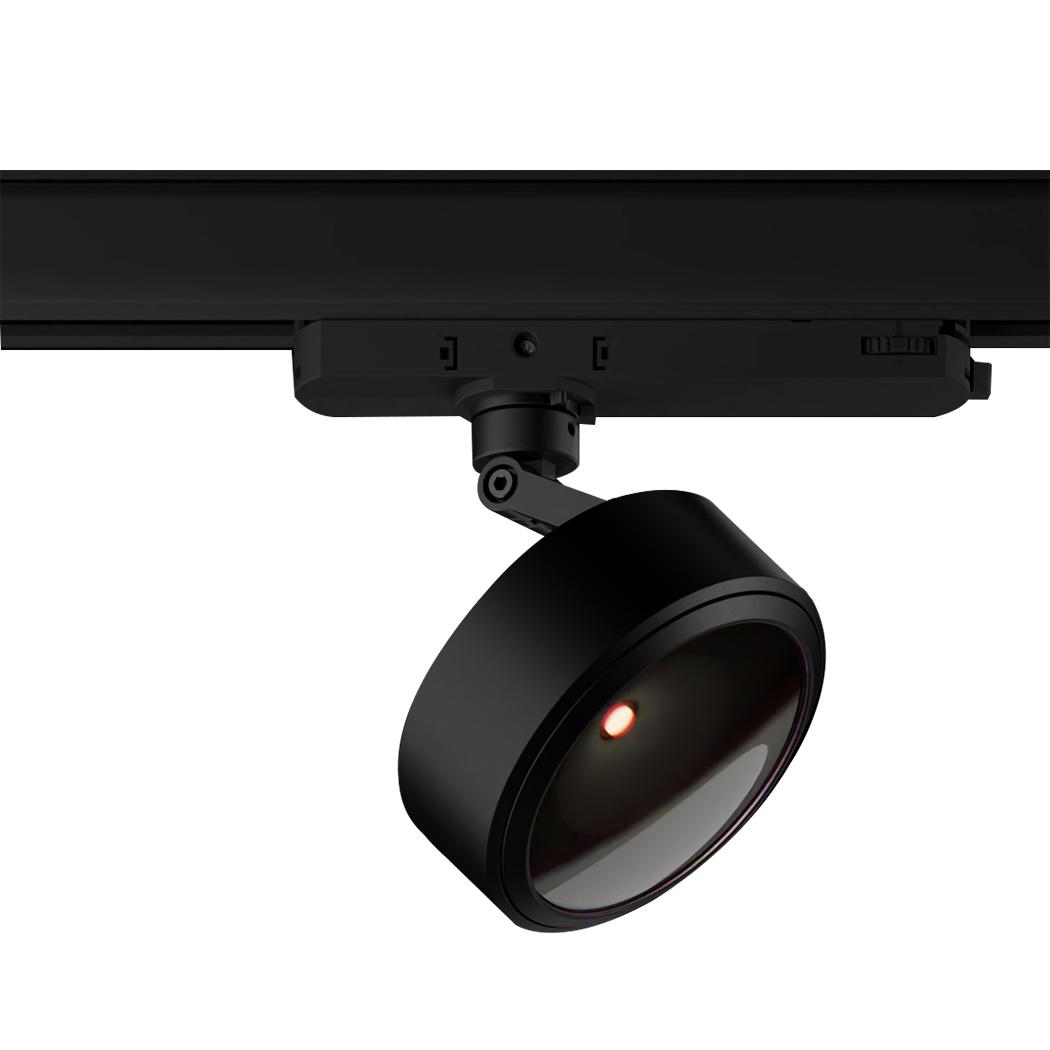

| LBP1029 | Wattage18W | CCT2700K/3000K/4000K/6000K | IPIP20 | DimensionsNot published | Cut-outNot published |
| LBP1030 | Wattage18W | CCT2700K/3000K/4000K/6000K | IPIP20 | DimensionsNot published | Cut-outNot published |
| LBP2005 | Wattage18W | CCT2700K/3000K/3500K/4000K | IPIP20 | DimensionsNot published | Cut-outNot published |

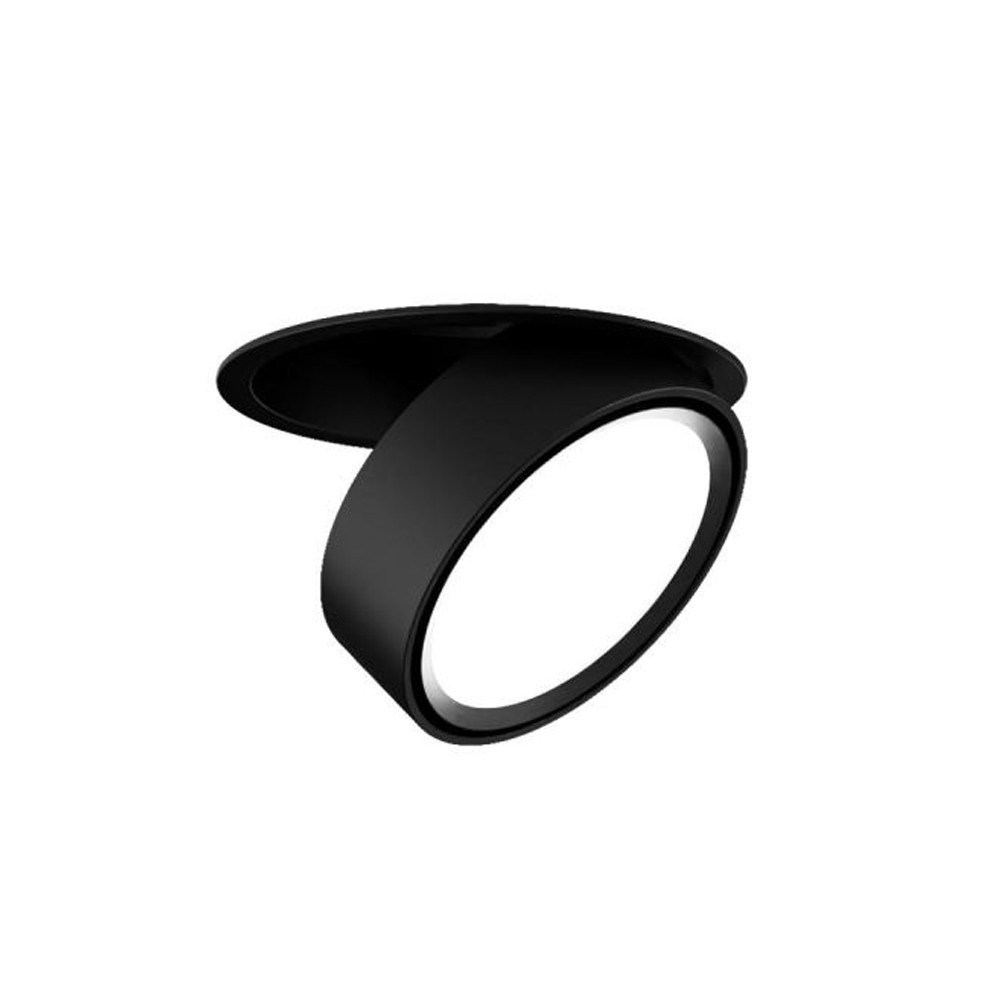

| LBP2006 | Wattage18W | CCT2700K/3000K/3500K/4000K | IPIP20 | DimensionsØ102x116mm | Cut-out115mm |
Technical Data
Full Specification
| Dimensions | Ø102x116mm |
|---|---|
| Cut-out | 115mm |
| Power | 18W |
| Lumen output | Not published — technical review required |
| Efficacy | Not published — technical review required |
| Optics / beam angle | 24° · 36° · 100° · ADJUSTABLE +1 more |
| Colour temperature | 2700K · 3000K · 4000K · 5000K +2 more |
| CRI Ra | 95 · >95 · >90 |
| R9 | Not published — technical review required |
| TM-30 Rf / Rg | Not published — technical review required |
| UGR | Not published — technical review required |
| IP rating | IP20 |
| IK rating | Not published — technical review required |
| Ambient temperature (Ta) | Not published — technical review required |
| Driver | Not published — technical review required |
| Dimming / control | Not published — technical review required |
| Input voltage | 220-240VAC |
| Light source | Not published — technical review required |
| Material | Aluminium |
| Finish | white · black |
| Mounting / installation | Not published — technical review required |
| Net weight | Not published — technical review required |
| Certification | Not published — technical review required |
| Lifetime | Not published — technical review required |
| Warranty | Not published — technical review required |
| Lead time | Not published — technical review required |
10 of 26 specification rows published from the 2026 master data. Values vary by model; missing test data is not estimated. Select an exact model for approval.
Configuration
Select Specification
Select attributes to narrow down variants
Dimensions
Technical Drawing
Drawing and sizes shown for model LBP2006. This family has 4 models with different dimensions — select a model above, or open its row in the variant table, for its own drawing.
Size — model LBP2006
Ø102x116mm
Cut-Out
115mm
Specifications
At a Glance
18W
Power Range
4 options
Beam: 15°, 24°, 100°, 105°
5 CCT
2700K, 3000K, 3500K, 4000K, 6000K
CRI 90/95
Colour Rendering
IP20
Protection Rating
3 finishes
Body Finish Options
Ø102x116mm
Dimensions
115mm
Cut-Out
Configure your product
LBP1030
Order code
Listed configurationLBP1030.W.930.WWH.36.DDIM
2 listed configurations · availability requires confirmation
