Lumi Indoor
BETIS
Application inspiration · not a project reference
BETIS is part of Lumi Indoor. Coordinate the selected article’s dimensions, installation details and configuration with the project specification; these details can vary between models in the same family.
Wall Light
BETIS
BETIS is a wall light family within the LUMIBRIGHT Lumi Indoor collection. Explore 4 models, including L08009, L08010, L08011, with model-specific specifications and configuration choices. L08009 specifications include power: 5W; colour temperature: 2700K/3000K/4000K/6000K; IP rating: IP20; dimensions: L112×W60×H110mm. Compare the BETIS range by power, colour temperature, protection rating and dimensions using the technical table below. Open an individual model to explore its available finishes and optics, select a listed order code and prepare a specification sheet where configuration data is available. Keep the chosen model reference with your project schedule so the lighting and installation teams can coordinate the same selection. For additional drawings, photometry or project-specific requirements, contact the LUMIBRIGHT specification team with your model code.
Model specifications
| Article | Wattage | CCT | IP | Dimensions | Cut-out |
|---|---|---|---|---|---|

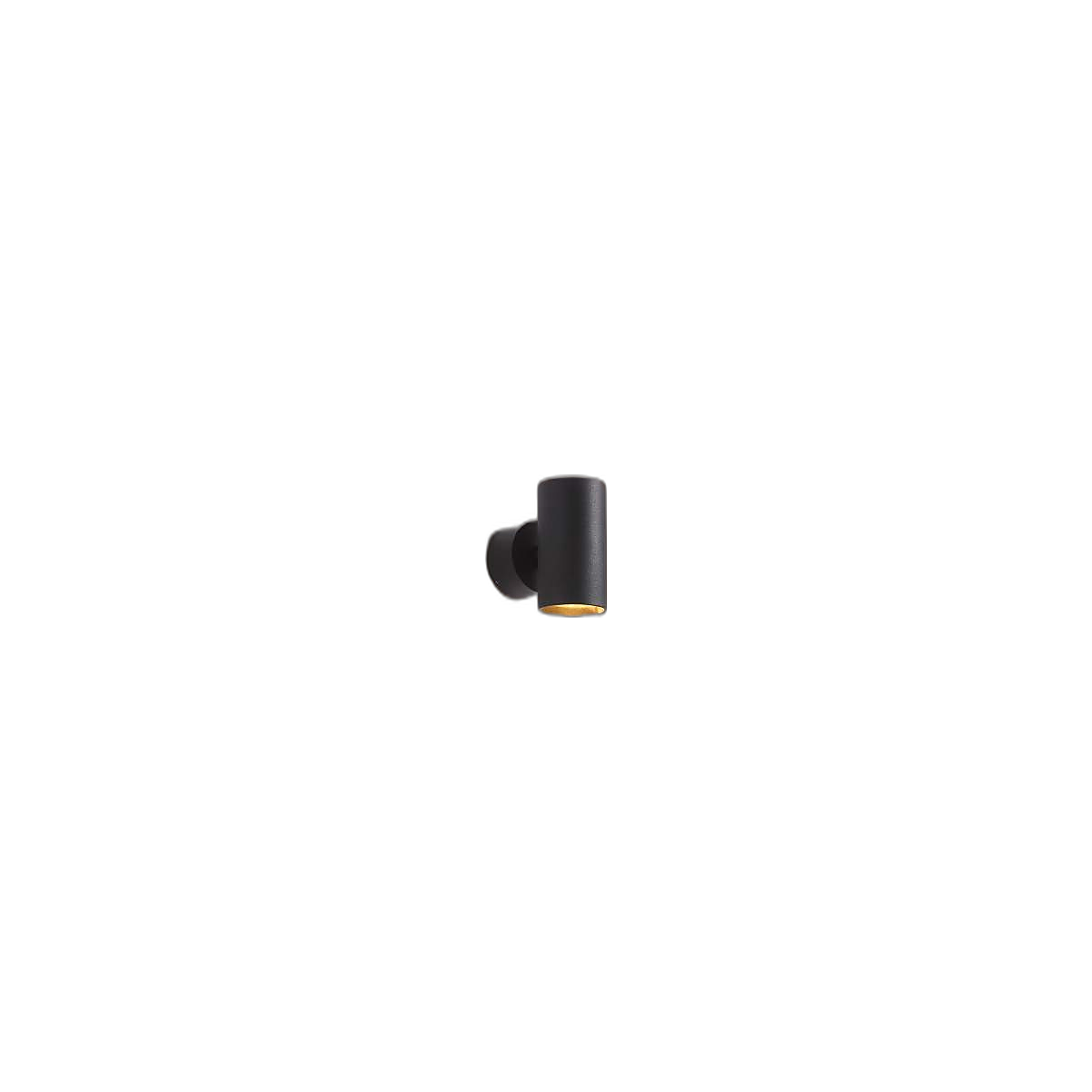

| L08009 | Wattage5W | CCT2700K/3000K/4000K/6000K | IPIP20 | DimensionsL112×W60×H110mm | Cut-outNot published |

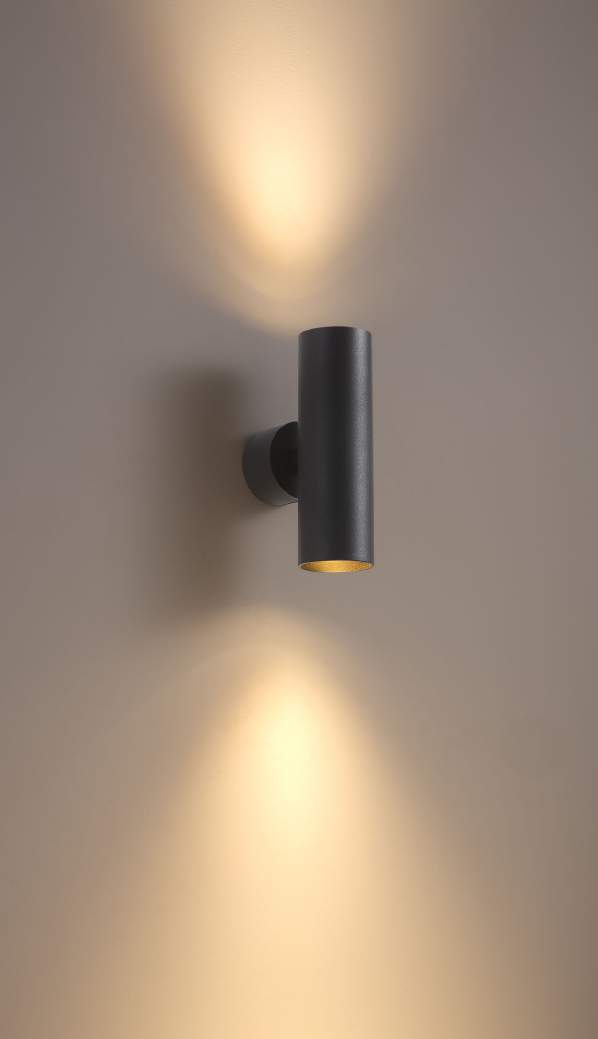

| L08010 | Wattage2x5W | CCT2700K/3000K/4000K/6000K | IPIP20 | DimensionsL112×W60×H190mm | Cut-outNot published |

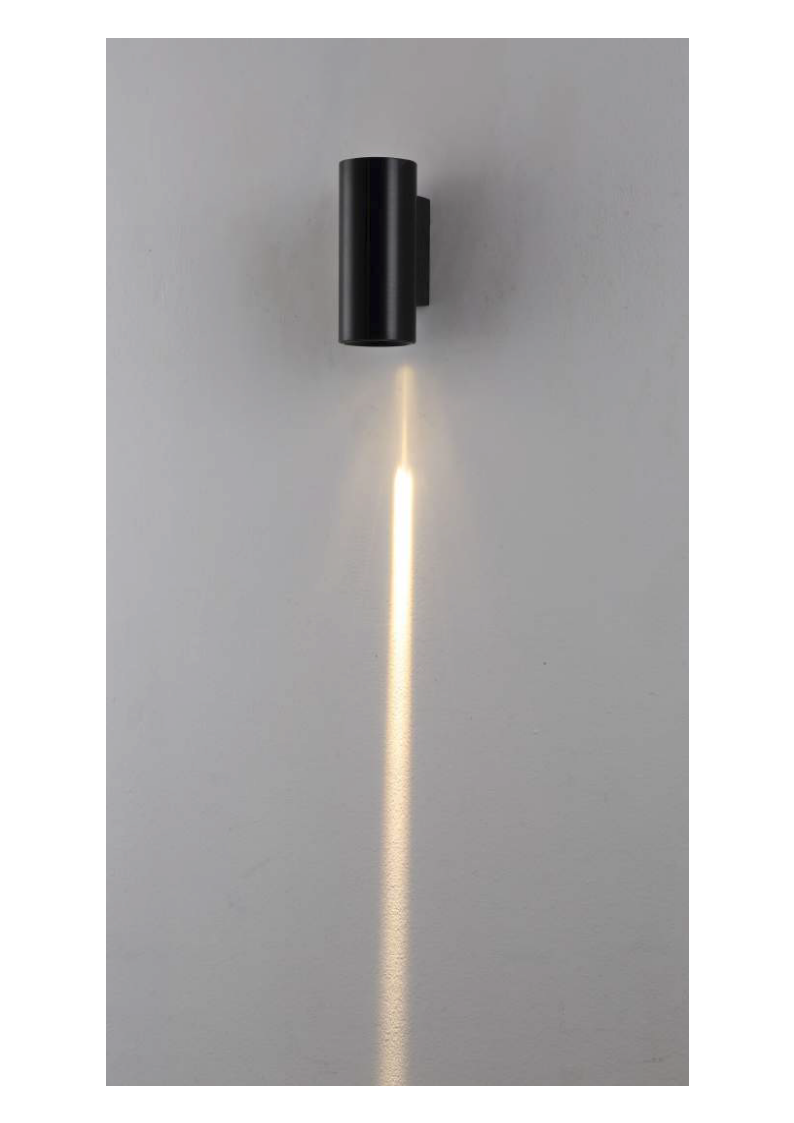

| L08011 | Wattage3W | CCT2700K/3000K/4000K/6000K | IPIP20 | Dimensions74x60x200mm | Cut-outNot published |

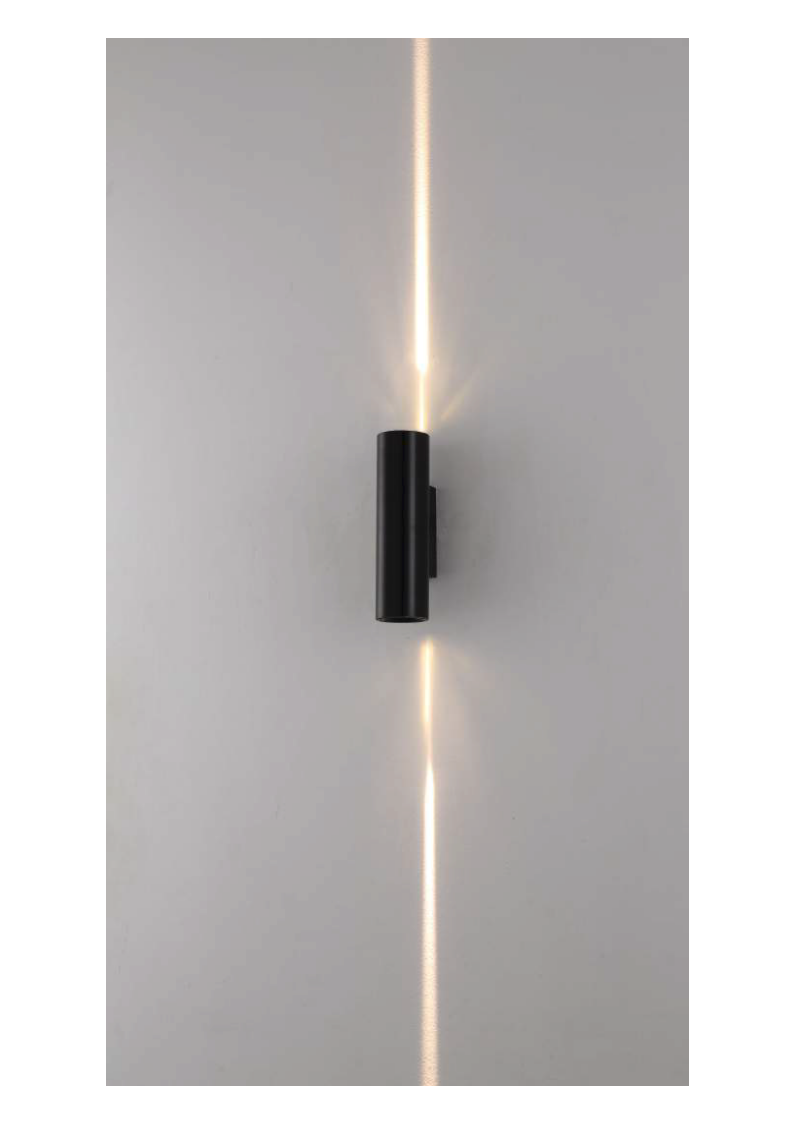

| L08012 | Wattage2x3W | CCT2700K/3000K/4000K/6000K | IPIP20 | Dimensions74x60x200mm | Cut-outNot published |
Technical Data
Full Specification
| Dimensions | L112×W60×H110mm · L112×W60×H190mm · 74x60x200mm |
|---|---|
| Cut-out | Not published — technical review required |
| Power | 2W · 3W · 5W · 2x5W +1 more |
| Lumen output | 430LM · 860LM · 120LM · 240LM |
| Efficacy | Not published — technical review required |
| Optics / beam angle | 8° · 30° · 120° |
| Colour temperature | 2700K · 3000K · 4000K · 5000K +1 more |
| CRI Ra | 80 |
| R9 | Not published — technical review required |
| TM-30 Rf / Rg | Not published — technical review required |
| UGR | Not published — technical review required |
| IP rating | IP20 |
| IK rating | Not published — technical review required |
| Ambient temperature (Ta) | Not published — technical review required |
| Driver | Not published — technical review required |
| Dimming / control | Not published — technical review required |
| Input voltage | 220-240VAC |
| Light source | Not published — technical review required |
| Material | Aluminium |
| Finish | White · Black · Silver |
| Mounting / installation | Not published — technical review required |
| Net weight | Not published — technical review required |
| Certification | Not published — technical review required |
| Lifetime | Not published — technical review required |
| Warranty | Not published — technical review required |
| Lead time | Not published — technical review required |
10 of 26 specification rows published from the 2026 master data. Values vary by model; missing test data is not estimated. Select an exact model for approval.
Configuration
Select Specification
Select attributes to narrow down variants
Product Lines
4 Products
Dimensions
Technical Drawing
Drawing and sizes shown for model L08009. This family has 4 models with different dimensions — select a model above, or open its row in the variant table, for its own drawing.
Size — model L08009
L112×W60×H110mm
Specifications
At a Glance
3–10W
Power Range
2 options
Beam: 8°, 30°
4 CCT
2700K, 3000K, 4000K, 6000K
CRI 80
Colour Rendering
IP20
Protection Rating
2 finishes
Body Finish Options
3 sizes
74x60x200mm, L112×W60×H110mm, L112×W60×H190mm
Configure your product
L08009
Order code
Listed configurationL08009.860.03.30
12 listed configurations · availability requires confirmation
