Lumi Indoor
CHOICE
Application inspiration · not a project reference
CHOICE is part of Lumi Indoor. Coordinate the selected article’s dimensions, installation details and configuration with the project specification; these details can vary between models in the same family.
Spot Light
CHOICE
CHOICE is a spot light family within the LUMIBRIGHT Lumi Indoor collection. Explore 5 models, including LB2114, LB2119, LB2120, with model-specific specifications and configuration choices. LB2114 specifications include colour temperature: 2700K; IP rating: IP20; dimensions: 210X112X95mm. Compare the CHOICE range by power, colour temperature, protection rating and dimensions using the technical table below. Open an individual model to explore its available finishes and optics, select a listed order code and prepare a specification sheet where configuration data is available. Keep the chosen model reference with your project schedule so the lighting and installation teams can coordinate the same selection. For additional drawings, photometry or project-specific requirements, contact the LUMIBRIGHT specification team with your model code.
Model specifications
| Article | Wattage | CCT | IP | Dimensions | Cut-out |
|---|---|---|---|---|---|

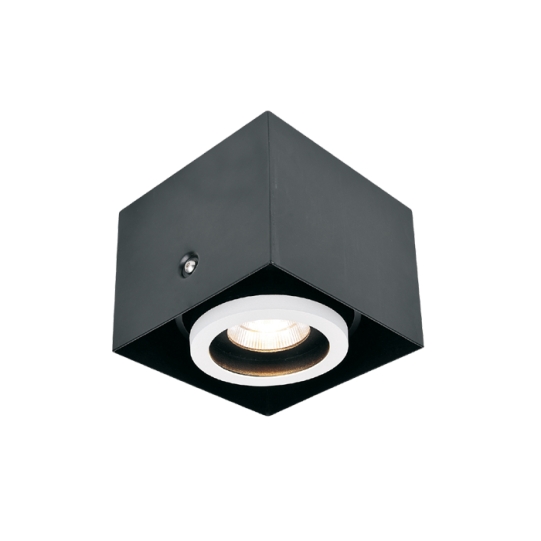

| LB2114 | WattageNot published | CCT2700K | IPIP20 | Dimensions210X112X95mm | Cut-outNot published |
| LB2119 | WattageNot published | CCT3000K | IPIP20 | Dimensions150X150X116mm | Cut-outNot published |

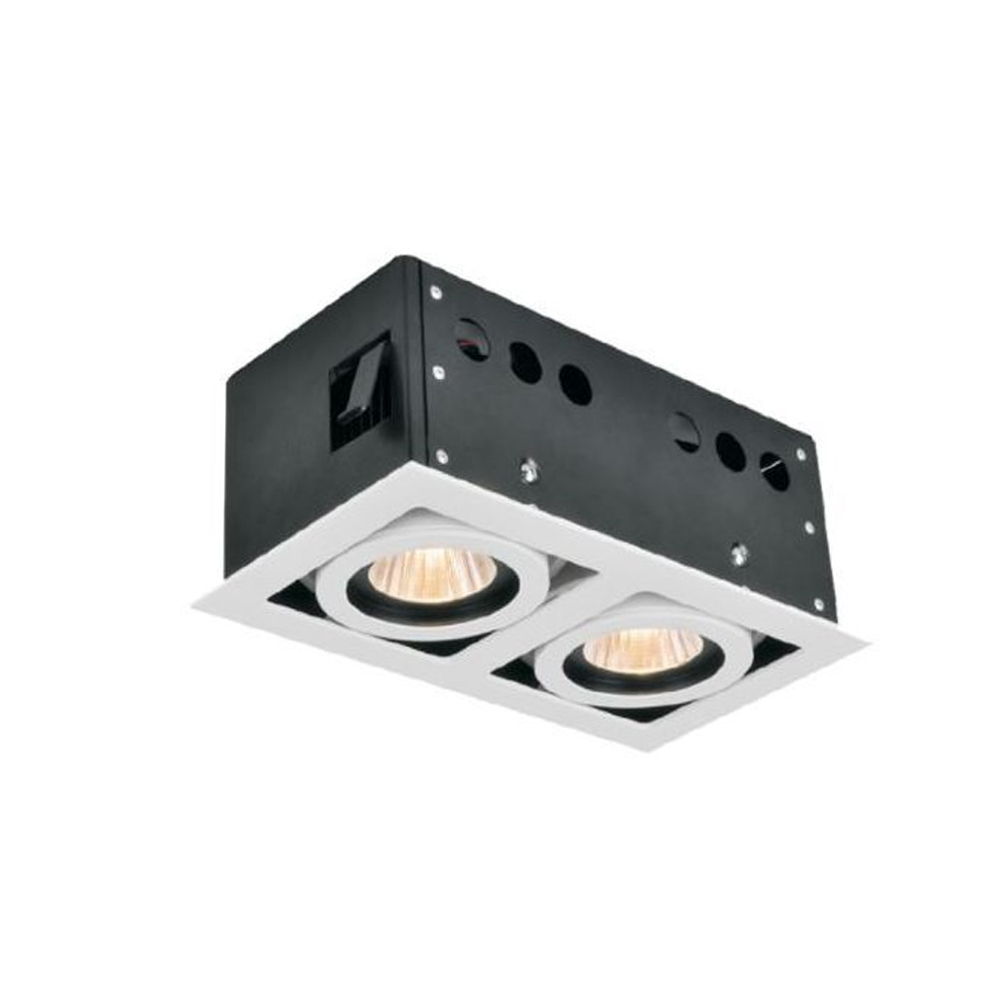

| LB2120 | Wattage50W | CCT5000K | IPIP20 | Dimensions278x150x116mm | Cut-out265x135mm |

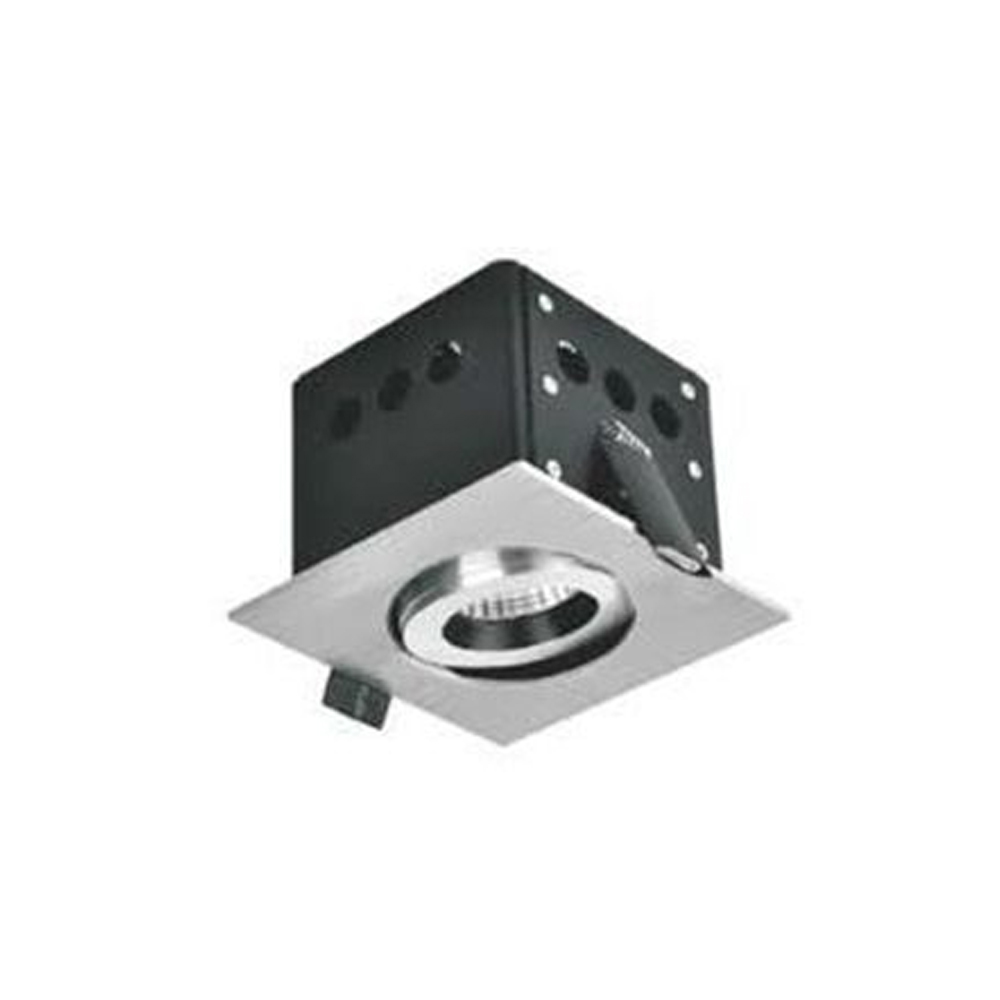

| LB2247 | WattageNot published | CCT5600K | IPIP20 | Dimensions80X80X77mm | Cut-out475x160mm |
| LB2248 | WattageNot published | CCT4000K | IPIP20 | Dimensions146X80X77mm | Cut-out134x72mm |
Technical Data
Full Specification
| Dimensions | 210X112X95mm · 150X150X116mm · 278x150x116mm · 80X80X77mm +1 more |
|---|---|
| Cut-out | 265x135mm · 475x160mm · 134x72mm |
| Power | 14W |
| Lumen output | Not published — technical review required |
| Efficacy | Not published — technical review required |
| Optics / beam angle | 24° · 40° · 60° · 32° +3 more |
| Colour temperature | 2700K · 3000K · 4000K · 5000K +1 more |
| CRI Ra | 90 · 80 |
| R9 | Not published — technical review required |
| TM-30 Rf / Rg | Not published — technical review required |
| UGR | Not published — technical review required |
| IP rating | IP20 |
| IK rating | Not published — technical review required |
| Ambient temperature (Ta) | Not published — technical review required |
| Driver | Not published — technical review required |
| Dimming / control | Not published — technical review required |
| Input voltage | 8VDC · 75VDC · 4VDC |
| Light source | Not published — technical review required |
| Material | Not published — technical review required |
| Finish | white · black · transparent-painted · Painted In Black +7 more |
| Mounting / installation | Not published — technical review required |
| Net weight | Not published — technical review required |
| Certification | Not published — technical review required |
| Lifetime | Not published — technical review required |
| Warranty | Not published — technical review required |
| Lead time | Not published — technical review required |
9 of 26 specification rows published from the 2026 master data. Values vary by model; missing test data is not estimated. Select an exact model for approval.
Configuration
Select Specification
Select attributes to narrow down variants
Product Lines
5 Products
Dimensions
Technical Drawing
Drawing and sizes shown for model LB2248. This family has 5 models with different dimensions — select a model above, or open its row in the variant table, for its own drawing.
Size — model LB2248
146X80X77mm
Cut-Out
134x72mm
Specifications
At a Glance
50W
Power Range
7 options
Beam: 16°, 24°, 30°, 32°, 40°, 50°, 60°
5 CCT
2700K, 3000K, 4000K, 5000K, 5600K
CRI 80/90
Colour Rendering
IP20
Protection Rating
7 finishes
Body Finish Options
5 sizes
146X80X77mm, 150X150X116mm, 210X112X95mm, 278x150x116mm, 80X80X77mm
3 cut-outs
134x72mm, 265x135mm, 475x160mm
Configure your product
LB2248
Order code
Listed configurationLB2248.W.927.WWH.60
27 listed configurations · availability requires confirmation
