Lumi Indoor
COCO
Application inspiration · not a project reference
COCO is part of Lumi Indoor. Coordinate the selected article’s dimensions, installation details and configuration with the project specification; these details can vary between models in the same family.
Spot Light
COCO
COCO is a spot light family within the LUMIBRIGHT Lumi Indoor collection. The current catalogue groups 6 article codes under this family, including LB2800, LB2801, LBE2155. For LB2800, published values include power: 7W; colour temperature: 3000K; IP rating: IP20; dimensions: Ø85xH77mm. Each article represents its own physical model; dimensions and electrical or optical options must be checked against that exact code. Compare the COCO articles using the specification table and individual model pages before adding them to a lighting schedule. Wattage, colour temperature, protection rating and installation dimensions are catalogue values, not a guarantee that every combination can be ordered. Where a value is not published, request the relevant model documentation rather than assuming it matches another article. Confirm the selected configuration, driver requirements, installation detail and project documentation with the specification team before ordering.
Model specifications
| Article | Wattage | CCT | IP | Dimensions | Cut-out |
|---|---|---|---|---|---|

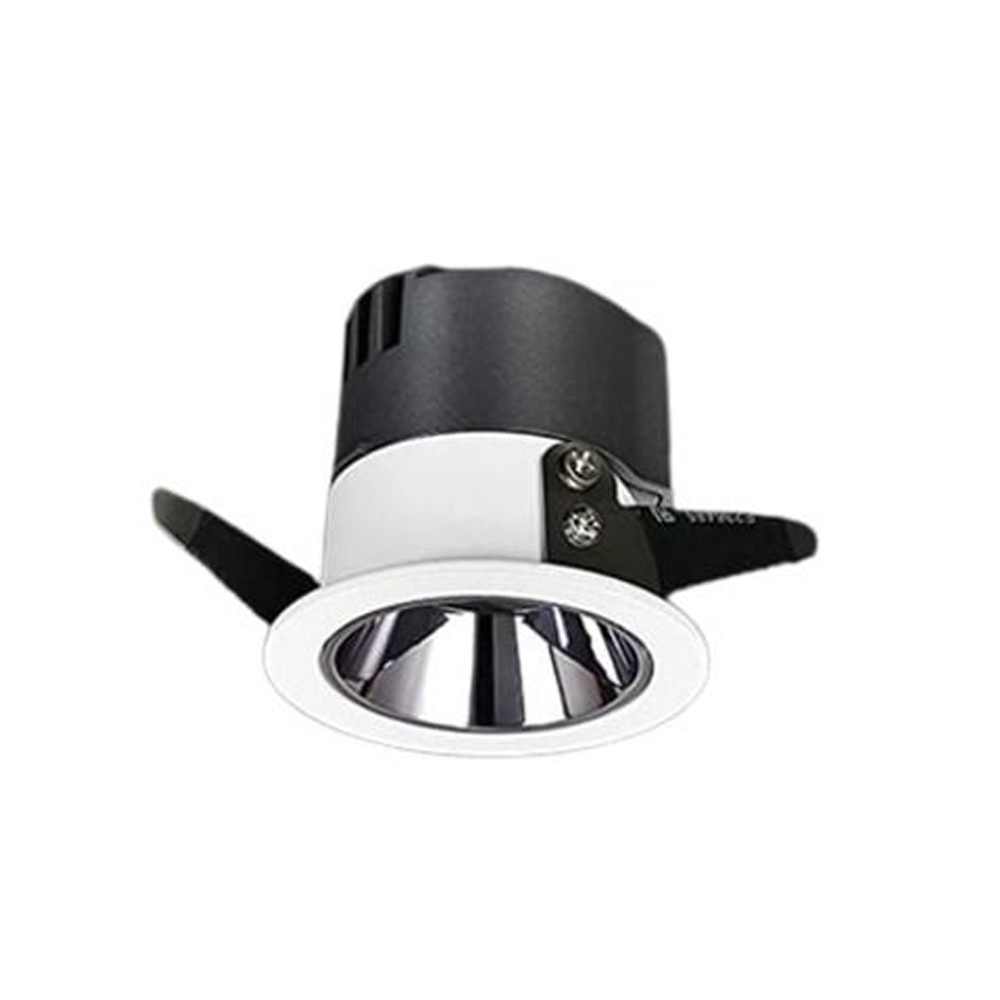

| LB2800 | Wattage7W | CCT3000K | IPIP20 | DimensionsØ85xH77mm | Cut-outØ75mm |
| LB2801 | Wattage12W | CCT3000K | IPIP20 | DimensionsØ85xH76mm | Cut-outØ75mm |

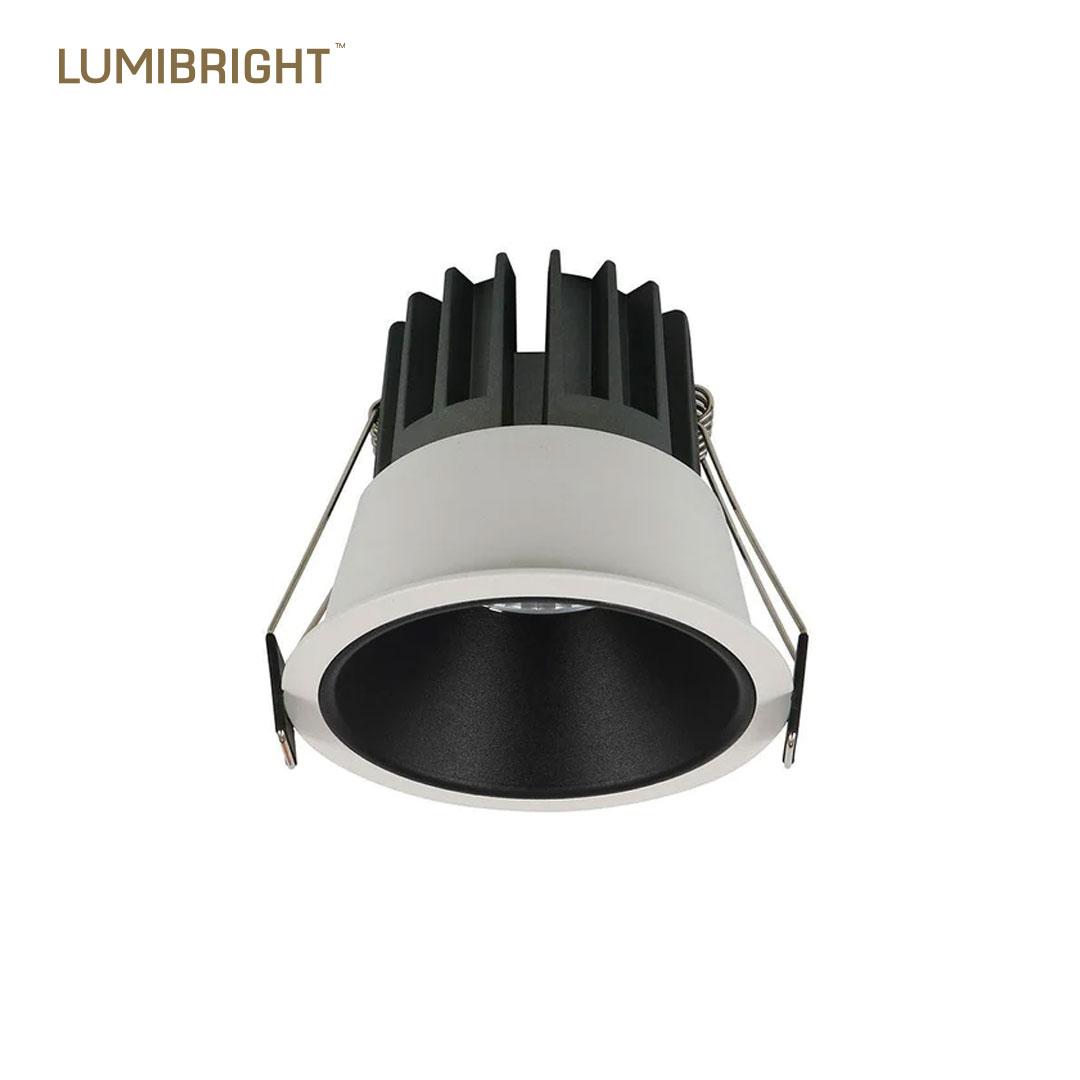

| LBE2155 | Wattage12W | CCT2700K/3000K/3500K/4000K/5000K/6000K | IPIP32 | DimensionsØ85x78mm | Cut-outØ75mm |

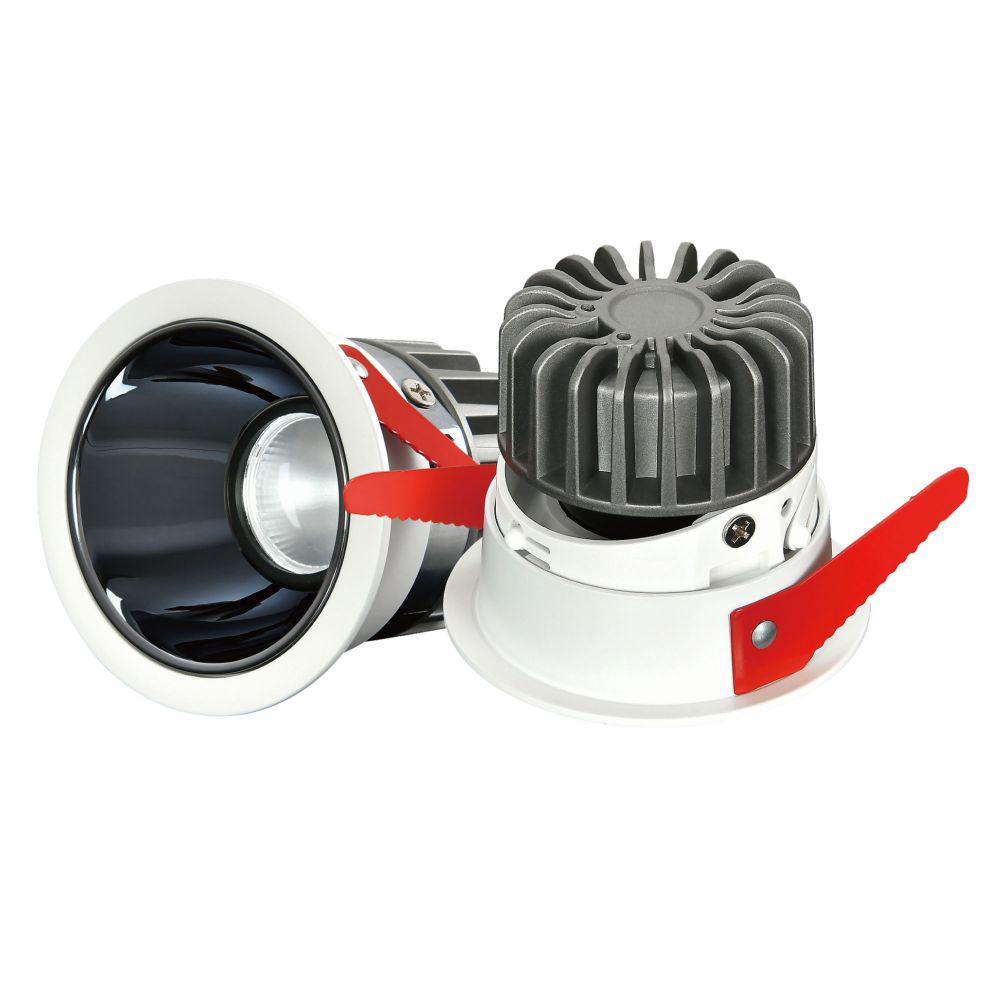

| LBT2040 | Wattage12W | CCT2700K, 3000K, 4000K, 6000K | IPIP32 | DimensionsØ85xH70mm | Cut-outNot published |
| LBT2041 | Wattage12W | CCT3000K | IPIP32 | DimensionsØ85xH76mm | Cut-outØ75mm |

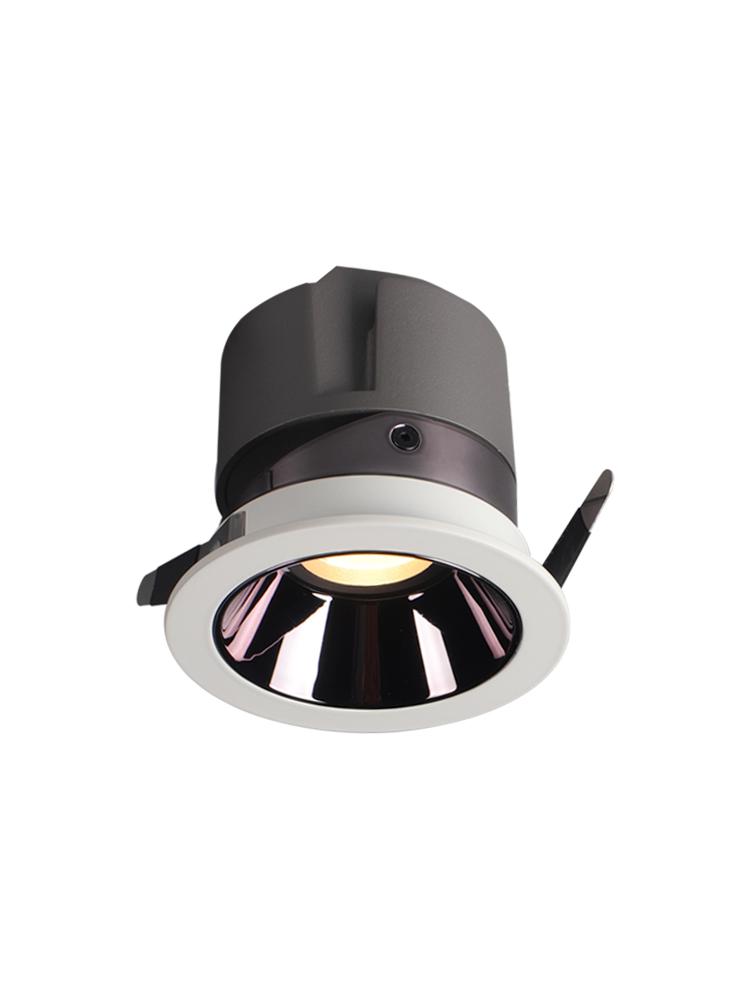

| LBT2042 | Wattage12W | CCT2700K, 3000K, 4000K, 6000K | IPIP32 | DimensionsØ85xH77mm | Cut-outNot published |
Technical Data
Full Specification
| Dimensions | Ø85xH76mm · Ø85xH77mm · Ø75MM · Ø85x78mm +1 more |
|---|---|
| Cut-out | Ø75mm |
| Power | 12W · 7W |
| Lumen output | 545lm · 1142lm · 875lm |
| Efficacy | Not published — technical review required |
| Optics / beam angle | 24° · 38° · 36° |
| Colour temperature | 3000K · 4000K · 5000K · 2700K +2 more |
| CRI Ra | 80 · 90 · >90 · >80 +1 more |
| R9 | Not published — technical review required |
| TM-30 Rf / Rg | Not published — technical review required |
| UGR | Not published — technical review required |
| IP rating | IP20 · IP32 |
| IK rating | Not published — technical review required |
| Ambient temperature (Ta) | Not published — technical review required |
| Driver | Not published — technical review required |
| Dimming / control | Not published — technical review required |
| Input voltage | 220-240VAC |
| Light source | Not published — technical review required |
| Material | Dis-casting Aluminium · Aluminium |
| Finish | White · Black+Mirror Black · White+Mirror Black · White+Mirror White +4 more |
| Mounting / installation | Not published — technical review required |
| Net weight | Not published — technical review required |
| Certification | Not published — technical review required |
| Lifetime | Not published — technical review required |
| Warranty | Not published — technical review required |
| Lead time | Not published — technical review required |
11 of 26 specification rows published from the 2026 master data. Values vary by model; missing test data is not estimated. Select an exact model for approval.
Configuration
Select Specification
Select attributes to narrow down variants
Product Lines
7 Products
Dimensions
Technical Drawing
Drawing and sizes shown for model LBE2155. This family has 7 models with different dimensions — select a model above, or open its row in the variant table, for its own drawing.
Size — model LBE2155
Ø85x78mm
Cut-Out
Ø75mm
Specifications
At a Glance
7–12W
Power Range
3 options
Beam: 16°, 24°, 36°
6 CCT
2700K, 3000K, 3500K, 4000K, 5000K, 6000K
CRI 80/90
Colour Rendering
IP20 / IP32
Protection Rating
5 finishes
Body Finish Options
5 sizes
Ø75MM, Ø85x78mm, Ø85xH70mm, Ø85xH76mm, Ø85xH77mm
Ø75mm
Cut-Out
Configure your product
LB2801
Order code
Listed configurationLB2801.W.930.WWH.38.DR
12 listed configurations · availability requires confirmation

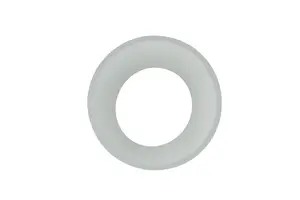

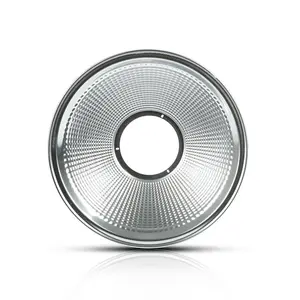

Accessories & components
