Lumi Indoor
COCO E
Application inspiration · not a project reference
COCO E is part of Lumi Indoor. Coordinate the selected article’s dimensions, installation details and configuration with the project specification; these details can vary between models in the same family.
Spot Light
COCO E
COCO E is a spot light family within the LUMIBRIGHT Lumi Indoor collection. Explore 1 models, including LB2817, with model-specific specifications and configuration choices. LB2817 specifications include power: 7W; colour temperature: 2700K/3000K/4000K/5000K/6000K; IP rating: IP20; dimensions: Ø85xH76mm. Compare the COCO E range by power, colour temperature, protection rating and dimensions using the technical table below. Open an individual model to explore its available finishes and optics, select a listed order code and prepare a specification sheet where configuration data is available. Keep the chosen model reference with your project schedule so the lighting and installation teams can coordinate the same selection. For additional drawings, photometry or project-specific requirements, contact the LUMIBRIGHT specification team with your model code.
Model specifications
| Article | Wattage | CCT | IP | Dimensions | Cut-out |
|---|---|---|---|---|---|
| LB2817 | Wattage7W | CCT2700K/3000K/4000K/5000K/6000K | IPIP20 | DimensionsØ85xH76mm | Cut-outØ75mm |

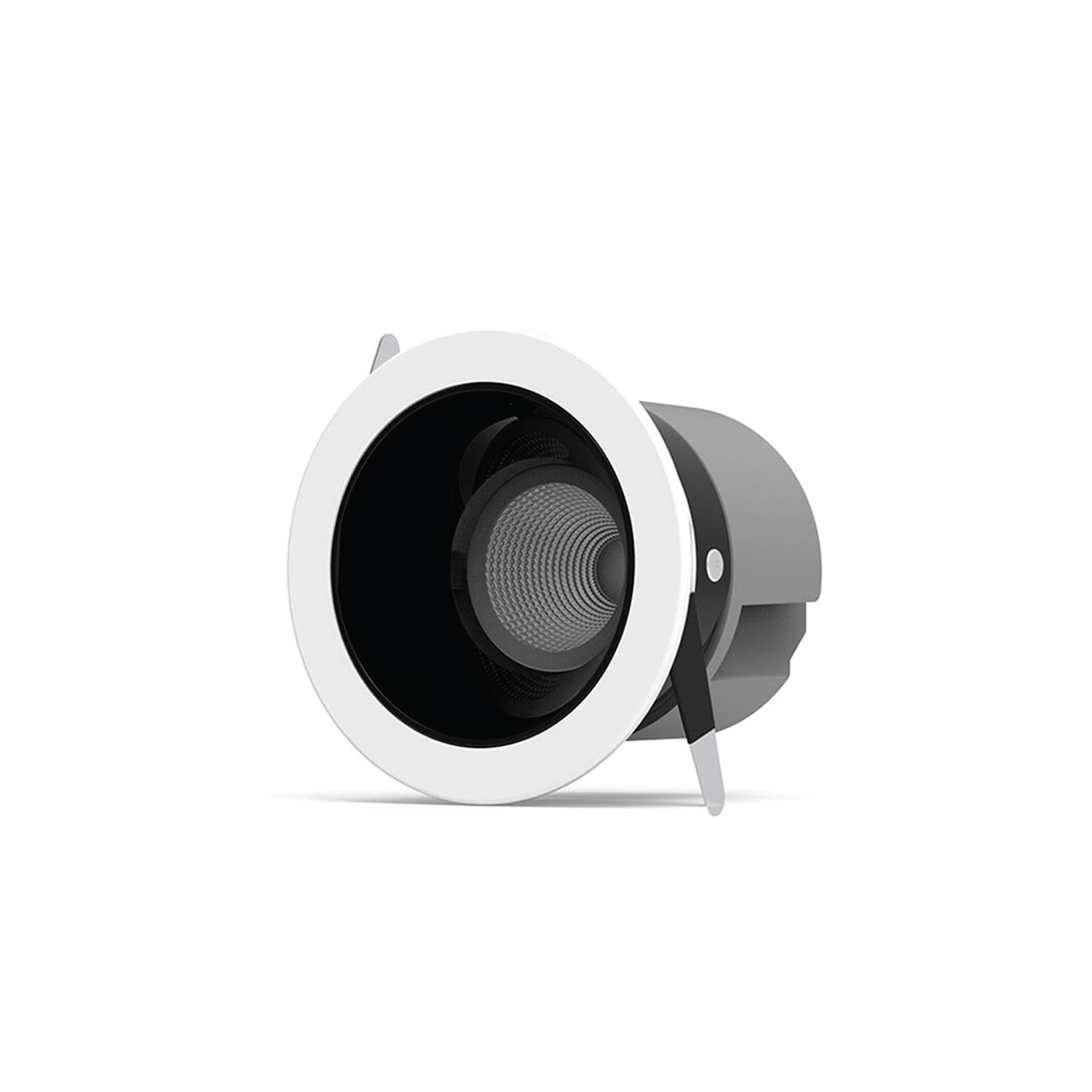

Product View
Configuration
Select Specification
Select attributes to narrow down variants
All Variants (19)
| Code | Power | CCT | Beam | CRI | Finish | Size | |
|---|---|---|---|---|---|---|---|
| LB2817 | 7W | 2700K, 3000K, 4000K, 5000K, 6000K | 15° | 90 | White | Ø85xH76mm | |
| LB2817 | 7W | 2700K, 3000K, 4000K, 5000K, 6000K | 15° | 90 | White | Ø85xH76mm | |
| LB2817 | 7W | 2700K, 3000K, 4000K, 5000K, 6000K | 15° | 90 | white | Ø85xH76mm | |
| LB2817 | 7W | 2700K, 3000K, 4000K, 5000K, 6000K | 15° | 90 | white | Ø85xH76mm | |
| LB2817 | 7W | 2700K, 3000K, 4000K, 5000K, 6000K | 15° | 90 | white | Ø85xH76mm | |
| LB2817 | 7W | 2700K, 3000K, 4000K, 5000K, 6000K | 15° | 90 | white | Ø85xH76mm | |
| LB2817 | 7W | 2700K, 3000K, 4000K, 5000K, 6000K | 15° | 90 | white | Ø85xH76mm | |
| LB2817 | 7W | 2700K, 3000K, 4000K, 5000K, 6000K | 15° | 90 | white | Ø85xH76mm | |
| LB2817 | 7W | 2700K, 3000K, 4000K, 5000K, 6000K | 15° | 90 | white | Ø85xH76mm | |
| LB2817 | 7W | 2700K, 3000K, 4000K, 5000K, 6000K | 15° | 90 | white | Ø85xH76mm | |
| LB2817 | 7W | 2700K, 3000K, 4000K, 5000K, 6000K | 15° | 90 | white | Ø85xH76mm | |
| LB2817 | 7W | 2700K, 3000K, 4000K, 5000K, 6000K | 15° | 90 | white | Ø85xH76mm | |
| LB2817 | 7W | 2700K, 3000K, 4000K, 5000K, 6000K | 15° | 90 | white | Ø85xH76mm | |
| LB2817 | 7W | 2700K, 3000K, 4000K, 5000K, 6000K | 15° | 90 | white | Ø85xH76mm | |
| LB2817 | 7W | 2700K, 3000K, 4000K, 5000K, 6000K | 15° | 90 | black | Ø85xH76mm | |
| LB2817 | 7W | 2700K, 3000K, 4000K, 5000K, 6000K | 15° | 90 | black | Ø85xH76mm | |
| LB2817 | 7W | 2700K, 3000K, 4000K, 5000K, 6000K | 15° | 90 | white | Ø85xH76mm | |
| LB2817 | 7W | 2700K, 3000K, 4000K, 5000K, 6000K | 15° | 90 | white | Ø85xH76mm | |
| LB2817 | 7W | 2700K, 3000K, 4000K, 5000K, 6000K | 15° | 90 | white+mirror-black | Ø85xH76mm |
Dimensions
Technical Drawing
Drawing and sizes shown for model LB2817.
Size — model LB2817
Ø85xH76mm
Cut-Out
Ø75mm
Technical Data
Full Specification
| Dimensions | Ø85xH76mm |
|---|---|
| Cut-out | Ø75mm |
| Power | 7W |
| Lumen output | 560lm |
| Efficacy | Not published — technical review required |
| Optics / beam angle | 15° · 24° · 38° |
| Colour temperature | 2700K · 3000K · 4000K · 5000K +1 more |
| CRI Ra | 90 · >90 |
| R9 | Not published — technical review required |
| TM-30 Rf / Rg | Not published — technical review required |
| UGR | Not published — technical review required |
| IP rating | IP20 |
| IK rating | Not published — technical review required |
| Ambient temperature (Ta) | Not published — technical review required |
| Driver | Not published — technical review required |
| Dimming / control | Not published — technical review required |
| Input voltage | 220-240VAC |
| Light source | Not published — technical review required |
| Material | Die-casting Aluminium |
| Finish | white · black · white+mirror-black · White+Mirror Black |
| Mounting / installation | Not published — technical review required |
| Net weight | Not published — technical review required |
| Certification | Not published — technical review required |
| Lifetime | Not published — technical review required |
| Warranty | Not published — technical review required |
| Lead time | Not published — technical review required |
11 of 26 specification rows published from the 2026 master data. Values vary by model; missing test data is not estimated. Select an exact model for approval.
Specifications
At a Glance
7W
Power
15°
Beam Angle
5 CCT
2700K, 3000K, 4000K, 5000K, 6000K
CRI 90
Colour Rendering
IP20
Protection Rating
4 finishes
Body Finish
Ø85xH76mm
Dimensions
Ø75mm
Cut-Out
Configure your product
LB2817
Order code
Listed configurationLB2817.W.930.WWH.MSR.24.DR
17 listed configurations · availability requires confirmation
