DAZZLE is part of Lumi Indoor. Coordinate the selected article’s dimensions, installation details and configuration with the project specification; these details can vary between models in the same family.
Spot Light
DAZZLE
DAZZLE is a spot light family within the LUMIBRIGHT Lumi Indoor collection. Explore 7 models, including LBE2099, LBE2100, LBE2101, with model-specific specifications and configuration choices. LBE2099 specifications include power: 3W; colour temperature: 2700K/3000K/4000K/6000K; IP rating: IP20; dimensions: Ø20×H71mm. Compare the DAZZLE range by power, colour temperature, protection rating and dimensions using the technical table below. Open an individual model to explore its available finishes and optics, select a listed order code and prepare a specification sheet where configuration data is available. Keep the chosen model reference with your project schedule so the lighting and installation teams can coordinate the same selection. For additional drawings, photometry or project-specific requirements, contact the LUMIBRIGHT specification team with your model code.
Model specifications
| Article | Wattage | CCT | IP | Dimensions | Cut-out |
|---|---|---|---|---|---|

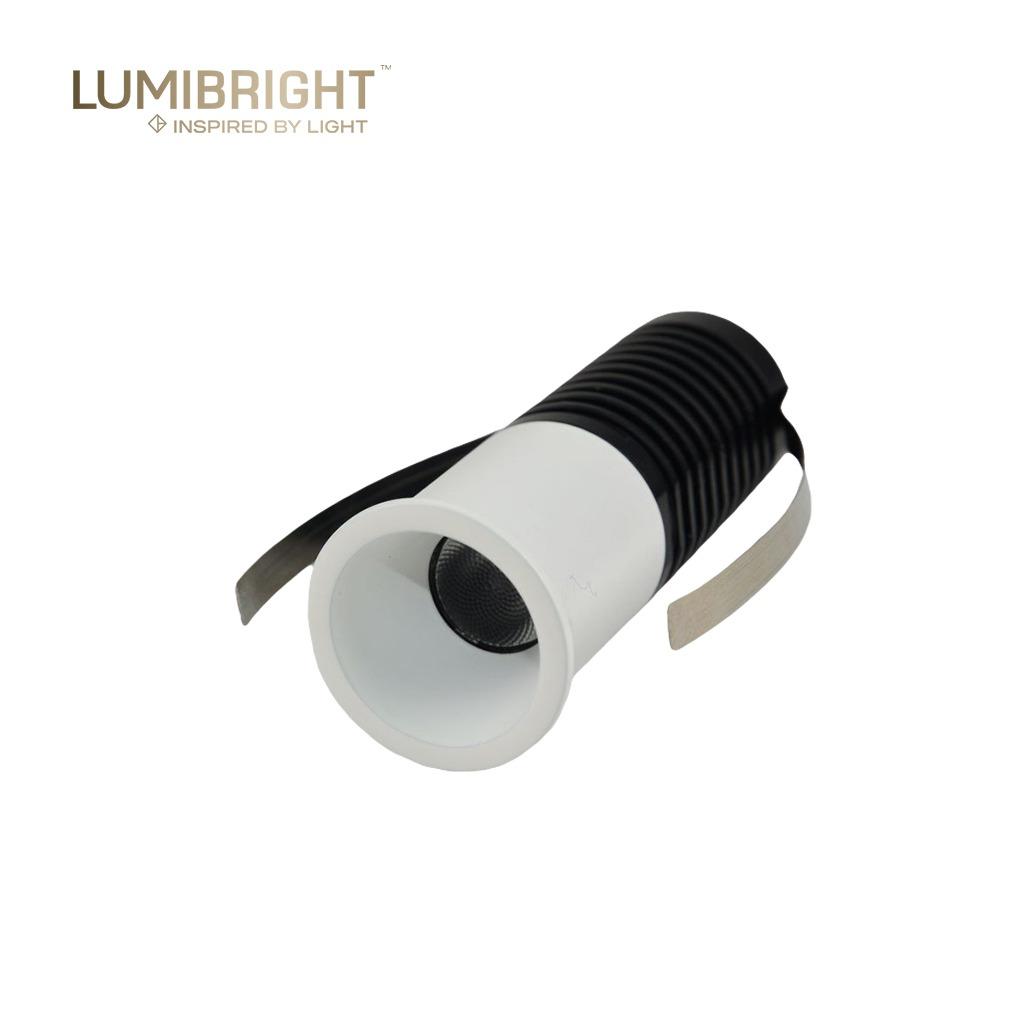

| LBE2099 | Wattage3W | CCT2700K/3000K/4000K/6000K | IPIP20 | DimensionsØ20×H71mm | Cut-outØ18mm |

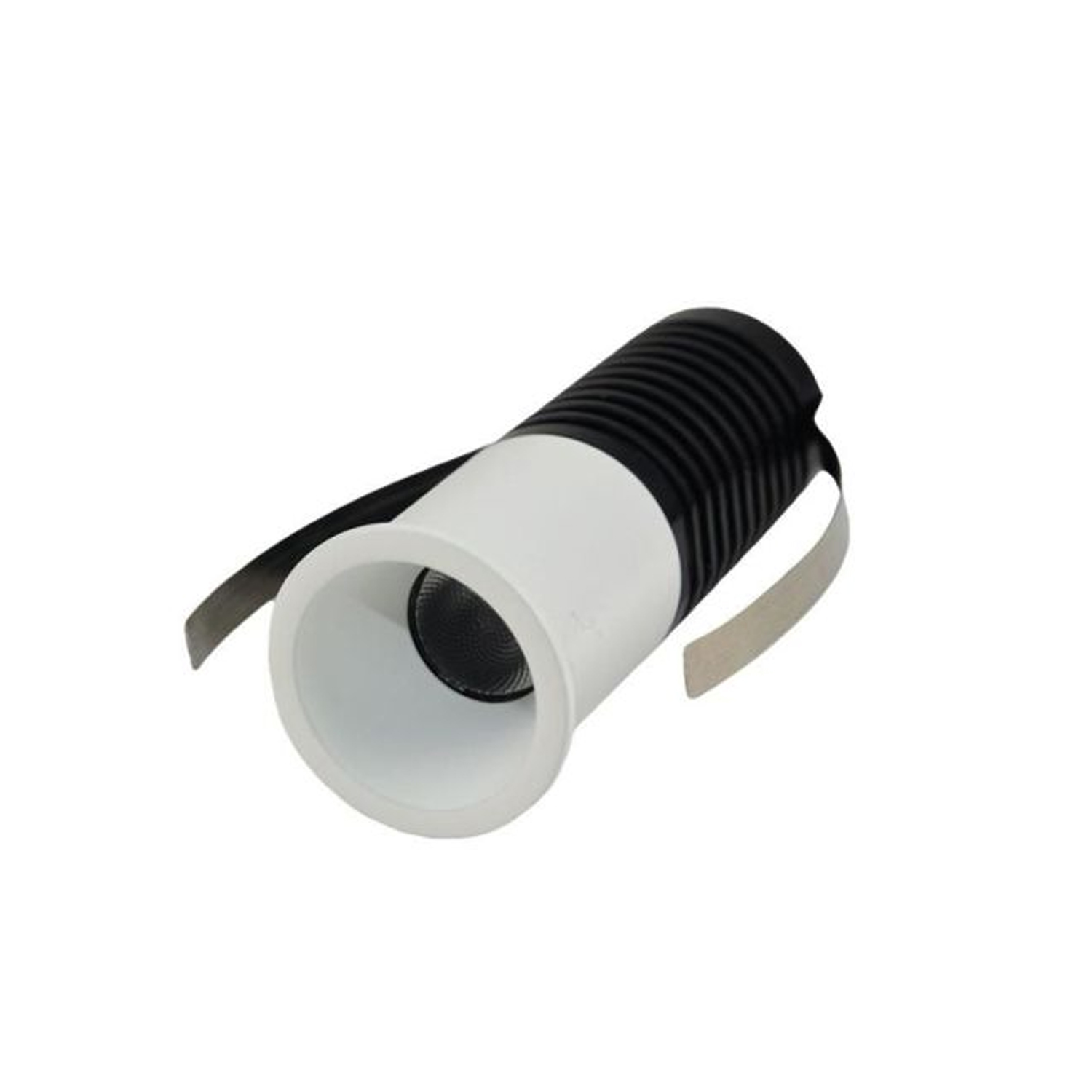

| LBE2100 | Wattage5W | CCT2700K/3000K/4000K/6000K | IPIP20 | DimensionsØ28×H71mm | Cut-outØ25mm |

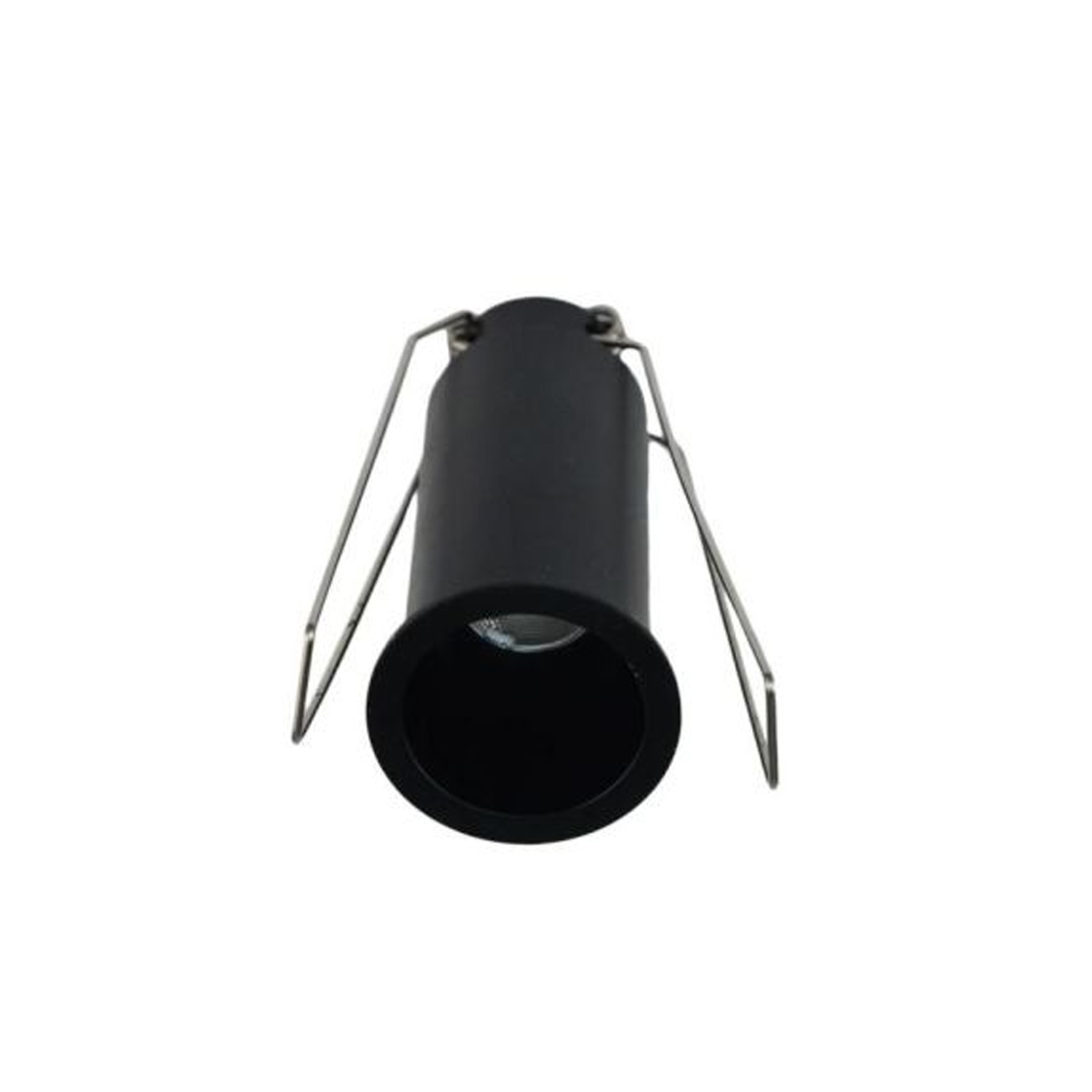

| LBE2101 | Wattage5W | CCT2700K/3000K/4000K/6000K | IPIP20 | DimensionsØ40×H75mm | Cut-outØ30mm |

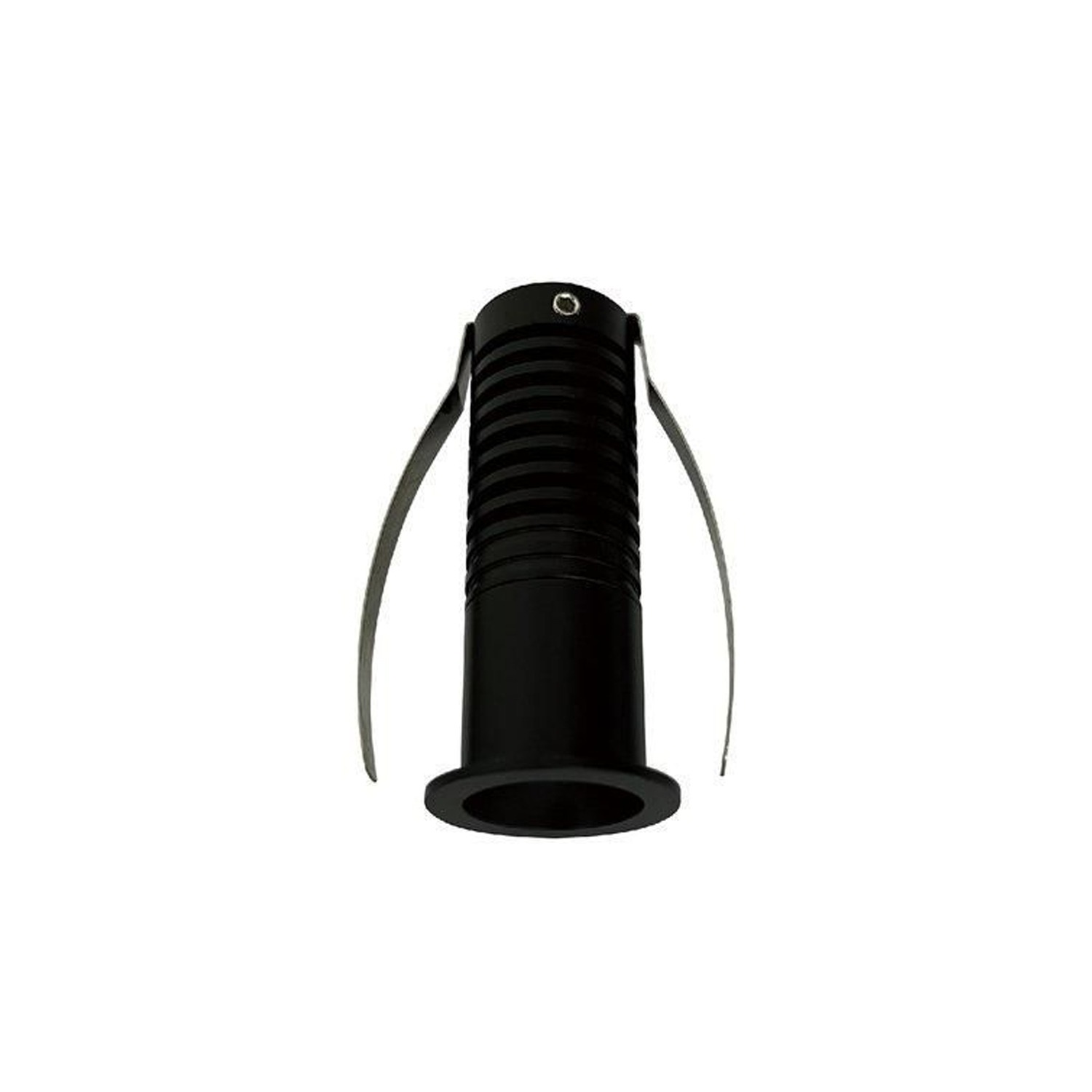

| LBE2139 | Wattage2W | CCT2700K/3000K/4000K/5000K/6000K/6500K | IPIP20 | Dimensionsφ29.5x65MM | Cut-out25MM |
| LBE2159 | Wattage1W | CCT3000K | IPIP20 | Dimensions∅20x61mm | Cut-out-ø18mm |
| LBE2195 | Wattage5W | CCT4000K | IPIP20 | DimensionsØ35*H65mm | Cut-outØ30mm |
| LBP2010 | Wattage2W | CCT2700K/6500K (Tunable) | IPIP20 | DimensionsØ35xH64mm | Cut-outØ30mm |
Dimensions
Technical Drawing

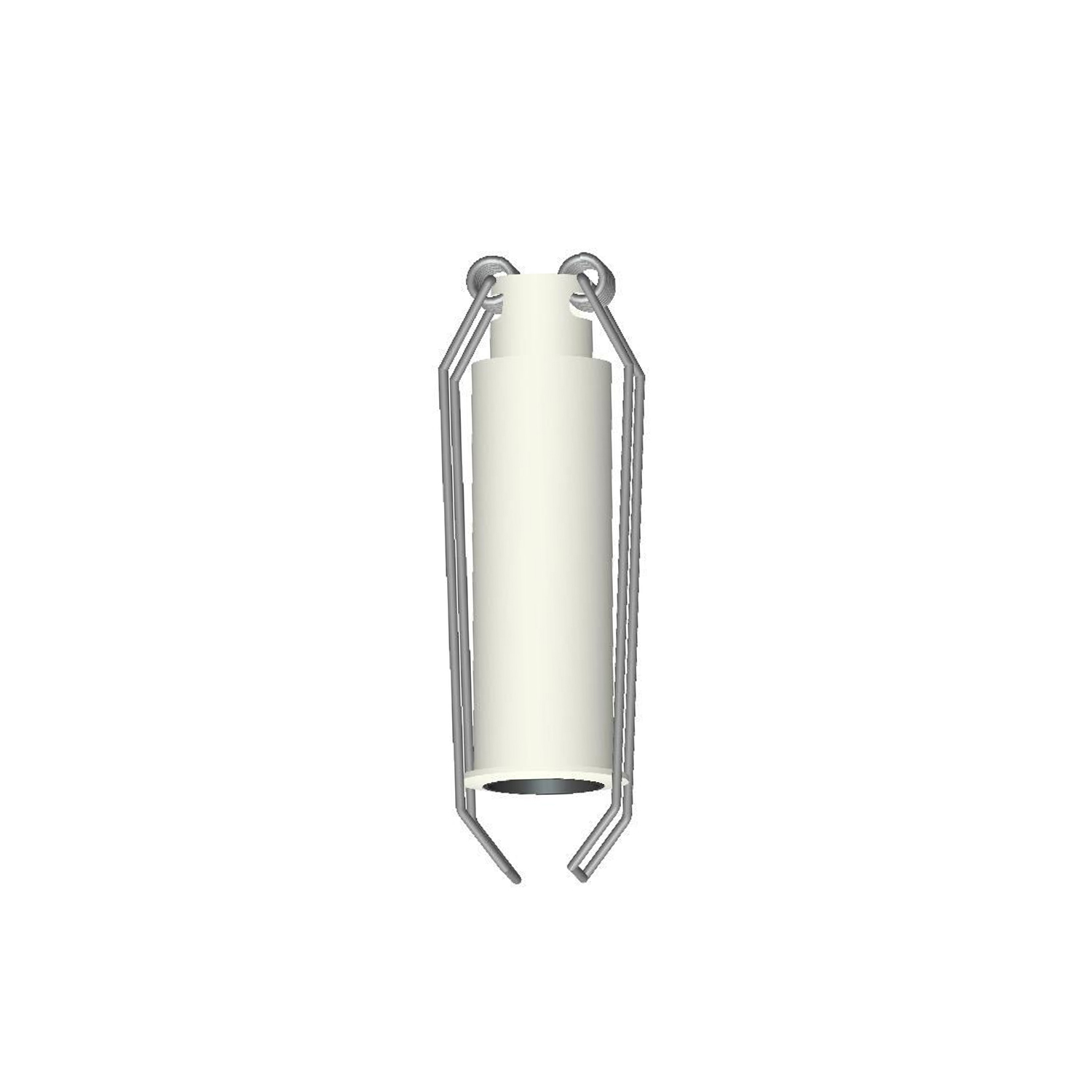

Drawing and sizes shown for model LBE2159.
Size — model LBE2159
∅20x61mm
Cut-Out
-ø18mm
Technical Data
Full Specification
| Dimensions | ∅20x61mm |
|---|---|
| Cut-out | -ø18mm |
| Power | 1W |
| Lumen output | Not published — technical review required |
| Efficacy | Not published — technical review required |
| Optics / beam angle | 24° |
| Colour temperature | 3000K · 4000K · 5000K |
| CRI Ra | 90 |
| R9 | Not published — technical review required |
| TM-30 Rf / Rg | Not published — technical review required |
| UGR | Not published — technical review required |
| IP rating | IP20 |
| IK rating | Not published — technical review required |
| Ambient temperature (Ta) | Not published — technical review required |
| Driver | Not published — technical review required |
| Dimming / control | Not published — technical review required |
| Input voltage | 48VDC |
| Light source | Not published — technical review required |
| Material | Aluminium |
| Finish | white+black · White |
| Mounting / installation | Not published — technical review required |
| Net weight | Not published — technical review required |
| Certification | Not published — technical review required |
| Lifetime | Not published — technical review required |
| Warranty | Not published — technical review required |
| Lead time | Not published — technical review required |
10 of 26 specification rows published from the 2026 master data. Values vary by model; missing test data is not estimated. Select an exact model for approval.
Specifications
At a Glance
1W
Power
24°
Beam Angle
3000K
Colour Temperature
CRI 90
Colour Rendering
IP20
Protection Rating
2 finishes
Body Finish
∅20x61mm
Dimensions
-ø18mm
Cut-Out
Configure your product
LBE2159
Order code
Listed configurationLBE2159.W.930.WWH+WBK.24.DR
1 listed configurations · availability requires confirmation
