Lumi Indoor
EDMOND
Application inspiration · not a project reference
EDMOND is part of Lumi Indoor. Coordinate the selected article’s dimensions, installation details and configuration with the project specification; these details can vary between models in the same family.
Ceiling Light
EDMOND
EDMOND is a ceiling light family within the LUMIBRIGHT Lumi Indoor collection. Explore 1 models, including L01277, with model-specific specifications and configuration choices. L01277 specifications include power: 12W; colour temperature: 2700K/3000K/4000K/6000K/6500K; IP rating: IP20; dimensions: Ø55×H79mm. Compare the EDMOND range by power, colour temperature, protection rating and dimensions using the technical table below. Open an individual model to explore its available finishes and optics, select a listed order code and prepare a specification sheet where configuration data is available. Keep the chosen model reference with your project schedule so the lighting and installation teams can coordinate the same selection. For additional drawings, photometry or project-specific requirements, contact the LUMIBRIGHT specification team with your model code.
Model specifications
| Article | Wattage | CCT | IP | Dimensions | Cut-out |
|---|---|---|---|---|---|
| L01277 | Wattage12W | CCT2700K/3000K/4000K/6000K/6500K | IPIP20 | DimensionsØ55×H79mm | Cut-outØ50mm |

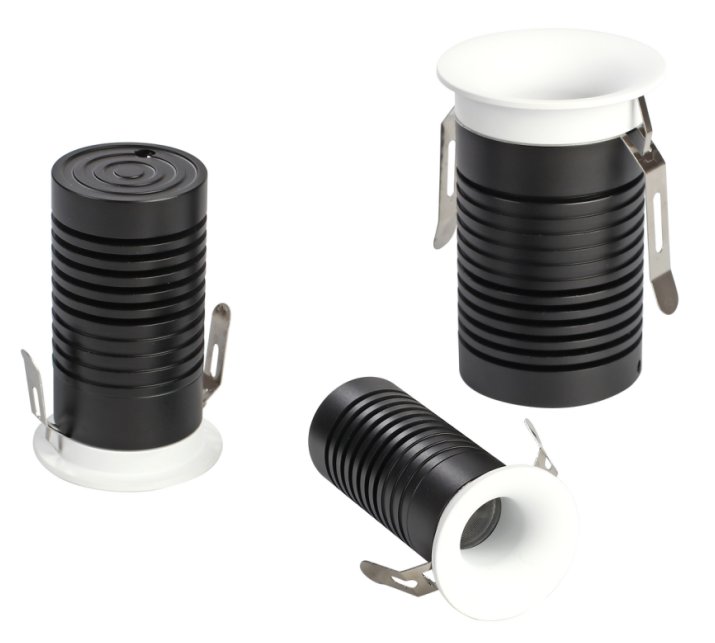

Product View
Selected Variant
L01277
EDMOND L01277 - CEILING RECESSED LIGHT
Configuration
Select Specification
Exact match: L01277
All Variants (1)
| Code | Power | CCT | Beam | CRI | Finish | Size | |
|---|---|---|---|---|---|---|---|
| L01277 | 12W | 2700K, 3000K, 4000K, 6000K, 6500K | 15° | 90 | White | Ø55×H79mm |
Dimensions
Technical Drawing
Drawing and sizes shown for model L01277.
Size — model L01277
Ø55×H79mm
Cut-Out
Ø50mm
Technical Data
Full Specification
| Dimensions | Ø55×H79mm |
|---|---|
| Cut-out | Ø50mm |
| Power | 12W |
| Lumen output | Not published — technical review required |
| Efficacy | 70-80lm/W |
| Optics / beam angle | 15° · 24° · 36° |
| Colour temperature | 2700K · 3000K · 4000K · 5000K +2 more |
| CRI Ra | 90 |
| R9 | Not published — technical review required |
| TM-30 Rf / Rg | Not published — technical review required |
| UGR | Not published — technical review required |
| IP rating | IP20 |
| IK rating | Not published — technical review required |
| Ambient temperature (Ta) | Not published — technical review required |
| Driver | Not published — technical review required |
| Dimming / control | Not published — technical review required |
| Input voltage | 220-240VAC |
| Light source | Not published — technical review required |
| Material | Aluminium |
| Finish | White · Mirror Black · Chrome · Black |
| Mounting / installation | Not published — technical review required |
| Net weight | Not published — technical review required |
| Certification | Not published — technical review required |
| Lifetime | Not published — technical review required |
| Warranty | Not published — technical review required |
| Lead time | Not published — technical review required |
11 of 26 specification rows published from the 2026 master data. Values vary by model; missing test data is not estimated. Select an exact model for approval.
Specifications
At a Glance
12W
Power
15°
Beam Angle
5 CCT
2700K, 3000K, 4000K, 6000K, 6500K
CRI 90
Colour Rendering
IP20
Protection Rating
White
Body Finish
Ø55×H79mm
Dimensions
Ø50mm
Cut-Out
Configure your product
L01277
Order code
Listed configurationL01277.930.17.24.DR
48 listed configurations · availability requires confirmation
