Lumi Indoor
FIORD
Application inspiration · not a project reference
FIORD is part of Lumi Indoor. Coordinate the selected article’s dimensions, installation details and configuration with the project specification; these details can vary between models in the same family.
Down Light
FIORD
FIORD is a down light family within the LUMIBRIGHT Lumi Indoor collection. The current catalogue groups 6 article codes under this family, including LB2315, LB2807, LB2921. For LB2315, published values include colour temperature: 2700K; IP rating: IP20. Each article represents its own physical model; dimensions and electrical or optical options must be checked against that exact code. Compare the FIORD articles using the specification table and individual model pages before adding them to a lighting schedule. Wattage, colour temperature, protection rating and installation dimensions are catalogue values, not a guarantee that every combination can be ordered. Where a value is not published, request the relevant model documentation rather than assuming it matches another article. Confirm the selected configuration, driver requirements, installation detail and project documentation with the specification team before ordering.
Model specifications
| Article | Wattage | CCT | IP | Dimensions | Cut-out |
|---|---|---|---|---|---|

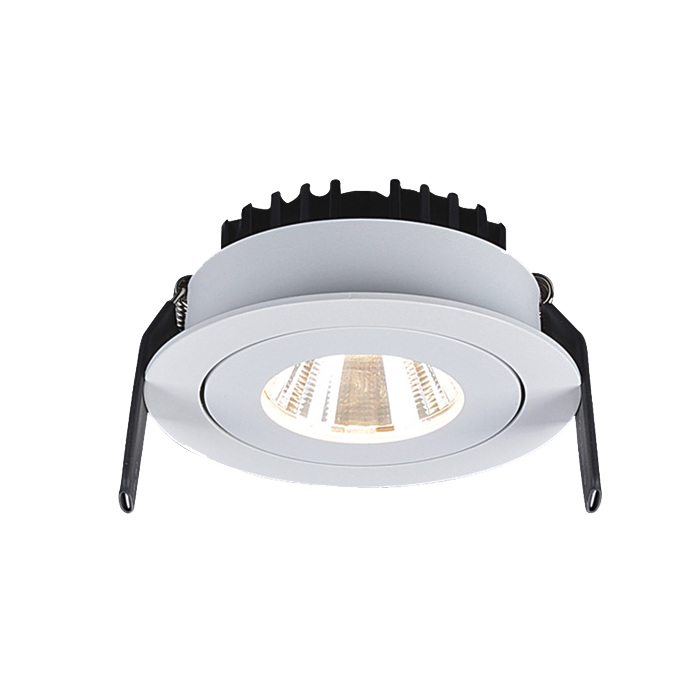

| LB2315 | WattageNot published | CCT2700K | IPIP20 | DimensionsNot published | Cut-outNot published |

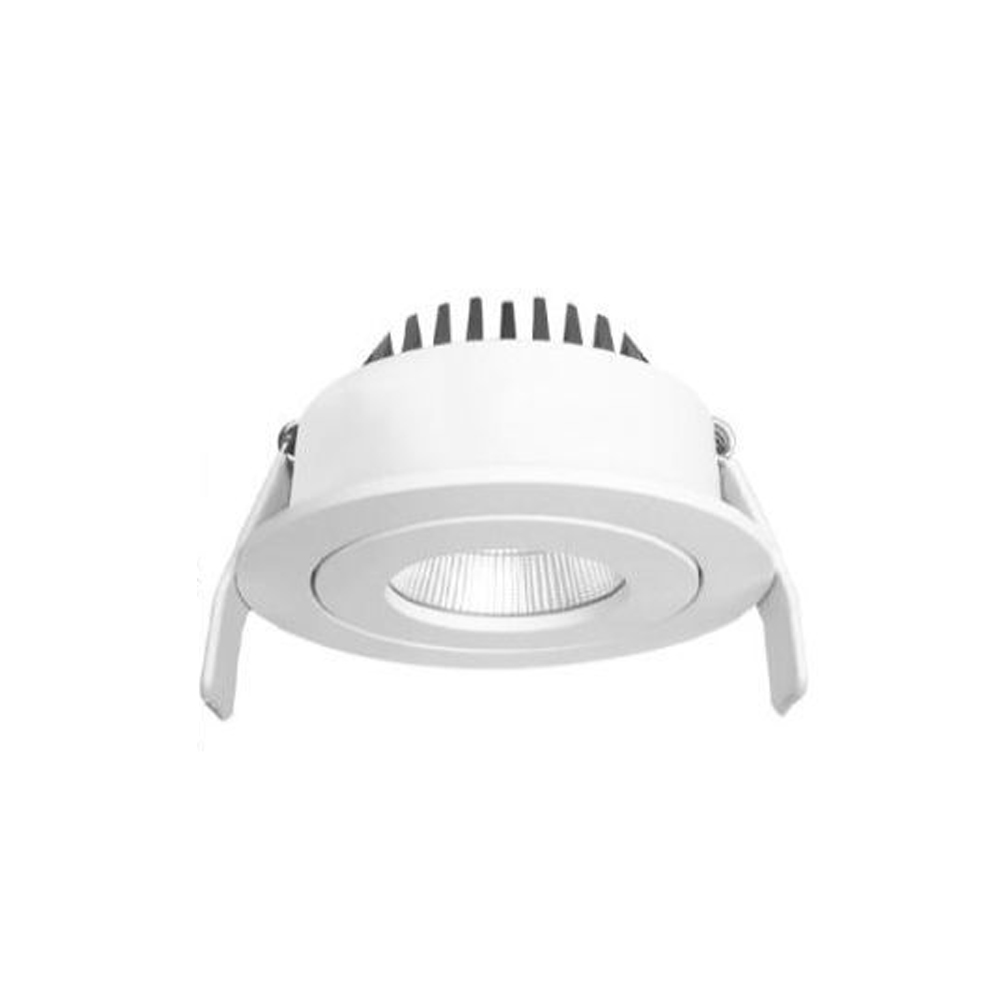

| LB2807 | Wattage10W/15W | CCT2700K/3000K/4000K/5000K/6000K | IPIP44 | DimensionsØ90x40mm | Cut-outØ80mm |

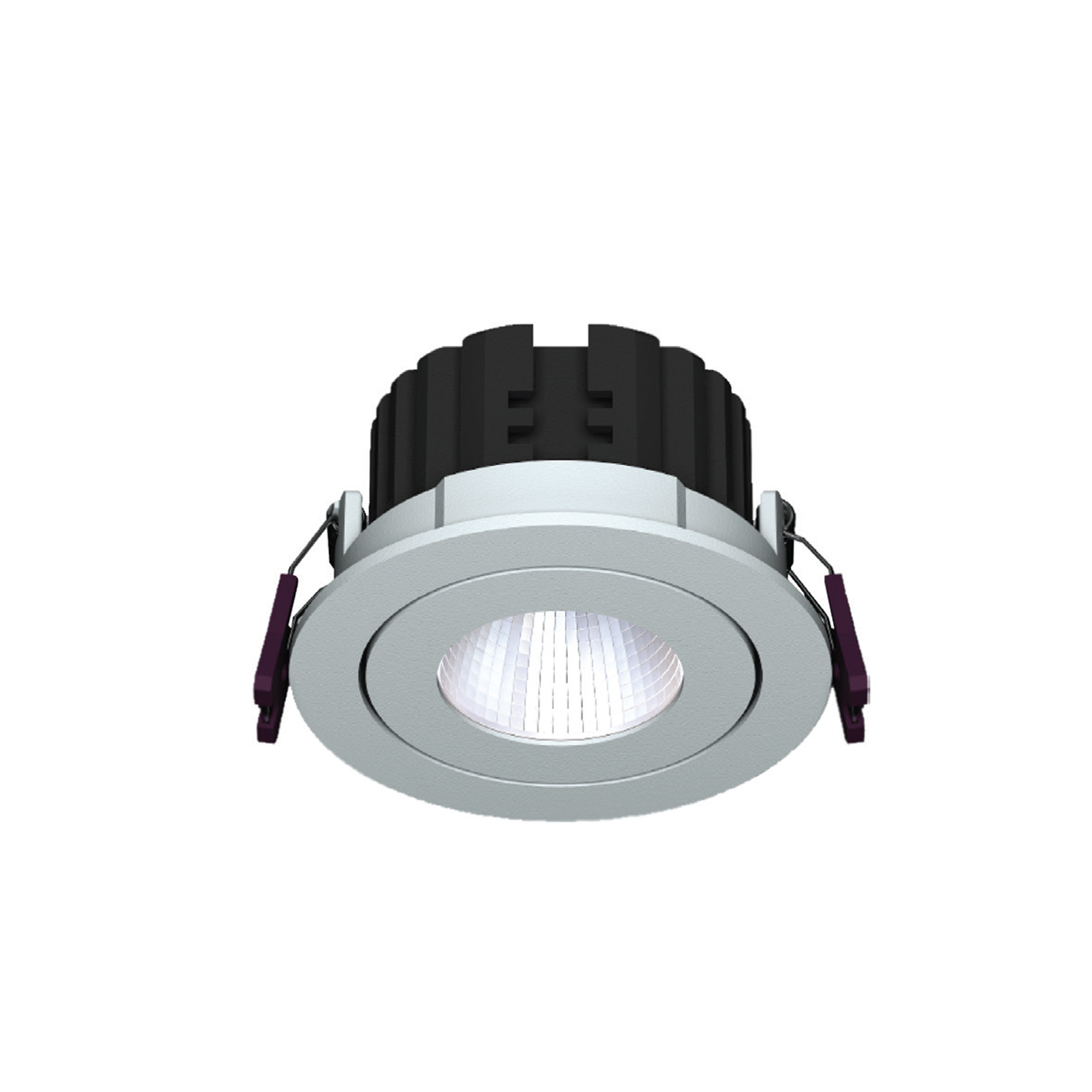

| LB2921 | Wattage12W | CCT2700K/3000K/4000K | IPIP20 | DimensionsØ90x50mm | Cut-outØ82mm |

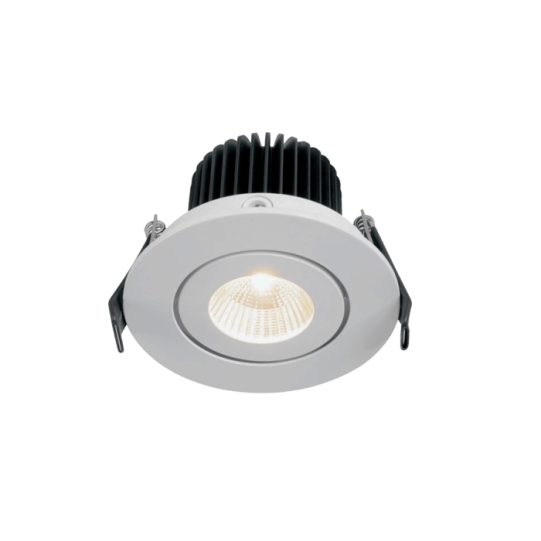

| LB3018 | WattageNot published | CCT3000K, 4000K, 5000K, 5600K | IPIP20 | DimensionsØ100x78mm | Cut-outØ90mm |
| LB3020 | Wattage20W | CCT4000K | IPIP20 | DimensionsØ180x110mm | Cut-outØ165mm |

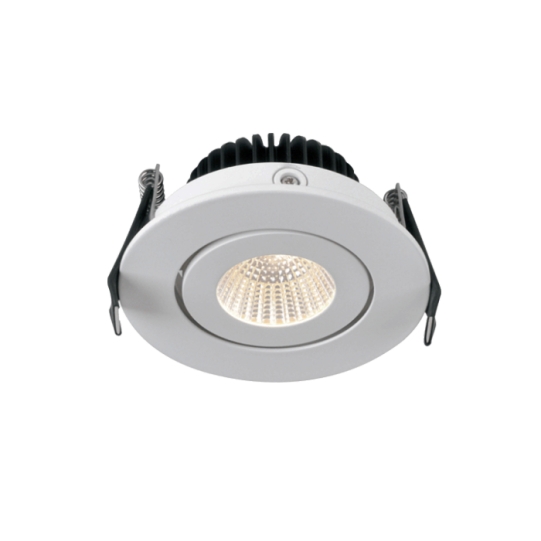

| LB3021 | WattageNot published | CCT3000K, 4000K, 5000K | IPIP20 | DimensionsØ100x55mm | Cut-outØ90mm |
Configuration
Select Specification
Select attributes to narrow down variants
All Variants (4)
Dimensions
Technical Drawing
Drawing and sizes shown for model LB3021.
Size — model LB3021
Ø100x55mm
Cut-Out
Ø90mm
Technical Data
Full Specification
| Dimensions | Ø100x55mm |
|---|---|
| Cut-out | Ø90mm |
| Power | Not published — technical review required |
| Lumen output | Not published — technical review required |
| Efficacy | Not published — technical review required |
| Optics / beam angle | 28° · 32° · 60° |
| Colour temperature | 2700K · 3000K · 4000K · 5000K +1 more |
| CRI Ra | 80 · 90 |
| R9 | Not published — technical review required |
| TM-30 Rf / Rg | Not published — technical review required |
| UGR | Not published — technical review required |
| IP rating | IP20 |
| IK rating | Not published — technical review required |
| Ambient temperature (Ta) | Not published — technical review required |
| Driver | Not published — technical review required |
| Dimming / control | Not published — technical review required |
| Input voltage | 8VDC |
| Light source | Not published — technical review required |
| Material | Not published — technical review required |
| Finish | white · white-sand · White With Sand |
| Mounting / installation | Not published — technical review required |
| Net weight | Not published — technical review required |
| Certification | Not published — technical review required |
| Lifetime | Not published — technical review required |
| Warranty | Not published — technical review required |
| Lead time | Not published — technical review required |
8 of 26 specification rows published from the 2026 master data. Values vary by model; missing test data is not estimated. Select an exact model for approval.
Specifications
At a Glance
3 options
Beam Angle
3 CCT
3000K, 4000K, 5000K
CRI 80
Colour Rendering
IP20
Protection Rating
3 finishes
Body Finish
Ø100x55mm
Dimensions
Ø90mm
Cut-Out
Configure your product
LB3021
Order code
Listed configurationLB3021.W.830.WWH.28
2 listed configurations · availability requires confirmation
