Lumi Indoor
FLY
Application inspiration · not a project reference
FLY is part of Lumi Indoor. Coordinate the selected article’s dimensions, installation details and configuration with the project specification; these details can vary between models in the same family.
Spot Light
FLY
FLY is a spot light family within the LUMIBRIGHT Lumi Indoor collection. The current catalogue groups 9 article codes under this family, including LB2039, LB2040, LB2216. For LB2039, published values include power: 3W; colour temperature: 3000K; IP rating: IP20; dimensions: Ø52x27mm. Each article represents its own physical model; dimensions and electrical or optical options must be checked against that exact code. Compare the FLY articles using the specification table and individual model pages before adding them to a lighting schedule. Wattage, colour temperature, protection rating and installation dimensions are catalogue values, not a guarantee that every combination can be ordered. Where a value is not published, request the relevant model documentation rather than assuming it matches another article. Confirm the selected configuration, driver requirements, installation detail and project documentation with the specification team before ordering.
Model specifications
| Article | Wattage | CCT | IP | Dimensions | Cut-out |
|---|---|---|---|---|---|

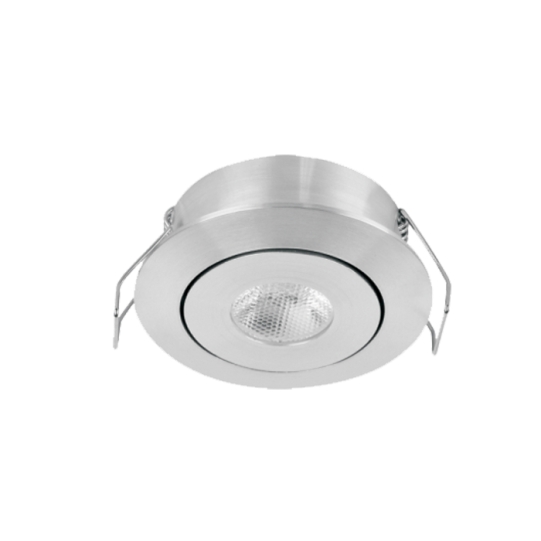

| LB2039 | Wattage3W | CCT3000K | IPIP20 | DimensionsØ52x27mm | Cut-outØ45mm |

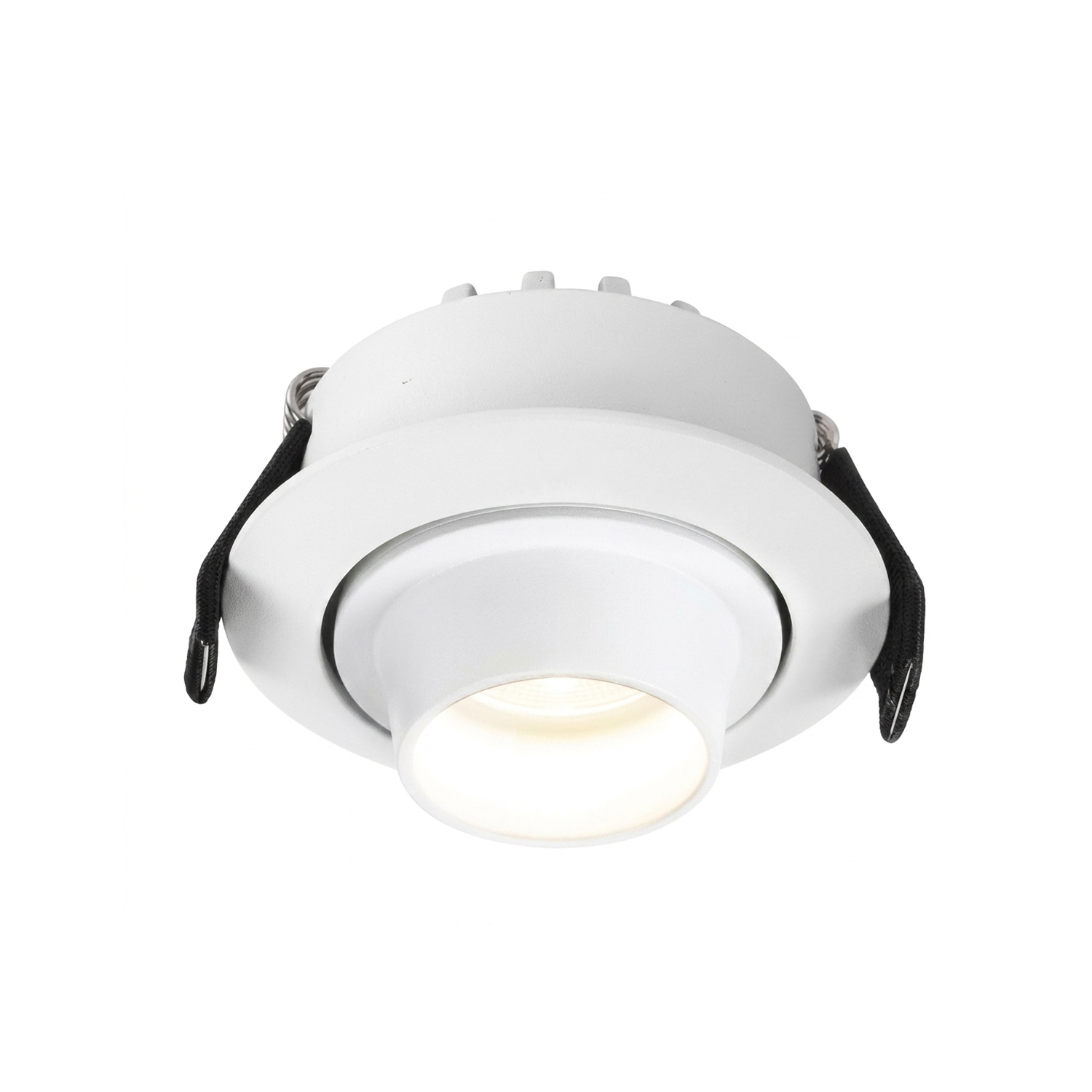

| LB2040 | Wattage3W | CCT2700K, 3000K, 4000K, 6000K | IPIP20 | DimensionsØ52x32mm | Cut-outØ45mm |
| LB2216 | Wattage3W | CCT6000K | IPIP20 | Dimensions52x52x24mm | Cut-outØ45mm |

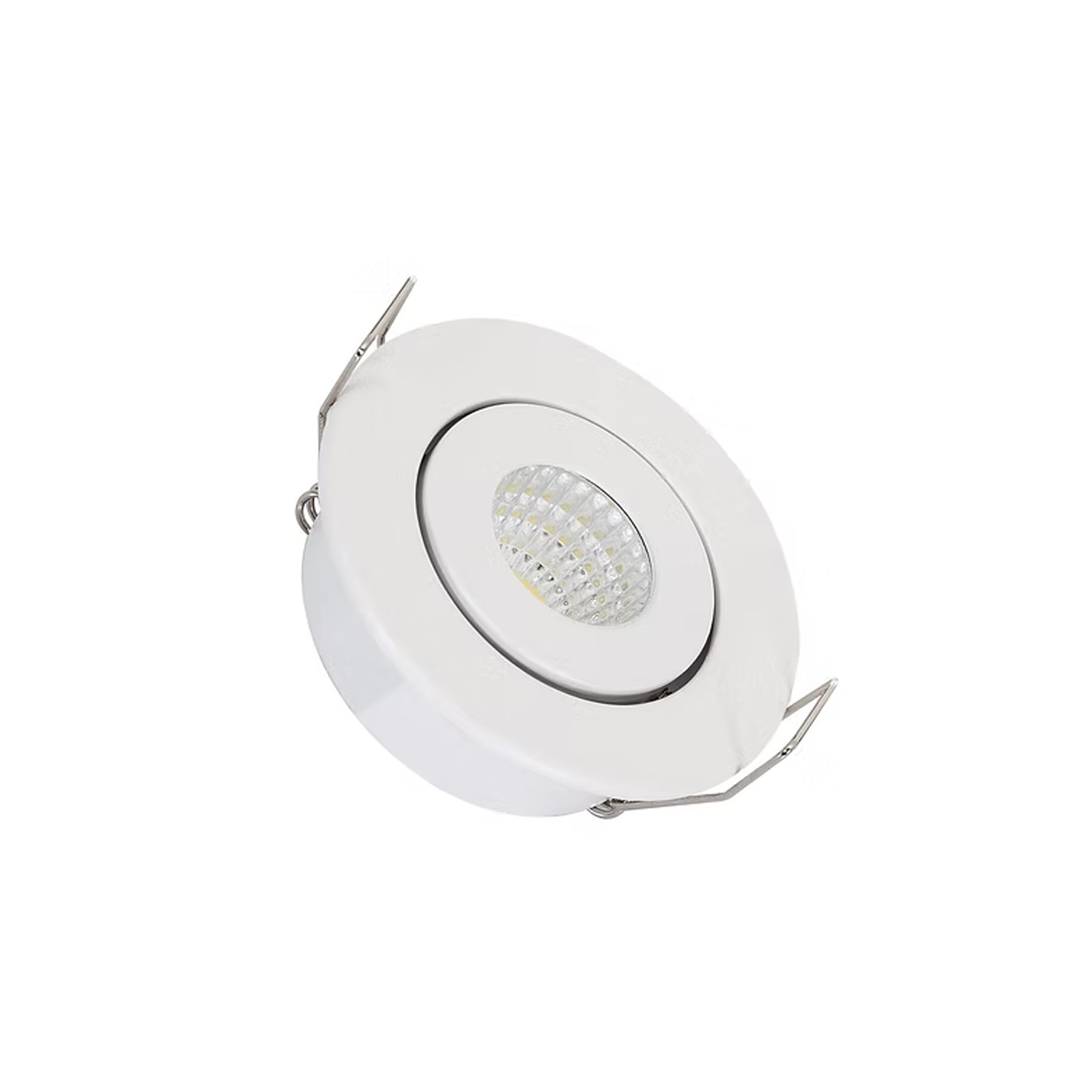

| LB2734 | Wattage3W | CCT3000K | IPIP20 | DimensionsØ52x27mm | Cut-outØ45mm |

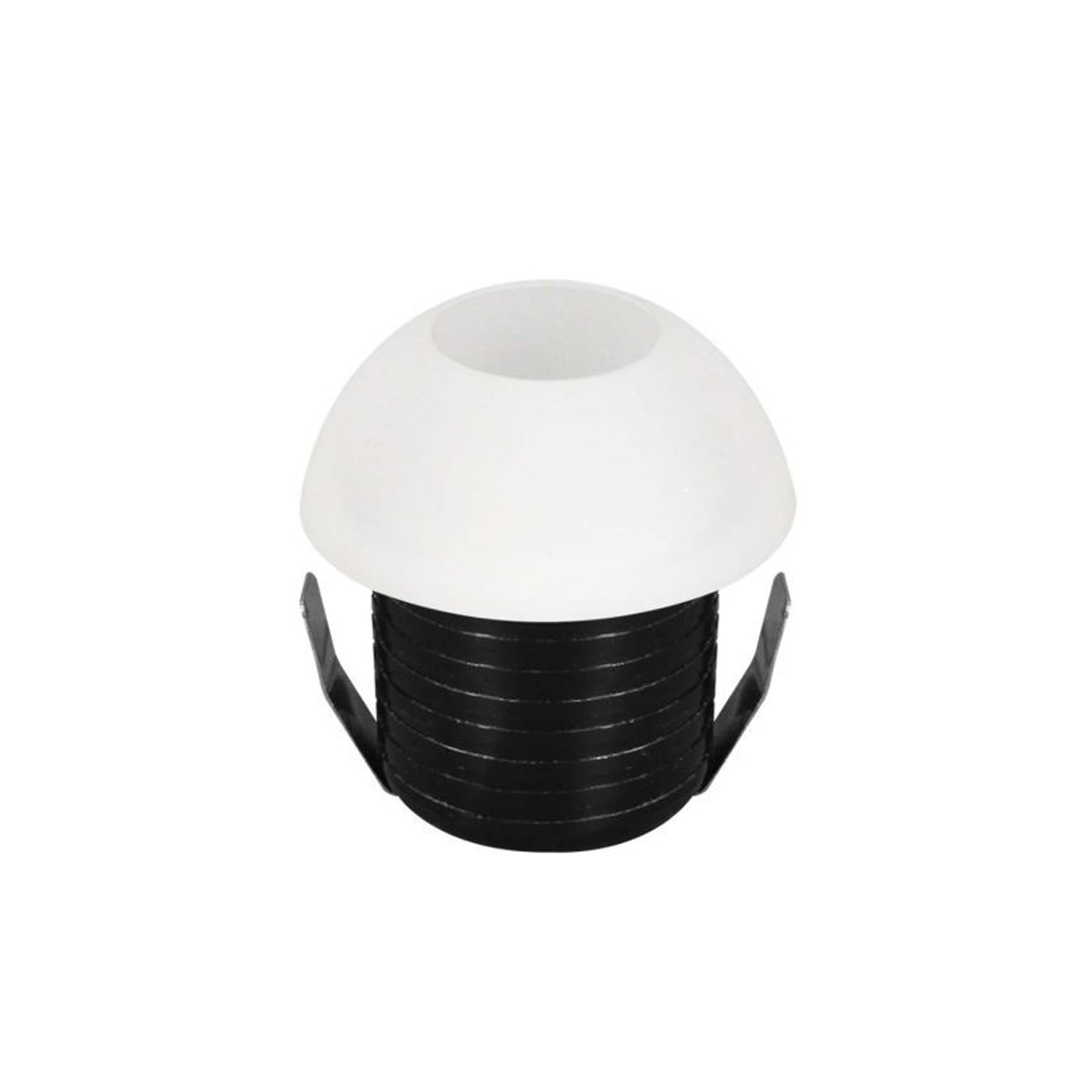

| LB2755 | Wattage3W | CCT4000K | IPIP20 | DimensionsØ42x45mm | Cut-outØ35mm |

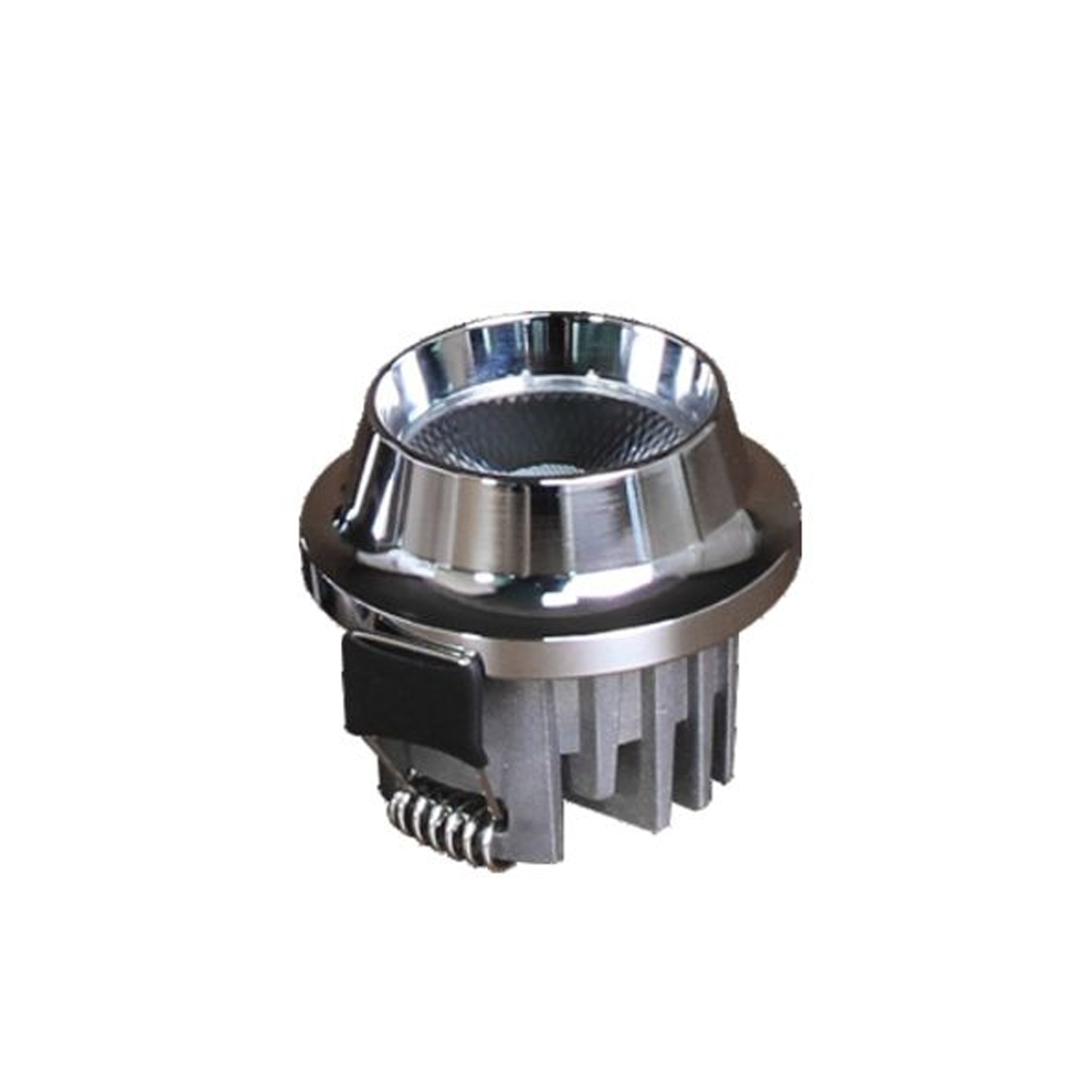

| LB2756 | Wattage3W | CCT4000K | IPIP20 | DimensionsØ45x40mm | Cut-outØ40mm |

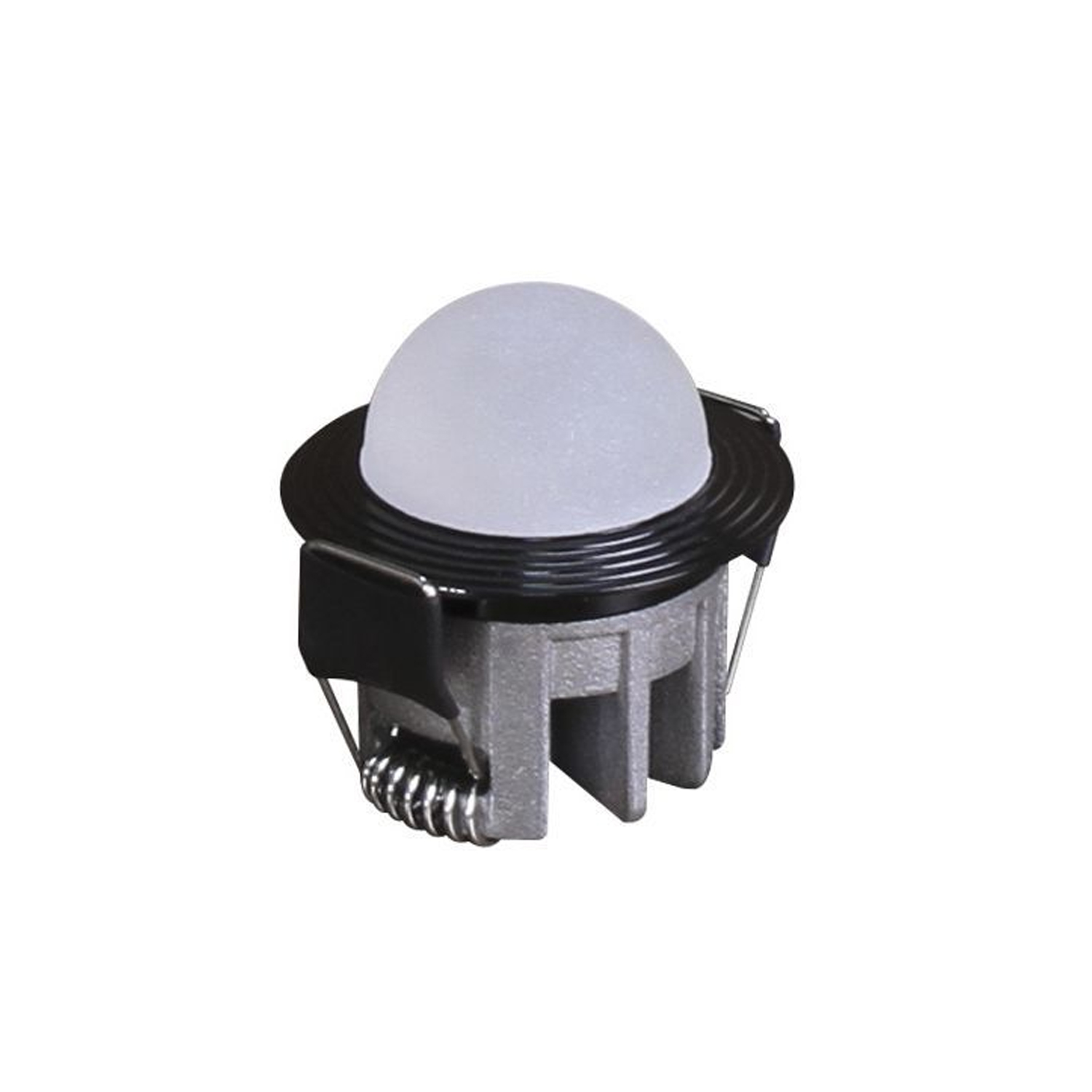

| LB2757 | Wattage3W | CCT2700K, 3000K, 4000K, 6000K | IPIP20 | DimensionsØ40x40mm | Cut-outØ32mm |

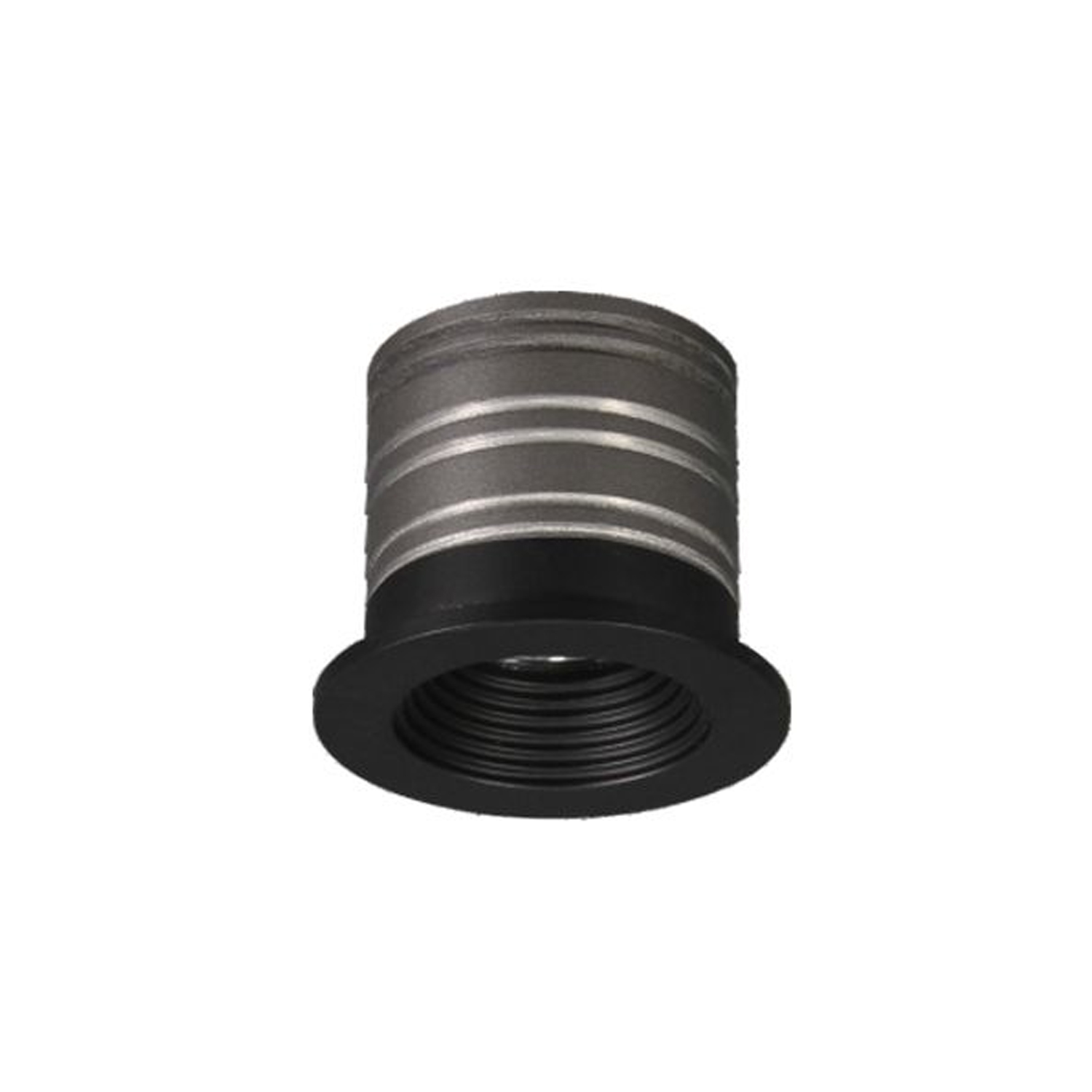

| LB2758 | Wattage3W | CCT2700K, 3000K, 4000K, 6000K | IPIP20 | DimensionsØ42x36mm | Cut-outØ35mm |

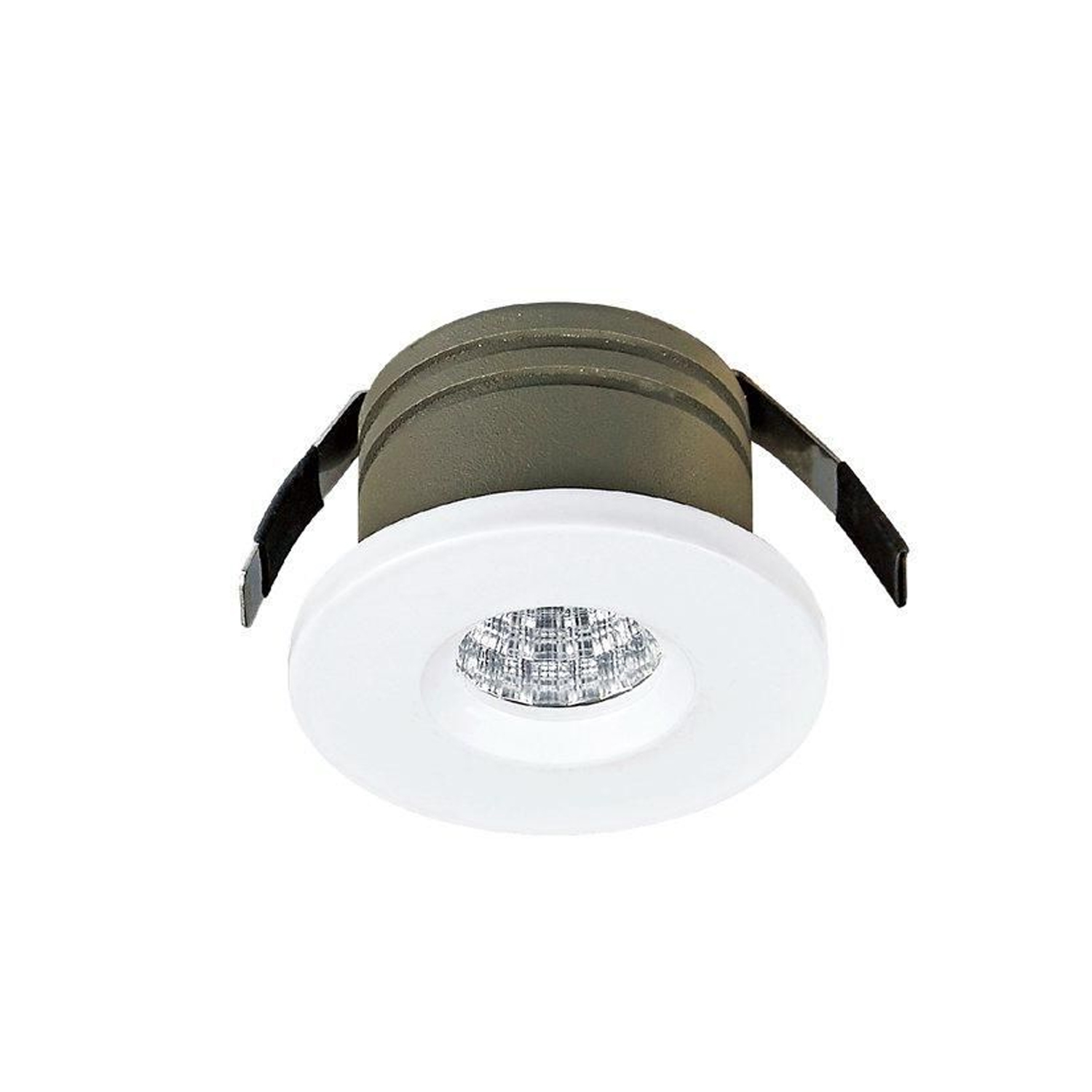

| LBE2137 | Wattage3W | CCT2700K/3000K/4000K/5000K/6000K/6500K | IPIP20 | Dimensions45xH28.5MM | Cut-out35MM |
Technical Data
Full Specification
| Dimensions | Ø52x27mm · Ø52x32mm · 52x52x24mm · Ø42x45mm +4 more |
|---|---|
| Cut-out | Ø45mm · Ø35mm · Ø40mm · Ø32mm +1 more |
| Power | 2.2W · 3W |
| Lumen output | 150LM |
| Efficacy | Not published — technical review required |
| Optics / beam angle | 10° · 15° · 20° · 24° +3 more |
| Colour temperature | 2200K · 2700K · 3000K · 4000K +7 more |
| CRI Ra | 90 · No CRI · 80 · ≥90 +2 more |
| R9 | Not published — technical review required |
| TM-30 Rf / Rg | Not published — technical review required |
| UGR | Not published — technical review required |
| IP rating | IP40 · IP20 |
| IK rating | Not published — technical review required |
| Ambient temperature (Ta) | Not published — technical review required |
| Driver | Not published — technical review required |
| Dimming / control | Not published — technical review required |
| Input voltage | 3VDC · 8VDC · 11VDC · 220-240VAC |
| Light source | Not published — technical review required |
| Material | Aluminium |
| Finish | white · black · silver · Painted In Black +9 more |
| Mounting / installation | Not published — technical review required |
| Net weight | Not published — technical review required |
| Certification | Not published — technical review required |
| Lifetime | Not published — technical review required |
| Warranty | Not published — technical review required |
| Lead time | Not published — technical review required |
11 of 26 specification rows published from the 2026 master data. Values vary by model; missing test data is not estimated. Select an exact model for approval.
Configuration
Select Specification
Select attributes to narrow down variants
Product Lines
9 Products
Dimensions
Technical Drawing
Drawing and sizes shown for model LB2040. This family has 9 models with different dimensions — select a model above, or open its row in the variant table, for its own drawing.
Size — model LB2040
Ø52x32mm
Cut-Out
Ø45mm
Specifications
At a Glance
2–3W
Power Range
6 options
Beam: 10°, 15°, 20°, 24°, 30°, 40°
8 CCT
2200K, 2700K, 3000K, 4000K, 5000K, 5600K, 6000K, 6500K
BLUE / GREEN / RED
Colour Options
CRI 80/90
Colour Rendering
IP20 / IP40
Protection Rating
9 finishes
Body Finish Options
8 sizes
45xH28.5MM, 52x52x24mm, Ø40x40mm, Ø42x36mm, Ø42x45mm, Ø45x40mm, Ø52x27mm, Ø52x32mm
5 cut-outs
35MM, Ø32mm, Ø35mm, Ø40mm, Ø45mm
Configure your product
LB2040
Order code
Listed configurationLB2040.W.927.WWH.40
61 listed configurations · availability requires confirmation
