INDUE is part of Lumi Indoor. Coordinate the selected article’s dimensions, installation details and configuration with the project specification; these details can vary between models in the same family.
Spot Light
INDUE
INDUE is a spot light family within the LUMIBRIGHT Lumi Indoor collection. Explore 16 models, including LB2050, LB2053, LB2054, with model-specific specifications and configuration choices. LB2050 specifications include power: 11W/15W; colour temperature: 4000K; IP rating: IP20; dimensions: 130x130x127mm. Compare the INDUE range by power, colour temperature, protection rating and dimensions using the technical table below. Open an individual model to explore its available finishes and optics, select a listed order code and prepare a specification sheet where configuration data is available. Keep the chosen model reference with your project schedule so the lighting and installation teams can coordinate the same selection. For additional drawings, photometry or project-specific requirements, contact the LUMIBRIGHT specification team with your model code.
Model specifications
| Article | Wattage | CCT | IP | Dimensions | Cut-out |
|---|---|---|---|---|---|

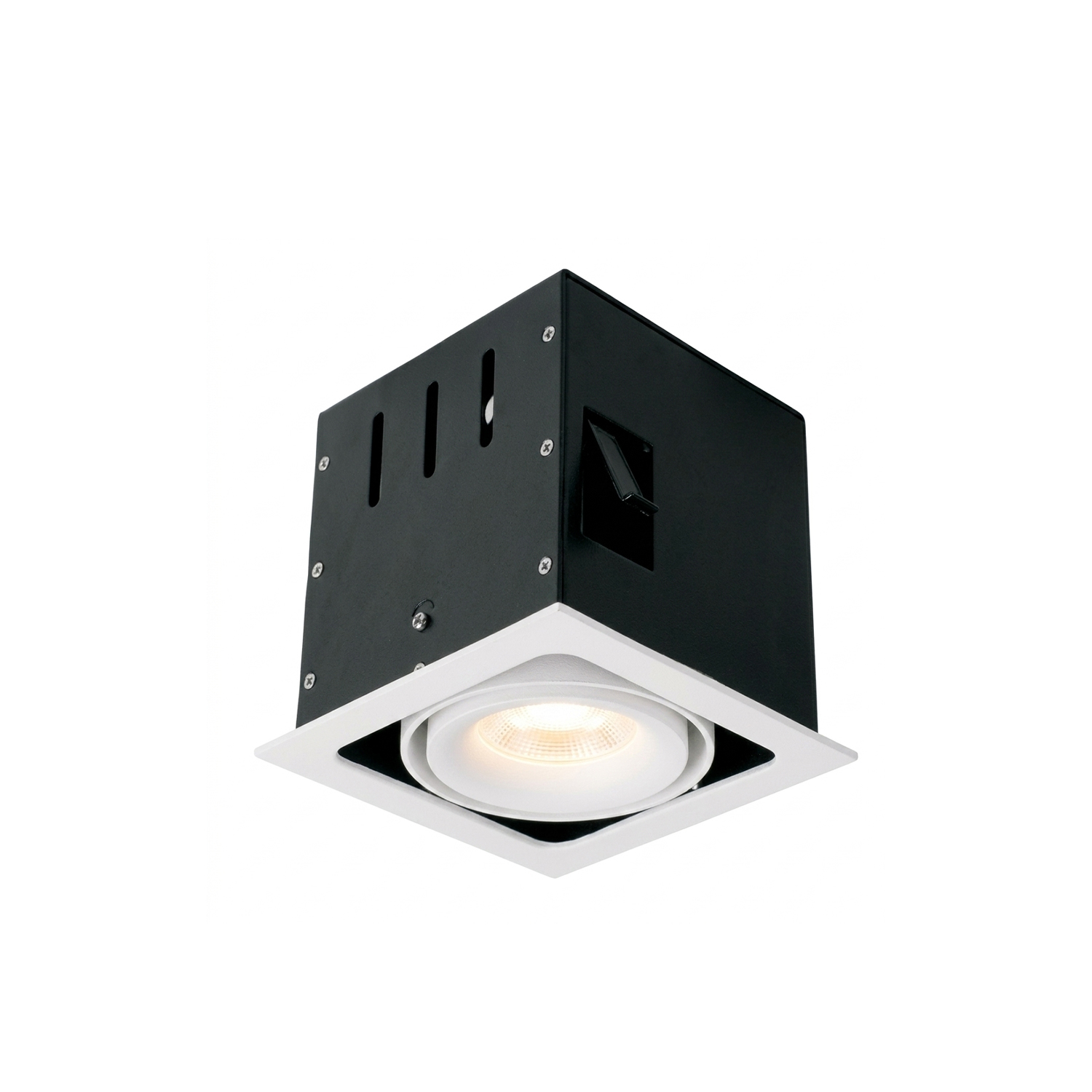

| LB2050 | Wattage11W/15W | CCT4000K | IPIP20 | Dimensions130x130x127mm | Cut-out120x120mm |

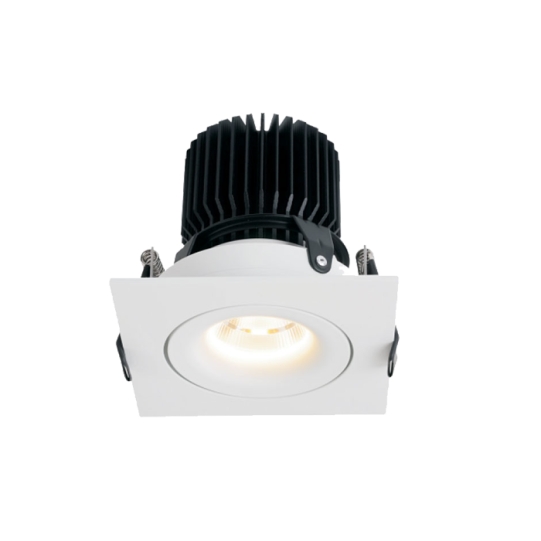

| LB2053 | Wattage15W | CCT2700K | IPIP20 | Dimensions110x110x111mm | Cut-outØ100mm |

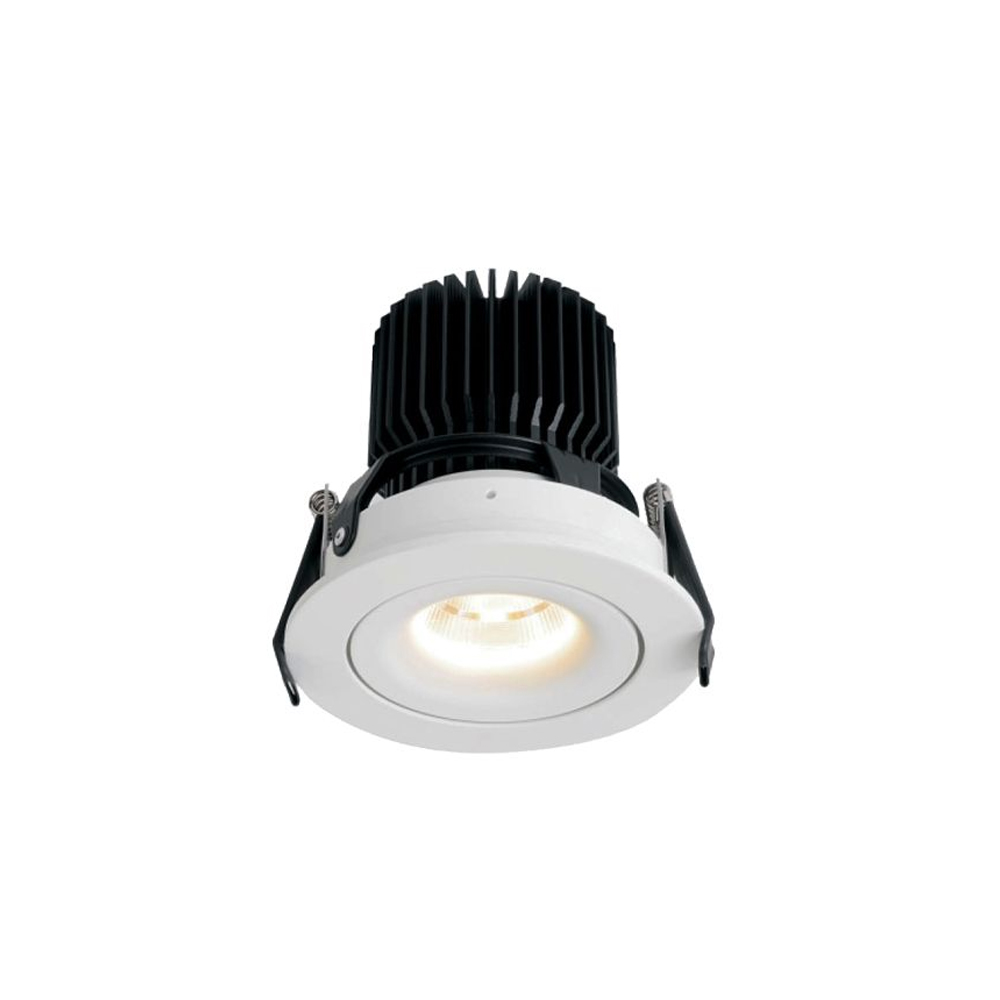

| LB2054 | WattageNot published | CCT4000K | IPIP20 | Dimensions110x110x111mm | Cut-outØ100mm |

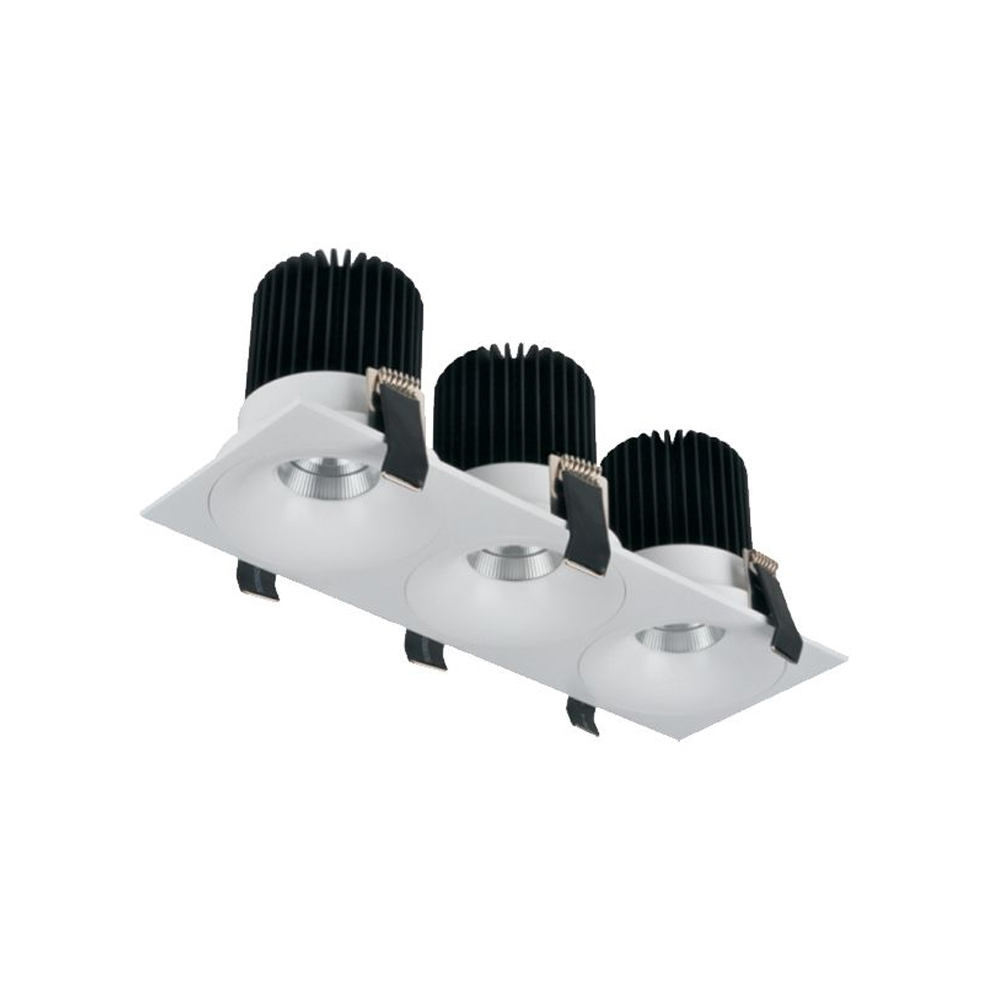

| LB2056 | WattageNot published | CCT3000K, 4000K, 5000K | IPIP40 | DimensionsNot published | Cut-out285x98mm |

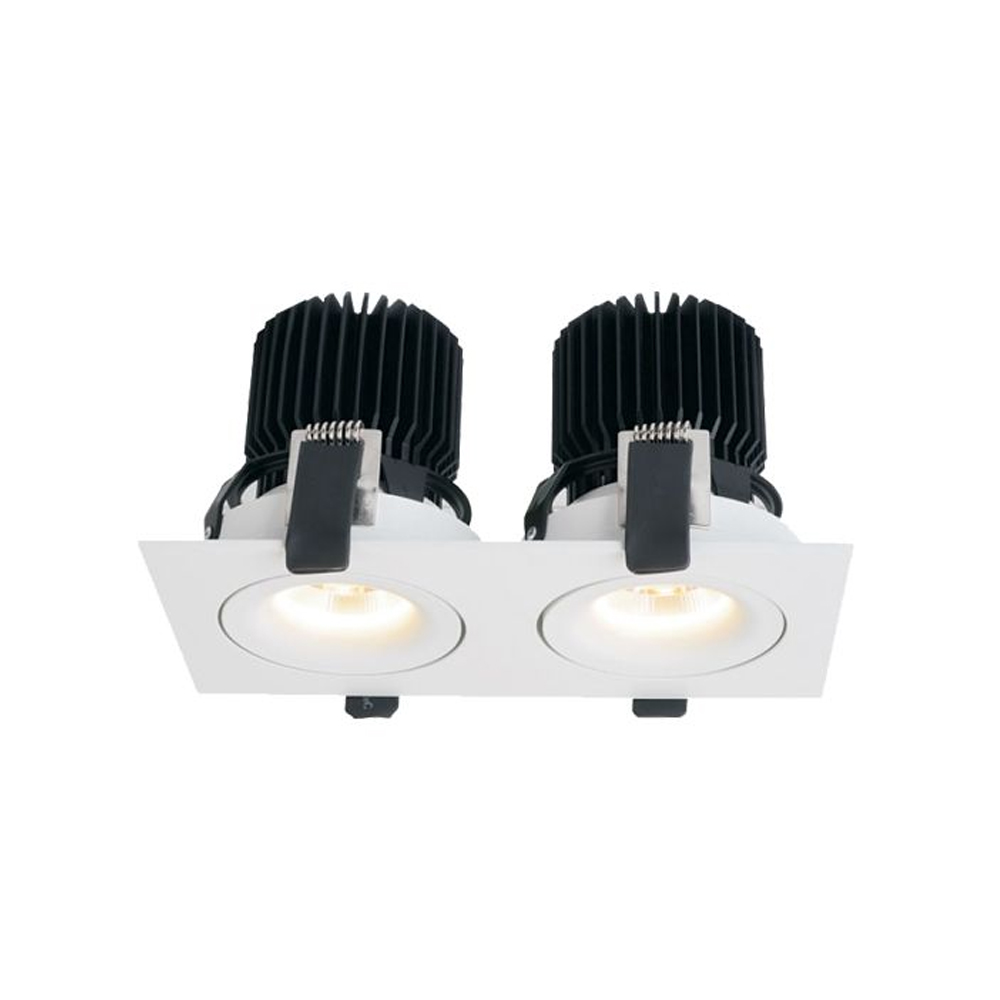

| LB2057 | WattageNot published | CCT5600K | IPIP20 | Dimensions210x110x111mm | Cut-out200x100mm |

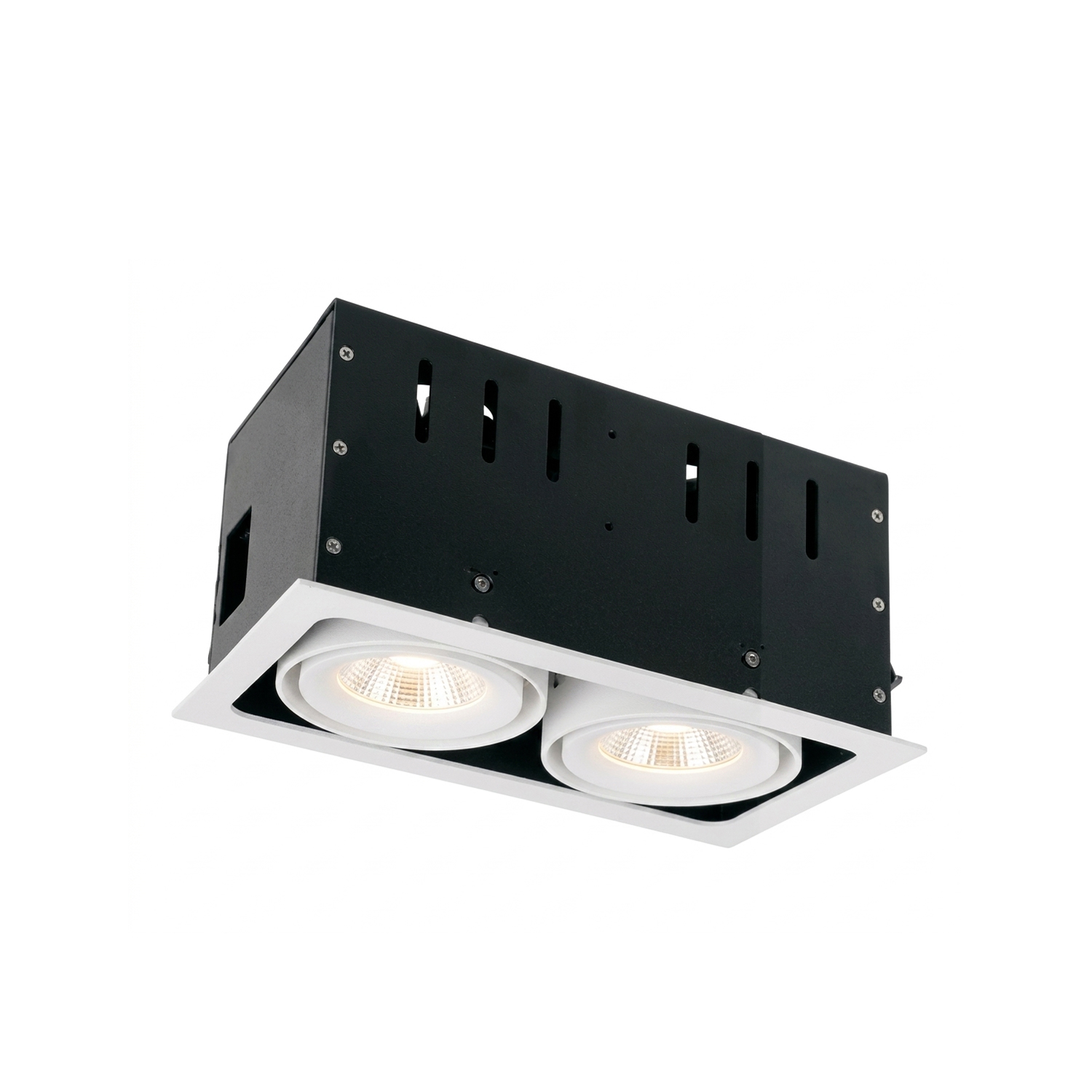

| LB2059 | Wattage2x11W/2x15W | CCT4000K | IPIP20 | Dimensions240x130x127mm | Cut-out225x120mm |

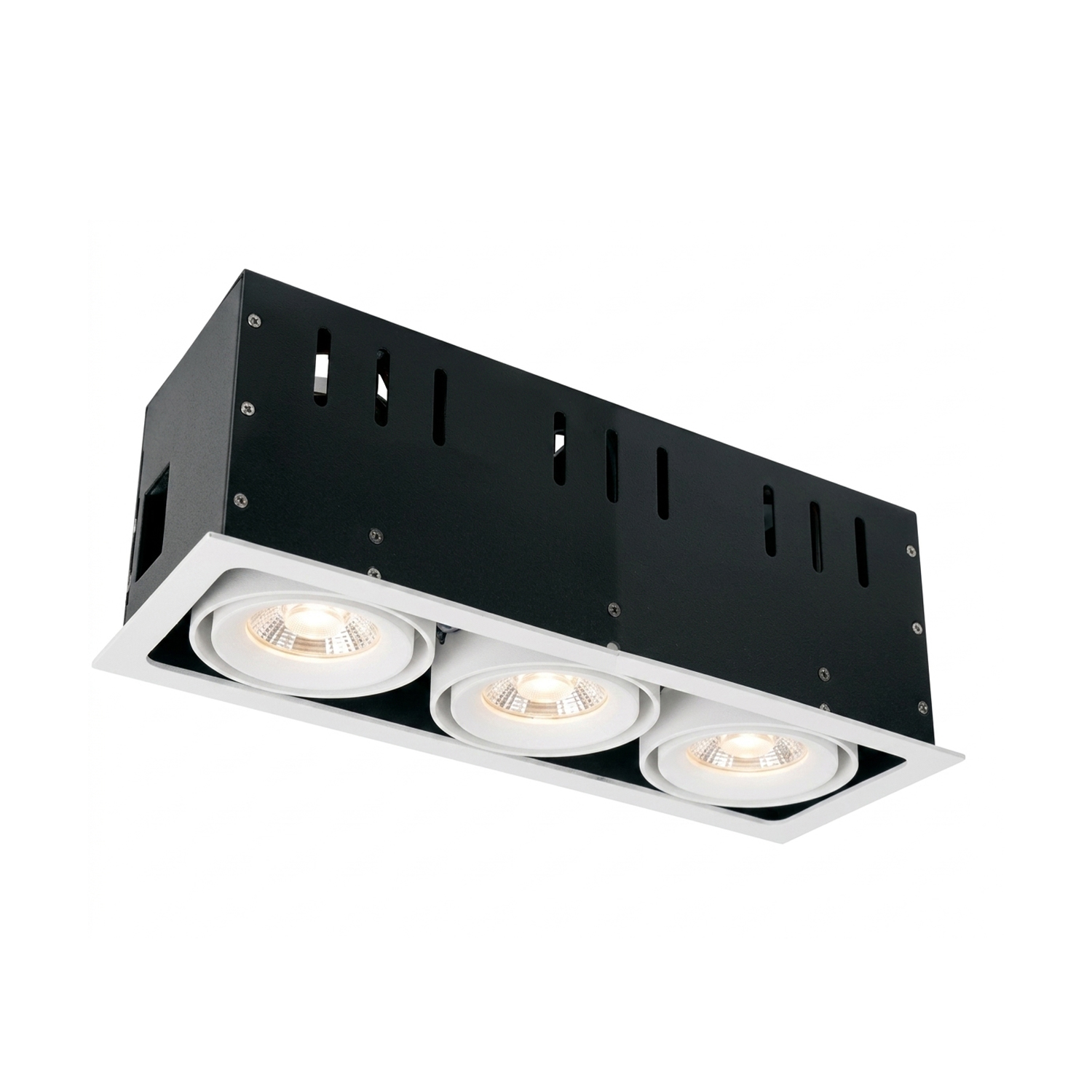

| LB2060 | WattageNot published | CCT3000K, 4000K, 5000K | IPIP20 | Dimensions345x130x76.5mm | Cut-out330x120mm |

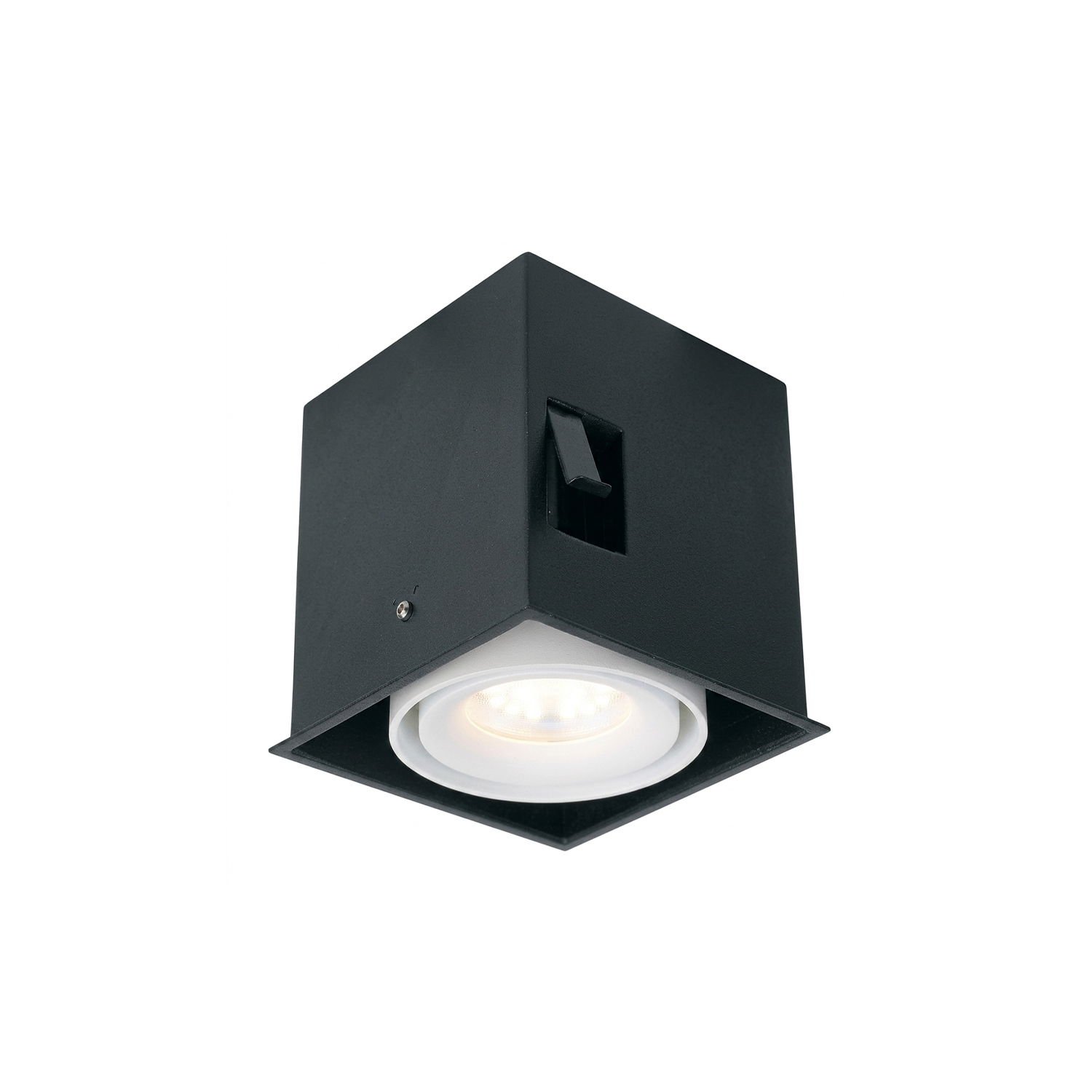

| LB2064 | Wattage11W/15W | CCT4000K | IPIP20 | Dimensions122x122x80mm | Cut-out115x115mm |

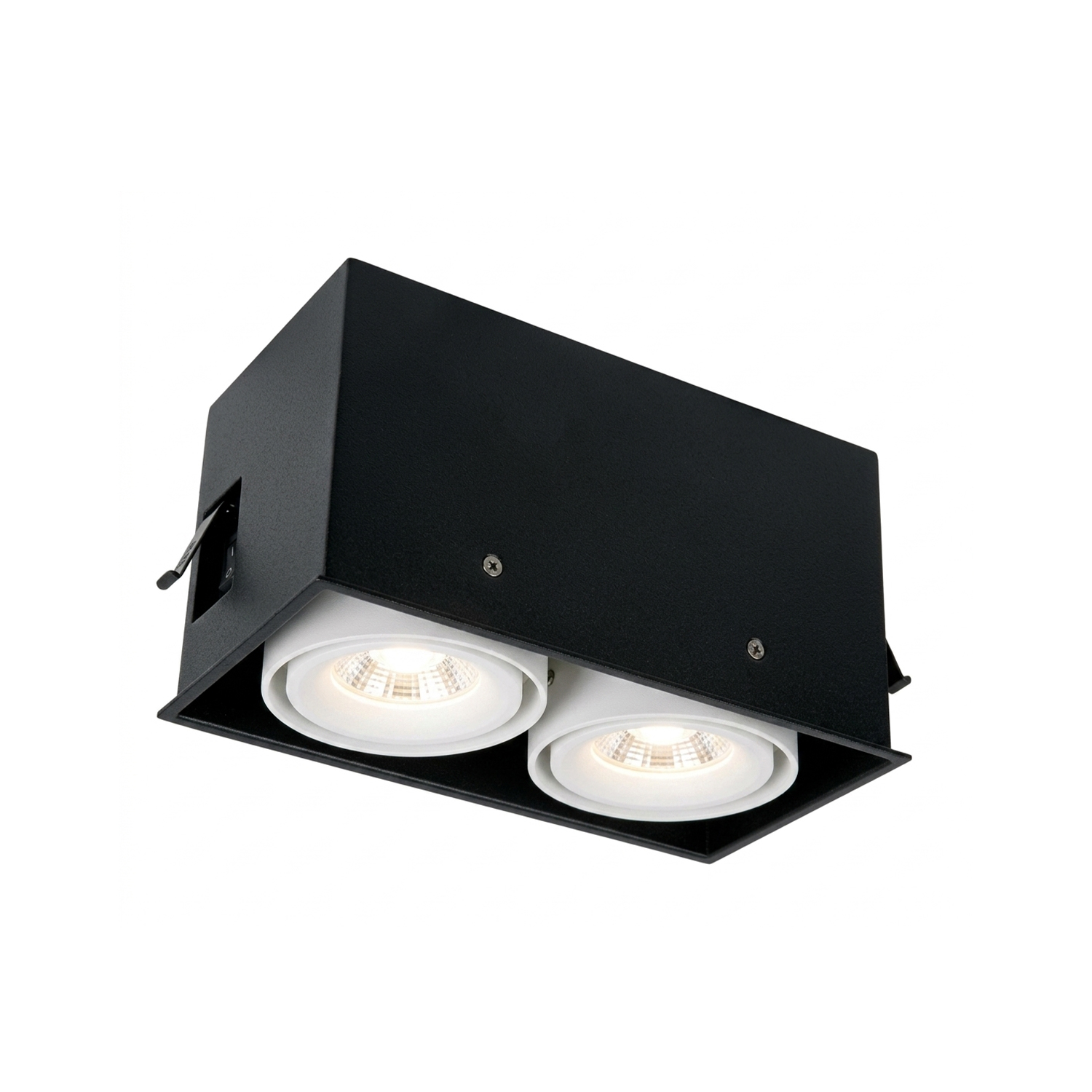

| LB2065 | Wattage2x11W/2x15W | CCT5000K | IPIP20 | Dimensions227x122x130mm | Cut-out220x115mm |

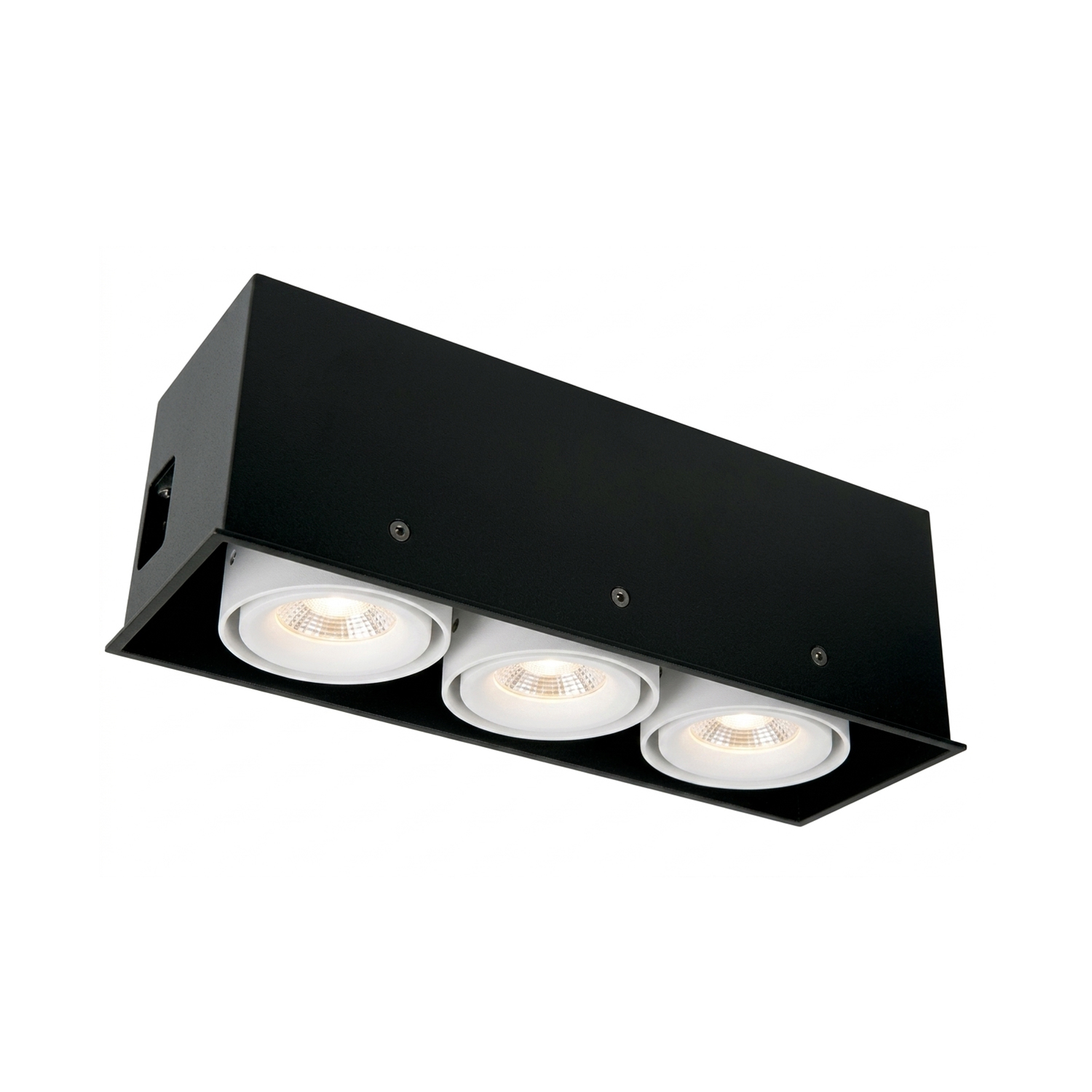

| LB2066 | Wattage3x11W/3x15W | CCT5600K | IPIP20 | Dimensions337x122x130mm | Cut-out330x115mm |
| LB2267 | WattageNot published | CCT2700K | IPIP40 | DimensionsNot published | Cut-outNot published |

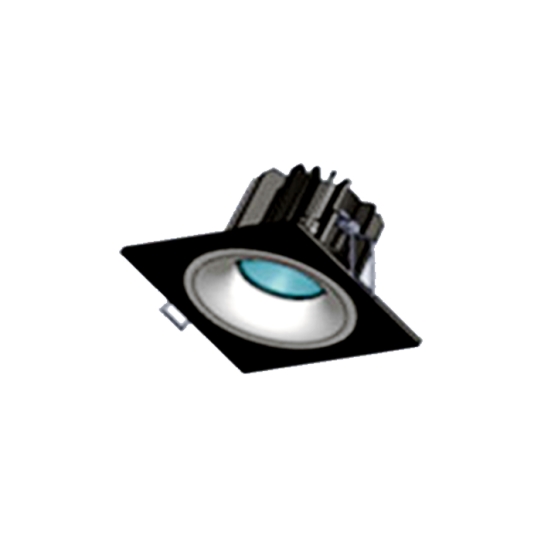

| LB2268 | WattageNot published | CCT2700K | IPIP54 | DimensionsNot published | Cut-outNot published |

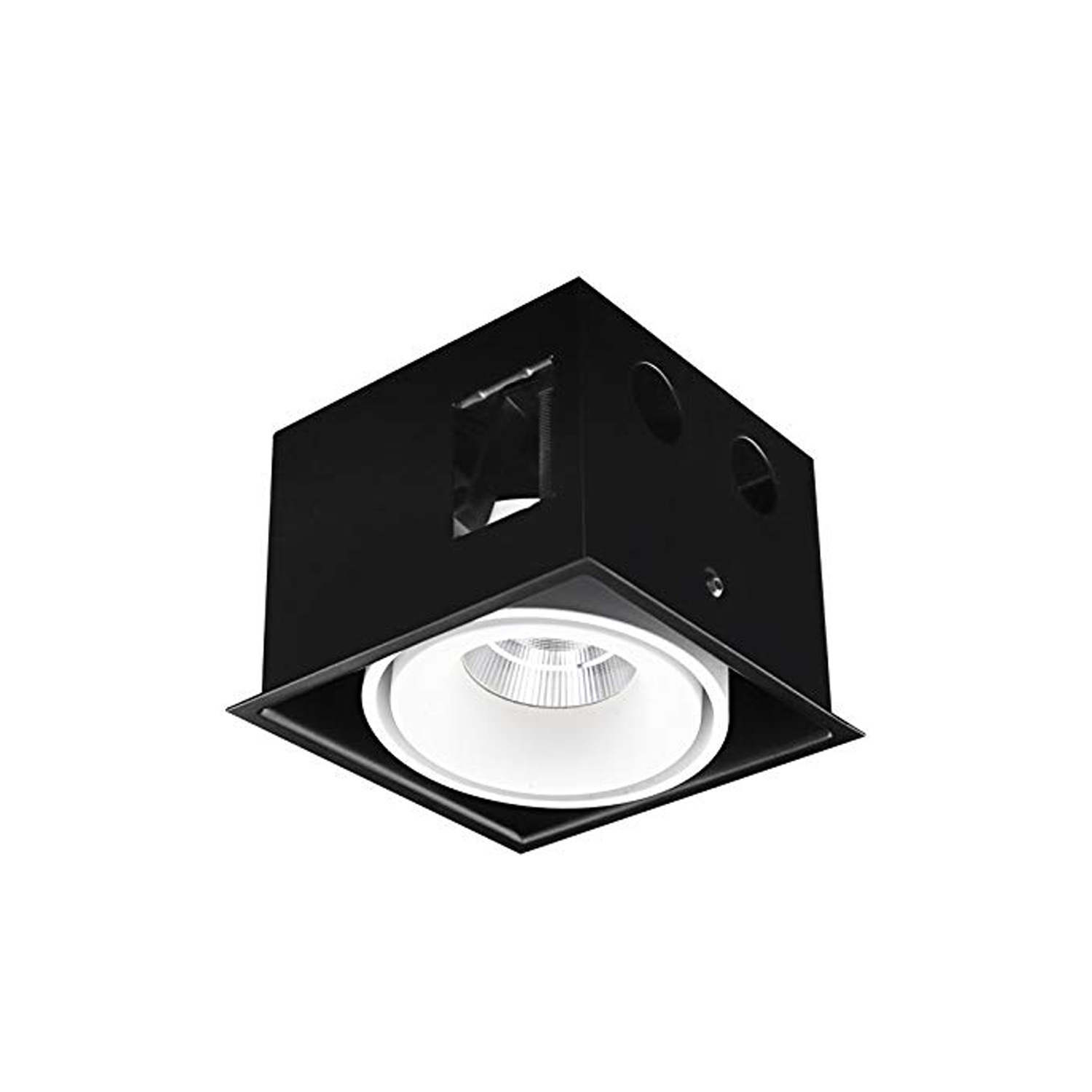

| LB2763 | Wattage15W | CCT3000K | IPIP20 | Dimensions108x108x80mm | Cut-out100x100mm |

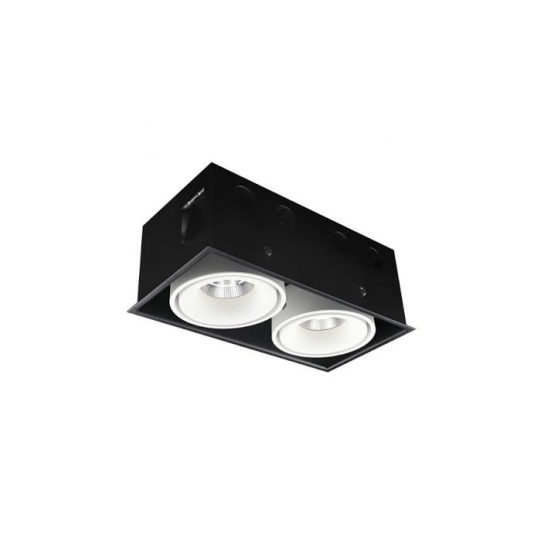

| LB2764 | Wattage2x15W | CCT4000K | IPIP20 | Dimensions210x108xH80mm | Cut-out205x100mm |

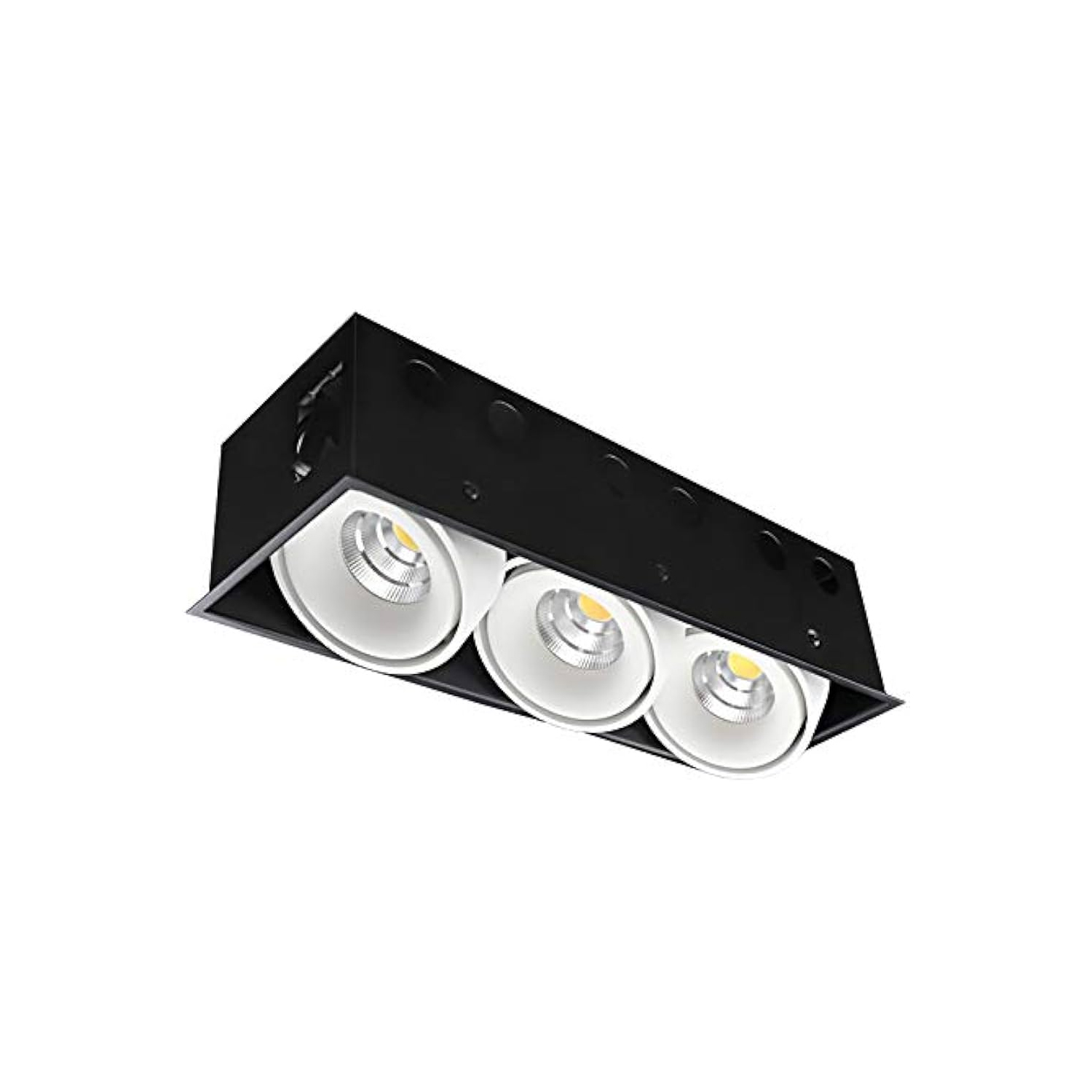

| LB2765 | Wattage3x15W | CCT3000K | IPIP20 | Dimensions310x108xH80mm | Cut-out305x100mm |

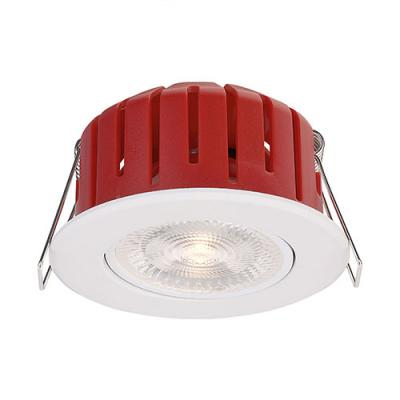

| LB2766 | Wattage5W | CCT3000K | IPIP20 | DimensionsØ80x42mm | Cut-outØ70mm |
Technical Data
Full Specification
| Dimensions | 130x130x127mm · 110x110x111mm · 210x110x111mm · 240x130x127mm +9 more |
|---|---|
| Cut-out | 120x120mm · Ø100mm · 285x98mm · 200x100mm +9 more |
| Power | 11W · 15W |
| Lumen output | Not published — technical review required |
| Efficacy | Not published — technical review required |
| Optics / beam angle | 24° · 32° · 50° · 40° +1 more |
| Colour temperature | 2700K · 3000K · 4000K · 5000K +4 more |
| CRI Ra | 80 · 90 · ≥80 |
| R9 | Not published — technical review required |
| TM-30 Rf / Rg | Not published — technical review required |
| UGR | Not published — technical review required |
| IP rating | IP20 · IP40 · IP54 |
| IK rating | Not published — technical review required |
| Ambient temperature (Ta) | Not published — technical review required |
| Driver | Not published — technical review required |
| Dimming / control | Not published — technical review required |
| Input voltage | constant-current · 75VDC · 8VDC · 5VDC +2 more |
| Light source | Not published — technical review required |
| Material | Not published — technical review required |
| Finish | white · black · black+white · black-sand +5 more |
| Mounting / installation | Not published — technical review required |
| Net weight | Not published — technical review required |
| Certification | Not published — technical review required |
| Lifetime | Not published — technical review required |
| Warranty | Not published — technical review required |
| Lead time | Not published — technical review required |
9 of 26 specification rows published from the 2026 master data. Values vary by model; missing test data is not estimated. Select an exact model for approval.
Configuration
Select Specification
Select attributes to narrow down variants
Product Lines
16 Products
Dimensions
Technical Drawing
Drawing and sizes shown for model LB2066. This family has 16 models with different dimensions — select a model above, or open its row in the variant table, for its own drawing.
Size — model LB2066
337x122x130mm
Cut-Out
330x115mm
Specifications
At a Glance
5–30W
Power Range
5 options
Beam: 24°, 32°, 38°, 40°, 50°
8 CCT
2700K, 3000K, 3500K, 4000K, 5000K, 5600K, 6000K, 6500K
CRI 80/90
Colour Rendering
IP20 / IP40 / IP54
Protection Rating
7 finishes
Body Finish Options
12 sizes
108x108x80mm, 110x110x111mm, 122x122x80mm, 130x130x127mm, 210x108xH80mm, 210x110x111mm, 227x122x130mm, 240x130x127mm, 310x108xH80mm, 337x122x130mm, 345x130x76.5mm, Ø80x42mm
13 cut-outs
100x100mm, 115x115mm, 120x120mm, 200x100mm, 205x100mm, 220x115mm, 225x120mm, 285x98mm, 305x100mm, 330x115mm, 330x120mm, Ø100mm, Ø70mm
Configure your product
LB2066
Order code
Listed configurationLB2066.C.856.WWH.32
30 listed configurations · availability requires confirmation
