Lumi Indoor
INLINE
Application inspiration · not a project reference
INLINE is part of Lumi Indoor. Coordinate the selected article’s dimensions, installation details and configuration with the project specification; these details can vary between models in the same family.
Spot Light
INLINE
INLINE is a spot light family within the LUMIBRIGHT Lumi Indoor collection. Explore 3 models, including LBE2160, LBE2184, LBE2191, with model-specific specifications and configuration choices. LBE2160 specifications include power: 12W; colour temperature: 3000K; IP rating: IP20; dimensions: ∅83x80mm. Compare the INLINE range by power, colour temperature, protection rating and dimensions using the technical table below. Open an individual model to explore its available finishes and optics, select a listed order code and prepare a specification sheet where configuration data is available. Keep the chosen model reference with your project schedule so the lighting and installation teams can coordinate the same selection. For additional drawings, photometry or project-specific requirements, contact the LUMIBRIGHT specification team with your model code.
Model specifications
| Article | Wattage | CCT | IP | Dimensions | Cut-out |
|---|---|---|---|---|---|

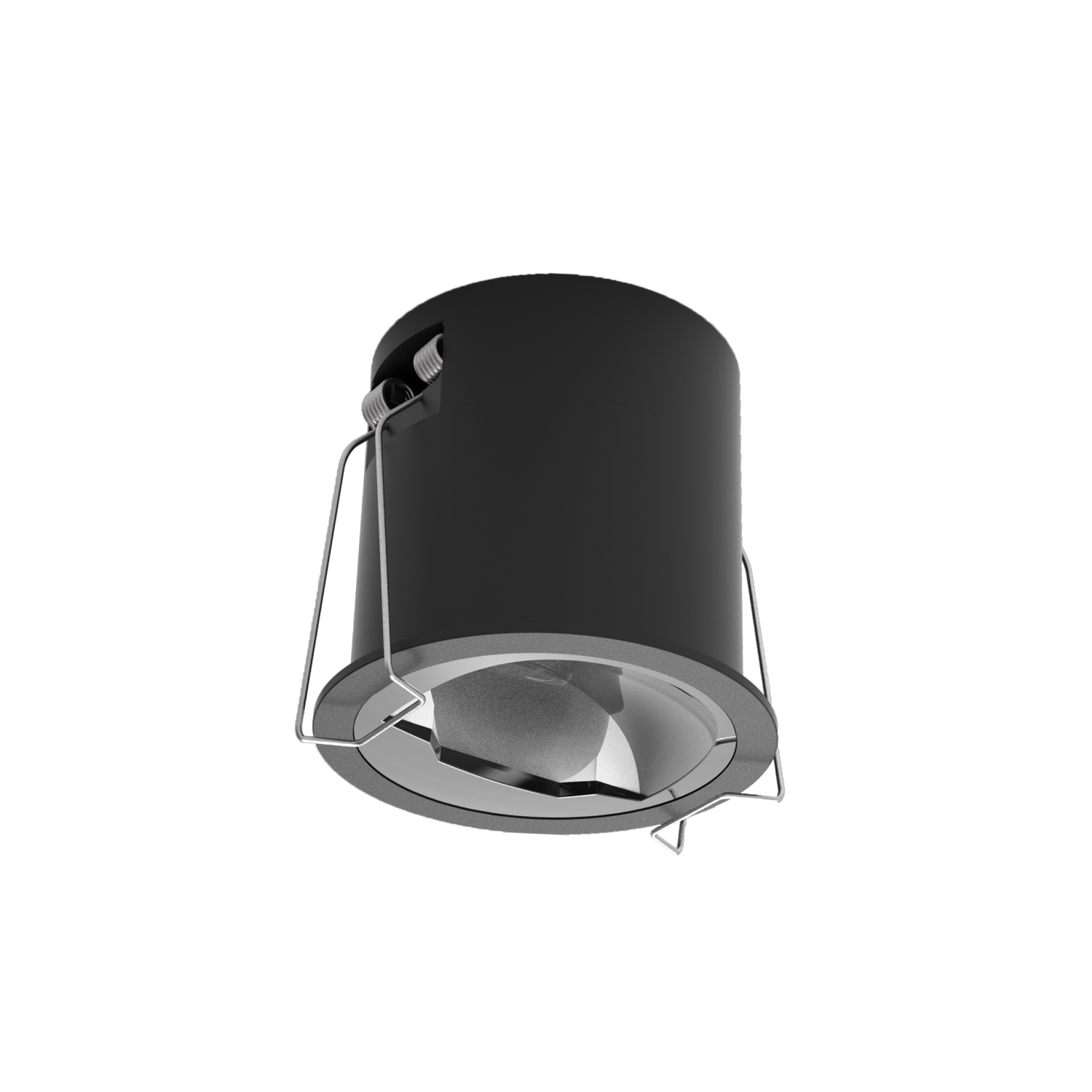

| LBE2160 | Wattage12W | CCT3000K | IPIP20 | Dimensions∅83x80mm | Cut-outΦ75mm |
| LBE2184 | Wattage12W | CCT3000K/4000K/6000K | IPIP20 | Dimensionsφ60x55.5 | Cut-outφ55mm |
| LBE2191 | Wattage10W | CCT6000K | IPIP20 | DimensionsØ95x65mm | Cut-outØ60mm |
Technical Data
Full Specification
| Dimensions | Ø95x65mm · ∅83x80mm · φ60x55.5 |
|---|---|
| Cut-out | Ø60mm · Φ75mm · φ55mm |
| Power | 10W · 12W |
| Lumen output | 1016lm |
| Efficacy | Not published — technical review required |
| Optics / beam angle | 24° · Wall Washer |
| Colour temperature | 3000K · 4000K · 5000K · 6000K |
| CRI Ra | 90 · 80 |
| R9 | Not published — technical review required |
| TM-30 Rf / Rg | Not published — technical review required |
| UGR | Not published — technical review required |
| IP rating | IP20 |
| IK rating | Not published — technical review required |
| Ambient temperature (Ta) | Not published — technical review required |
| Driver | Not published — technical review required |
| Dimming / control | Not published — technical review required |
| Input voltage | 220-240VAC |
| Light source | Not published — technical review required |
| Material | Aluminium |
| Finish | black+mirror-black · White · black+chrome · white+chrome +6 more |
| Mounting / installation | Not published — technical review required |
| Net weight | Not published — technical review required |
| Certification | Not published — technical review required |
| Lifetime | Not published — technical review required |
| Warranty | Not published — technical review required |
| Lead time | Not published — technical review required |
11 of 26 specification rows published from the 2026 master data. Values vary by model; missing test data is not estimated. Select an exact model for approval.
Configuration
Select Specification
Select attributes to narrow down variants
Dimensions
Technical Drawing
Drawing and sizes shown for model LBE2191. This family has 3 models with different dimensions — select a model above, or open its row in the variant table, for its own drawing.
Size — model LBE2191
Ø95x65mm
Cut-Out
Ø60mm
Specifications
At a Glance
10–12W
Power Range
1 options
Beam: 24°
3 CCT
3000K, 4000K, 6000K
CRI 80/90
Colour Rendering
IP20
Protection Rating
7 finishes
Body Finish Options
3 sizes
Ø95x65mm, φ60x55.5, ∅83x80mm
3 cut-outs
Ø60mm, Φ75mm, φ55mm
Configure your product
LBE2191
Order code
Listed configurationLBE2191.W.930.WBK+MBK.W.DR
5 listed configurations · availability requires confirmation
