Lumi Indoor
IRIS
Application inspiration · not a project reference
IRIS is part of Lumi Indoor. Coordinate the selected article’s dimensions, installation details and configuration with the project specification; these details can vary between models in the same family.
Task Light
IRIS
IRIS is a task light family within the LUMIBRIGHT Lumi Indoor collection. Explore 9 models, including L01241, L01242, L01243, with model-specific specifications and configuration choices. L01241 specifications include power: 8W; colour temperature: 2700K/3000K/4000K/6000K/6500K; IP rating: IP20; dimensions: Φ35x77mm. Compare the IRIS range by power, colour temperature, protection rating and dimensions using the technical table below. Open an individual model to explore its available finishes and optics, select a listed order code and prepare a specification sheet where configuration data is available. Keep the chosen model reference with your project schedule so the lighting and installation teams can coordinate the same selection. For additional drawings, photometry or project-specific requirements, contact the LUMIBRIGHT specification team with your model code.
Model specifications
| Article | Wattage | CCT | IP | Dimensions | Cut-out |
|---|---|---|---|---|---|
| L01241 | Wattage8W | CCT2700K/3000K/4000K/6000K/6500K | IPIP20 | DimensionsΦ35x77mm | Cut-outØ31mm |
| L01242 | Wattage10W | CCT2700K/3000K/4000K/6000K/6500K | IPIP20 | DimensionsØ52x73mm | Cut-outNot published |
| L01243 | Wattage10W | CCT2700K/3000K/4000K/6000K/6500K | IPIP20 | DimensionsØ52x80mm | Cut-outNot published |

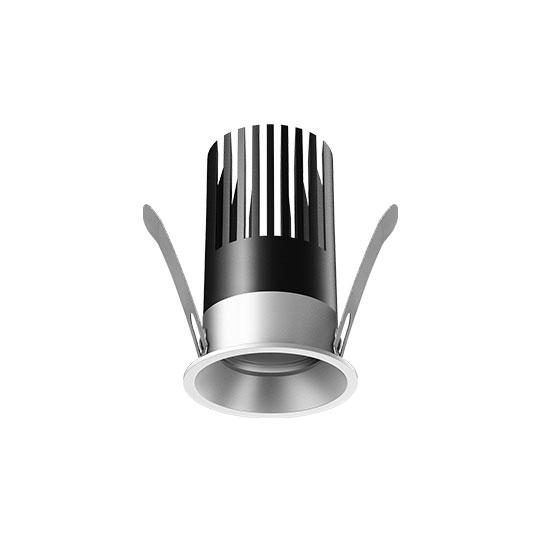

| L01244 | Wattage15W | CCT2700K/3000K/4000K/6000K/6500K | IPIP20 | DimensionsØ62x90mm | Cut-outNot published |
| L01245 | Wattage15W | CCT2700K/3000K/4000K/6000K/6500K | IPIP20 | DimensionsØ62x100mm | Cut-outNot published |
| LB5223 | WattageNot published | CCT4000K | IPIP20 | DimensionsNot published | Cut-outNot published |
| LBE5200 | Wattage1W | CCT3000K | IPIP20 | DimensionsØ35.8xH32mm | Cut-outØ33mm |

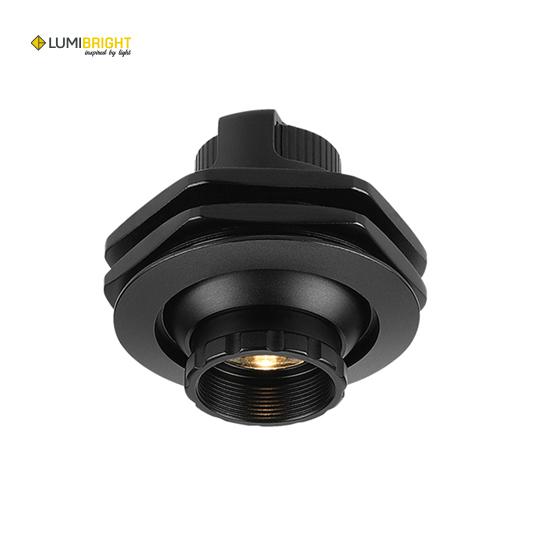

| LBP5204 | WattageNot published | CCT3000K | IPIP20 | DimensionsØ27x46mm | Cut-outNot published |
| LBP5205 | Wattage2W | CCT5000K | IPIP20 | DimensionsØ40x34mm | Cut-outØ35mm |
Technical Data
Full Specification
| Dimensions | Φ35x77mm · Ø52x73mm · Ø52x80mm · Ø62x90mm +4 more |
|---|---|
| Cut-out | Ø31mm · Ø33mm · Ø45mm · Ø35mm |
| Power | 1W · 8W · 10W · 15W |
| Lumen output | Not published — technical review required |
| Efficacy | Not published — technical review required |
| Optics / beam angle | 15° · 30° · 24° · 36° +2 more |
| Colour temperature | 2700K · 3000K · 4000K · 5000K +2 more |
| CRI Ra | 90 · CRI 80 · ≥90 |
| R9 | Not published — technical review required |
| TM-30 Rf / Rg | Not published — technical review required |
| UGR | Not published — technical review required |
| IP rating | IP20 |
| IK rating | Not published — technical review required |
| Ambient temperature (Ta) | Not published — technical review required |
| Driver | Not published — technical review required |
| Dimming / control | Not published — technical review required |
| Input voltage | 220-240VAC · 24VDC |
| Light source | Not published — technical review required |
| Material | Aluminium |
| Finish | anodized-in-black-sand · White · anodized-in-Aluminium · white-sand +5 more |
| Mounting / installation | Not published — technical review required |
| Net weight | Not published — technical review required |
| Certification | Not published — technical review required |
| Lifetime | Not published — technical review required |
| Warranty | Not published — technical review required |
| Lead time | Not published — technical review required |
10 of 26 specification rows published from the 2026 master data. Values vary by model; missing test data is not estimated. Select an exact model for approval.
Configuration
Select Specification
Select attributes to narrow down variants
Product Lines
9 Products
Dimensions
Technical Drawing
Drawing and sizes shown for model LBP5205. This family has 9 models with different dimensions — select a model above, or open its row in the variant table, for its own drawing.
Size — model LBP5205
Ø40x34mm
Cut-Out
Ø35mm
Specifications
At a Glance
1–15W
Power Range
4 options
Beam: 1°, 15°, 24°, 30°
6 CCT
2700K, 3000K, 4000K, 5000K, 6000K, 6500K
CRI 90
Colour Rendering
IP20
Protection Rating
7 finishes
Body Finish Options
8 sizes
Ø27x46mm, Ø35.8xH32mm, Ø40x34mm, Ø52x73mm, Ø52x80mm, Ø62x100mm, Ø62x90mm, Φ35x77mm
4 cut-outs
Ø31mm, Ø33mm, Ø35mm, Ø45mm
Configure your product
LB5223
Order code
Listed configurationLB5223.W.830.ABS.15
12 listed configurations · availability requires confirmation
