Lumi Indoor
JUAL
Application inspiration · not a project reference
JUAL is part of Lumi Indoor. Coordinate the selected article’s dimensions, installation details and configuration with the project specification; these details can vary between models in the same family.
Spot Light
JUAL

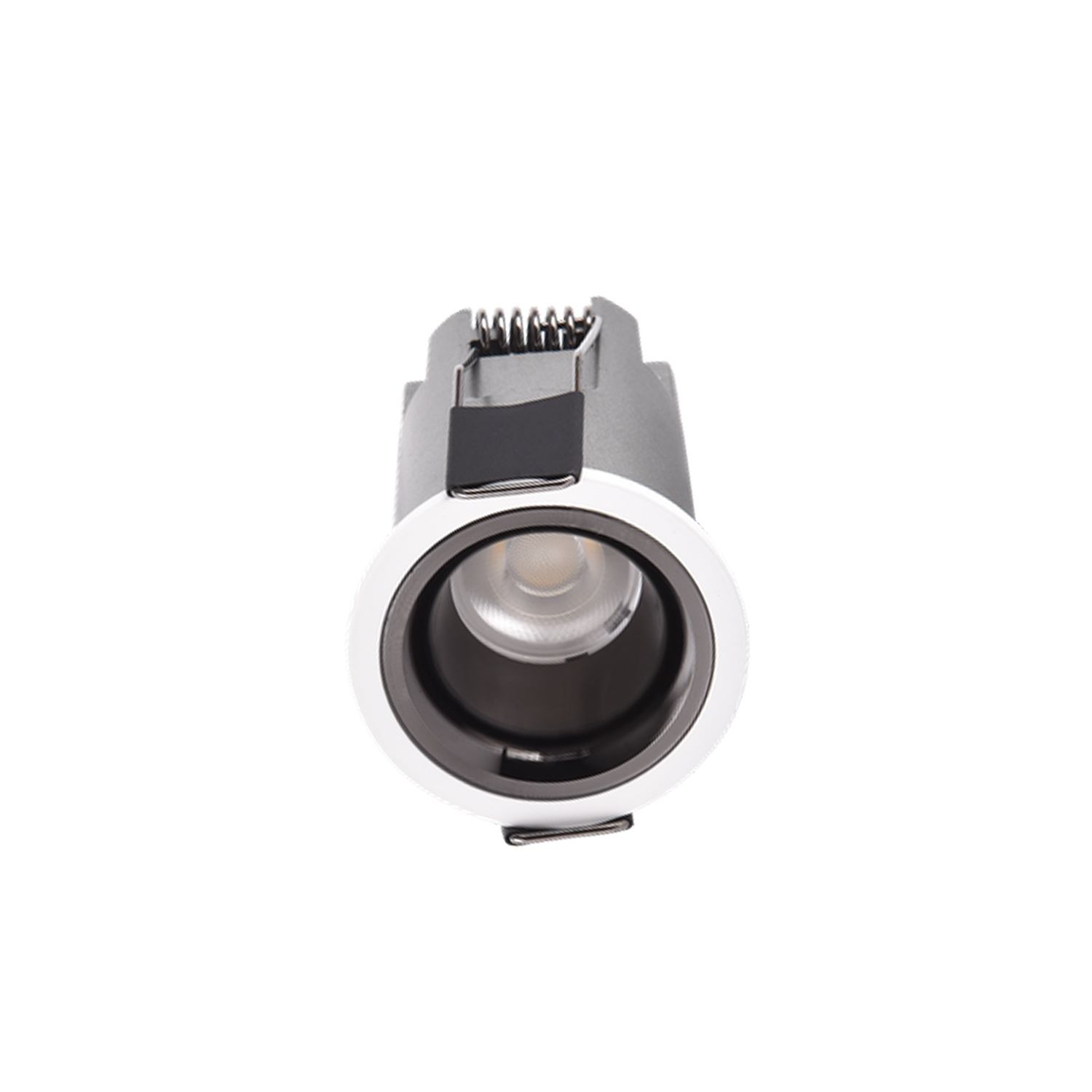

JUAL is a spot light family within the LUMIBRIGHT Lumi Indoor collection. Explore 2 models, including LBE2135, LBE2136, with model-specific specifications and configuration choices. LBE2135 specifications include power: 5W; colour temperature: 2700K/3000K/4000K/5000K/6000K/6500K; IP rating: IP20; dimensions: φ42XH55mm. Compare the JUAL range by power, colour temperature, protection rating and dimensions using the technical table below. Open an individual model to explore its available finishes and optics, select a listed order code and prepare a specification sheet where configuration data is available. Keep the chosen model reference with your project schedule so the lighting and installation teams can coordinate the same selection. For additional drawings, photometry or project-specific requirements, contact the LUMIBRIGHT specification team with your model code.
Model specifications
| Article | Wattage | CCT | IP | Dimensions | Cut-out |
|---|---|---|---|---|---|
| LBE2135 | Wattage5W | CCT2700K/3000K/4000K/5000K/6000K/6500K | IPIP20 | Dimensionsφ42XH55mm | Cut-out35MM |
| LBE2136 | Wattage10W | CCT2700K/3000K/4000K/5000K/6000K/6500K | IPIP20 | DimensionsØ50xH70mm | Cut-out40MM |
Product View
Configuration
Select Specification
Select attributes to narrow down variants
All Variants (14)
| Code | Power | CCT | Beam | CRI | Finish | Size | |
|---|---|---|---|---|---|---|---|
| LBE2135 | 5W | 2700K, 3000K, 4000K, 5000K, 6000K, 6500K | 24° | 80 | White | φ42XH55mm | |
| LBE2135 | 5W | 2700K, 3000K, 4000K, 5000K, 6000K, 6500K | 24° | 80 | white | φ42XH55mm | |
| LBE2135 | 5W | 2700K, 3000K, 4000K, 5000K, 6000K, 6500K | 24° | 80 | white | φ42XH55mm | |
| LBE2135 | 5W | 2700K, 3000K, 4000K, 5000K, 6000K, 6500K | 24° | 80 | white | φ42XH55mm | |
| LBE2135 | 5W | 2700K, 3000K, 4000K, 5000K, 6000K, 6500K | 24° | 80 | white | φ42XH55mm | |
| LBE2135 | 5W | 2700K, 3000K, 4000K, 5000K, 6000K, 6500K | 24° | 80 | white | φ42XH55mm | |
| LBE2135 | 5W | 2700K, 3000K, 4000K, 5000K, 6000K, 6500K | 24° | 80 | white+mirror-black | φ42XH55mm | |
| LBE2135 | 5W | 2700K, 3000K, 4000K, 5000K, 6000K, 6500K | 24° | 80 | white | φ42XH55mm | |
| LBE2135 | 5W | 2700K, 3000K, 4000K, 5000K, 6000K, 6500K | 24° | 80 | white+mirror-black | φ42XH55mm | |
| LBE2135 | 5W | 2700K, 3000K, 4000K, 5000K, 6000K, 6500K | 24° | 80 | white | φ42XH55mm | |
| LBE2135 | 5W | 2700K, 3000K, 4000K, 5000K, 6000K, 6500K | 24° | 80 | white | φ42XH55mm | |
| LBE2135 | 5W | 2700K, 3000K, 4000K, 5000K, 6000K, 6500K | 24° | 80 | white | φ42XH55mm | |
| LBE2135 | 5W | 2700K, 3000K, 4000K, 5000K, 6000K, 6500K | 24° | 80 | white+mirror-black | φ42XH55mm | |
| LBE2135 | 5W | 2700K, 3000K, 4000K, 5000K, 6000K, 6500K | 24° | 80 | White | φ42XH55mm |
Dimensions
Technical Drawing
Drawing and sizes shown for model LBE2135.
Size — model LBE2135
φ42XH55mm
Cut-Out
35MM
Technical Data
Full Specification
| Dimensions | φ42XH55mm |
|---|---|
| Cut-out | 35MM |
| Power | 5W |
| Lumen output | 350lm |
| Efficacy | Not published — technical review required |
| Optics / beam angle | 24° |
| Colour temperature | 2700K · 3000K · 4000K · 5000K +2 more |
| CRI Ra | 80 · 90 |
| R9 | Not published — technical review required |
| TM-30 Rf / Rg | Not published — technical review required |
| UGR | Not published — technical review required |
| IP rating | IP20 |
| IK rating | Not published — technical review required |
| Ambient temperature (Ta) | Not published — technical review required |
| Driver | Not published — technical review required |
| Dimming / control | Not published — technical review required |
| Input voltage | 100-380VAC |
| Light source | Not published — technical review required |
| Material | Aluminium |
| Finish | white+mirror-black · White · White+Mirror Black |
| Mounting / installation | Not published — technical review required |
| Net weight | Not published — technical review required |
| Certification | Not published — technical review required |
| Lifetime | Not published — technical review required |
| Warranty | Not published — technical review required |
| Lead time | Not published — technical review required |
11 of 26 specification rows published from the 2026 master data. Values vary by model; missing test data is not estimated. Select an exact model for approval.
Specifications
At a Glance
5W
Power
24°
Beam Angle
6 CCT
2700K, 3000K, 4000K, 5000K, 6000K, 6500K
CRI 80
Colour Rendering
IP20
Protection Rating
3 finishes
Body Finish
φ42XH55mm
Dimensions
35MM
Cut-Out
Configure your product
LBE2135
Order code
Listed configurationLBE2135.C.965.WWH+MBK.24.DR
12 listed configurations · availability requires confirmation
