KAEL is part of Lumi Indoor. Coordinate the selected article’s dimensions, installation details and configuration with the project specification; these details can vary between models in the same family.
Lighting Accessory
KAEL
KAEL is a down light family within the LUMIBRIGHT Lumi Indoor collection. Explore 6 models, including LB3079, LB3082, LB3129, with model-specific specifications and configuration choices. LB3079 specifications include power: 15W; colour temperature: 6000K; IP rating: IP65; dimensions: Ø160x60mm. Compare the KAEL range by power, colour temperature, protection rating and dimensions using the technical table below. Open an individual model to explore its available finishes and optics, select a listed order code and prepare a specification sheet where configuration data is available. Keep the chosen model reference with your project schedule so the lighting and installation teams can coordinate the same selection. For additional drawings, photometry or project-specific requirements, contact the LUMIBRIGHT specification team with your model code.
Model specifications
| Article | Wattage | CCT | IP | Dimensions | Cut-out |
|---|---|---|---|---|---|
| LB3079 | Wattage15W | CCT6000K | IPIP65 | DimensionsØ160x60mm | Cut-outØ155mm |

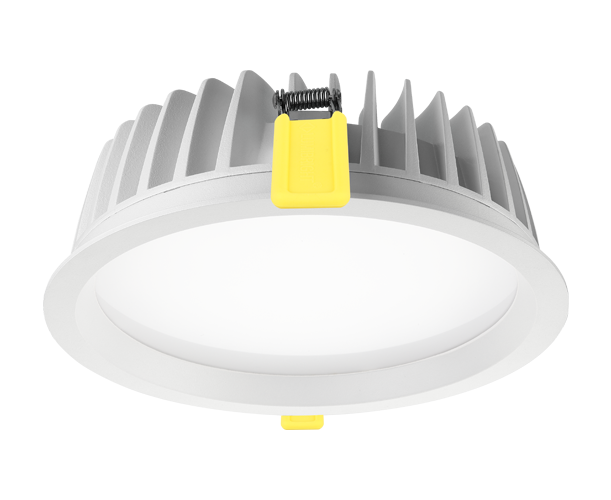

| LB3082 | Wattage30W | CCT6000K | IPIP65 | DimensionsØ220x66mm | Cut-outØ205mm |

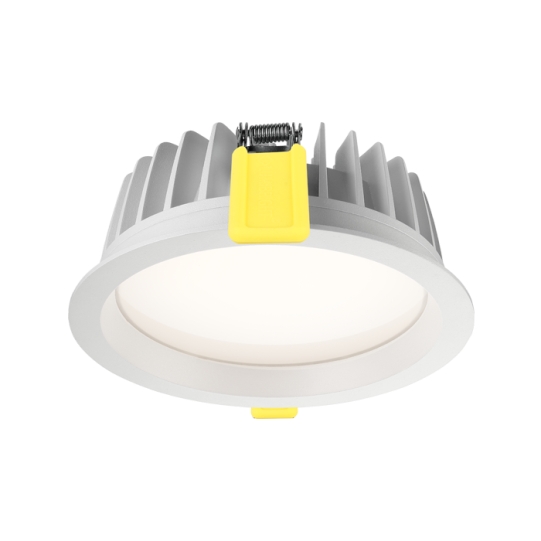

| LB3129 | Wattage20W | CCT6000K | IPIP65 | DimensionsØ160x60mm | Cut-outØ150mm |
| LB3156 | Wattage15W | CCT3000K | IPIP65 | DimensionsØ115x60mm | Cut-outØ100mm |

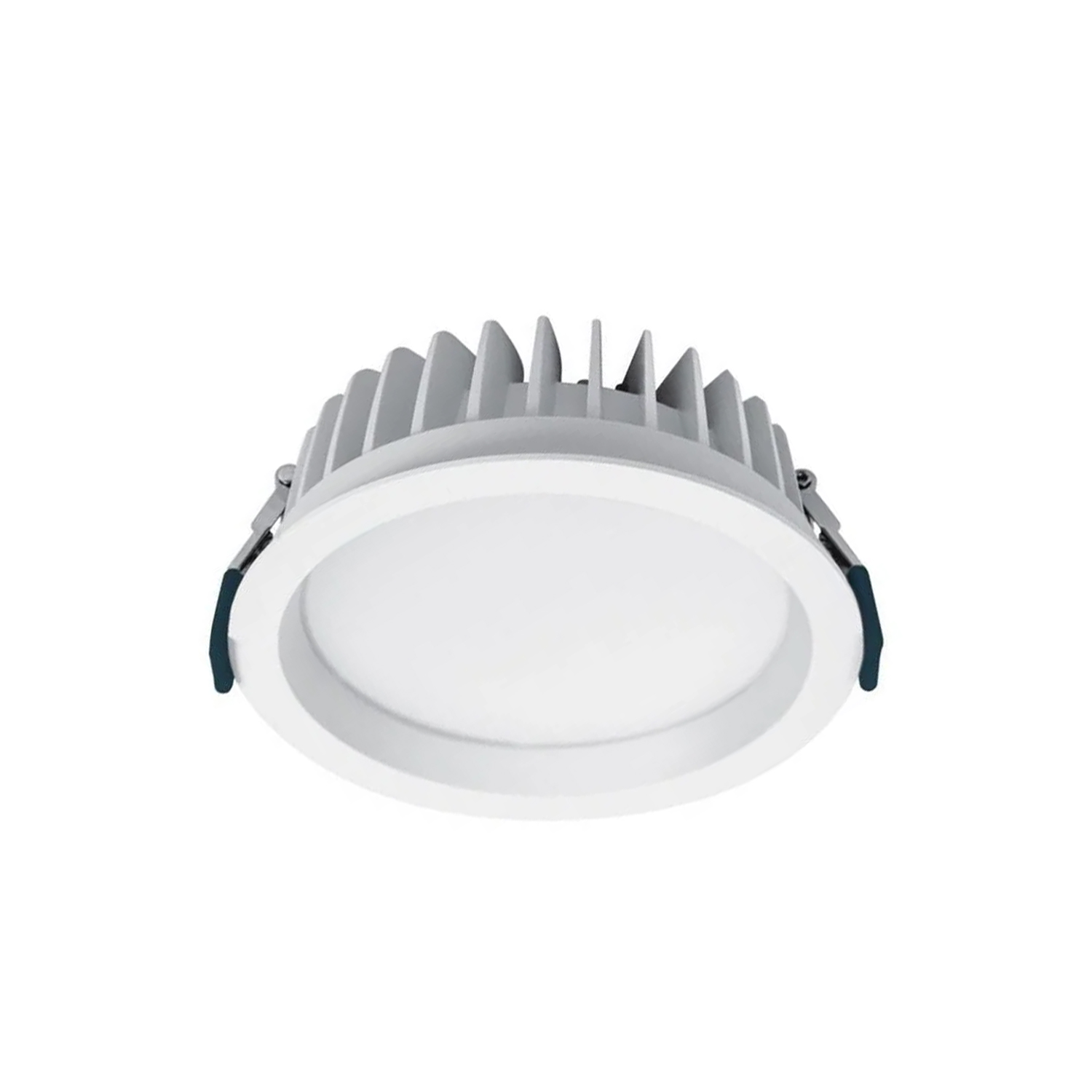

| LB3276 | Wattage15W | CCT4000K | IPIP65 | DimensionsØ220x66mm | Cut-outØ205mm |
| LBT3008 | Wattage10W | CCT2700K/3000K/4000K/5000K/6000K | IPIP65 | DimensionsØ160x60mm | Cut-outØ150mm |
Technical Data
Full Specification
| Dimensions | Not published — technical review required |
|---|---|
| Cut-out | Not published — technical review required |
| Power | 30W |
| Lumen output | Not published — technical review required |
| Efficacy | Not published — technical review required |
| Optics / beam angle | 36° |
| Colour temperature | 3000K · 4000K · 5000K |
| CRI Ra | 80 · ≥80 |
| R9 | Not published — technical review required |
| TM-30 Rf / Rg | Not published — technical review required |
| UGR | Not published — technical review required |
| IP rating | IP65 · IP20 |
| IK rating | Not published — technical review required |
| Ambient temperature (Ta) | Not published — technical review required |
| Driver | Not published — technical review required |
| Dimming / control | Not published — technical review required |
| Input voltage | Not published — technical review required |
| Light source | Not published — technical review required |
| Material | Not published — technical review required |
| Finish | White |
| Mounting / installation | Not published — technical review required |
| Net weight | Not published — technical review required |
| Certification | Not published — technical review required |
| Lifetime | Not published — technical review required |
| Warranty | Not published — technical review required |
| Lead time | Not published — technical review required |
6 of 26 specification rows published from the 2026 master data. Values vary by model; missing test data is not estimated. Select an exact model for approval.
Specifications
At a Glance
30W
Power
36°
Beam Angle
3 CCT
3000K, 4000K, 5000K
CRI 80
Colour Rendering
IP20 / IP65
Protection Rating
White
Body Finish
