Lumi Indoor
KEMANG
Application inspiration · not a project reference
KEMANG is part of Lumi Indoor. Coordinate the selected article’s dimensions, installation details and configuration with the project specification; these details can vary between models in the same family.
Down Light
KEMANG
Dimensions
Technical Drawing

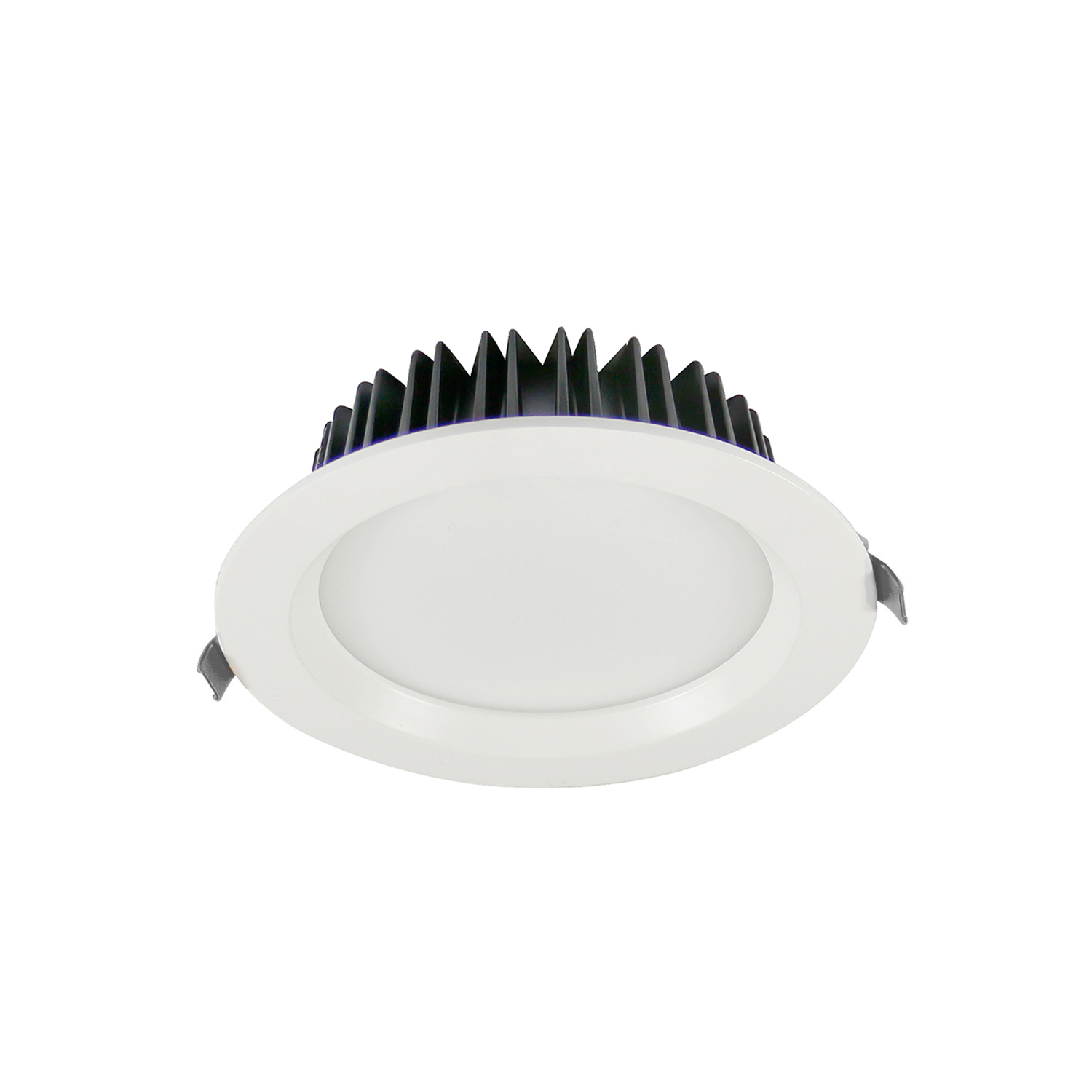

Drawing and sizes shown for model LB3322.
Size — model LB3322
Ø159*H60MM
Cut-Out
Ø150mm
Technical Data
Full Specification
| Dimensions | Ø159*H60MM |
|---|---|
| Cut-out | Ø150mm |
| Power | 24W |
| Lumen output | Not published — technical review required |
| Efficacy | Not published — technical review required |
| Optics / beam angle | 60° · 100° |
| Colour temperature | 3000K · 4000K · 5000K |
| CRI Ra | 90 · >90 |
| R9 | Not published — technical review required |
| TM-30 Rf / Rg | Not published — technical review required |
| UGR | Not published — technical review required |
| IP rating | IP20 |
| IK rating | Not published — technical review required |
| Ambient temperature (Ta) | Not published — technical review required |
| Driver | Not published — technical review required |
| Dimming / control | Not published — technical review required |
| Input voltage | 220-240VAC |
| Light source | Not published — technical review required |
| Material | AluminiumBody |
| Finish | white |
| Mounting / installation | Not published — technical review required |
| Net weight | Not published — technical review required |
| Certification | Not published — technical review required |
| Lifetime | Not published — technical review required |
| Warranty | Not published — technical review required |
| Lead time | Not published — technical review required |
10 of 26 specification rows published from the 2026 master data. Values vary by model; missing test data is not estimated. Select an exact model for approval.
Specifications
At a Glance
24W
Power
100°
Beam Angle
3000K
Colour Temperature
CRI 90
Colour Rendering
IP20
Protection Rating
2 finishes
Body Finish
Ø159*H60MM
Dimensions
Ø150mm
Cut-Out
Configure your product
LB3322
Order code
Listed configurationLB3322.W.930.WWH.100.DDR
1 listed configurations · availability requires confirmation
