Lumi Indoor
LASER BLADE
Application inspiration · not a project reference
LASER BLADE is part of Lumi Indoor. Coordinate the selected article’s dimensions, installation details and configuration with the project specification; these details can vary between models in the same family.
Spot Light
LASER BLADE
LASER BLADE is a spot light family within the LUMIBRIGHT Lumi Indoor collection. Explore 5 models, including LBE2153, LBE2156, LBE2157, with model-specific specifications and configuration choices. LBE2153 specifications include power: 20W; colour temperature: 2700K/3000K/3500K/4000K/5000K/6000K; IP rating: IP20; dimensions: L140xW90xH42mm. Compare the LASER BLADE range by power, colour temperature, protection rating and dimensions using the technical table below. Open an individual model to explore its available finishes and optics, select a listed order code and prepare a specification sheet where configuration data is available. Keep the chosen model reference with your project schedule so the lighting and installation teams can coordinate the same selection. For additional drawings, photometry or project-specific requirements, contact the LUMIBRIGHT specification team with your model code.
Model specifications
| Article | Wattage | CCT | IP | Dimensions | Cut-out |
|---|---|---|---|---|---|
| LBE2153 | Wattage20W | CCT2700K/3000K/3500K/4000K/5000K/6000K | IPIP20 | DimensionsL140xW90xH42mm | Cut-out140x50mm |
| LBE2156 | Wattage20W | CCT2700K/3000K/3500K/4000K/5000K/6000K | IPIP20 | DimensionsL150xW45xH38mm | Cut-out144x35mm |
| LBE2157 | Wattage30W(6LEDx5W) | CCT2700K/3000K/3500K/4000K/5000K/5700K | IPIP20 | DimensionsL282.2xW85.6xH60.3mm | Cut-out283.5x62.5mm |
| LBE2190 | Wattage10W | CCT4000K | IPIP20 | DimensionsL150*W45*H38MM | Cut-out144*35 |
| LBE2193 | Wattage20W | CCT4000K | IPIP20 | DimensionsL283xW45xH40mm | Cut-outNot published |
Technical Data
Full Specification
| Dimensions | L150*W45*H38MM · L140xW90xH42mm · L150xW45xH38mm · L282.2xW85.6xH60.3mm +1 more |
|---|---|
| Cut-out | 144*35 · 140x50mm · 144x35mm · 283.5x62.5mm |
| Power | 10W · 20W · 30W(6LEDx5W) |
| Lumen output | 1500lm · 2500lm · 2254lm |
| Efficacy | Not published — technical review required |
| Optics / beam angle | 24° · 30° · 20°, 30°/45° |
| Colour temperature | 2700K · 3000K · 4000K · 5000K +4 more |
| CRI Ra | 90 · >90 |
| R9 | Not published — technical review required |
| TM-30 Rf / Rg | Not published — technical review required |
| UGR | Not published — technical review required |
| IP rating | IP20 |
| IK rating | Not published — technical review required |
| Ambient temperature (Ta) | Not published — technical review required |
| Driver | Not published — technical review required |
| Dimming / control | Not published — technical review required |
| Input voltage | 220-240VAC |
| Light source | Not published — technical review required |
| Material | Aluminium · Die casting Aluminium · Aluminium+PC |
| Finish | black+mirror-white · White · black+mirror-black · white+mirror-black +5 more |
| Mounting / installation | Not published — technical review required |
| Net weight | Not published — technical review required |
| Certification | Not published — technical review required |
| Lifetime | Not published — technical review required |
| Warranty | Not published — technical review required |
| Lead time | Not published — technical review required |
11 of 26 specification rows published from the 2026 master data. Values vary by model; missing test data is not estimated. Select an exact model for approval.
Configuration
Select Specification
Select attributes to narrow down variants
Product Lines
5 Products
Dimensions

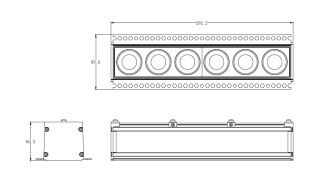

Technical Drawing
Drawing and sizes shown for model LBE2157. This family has 5 models with different dimensions — select a model above, or open its row in the variant table, for its own drawing.
Size — model LBE2157
L282.2xW85.6xH60.3mm
Cut-Out
283.5x62.5mm
Specifications
At a Glance
10–30W
Power Range
3 options
Beam: 20°, 24°, 30°
7 CCT
2700K, 3000K, 3500K, 4000K, 5000K, 5700K, 6000K
CRI 90
Colour Rendering
IP20
Protection Rating
6 finishes
Body Finish Options
5 sizes
L140xW90xH42mm, L150*W45*H38MM, L150xW45xH38mm, L282.2xW85.6xH60.3mm, L283xW45xH40mm
4 cut-outs
140x50mm, 144*35, 144x35mm, 283.5x62.5mm
Configure your product
LBE2190
Order code
Listed configurationLBE2190.C.960.WBK+MWH.30.DR
20 listed configurations · availability requires confirmation
