Lumi Indoor
LATEN
Application inspiration · not a project reference
LATEN is part of Lumi Indoor. Coordinate the selected article’s dimensions, installation details and configuration with the project specification; these details can vary between models in the same family.

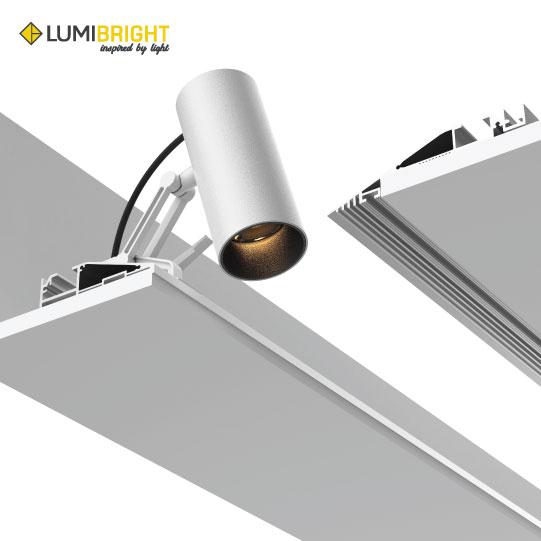

Track Light
LATEN
LATEN is a track light family within the LUMIBRIGHT Lumi Indoor collection. Explore 1 models, including LBS1001, with model-specific specifications and configuration choices. LBS1001 specifications include power: 10W; colour temperature: 2700K/3000K/4000K/5000K; IP rating: IP40; dimensions: Ø55xH140mm. Compare the LATEN range by power, colour temperature, protection rating and dimensions using the technical table below. Open an individual model to explore its available finishes and optics, select a listed order code and prepare a specification sheet where configuration data is available. Keep the chosen model reference with your project schedule so the lighting and installation teams can coordinate the same selection. For additional drawings, photometry or project-specific requirements, contact the LUMIBRIGHT specification team with your model code.
Model specifications
| Article | Wattage | CCT | IP | Dimensions | Cut-out |
|---|---|---|---|---|---|
| LBS1001 | Wattage10W | CCT2700K/3000K/4000K/5000K | IPIP40 | DimensionsØ55xH140mm | Cut-outNot published |
Technical Data
Full Specification
| Dimensions | Ø55xH140mm |
|---|---|
| Cut-out | Not published — technical review required |
| Power | 10W |
| Lumen output | Not published — technical review required |
| Efficacy | Not published — technical review required |
| Optics / beam angle | 15° · 24° · 36° · 38° |
| Colour temperature | 2700K · 3000K · 4000K · 5000K |
| CRI Ra | 90 · >80,>90 |
| R9 | Not published — technical review required |
| TM-30 Rf / Rg | Not published — technical review required |
| UGR | Not published — technical review required |
| IP rating | IP40 · IP20 |
| IK rating | Not published — technical review required |
| Ambient temperature (Ta) | Not published — technical review required |
| Driver | Not published — technical review required |
| Dimming / control | Not published — technical review required |
| Input voltage | 220-240VAC |
| Light source | Not published — technical review required |
| Material | Aluminium+PC |
| Finish | white-sand · White · black-sand · White With Sand +1 more |
| Mounting / installation | Not published — technical review required |
| Net weight | Not published — technical review required |
| Certification | Not published — technical review required |
| Lifetime | Not published — technical review required |
| Warranty | Not published — technical review required |
| Lead time | Not published — technical review required |
9 of 26 specification rows published from the 2026 master data. Values vary by model; missing test data is not estimated. Select an exact model for approval.
Configuration
Select Specification
Select attributes to narrow down variants
Dimensions
Technical Drawing
Drawing and sizes shown for model LBS1001. This family has 2 models with different dimensions — select a model above, or open its row in the variant table, for its own drawing.
Size — model LBS1001
Ø55xH140mm
Specifications
At a Glance
10W
Power Range
3 options
Beam: 15°, 24°, 36°
4 CCT
2700K, 3000K, 4000K, 5000K
CRI 90
Colour Rendering
IP20 / IP40
Protection Rating
3 finishes
Body Finish Options
Ø55xH140mm
Dimensions
Configure your product
LBS1001
Order code
Listed configurationLBS1001.W.930.PAW.38.DR
49 listed configurations · availability requires confirmation
