Down Light
LIODAN

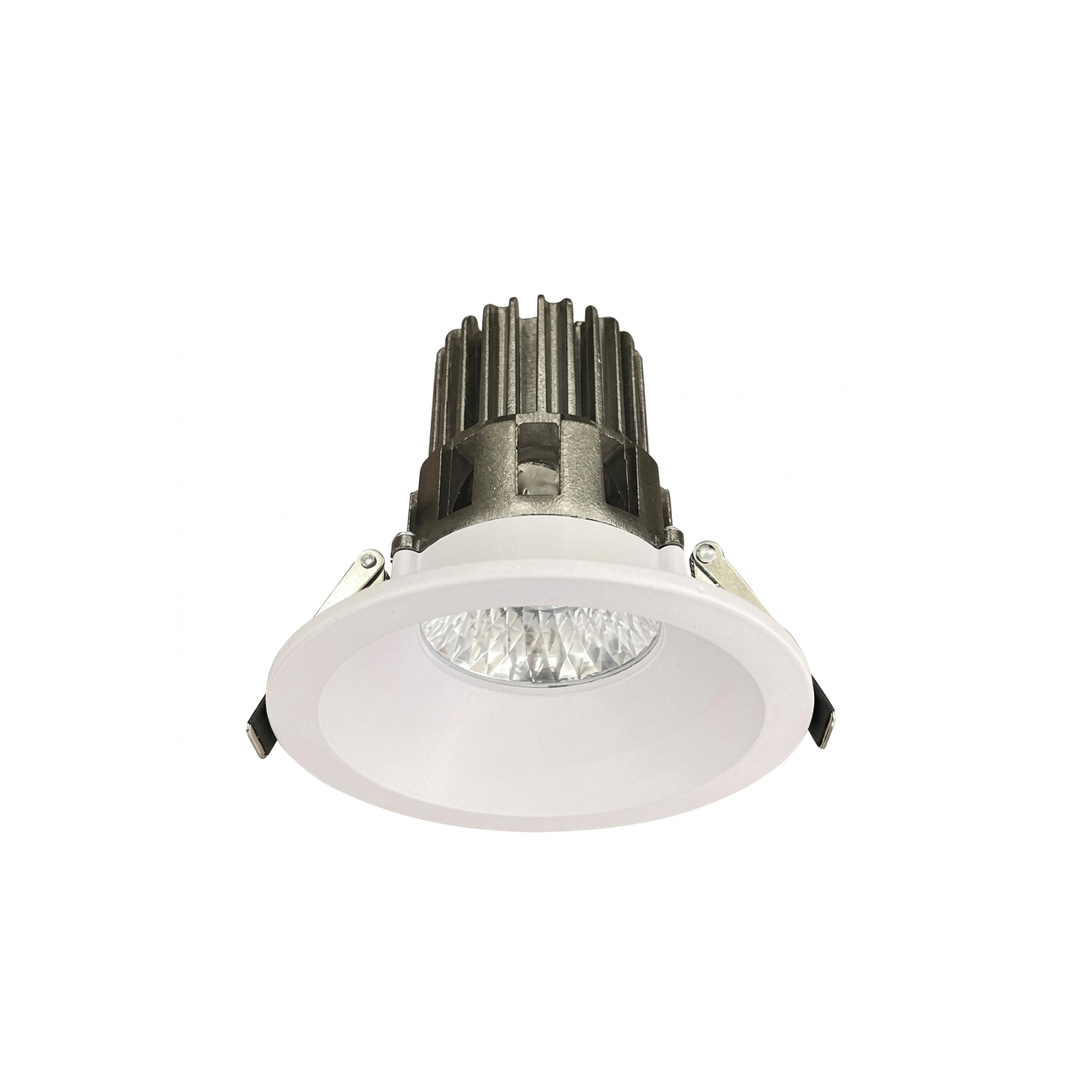

LIODAN is a down light family within the LUMIBRIGHT Lumi Indoor collection. Explore 1 models, including LB3323, with model-specific specifications and configuration choices. LB3323 specifications include power: 18W; colour temperature: 3000K; IP rating: IP20; dimensions: Ø130XH120mm. Compare the LIODAN range by power, colour temperature, protection rating and dimensions using the technical table below. Open an individual model to explore its available finishes and optics, select a listed order code and prepare a specification sheet where configuration data is available. Keep the chosen model reference with your project schedule so the lighting and installation teams can coordinate the same selection. For additional drawings, photometry or project-specific requirements, contact the LUMIBRIGHT specification team with your model code.
Model specifications
| Article | Wattage | CCT | IP | Dimensions | Cut-out |
|---|---|---|---|---|---|
| LB3323 | Wattage18W | CCT3000K | IPIP20 | DimensionsØ130XH120mm | Cut-outØ110mm |
Dimensions
Technical Drawing
Drawing and sizes shown for model LB3323.
Size — model LB3323
Ø130XH120mm
Cut-Out
Ø110mm
Technical Data
Full Specification
| Dimensions | Ø130XH120mm |
|---|---|
| Cut-out | Ø110mm |
| Power | 18W |
| Lumen output | 1800lm |
| Efficacy | Not published — technical review required |
| Optics / beam angle | 60° |
| Colour temperature | 3000K · 4000K · 5000K |
| CRI Ra | 90 · >90 |
| R9 | Not published — technical review required |
| TM-30 Rf / Rg | Not published — technical review required |
| UGR | Not published — technical review required |
| IP rating | IP20 |
| IK rating | Not published — technical review required |
| Ambient temperature (Ta) | Not published — technical review required |
| Driver | Not published — technical review required |
| Dimming / control | Not published — technical review required |
| Input voltage | 220-240VAC |
| Light source | Not published — technical review required |
| Material | Aluminium |
| Finish | white |
| Mounting / installation | Not published — technical review required |
| Net weight | Not published — technical review required |
| Certification | Not published — technical review required |
| Lifetime | Not published — technical review required |
| Warranty | Not published — technical review required |
| Lead time | Not published — technical review required |
11 of 26 specification rows published from the 2026 master data. Values vary by model; missing test data is not estimated. Select an exact model for approval.
Specifications
At a Glance
18W
Power
60°
Beam Angle
3000K
Colour Temperature
CRI 90
Colour Rendering
IP20
Protection Rating
2 finishes
Body Finish
Ø130XH120mm
Dimensions
Ø110mm
Cut-Out
Configure your product
LB3323
Order code
Listed configurationLB3323.N.940.WWH.60.DR
1 listed configurations · availability requires confirmation
