Lumi Indoor
LUMARIS
Application inspiration · not a project reference
LUMARIS is part of Lumi Indoor. Coordinate the selected article’s dimensions, installation details and configuration with the project specification; these details can vary between models in the same family.
Down Light
LUMARIS
LUMARIS is a down light family within the LUMIBRIGHT Lumi Indoor collection. The current catalogue groups 5 article codes under this family, including LBE3029, LBE3030, LBE3031. For LBE3029, published values include power: 15W; colour temperature: 3000K/4000K/6000K; IP rating: IP44; dimensions: Ф83*H65mm. Each article represents its own physical model; dimensions and electrical or optical options must be checked against that exact code. Compare the LUMARIS articles using the specification table and individual model pages before adding them to a lighting schedule. Wattage, colour temperature, protection rating and installation dimensions are catalogue values, not a guarantee that every combination can be ordered. Where a value is not published, request the relevant model documentation rather than assuming it matches another article. Confirm the selected configuration, driver requirements, installation detail and project documentation with the specification team before ordering.
Model specifications
| Article | Wattage | CCT | IP | Dimensions | Cut-out |
|---|---|---|---|---|---|
| LBE3029 | Wattage15W | CCT3000K/4000K/6000K | IPIP44 | DimensionsФ83*H65mm | Cut-outФ75mm |
| LBE3030 | Wattage20W | CCT3000K/4000K/6000K | IPIP44 | DimensionsФ103*H70mm | Cut-outФ95mm |
| LBE3031 | Wattage30W | CCT3000K/4000K/6000K | IPIP44 | DimensionsФ132*H75m | Cut-outФ120mm |
| LBE3032 | Wattage40W | CCT3000K/4000K/6000K | IPIP44 | DimensionsФ160*H80mm | Cut-outФ145mm |
| LBE3033 | Wattage50W | CCT3000K/4000K/6000K | IPIP44 | DimensionsФ180*H85mm | Cut-outФ165mm |
Technical Data
Full Specification
| Dimensions | Ф132*H75m · Ф83*H65mm · Ф103*H70mm · Ф160*H80mm +1 more |
|---|---|
| Cut-out | Ф120mm · Ф75mm · Ф95mm · Ф145mm +1 more |
| Power | 20W · 30W · 40W · 50W +1 more |
| Lumen output | 1839lm · 2558lm · 3612lm · 5106lm +1 more |
| Efficacy | Not published — technical review required |
| Optics / beam angle | 50° · 60° · 110° |
| Colour temperature | 3000K · 4000K · 5000K · 6000K |
| CRI Ra | 90 |
| R9 | Not published — technical review required |
| TM-30 Rf / Rg | Not published — technical review required |
| UGR | Not published — technical review required |
| IP rating | IP44 · IP20 |
| IK rating | Not published — technical review required |
| Ambient temperature (Ta) | Not published — technical review required |
| Driver | Not published — technical review required |
| Dimming / control | Not published — technical review required |
| Input voltage | 220-240VAC |
| Light source | Not published — technical review required |
| Material | Aluminium |
| Finish | white · MATT WHITE · White With Sand · white-sand |
| Mounting / installation | Not published — technical review required |
| Net weight | Not published — technical review required |
| Certification | Not published — technical review required |
| Lifetime | Not published — technical review required |
| Warranty | Not published — technical review required |
| Lead time | Not published — technical review required |
11 of 26 specification rows published from the 2026 master data. Values vary by model; missing test data is not estimated. Select an exact model for approval.
Configuration
Select Specification
Select attributes to narrow down variants
Product Lines
5 Products
Dimensions
Technical Drawing
Drawing and sizes shown for model LBE3031. This family has 5 models with different dimensions — select a model above, or open its row in the variant table, for its own drawing.
Size — model LBE3031
Ф132*H75m
Cut-Out
Ф120mm
Specifications
At a Glance
15–50W
Power Range
1 options
Beam: 50°
3 CCT
3000K, 4000K, 6000K
CRI 90
Colour Rendering
IP44
Protection Rating
3 finishes
Body Finish Options
5 sizes
Ф103*H70mm, Ф132*H75m, Ф160*H80mm, Ф180*H85mm, Ф83*H65mm
5 cut-outs
Ф120mm, Ф145mm, Ф165mm, Ф75mm, Ф95mm
Configure your product

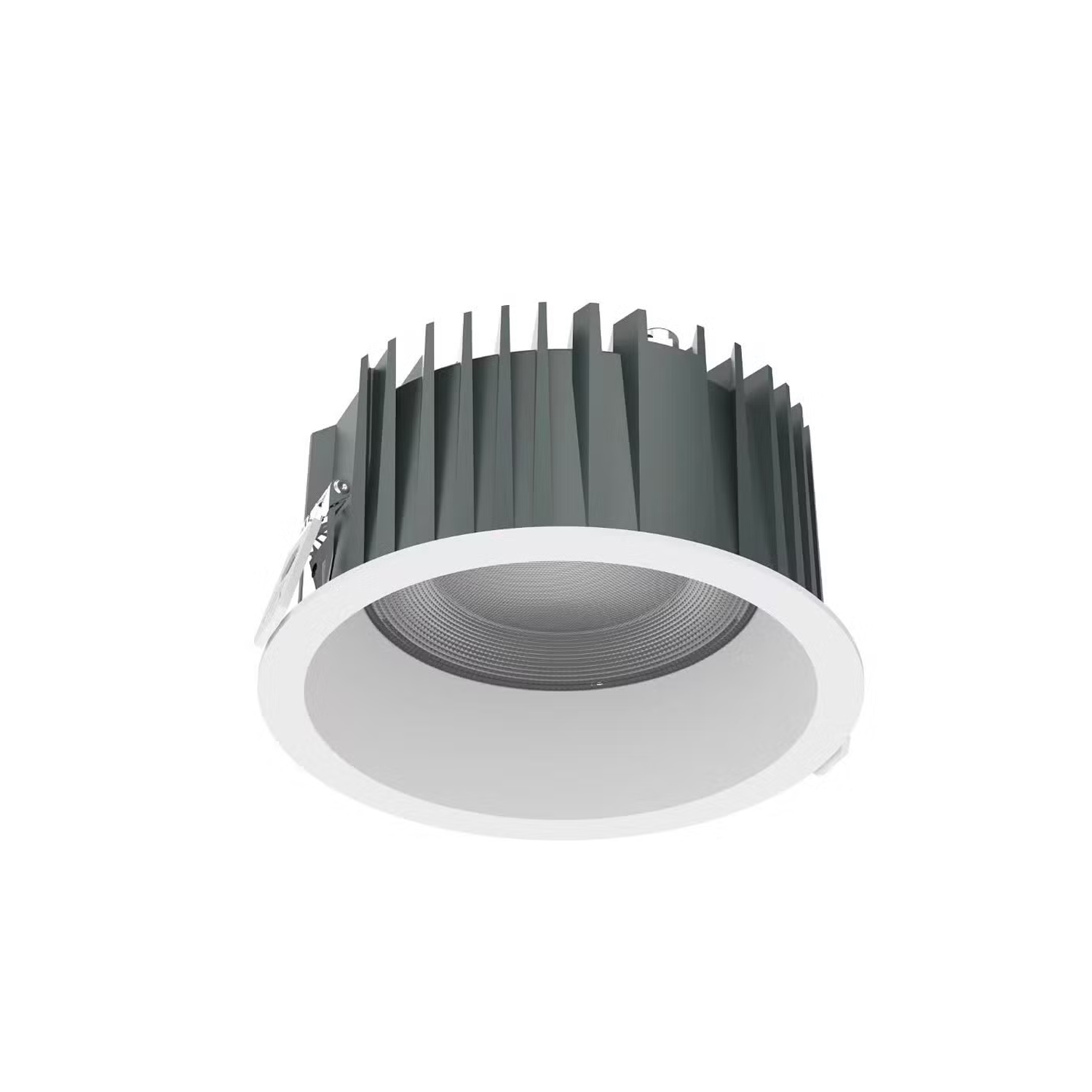

LBE3031
Order code
Listed configurationLBE3031.W.930.PWH.50.DR
1 listed configurations · availability requires confirmation
