Lumi Indoor
MEA
Application inspiration · not a project reference
MEA is part of Lumi Indoor. Coordinate the selected article’s dimensions, installation details and configuration with the project specification; these details can vary between models in the same family.
Track Light
MEA
MEA is a track light family within the LUMIBRIGHT Lumi Indoor collection. Explore 6 models, including LBE1006, LBE1007, LBE1008, with model-specific specifications and configuration choices. LBE1006 specifications include power: 10W; colour temperature: 2700K/3000K/4000K/5000K/6000K; IP rating: IP20; dimensions: ∅49XL120XH125mm. Compare the MEA range by power, colour temperature, protection rating and dimensions using the technical table below. Open an individual model to explore its available finishes and optics, select a listed order code and prepare a specification sheet where configuration data is available. Keep the chosen model reference with your project schedule so the lighting and installation teams can coordinate the same selection. For additional drawings, photometry or project-specific requirements, contact the LUMIBRIGHT specification team with your model code.
Model specifications
| Article | Wattage | CCT | IP | Dimensions | Cut-out |
|---|---|---|---|---|---|
| LBE1006 | Wattage10W | CCT2700K/3000K/4000K/5000K/6000K | IPIP20 | Dimensions∅49XL120XH125mm | Cut-outNot published |
| LBE1007 | Wattage20W | CCT2700K/3000K/4000K/5000K/6000K | IPIP20 | Dimensionsφ65XL148XH140mm | Cut-outNot published |
| LBE1008 | Wattage30W | CCT2700K/3000K/4000K/5000K/6000K | IPIP20 | Dimensionsφ76XL168XH153mm | Cut-outNot published |
| LBE1010 | Wattage30W | CCT4000K | IPIP20 | DimensionsD68x155mm（light body) | Cut-outNot published |
| LBE1011 | Wattage30W-4 wires | CCT2700K | IPIP20 | Dimensionsφ75*L180*H210mm | Cut-outNot published |

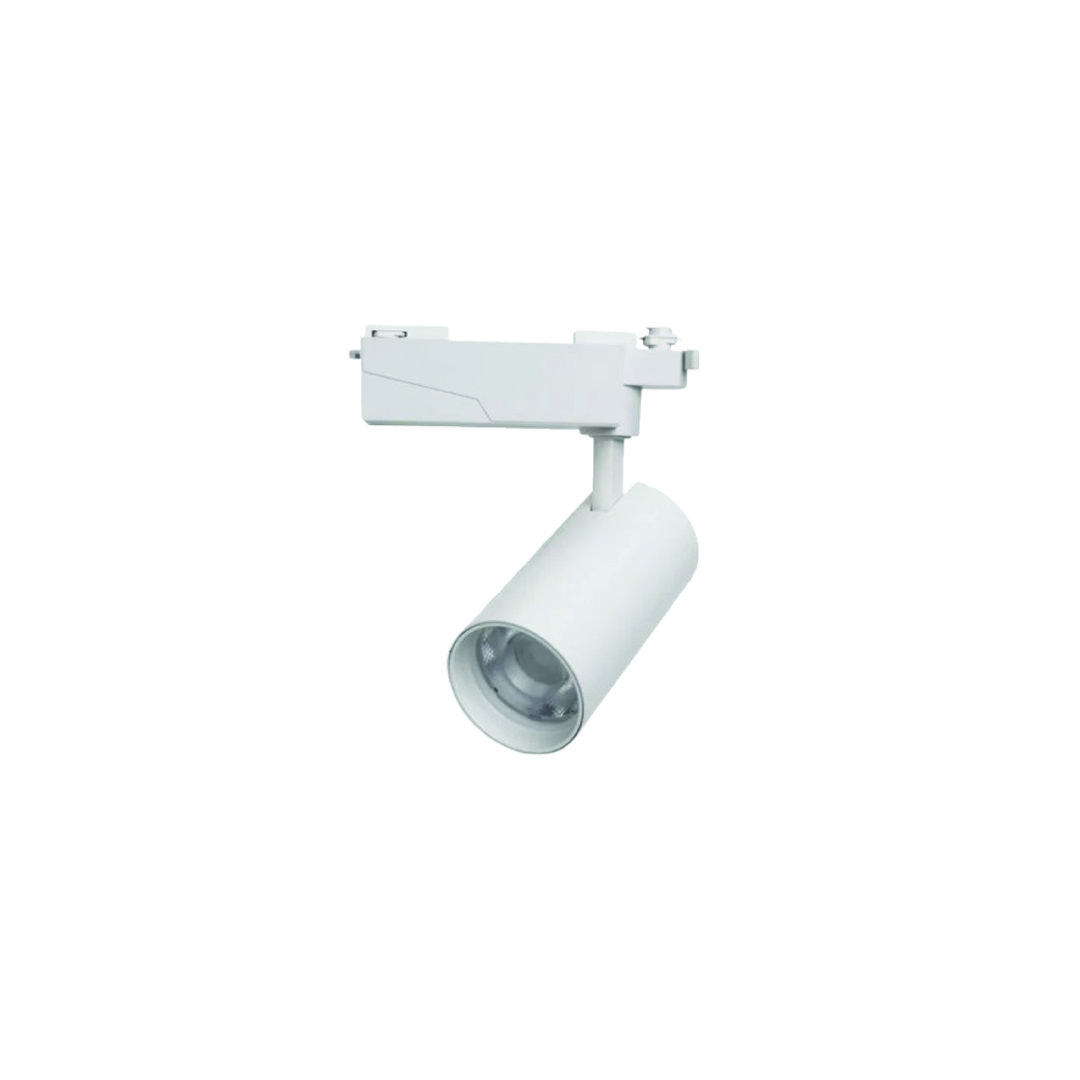

| LBP1039 | Wattage45W | CCT4000K | IP20 | DimensionsØ90x160mm | Cut-outNot published |
Technical Data
Full Specification
| Dimensions | ∅49XL120XH125mm · φ65XL148XH140mm · φ76XL168XH153mm · D68x155mm（light body) +2 more |
|---|---|
| Cut-out | Not published — technical review required |
| Power | 10W · 20W · 30W · 30W-4 wires +1 more |
| Lumen output | 800lm · 1600lm · 2400lm · 2550 lm +1 more |
| Efficacy | Not published — technical review required |
| Optics / beam angle | 36° · 45° · 24° |
| Colour temperature | 2700K · 3000K · 4000K · 5000K +1 more |
| CRI Ra | 80 · 90 · ≥90 |
| R9 | Not published — technical review required |
| TM-30 Rf / Rg | Not published — technical review required |
| UGR | Not published — technical review required |
| IP rating | IP20 · 20 |
| IK rating | Not published — technical review required |
| Ambient temperature (Ta) | Not published — technical review required |
| Driver | Not published — technical review required |
| Dimming / control | Not published — technical review required |
| Input voltage | 220-240VAC |
| Light source | Not published — technical review required |
| Material | Aluminium · Aluminiumdiecasting · Die-cast Aluminium |
| Finish | black-sand · White · white-sand · Black With Sand +2 more |
| Mounting / installation | Not published — technical review required |
| Net weight | Not published — technical review required |
| Certification | Not published — technical review required |
| Lifetime | Not published — technical review required |
| Warranty | Not published — technical review required |
| Lead time | Not published — technical review required |
10 of 26 specification rows published from the 2026 master data. Values vary by model; missing test data is not estimated. Select an exact model for approval.
Configuration
Select Specification
Select attributes to narrow down variants
Product Lines
6 Products
Dimensions
Technical Drawing
Drawing and sizes shown for model LBE1006. This family has 6 models with different dimensions — select a model above, or open its row in the variant table, for its own drawing.
Size — model LBE1006
∅49XL120XH125mm
Specifications
At a Glance
10–45W
Power Range
3 options
Beam: 24°, 36°, 45°
5 CCT
2700K, 3000K, 4000K, 5000K, 6000K
CRI 80/90
Colour Rendering
IP20
Protection Rating
5 finishes
Body Finish Options
6 sizes
D68x155mm（light body), Ø90x160mm, φ65XL148XH140mm, φ75*L180*H210mm, φ76XL168XH153mm, ∅49XL120XH125mm
Configure your product
LBE1006
Order code
Listed configurationLBE1006.W.930.PAB.45
8 listed configurations · availability requires confirmation
