Lumi Indoor
MILIAN
Application inspiration · not a project reference
MILIAN is part of Lumi Indoor. Coordinate the selected article’s dimensions, installation details and configuration with the project specification; these details can vary between models in the same family.
Track Light
MILIAN
MILIAN is a track light family within the LUMIBRIGHT Lumi Indoor collection. Explore 5 models, including LB1070, LB1097, LB1099, with model-specific specifications and configuration choices. LB1070 specifications include power: 27W; colour temperature: 2700K/3000K/4000K/5000K/6000K; IP rating: IP20; dimensions: 370x60x105mm. Compare the MILIAN range by power, colour temperature, protection rating and dimensions using the technical table below. Open an individual model to explore its available finishes and optics, select a listed order code and prepare a specification sheet where configuration data is available. Keep the chosen model reference with your project schedule so the lighting and installation teams can coordinate the same selection. For additional drawings, photometry or project-specific requirements, contact the LUMIBRIGHT specification team with your model code.
Model specifications
| Article | Wattage | CCT | IP | Dimensions | Cut-out |
|---|---|---|---|---|---|

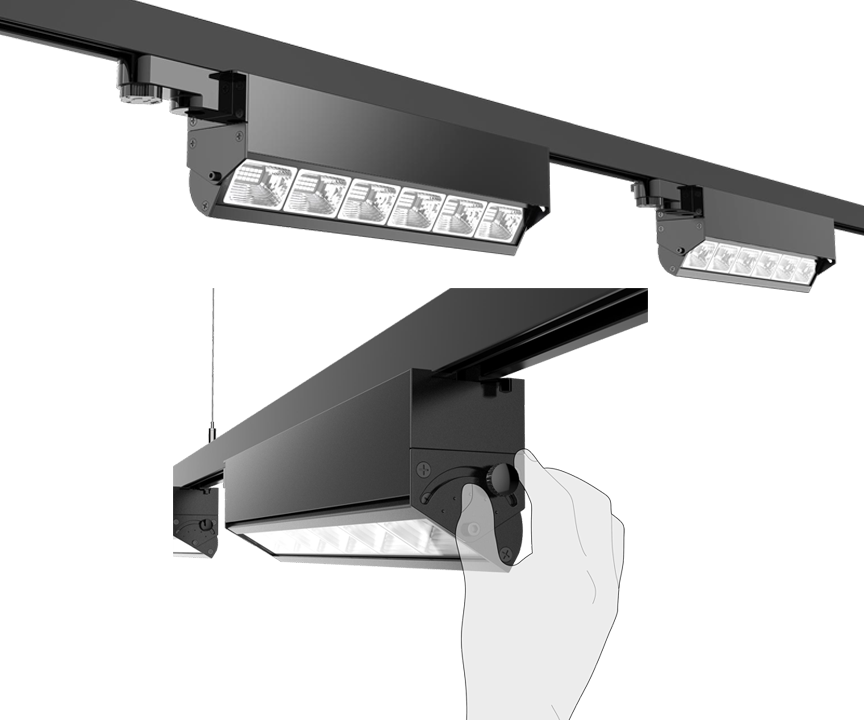

| LB1070 | Wattage27W | CCT2700K/3000K/4000K/5000K/6000K | IPIP20 | Dimensions370x60x105mm | Cut-outNot published |

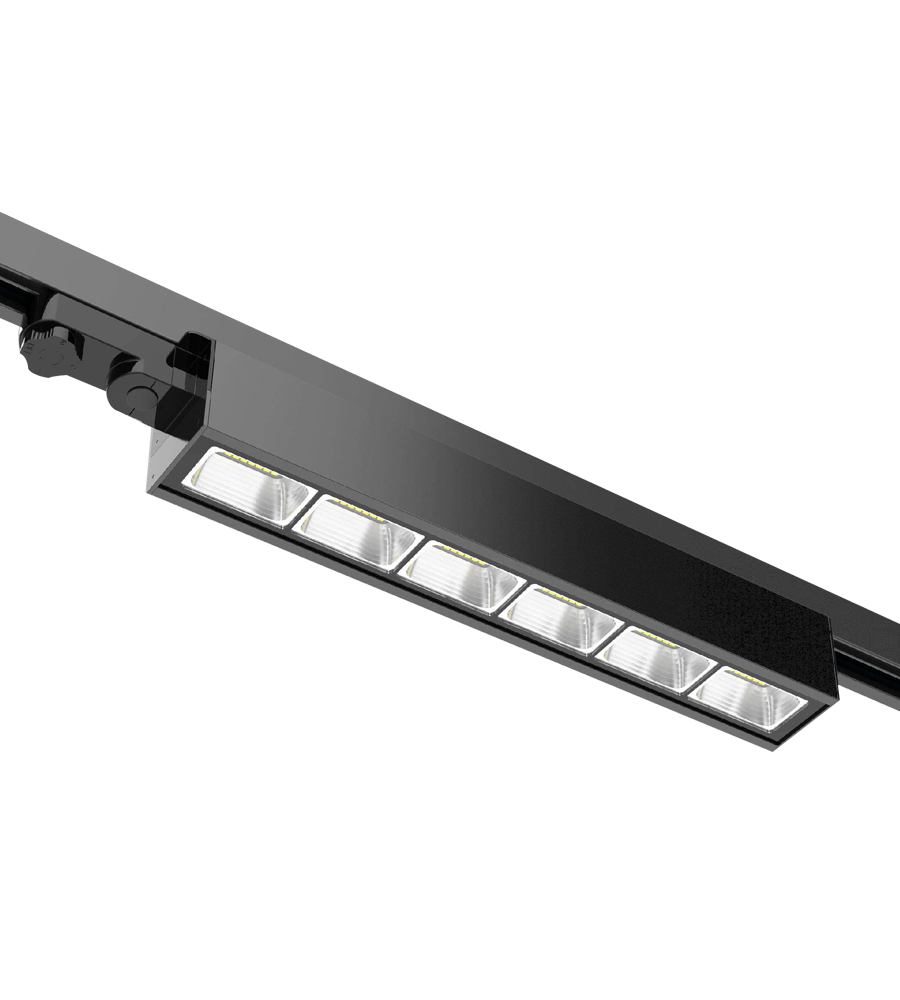

| LB1097 | Wattage27W | CCT4000K | IPIP20 | DimensionsNot published | Cut-outNot published |

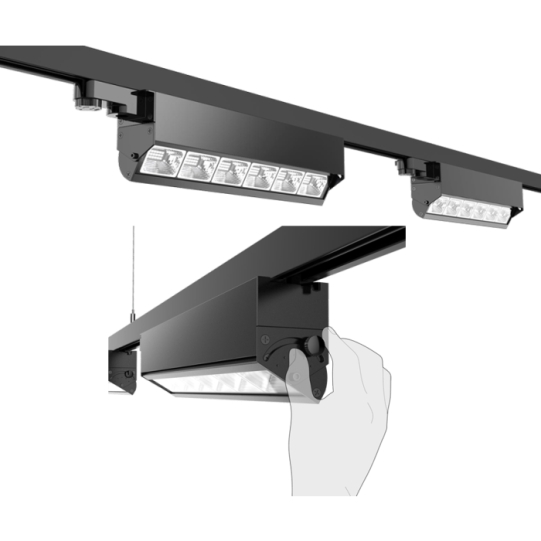

| LB1099 | Wattage50W | CCT2700K/3000K/4000K/5000K/6000K | IPIP20 | Dimensions500x60x105mm | Cut-outNot published |

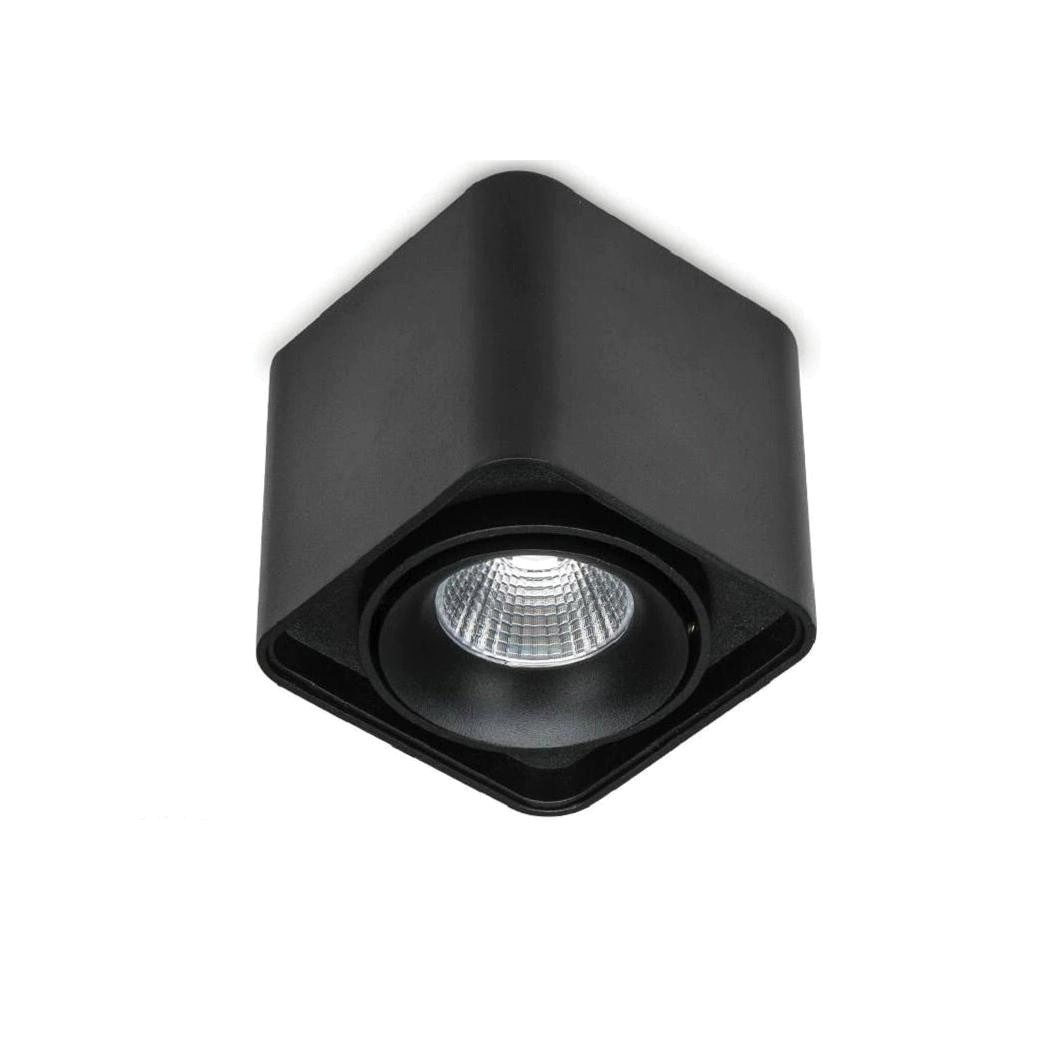

| LBP1019 | Wattage27W | CCT3000K/4000K/5000K | IPIP20 | Dimensions292x60x148mm | Cut-outNot published |

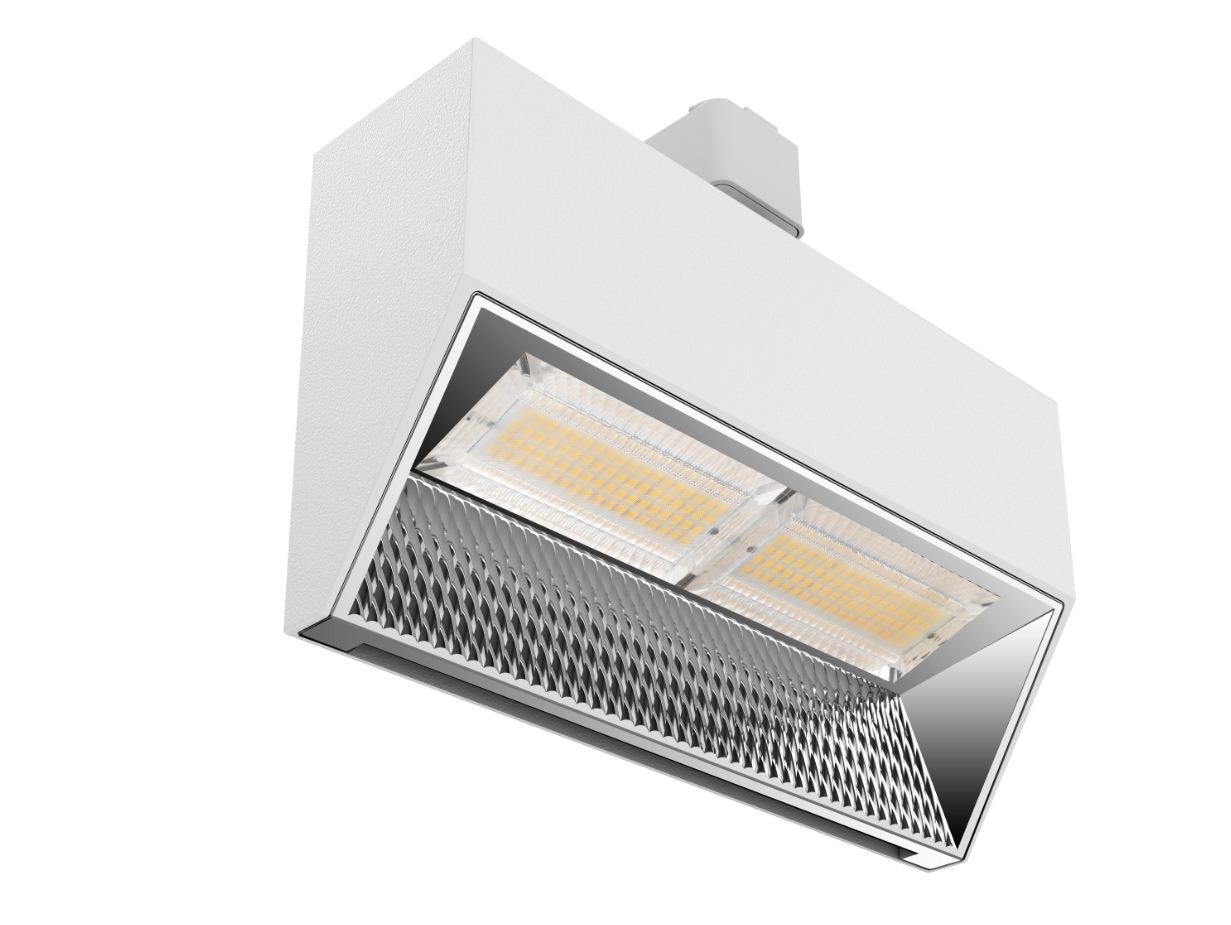

| LBP1026 | Wattage30W,40W,50W | CCT3000K/3500K/4000K | IPIP20 | Dimensions237x64x198mm | Cut-outNot published |
Technical Data
Full Specification
| Dimensions | 500x60x105mm · 370x60x105mm · 292x60x148mm · 237x64x198mm |
|---|---|
| Cut-out | Not published — technical review required |
| Power | 50W · 27W · 30W,40W,50W |
| Lumen output | 3510lm · 7150lm · 3600LM · 1717-2128LM |
| Efficacy | Not published — technical review required |
| Optics / beam angle | 36° · 60° · 90° · ASYMMETRIC +2 more |
| Colour temperature | 2700K · 3000K · 4000K · 5000K +4 more |
| CRI Ra | 90 · 80+/ 90+ · >90 |
| R9 | Not published — technical review required |
| TM-30 Rf / Rg | Not published — technical review required |
| UGR | Not published — technical review required |
| IP rating | IP20 |
| IK rating | Not published — technical review required |
| Ambient temperature (Ta) | Not published — technical review required |
| Driver | Not published — technical review required |
| Dimming / control | Not published — technical review required |
| Input voltage | 200-240VAC · 110-277VAC |
| Light source | Not published — technical review required |
| Material | Aviation Aluminium + PC · Aluminium and PC |
| Finish | white-sand · White · black-sand · White With Sand +1 more |
| Mounting / installation | Not published — technical review required |
| Net weight | Not published — technical review required |
| Certification | Not published — technical review required |
| Lifetime | Not published — technical review required |
| Warranty | Not published — technical review required |
| Lead time | Not published — technical review required |
10 of 26 specification rows published from the 2026 master data. Values vary by model; missing test data is not estimated. Select an exact model for approval.
Configuration
Select Specification
Select attributes to narrow down variants
Product Lines
5 Products
Dimensions
Technical Drawing
Drawing and sizes shown for model LBP1019. This family has 5 models with different dimensions — select a model above, or open its row in the variant table, for its own drawing.
Size — model LBP1019
292x60x148mm
Specifications
At a Glance
27–50W
Power Range
2 options
Beam: 36°, 60°
6 CCT
2700K, 3000K, 3500K, 4000K, 5000K, 6000K
CCT TUNABLE
Colour Options
CRI 80/90
Colour Rendering
IP20
Protection Rating
4 finishes
Body Finish Options
4 sizes
237x64x198mm, 292x60x148mm, 370x60x105mm, 500x60x105mm
Configure your product
LB1099
Order code
Listed configurationLB1099.N.840.PAW.P2
3 listed configurations · availability requires confirmation
