Lumi Indoor
MUSK
Application inspiration · not a project reference
MUSK is part of Lumi Indoor. Coordinate the selected article’s dimensions, installation details and configuration with the project specification; these details can vary between models in the same family.
Down Light
MUSK
MUSK is a down light family within the LUMIBRIGHT Lumi Indoor collection. Explore 4 models, including LB3035, LB3037, LB3127, with model-specific specifications and configuration choices. LB3035 specifications include colour temperature: 6000K; IP rating: IP65; dimensions: Ø160x63mm. Compare the MUSK range by power, colour temperature, protection rating and dimensions using the technical table below. Open an individual model to explore its available finishes and optics, select a listed order code and prepare a specification sheet where configuration data is available. Keep the chosen model reference with your project schedule so the lighting and installation teams can coordinate the same selection. For additional drawings, photometry or project-specific requirements, contact the LUMIBRIGHT specification team with your model code.
Model specifications
| Article | Wattage | CCT | IP | Dimensions | Cut-out |
|---|---|---|---|---|---|

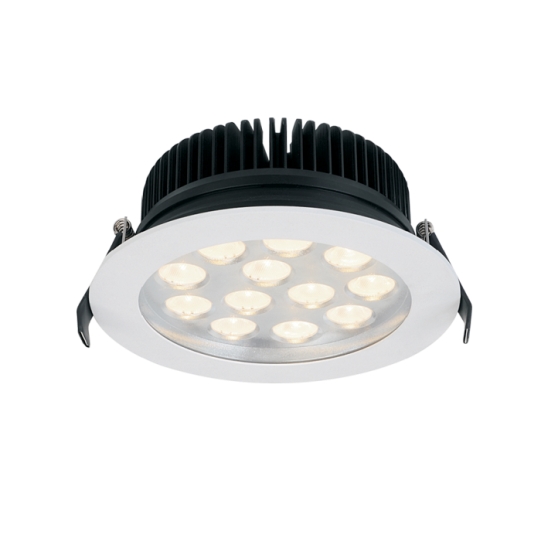

| LB3035 | WattageNot published | CCT6000K | IPIP65 | DimensionsØ160x63mm | Cut-outØ150mm |

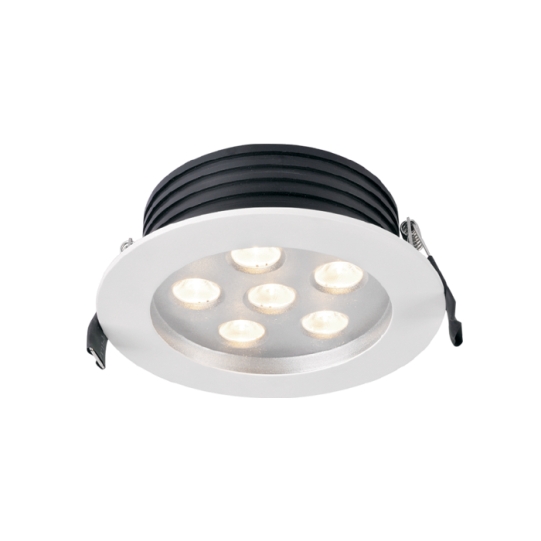

| LB3037 | WattageNot published | CCT4000K | IPIP65 | DimensionsØ150x53mm | Cut-outØ140mm |

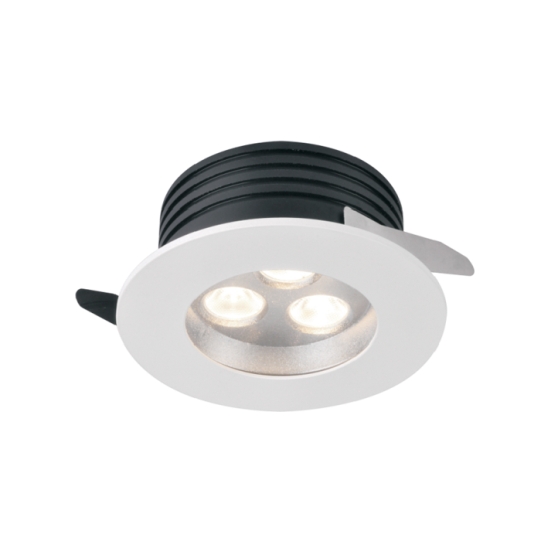

| LB3127 | WattageNot published | CCTRGB | IPIP65 | DimensionsØ100x63mm | Cut-outØ90mm |

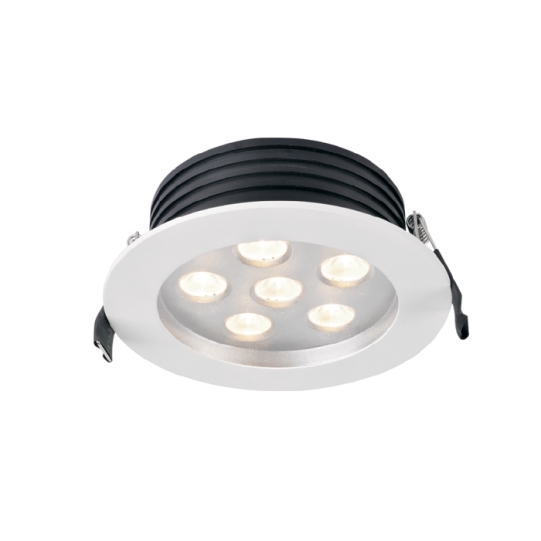

| LB3128 | WattageNot published | CCTRGB | IPIP65 | DimensionsØ128x63mm | Cut-outØ120mm |
Technical Data
Full Specification
| Dimensions | Ø160x63mm · Ø150x53mm · Ø100x63mm · Ø128x63mm |
|---|---|
| Cut-out | Ø150mm · Ø140mm · Ø90mm · Ø120mm |
| Power | Not published — technical review required |
| Lumen output | Not published — technical review required |
| Efficacy | Not published — technical review required |
| Optics / beam angle | 10° · 15° · 20° · 40° +5 more |
| Colour temperature | 2700K · 3000K · 4000K · 5000K +6 more |
| CRI Ra | 80 · No CRI |
| R9 | Not published — technical review required |
| TM-30 Rf / Rg | Not published — technical review required |
| UGR | Not published — technical review required |
| IP rating | IP65 · IP20 |
| IK rating | Not published — technical review required |
| Ambient temperature (Ta) | Not published — technical review required |
| Driver | Not published — technical review required |
| Dimming / control | Not published — technical review required |
| Input voltage | 3VDC · constant-current · 24VDC |
| Light source | Not published — technical review required |
| Material | Not published — technical review required |
| Finish | white-sand · White · black-sand · White With Sand +4 more |
| Mounting / installation | Not published — technical review required |
| Net weight | Not published — technical review required |
| Certification | Not published — technical review required |
| Lifetime | Not published — technical review required |
| Warranty | Not published — technical review required |
| Lead time | Not published — technical review required |
8 of 26 specification rows published from the 2026 master data. Values vary by model; missing test data is not estimated. Select an exact model for approval.
Configuration
Select Specification
Select attributes to narrow down variants
Product Lines
4 Products
Dimensions
Technical Drawing
Drawing and sizes shown for model LB3035. This family has 4 models with different dimensions — select a model above, or open its row in the variant table, for its own drawing.
Size — model LB3035
Ø160x63mm
Cut-Out
Ø150mm
Specifications
At a Glance
9 options
Beam: 8°, 10°, 12°, 15°, 20°, 25°, 30°, 40°, 60°
5 CCT
2700K, 3000K, 4000K, 5000K, 6000K
AMBER / BLUE / GREEN / RED / RGB
Colour Options
CRI 80
Colour Rendering
IP20 / IP65
Protection Rating
6 finishes
Body Finish Options
4 sizes
Ø100x63mm, Ø128x63mm, Ø150x53mm, Ø160x63mm
4 cut-outs
Ø120mm, Ø140mm, Ø150mm, Ø90mm
Configure your product
LB3035
Order code
Listed configurationLB3035.C.860.PAW.10
65 listed configurations · availability requires confirmation
