Lumi Indoor
NAOS
Application inspiration · not a project reference
NAOS is part of Lumi Indoor. Coordinate the selected article’s dimensions, installation details and configuration with the project specification; these details can vary between models in the same family.
Spot Light
NAOS

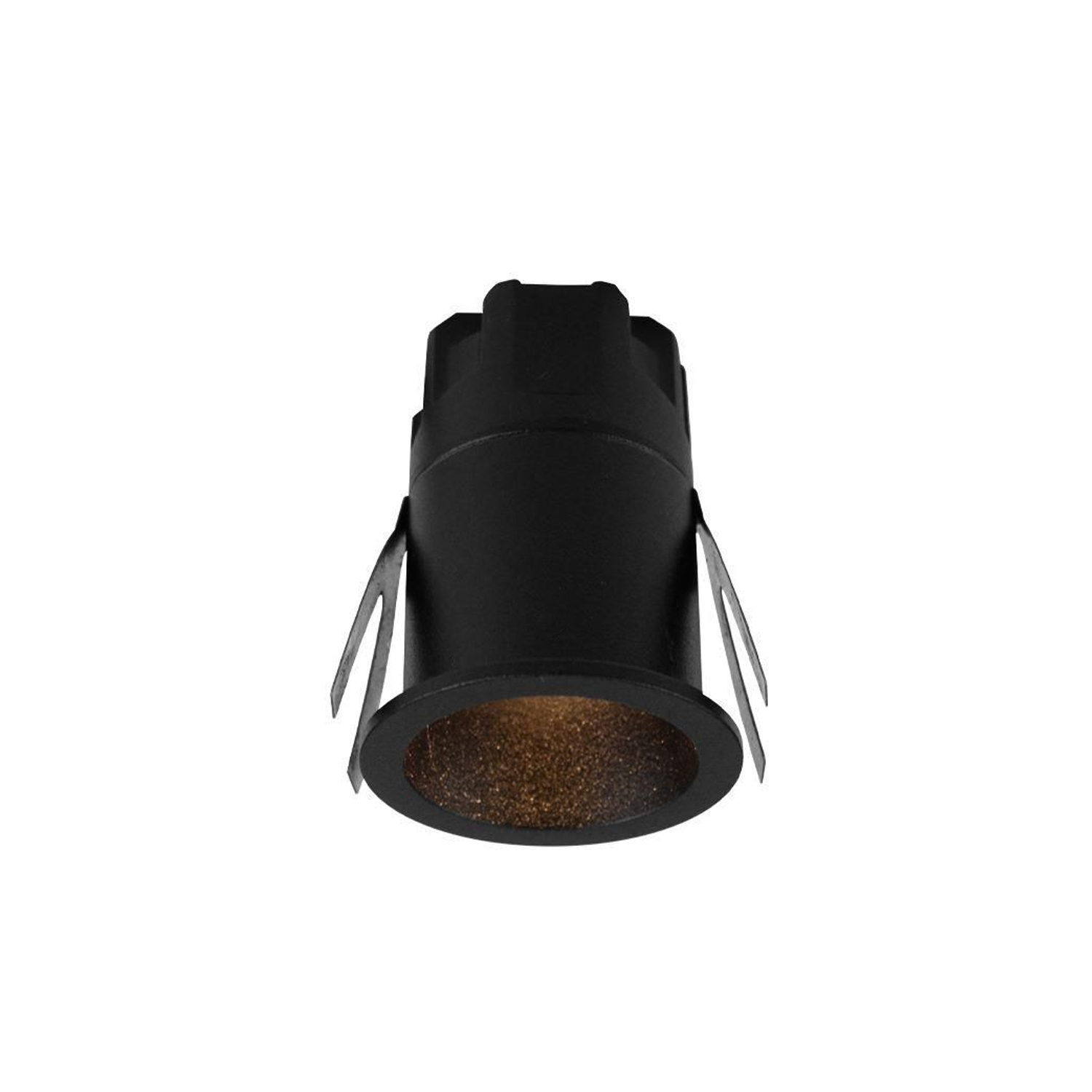

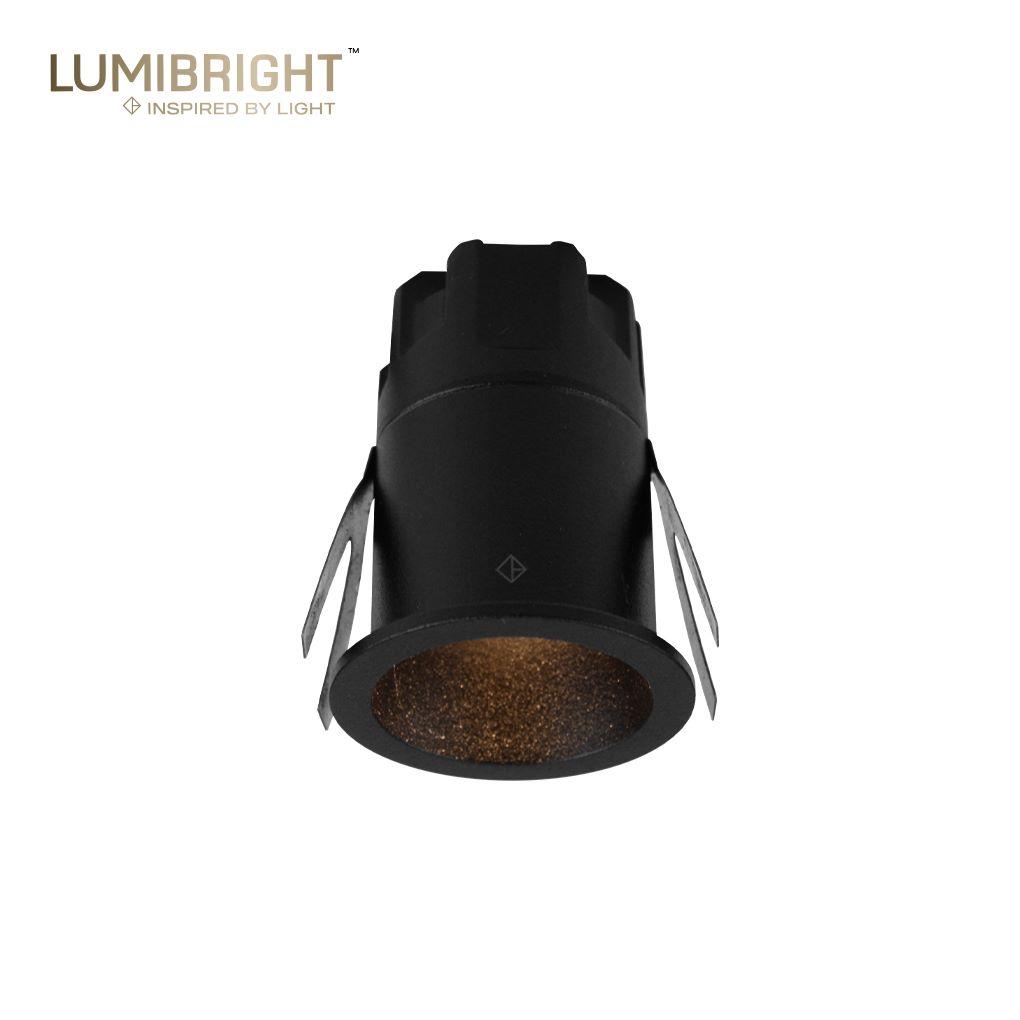

NAOS is a spot light family within the LUMIBRIGHT Lumi Indoor collection. Explore 2 models, including LBE2097, LBE2098, with model-specific specifications and configuration choices. LBE2097 specifications include power: 3W; colour temperature: 2700K/3000K/4000K/6000K; IP rating: IP20; dimensions: Ø49.5*H33mm. Compare the NAOS range by power, colour temperature, protection rating and dimensions using the technical table below. Open an individual model to explore its available finishes and optics, select a listed order code and prepare a specification sheet where configuration data is available. Keep the chosen model reference with your project schedule so the lighting and installation teams can coordinate the same selection. For additional drawings, photometry or project-specific requirements, contact the LUMIBRIGHT specification team with your model code.
Model specifications
| Article | Wattage | CCT | IP | Dimensions | Cut-out |
|---|---|---|---|---|---|
| LBE2097 | Wattage3W | CCT2700K/3000K/4000K/6000K | IPIP20 | DimensionsØ49.5*H33mm | Cut-outØ45mm |
| LBE2098 | Wattage3W | CCT2700K/3000K/4000K/6000K | IPIP20 | DimensionsØ40.5*H53mm | Cut-outØ35mm |
Product View
Configuration
Select Specification
Select attributes to narrow down variants
All Variants (26)
| Code | Power | CCT | Beam | CRI | Finish | Size | |
|---|---|---|---|---|---|---|---|
| LBE2098 | 3W | 2700K, 3000K, 4000K, 6000K | 12° | 80 | black-sand | Ø40.5*H53mm | |
| LBE2098 | 3W | 2700K, 3000K, 4000K, 6000K | 12° | 80 | black-sand | Ø40.5*H53mm | |
| LBE2098 | 3W | 2700K, 3000K, 4000K, 6000K | 12° | 80 | black-sand | Ø40.5*H53mm | |
| LBE2098 | 3W | 2700K, 3000K, 4000K, 6000K | 12° | 80 | white-sand | Ø40.5*H53mm | |
| LBE2098 | 3W | 2700K, 3000K, 4000K, 6000K | 12° | 80 | white-sand | Ø40.5*H53mm | |
| LBE2098 | 3W | 2700K, 3000K, 4000K, 6000K | 12° | 80 | white-sand | Ø40.5*H53mm | |
| LBE2098 | 3W | 2700K, 3000K, 4000K, 6000K | 12° | 80 | black-sand | Ø40.5*H53mm | |
| LBE2098 | 3W | 2700K, 3000K, 4000K, 6000K | 12° | 80 | black-sand | Ø40.5*H53mm | |
| LBE2098 | 3W | 2700K, 3000K, 4000K, 6000K | 12° | 80 | black-sand | Ø40.5*H53mm | |
| LBE2098 | 3W | 2700K, 3000K, 4000K, 6000K | 12° | 80 | white-sand | Ø40.5*H53mm | |
| LBE2098 | 3W | 2700K, 3000K, 4000K, 6000K | 12° | 80 | white-sand | Ø40.5*H53mm | |
| LBE2098 | 3W | 2700K, 3000K, 4000K, 6000K | 12° | 80 | white-sand | Ø40.5*H53mm | |
| LBE2098 | 3W | 2700K, 3000K, 4000K, 6000K | 12° | 80 | black-sand | Ø40.5*H53mm | |
| LBE2098 | 3W | 2700K, 3000K, 4000K, 6000K | 12° | 80 | black-sand | Ø40.5*H53mm | |
| LBE2098 | 3W | 2700K, 3000K, 4000K, 6000K | 12° | 80 | black-sand | Ø40.5*H53mm | |
| LBE2098 | 3W | 2700K, 3000K, 4000K, 6000K | 12° | 80 | white-sand | Ø40.5*H53mm | |
| LBE2098 | 3W | 2700K, 3000K, 4000K, 6000K | 12° | 80 | white-sand | Ø40.5*H53mm | |
| LBE2098 | 3W | 2700K, 3000K, 4000K, 6000K | 12° | 80 | white-sand | Ø40.5*H53mm | |
| LBE2098 | 3W | 2700K, 3000K, 4000K, 6000K | 12° | 80 | black-sand | Ø40.5*H53mm | |
| LBE2098 | 3W | 2700K, 3000K, 4000K, 6000K | 12° | 80 | black-sand | Ø40.5*H53mm | |
| LBE2098 | 3W | 2700K, 3000K, 4000K, 6000K | 12° | 80 | black-sand | Ø40.5*H53mm | |
| LBE2098 | 3W | 2700K, 3000K, 4000K, 6000K | 12° | 80 | white-sand | Ø40.5*H53mm | |
| LBE2098 | 3W | 2700K, 3000K, 4000K, 6000K | 12° | 80 | white-sand | Ø40.5*H53mm | |
| LBE2098 | 3W | 2700K, 3000K, 4000K, 6000K | 12° | 80 | white-sand | Ø40.5*H53mm | |
| LBE2098 | 3W | 2700K, 3000K, 4000K, 6000K | 12° | 80 | White | Ø40.5*H53mm | |
| LBE2098 | 3W | 2700K, 3000K, 4000K, 6000K | 12° | 80 | White | Ø40.5*H53mm |
Dimensions
Technical Drawing
Drawing and sizes shown for model LBE2098.
Size — model LBE2098
Ø40.5*H53mm
Cut-Out
Ø35mm
Technical Data
Full Specification
| Dimensions | Ø40.5*H53mm |
|---|---|
| Cut-out | Ø35mm |
| Power | 3W |
| Lumen output | Not published — technical review required |
| Efficacy | Not published — technical review required |
| Optics / beam angle | 12° · 24° · 36° |
| Colour temperature | 2700K · 3000K · 4000K · 5000K +1 more |
| CRI Ra | 80 |
| R9 | Not published — technical review required |
| TM-30 Rf / Rg | Not published — technical review required |
| UGR | Not published — technical review required |
| IP rating | IP20 |
| IK rating | Not published — technical review required |
| Ambient temperature (Ta) | Not published — technical review required |
| Driver | Not published — technical review required |
| Dimming / control | Not published — technical review required |
| Input voltage | 220-240VAC |
| Light source | Not published — technical review required |
| Material | Not published — technical review required |
| Finish | white-sand · White · black-sand · White With Sand +1 more |
| Mounting / installation | Not published — technical review required |
| Net weight | Not published — technical review required |
| Certification | Not published — technical review required |
| Lifetime | Not published — technical review required |
| Warranty | Not published — technical review required |
| Lead time | Not published — technical review required |
9 of 26 specification rows published from the 2026 master data. Values vary by model; missing test data is not estimated. Select an exact model for approval.
Specifications
At a Glance
3W
Power
12°
Beam Angle
4 CCT
2700K, 3000K, 4000K, 6000K
CRI 80
Colour Rendering
IP20
Protection Rating
3 finishes
Body Finish
Ø40.5*H53mm
Dimensions
Ø35mm
Cut-Out
Configure your product
LBE2098
Order code
Listed configurationLBE2098.N.840.PAW.24.DR
24 listed configurations · availability requires confirmation
