Lumi Indoor

NOZZLE

Application inspiration · not a project reference

NOZZLE is part of Lumi Indoor. Coordinate the selected article’s dimensions, installation details and configuration with the project specification; these details can vary between models in the same family.

Spot Light

12 variants·luminaire·ceiling recessed

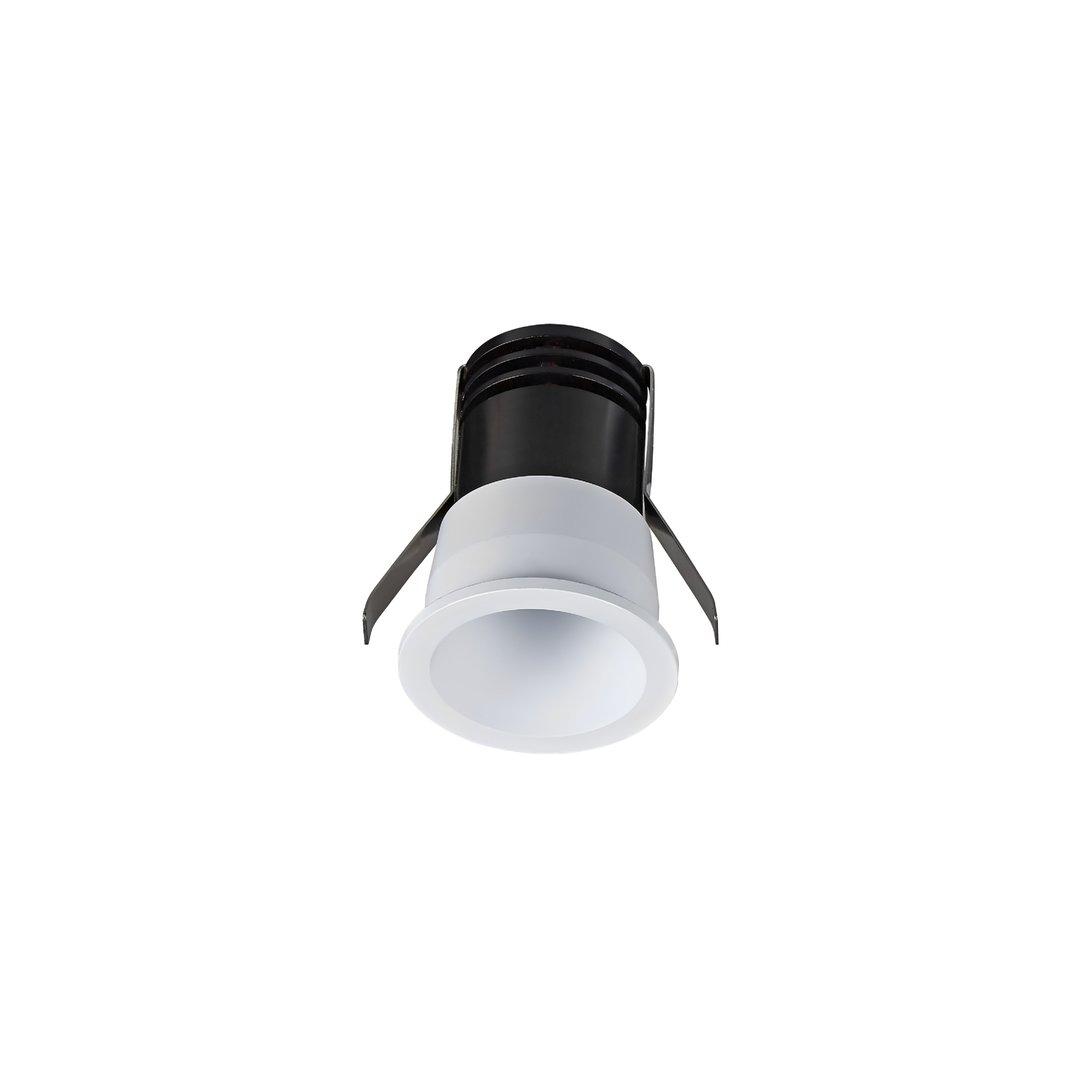

NOZZLE is a spot light family within the LUMIBRIGHT Lumi Indoor collection. Explore 1 models, including LBE2128, with model-specific specifications and configuration choices. LBE2128 specifications include power: 5W; colour temperature: 2700K/3000K/4000K/5000K/6000K; IP rating: IP20; dimensions: 46*60mm. Compare the NOZZLE range by power, colour temperature, protection rating and dimensions using the technical table below. Open an individual model to explore its available finishes and optics, select a listed order code and prepare a specification sheet where configuration data is available. Keep the chosen model reference with your project schedule so the lighting and installation teams can coordinate the same selection. For additional drawings, photometry or project-specific requirements, contact the LUMIBRIGHT specification team with your model code.

Model specifications

Article	Wattage	CCT	IP	Dimensions	Cut-out
LBE2128	Wattage5W	CCT2700K/3000K/4000K/5000K/6000K	IPIP20	Dimensions46*60mm	Cut-out38MM

Product View

Configuration

Select Specification

Power

Beam Angle

CCT

Finish

IP Rating

Select attributes to narrow down variants

All Variants (12)

Code	Power	CCT	Beam	CRI	Finish	Size
LBE2128	5W	2700K, 3000K, 4000K, 5000K, 6000K	20°	80	White	46*60mm
LBE2128	5W	2700K, 3000K, 4000K, 5000K, 6000K	20°	80	White	46*60mm
LBE2128	5W	2700K, 3000K, 4000K, 5000K, 6000K	20°	80	White	46*60mm
LBE2128	5W	2700K, 3000K, 4000K, 5000K, 6000K	20°	80	White	46*60mm
LBE2128	5W	2700K, 3000K, 4000K, 5000K, 6000K	20°	80	White	46*60mm
LBE2128	5W	2700K, 3000K, 4000K, 5000K, 6000K	20°	80	White	46*60mm
LBE2128	5W	2700K, 3000K, 4000K, 5000K, 6000K	20°	80	White	46*60mm
LBE2128	5W	2700K, 3000K, 4000K, 5000K, 6000K	20°	80	White	46*60mm
LBE2128	5W	2700K, 3000K, 4000K, 5000K, 6000K	20°	80	White	46*60mm
LBE2128	5W	2700K, 3000K, 4000K, 5000K, 6000K	20°	80	White	46*60mm
LBE2128	5W	2700K, 3000K, 4000K, 5000K, 6000K	20°	80	White	46*60mm
LBE2128	5W	2700K, 3000K, 4000K, 5000K, 6000K	20°	80	White	46*60mm

Dimensions

Technical Drawing

Drawing and sizes shown for model LBE2128.

Size — model LBE2128

46*60mm

Cut-Out

38MM

Technical Data

Full Specification

Dimensions	46*60mm
Cut-out	38MM
Power	5W
Lumen output	380lm
Efficacy	Not published — technical review required
Optics / beam angle	15° · 20° · 24°
Colour temperature	2700K · 3000K · 4000K · 5000K +1 more
CRI Ra	80
R9	Not published — technical review required
TM-30 Rf / Rg	Not published — technical review required
UGR	Not published — technical review required
IP rating	IP20
IK rating	Not published — technical review required
Ambient temperature (Ta)	Not published — technical review required
Driver	Not published — technical review required
Dimming / control	Not published — technical review required
Input voltage	220-240VAC
Light source	Not published — technical review required
Material	Aluminium
Finish	White
Mounting / installation	Not published — technical review required
Net weight	Not published — technical review required
Certification	Not published — technical review required
Lifetime	Not published — technical review required
Warranty	Not published — technical review required
Lead time	Not published — technical review required

11 of 26 specification rows published from the 2026 master data. Values vary by model; missing test data is not estimated. Select an exact model for approval.
