Lumi Indoor
POLESCADE
Application inspiration · not a project reference
POLESCADE is part of Lumi Indoor. Coordinate the selected article’s dimensions, installation details and configuration with the project specification; these details can vary between models in the same family.
Spot Light
POLESCADE

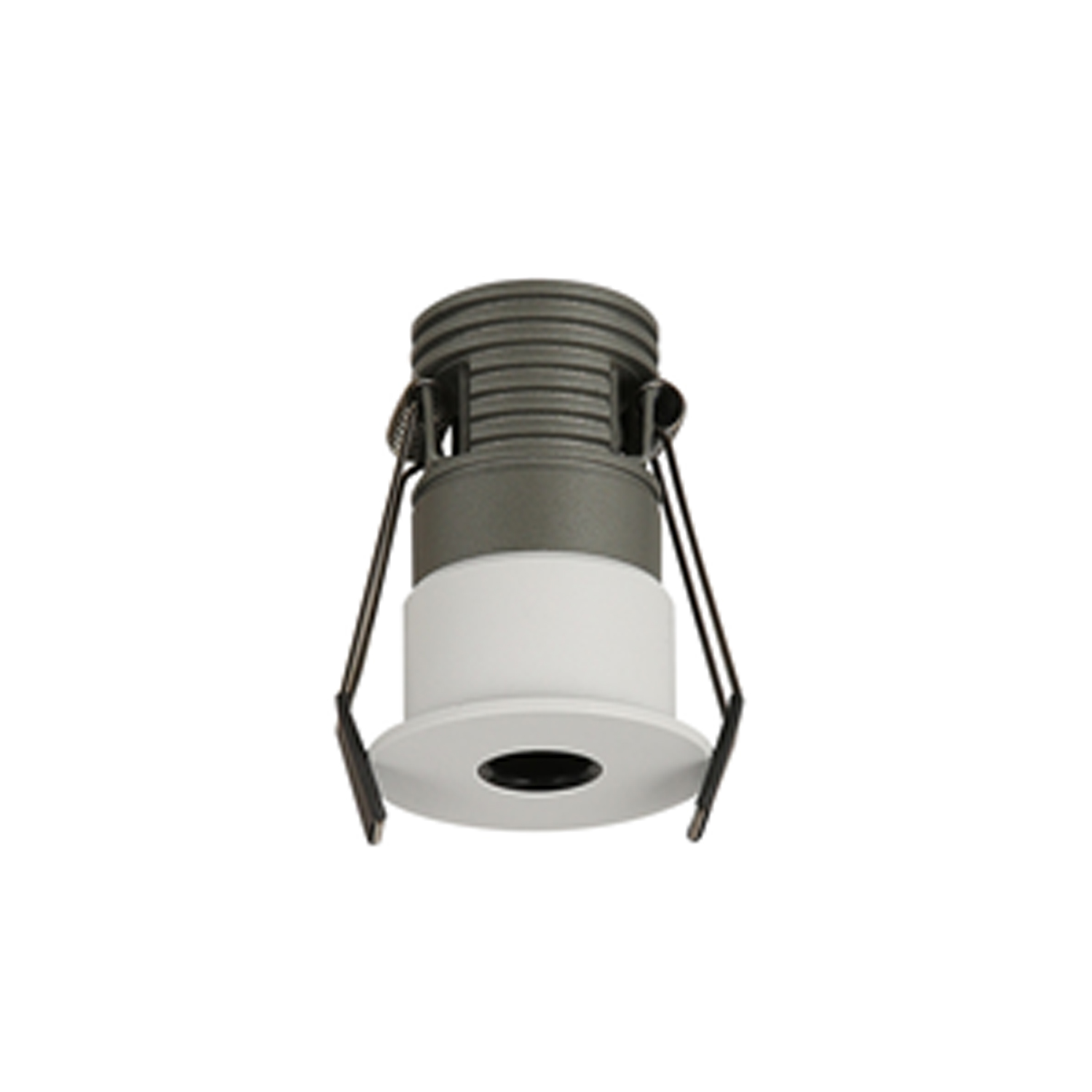

POLESCADE is a spot light family within the LUMIBRIGHT Lumi Indoor collection. The current catalogue groups 3 article codes under this family, including LBE2185, LBE2186, LBE2187. For LBE2185, published values include power: 3W; colour temperature: 3000K/4000K/6000K; IP rating: IP20; dimensions: Φ42*H57mm. Each article represents its own physical model; dimensions and electrical or optical options must be checked against that exact code. Compare the POLESCADE articles using the specification table and individual model pages before adding them to a lighting schedule. Wattage, colour temperature, protection rating and installation dimensions are catalogue values, not a guarantee that every combination can be ordered. Where a value is not published, request the relevant model documentation rather than assuming it matches another article. Confirm the selected configuration, driver requirements, installation detail and project documentation with the specification team before ordering.
Model specifications
| Article | Wattage | CCT | IP | Dimensions | Cut-out |
|---|---|---|---|---|---|
| LBE2185 | Wattage3W | CCT3000K/4000K/6000K | IPIP20 | DimensionsΦ42*H57mm | Cut-outΦ35mm |
| LBE2186 | Wattage7W | CCT3000K/4000K/6000K | IPIP20 | DimensionsΦ64*H58mm | Cut-outΦ55mm |

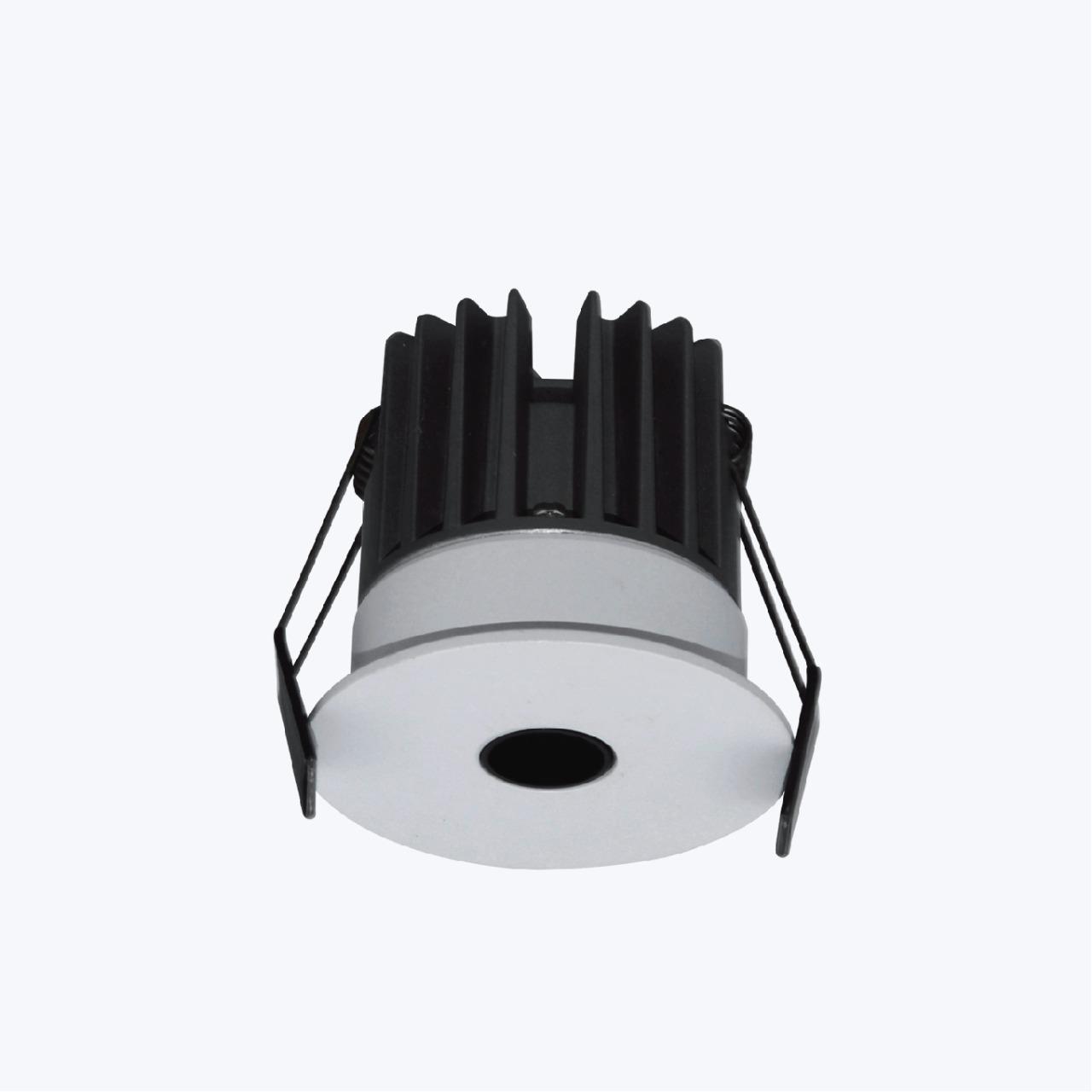

| LBE2187 | Wattage12W | CCT3000K/4000K/6000K | IPIP20 | DimensionsΦ75*H75mm | Cut-outΦ65mm |
Technical Data
Full Specification
| Dimensions | Φ64*H58mm · Φ42*H57mm · Φ75*H75mm |
|---|---|
| Cut-out | Φ55mm · Φ35mm · Φ65mm |
| Power | 7W · 3W · 12W |
| Lumen output | 93lm · 361lm · 499lm |
| Efficacy | Not published — technical review required |
| Optics / beam angle | 24° · 36° · 22° |
| Colour temperature | 3000K · 4000K · 5000K · 6000K |
| CRI Ra | 80 · 90 |
| R9 | Not published — technical review required |
| TM-30 Rf / Rg | Not published — technical review required |
| UGR | Not published — technical review required |
| IP rating | IP20 |
| IK rating | Not published — technical review required |
| Ambient temperature (Ta) | Not published — technical review required |
| Driver | Not published — technical review required |
| Dimming / control | Not published — technical review required |
| Input voltage | 220-240VAC |
| Light source | Not published — technical review required |
| Material | Aluminium |
| Finish | white-sand · White · black-sand · WHITE WITH SAND +1 more |
| Mounting / installation | Not published — technical review required |
| Net weight | Not published — technical review required |
| Certification | Not published — technical review required |
| Lifetime | Not published — technical review required |
| Warranty | Not published — technical review required |
| Lead time | Not published — technical review required |
11 of 26 specification rows published from the 2026 master data. Values vary by model; missing test data is not estimated. Select an exact model for approval.
Configuration
Select Specification
Select attributes to narrow down variants
Dimensions
Technical Drawing
Drawing and sizes shown for model LBE2186. This family has 3 models with different dimensions — select a model above, or open its row in the variant table, for its own drawing.
Size — model LBE2186
Φ64*H58mm
Cut-Out
Φ55mm
Specifications
At a Glance
3–12W
Power Range
2 options
Beam: 22°, 24°
3 CCT
3000K, 4000K, 6000K
CRI 80
Colour Rendering
IP20
Protection Rating
3 finishes
Body Finish Options
3 sizes
Φ42*H57mm, Φ64*H58mm, Φ75*H75mm
3 cut-outs
Φ35mm, Φ55mm, Φ65mm
Configure your product

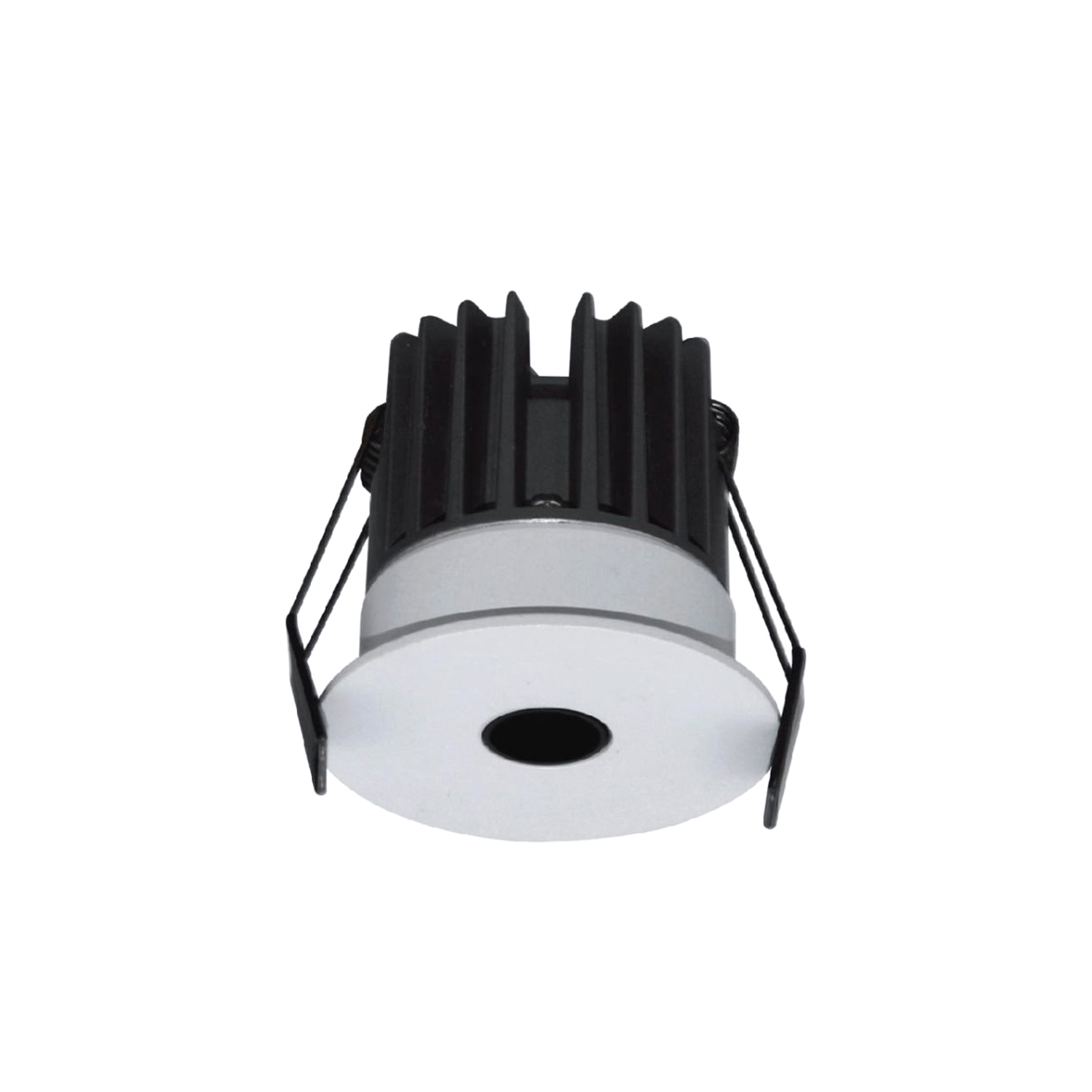

LBE2186
Order code
Listed configurationLBE2186.W.930.PAW.36.DR
13 listed configurations · availability requires confirmation
