Lumi Indoor

PUCK

Application inspiration · not a project reference

PUCK is part of Lumi Indoor. Coordinate the selected article’s dimensions, installation details and configuration with the project specification; these details can vary between models in the same family.

Spot Light

13 variants·luminaire·ceiling recessed

PUCK is a spot light family within the LUMIBRIGHT Lumi Indoor collection. Explore 3 models, including LB2302, LB2303, LBT2058, with model-specific specifications and configuration choices. LB2302 specifications include power: 4W; colour temperature: 5000K; IP rating: IP44; dimensions: Ø75x22mm. Compare the PUCK range by power, colour temperature, protection rating and dimensions using the technical table below. Open an individual model to explore its available finishes and optics, select a listed order code and prepare a specification sheet where configuration data is available. Keep the chosen model reference with your project schedule so the lighting and installation teams can coordinate the same selection. For additional drawings, photometry or project-specific requirements, contact the LUMIBRIGHT specification team with your model code.

Model specifications

Article	Wattage	CCT	IP	Dimensions	Cut-out
LB2302	Wattage4W	CCT5000K	IPIP44	DimensionsØ75x22mm	Cut-outØ61mm

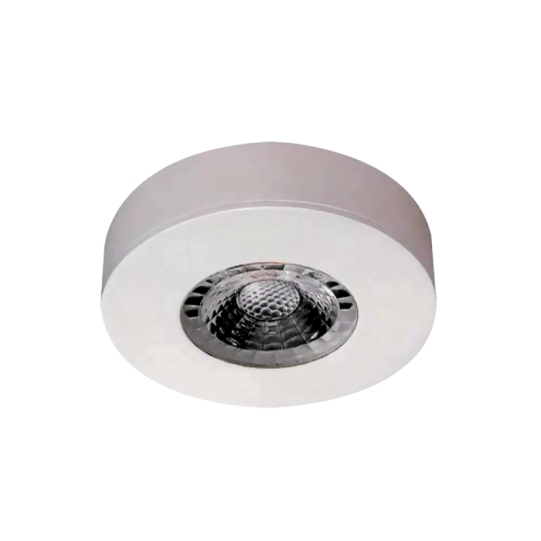

LB2303	Wattage4W	CCT5000K	IPIP44	DimensionsØ75x25mm	Cut-outØ61mm
LBT2058	Wattage1.5W	CCT2700K	IPIP44	DimensionsØ75x22mm	Cut-outØ61mm

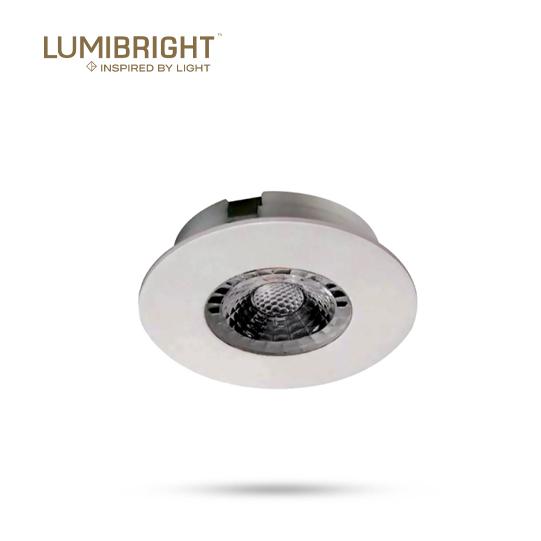

Product View

Configuration

Select Specification

Power

Beam Angle

CCT

Finish

IP Rating

Select attributes to narrow down variants

All Variants (13)

Code	Power	CCT	Beam	CRI	Finish	Size
LB2302	4W	2700K, 3000K, 4000K, 5000K	40°	80	black-sand	Ø75x22mm
LB2302	4W	2700K, 3000K, 4000K, 5000K	40°	80	white-sand	Ø75x22mm
LB2302	4W	2700K, 3000K, 4000K, 5000K	40°	80	white-sand	Ø75x22mm
LB2302	4W	3000K, 4000K, 5000K	40°	80	black-sand	Ø75x22mm
LB2302	4W	3000K, 4000K, 5000K	40°	80	black-sand	Ø75x22mm
LB2302	4W	3000K, 4000K, 5000K	40°	80	white-sand	Ø75x22mm
LB2302	4W	3000K, 4000K, 5000K	24°	80	White	Ø75x22mm
LB2302	4W	3000K, 4000K, 5000K	40°	80	black-sand	Ø75x22mm
LB2302	4W	3000K, 4000K, 5000K	40°	80	white-sand	Ø75x22mm
LB2302	4W	3000K, 4000K, 5000K	40°	80	black-sand	Ø75x22mm
LB2302	4W	3000K, 4000K, 5000K	40°	80	white-sand	Ø75x22mm
LB2302	4W	3000K, 4000K, 5000K	24°	80	White	Ø75x22mm
LB2302	—	2700K, 3000K, 4000K, 5000K	24°	—	White	—

Dimensions

Technical Drawing

Drawing and sizes shown for model LB2302.

Size — model LB2302

Ø75x22mm

Cut-Out

Ø61mm

Technical Data

Full Specification

Dimensions	Ø75x22mm
Cut-out	Ø61mm
Power	4W
Lumen output	Not published — technical review required
Efficacy	Not published — technical review required
Optics / beam angle	24° · 40°
Colour temperature	2700K · 3000K · 4000K · 5000K
CRI Ra	80 · 90
R9	Not published — technical review required
TM-30 Rf / Rg	Not published — technical review required
UGR	Not published — technical review required
IP rating	IP44
IK rating	Not published — technical review required
Ambient temperature (Ta)	Not published — technical review required
Driver	Not published — technical review required
Dimming / control	Not published — technical review required
Input voltage	9VDC
Light source	Not published — technical review required
Material	Not published — technical review required
Finish	black-sand · White · white-sand · Black With Sand +1 more
Mounting / installation	Not published — technical review required
Net weight	Not published — technical review required
Certification	Not published — technical review required
Lifetime	Not published — technical review required
Warranty	Not published — technical review required
Lead time	Not published — technical review required

9 of 26 specification rows published from the 2026 master data. Values vary by model; missing test data is not estimated. Select an exact model for approval.
