Lumi Indoor
QUAD
Application inspiration · not a project reference
QUAD is part of Lumi Indoor. Coordinate the selected article’s dimensions, installation details and configuration with the project specification; these details can vary between models in the same family.
Down Light
QUAD
QUAD is a down light family within the LUMIBRIGHT Lumi Indoor collection. Explore 3 models, including LBE3026, LBE3027, LBE3028, with model-specific specifications and configuration choices. LBE3026 specifications include power: 12W; colour temperature: 3000K/4000K/6000K; IP rating: IP20; dimensions: φ83*38mm. Compare the QUAD range by power, colour temperature, protection rating and dimensions using the technical table below. Open an individual model to explore its available finishes and optics, select a listed order code and prepare a specification sheet where configuration data is available. Keep the chosen model reference with your project schedule so the lighting and installation teams can coordinate the same selection. For additional drawings, photometry or project-specific requirements, contact the LUMIBRIGHT specification team with your model code.
Model specifications
| Article | Wattage | CCT | IP | Dimensions | Cut-out |
|---|---|---|---|---|---|
| LBE3026 | Wattage12W | CCT3000K/4000K/6000K | IPIP20 | Dimensionsφ83*38mm | Cut-outφ75mm |
| LBE3027 | Wattage18W | CCT3000K/4000K/6000K | IPIP20 | Dimensionsφ104*42mm | Cut-outφ95mm |

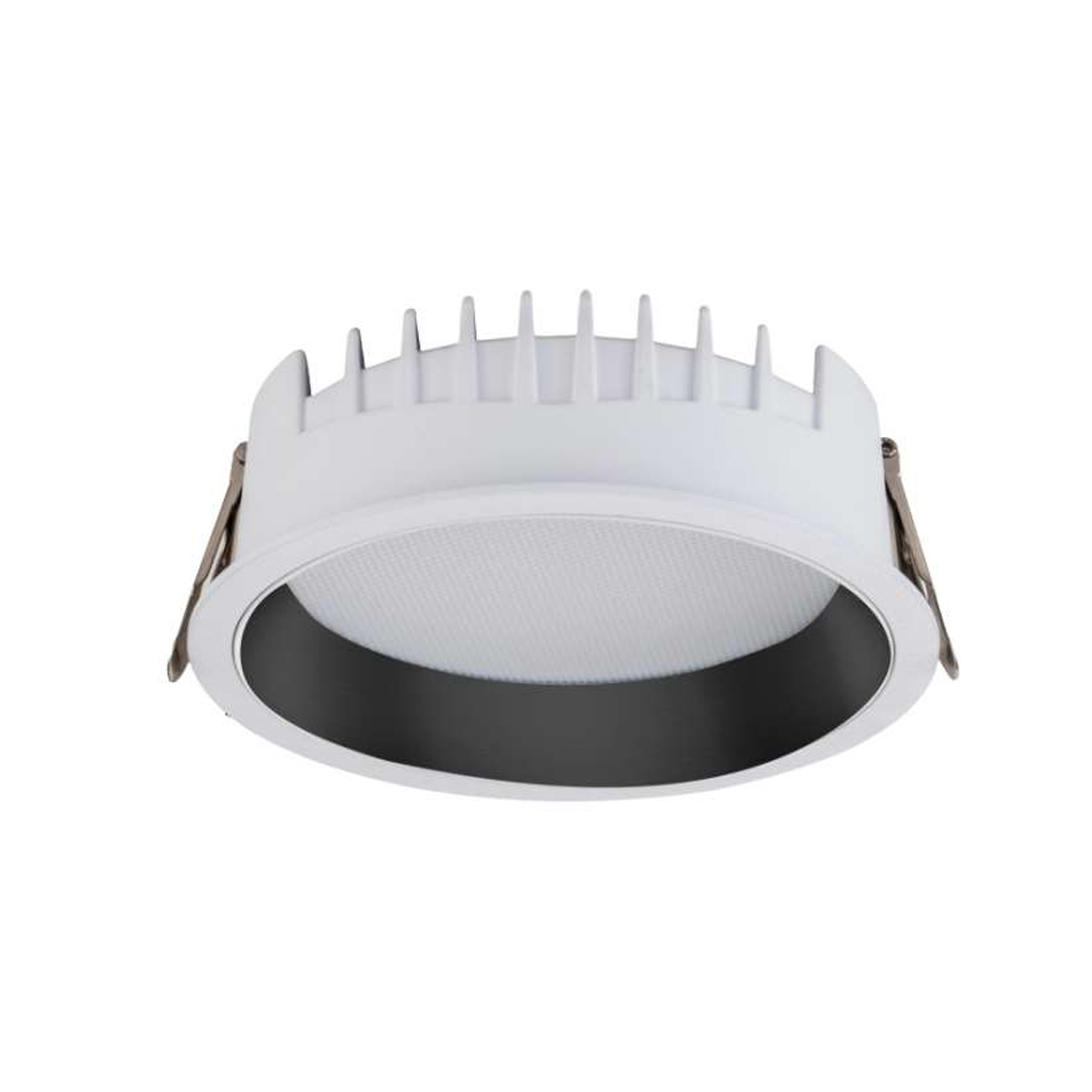

| LBE3028 | Wattage24W | CCT3000K/4000K/6000K | IPIP20 | Dimensionsφ135*44mm | Cut-outφ120mm |
Technical Data
Full Specification
| Dimensions | φ104*42mm · φ83*38mm · φ135*44mm |
|---|---|
| Cut-out | φ95mm · φ75mm · φ120mm |
| Power | 18W · 12W · 24W |
| Lumen output | 1019lm · 1771lm · 2675lm |
| Efficacy | Not published — technical review required |
| Optics / beam angle | 60° · 110° |
| Colour temperature | 3000K · 4000K · 5000K · 6000K |
| CRI Ra | 80 |
| R9 | Not published — technical review required |
| TM-30 Rf / Rg | Not published — technical review required |
| UGR | Not published — technical review required |
| IP rating | IP20 |
| IK rating | Not published — technical review required |
| Ambient temperature (Ta) | Not published — technical review required |
| Driver | Not published — technical review required |
| Dimming / control | Not published — technical review required |
| Input voltage | 220-240VAC |
| Light source | Not published — technical review required |
| Material | Aluminium |
| Finish | white-with-sand+matt-black · White · black-with-sand+matt-black · white-sand +3 more |
| Mounting / installation | Not published — technical review required |
| Net weight | Not published — technical review required |
| Certification | Not published — technical review required |
| Lifetime | Not published — technical review required |
| Warranty | Not published — technical review required |
| Lead time | Not published — technical review required |
11 of 26 specification rows published from the 2026 master data. Values vary by model; missing test data is not estimated. Select an exact model for approval.
Configuration
Select Specification
Select attributes to narrow down variants
Dimensions
Technical Drawing
Drawing and sizes shown for model LBE3027. This family has 3 models with different dimensions — select a model above, or open its row in the variant table, for its own drawing.
Size — model LBE3027
φ104*42mm
Cut-Out
φ95mm
Specifications
At a Glance
12–24W
Power Range
1 options
Beam: 110°
3 CCT
3000K, 4000K, 6000K
CRI 80
Colour Rendering
IP20
Protection Rating
4 finishes
Body Finish Options
3 sizes
φ104*42mm, φ135*44mm, φ83*38mm
3 cut-outs
φ120mm, φ75mm, φ95mm
Configure your product
LBE3027
Order code
Listed configurationLBE3027.W.830.PAW+PBK.110.DR
2 listed configurations · availability requires confirmation
