Lumi Indoor
RITTER
Application inspiration · not a project reference
RITTER is part of Lumi Indoor. Coordinate the selected article’s dimensions, installation details and configuration with the project specification; these details can vary between models in the same family.
Spot Light
RITTER
RITTER is a spot light family within the LUMIBRIGHT Lumi Indoor collection. Explore 4 models, including LBE2021, LBE2022, LBE2023, with model-specific specifications and configuration choices. LBE2021 specifications include power: 9W; colour temperature: 5000K; IP rating: IP20; dimensions: 99x99xH110mm. Compare the RITTER range by power, colour temperature, protection rating and dimensions using the technical table below. Open an individual model to explore its available finishes and optics, select a listed order code and prepare a specification sheet where configuration data is available. Keep the chosen model reference with your project schedule so the lighting and installation teams can coordinate the same selection. For additional drawings, photometry or project-specific requirements, contact the LUMIBRIGHT specification team with your model code.
Model specifications
| Article | Wattage | CCT | IP | Dimensions | Cut-out |
|---|---|---|---|---|---|

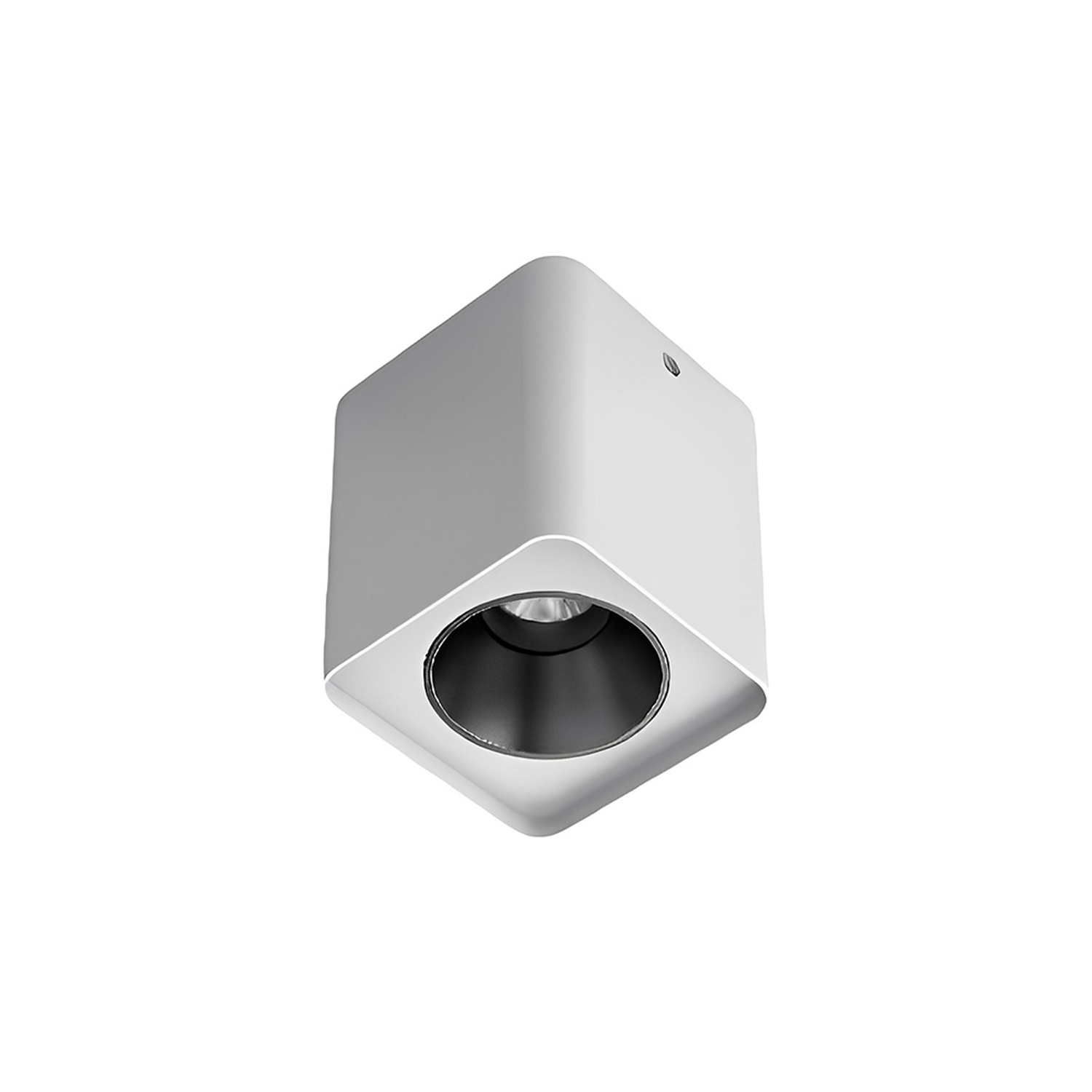

| LBE2021 | Wattage9W | CCT5000K | IPIP20 | Dimensions99x99xH110mm | Cut-outNot published |
| LBE2022 | Wattage2x9W | CCT2700K/3000K/4000K/5000K | IPIP20 | Dimensions99x198x110mm | Cut-outNot published |

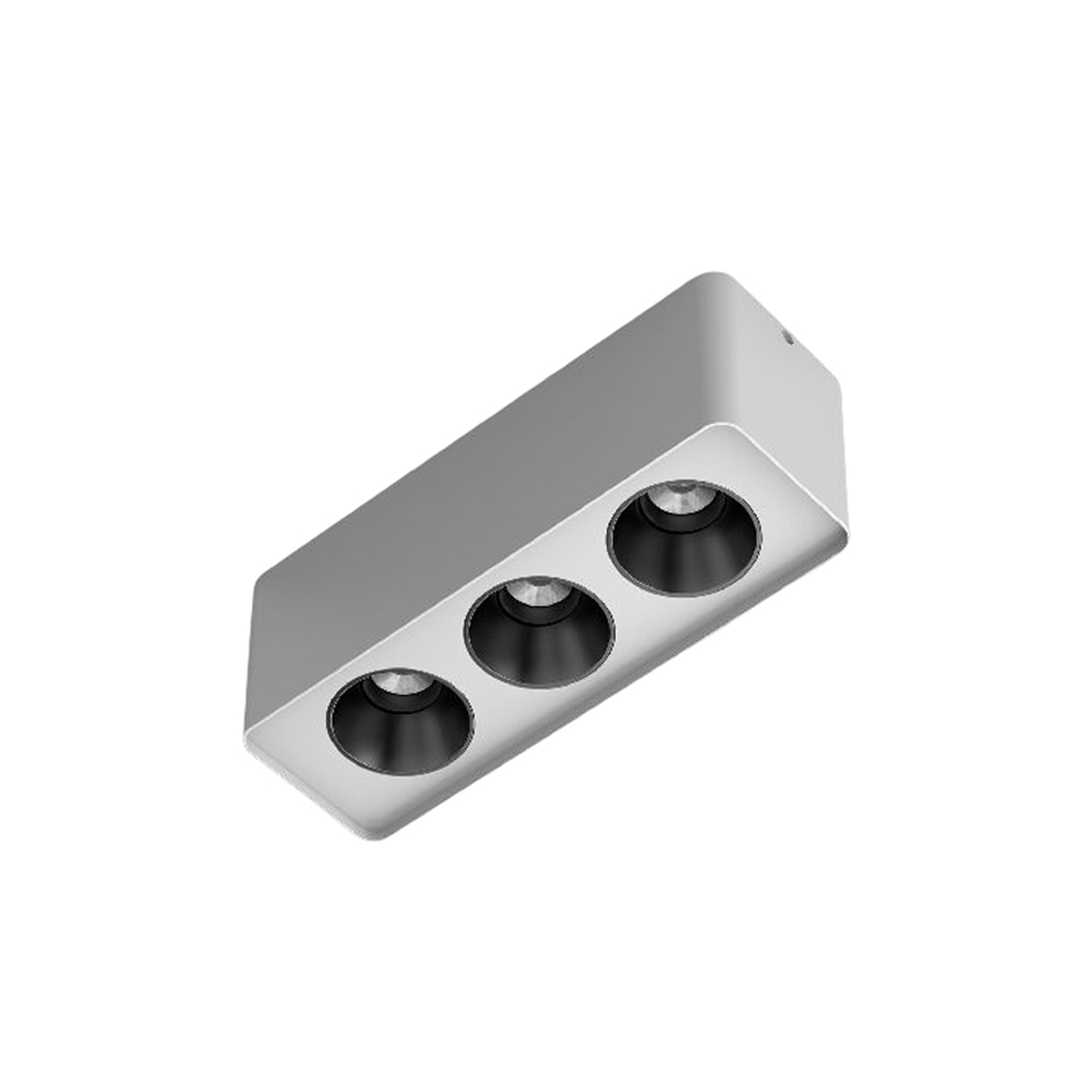

| LBE2023 | Wattage9W | CCT3000K | IPIP20 | Dimensions99x298x110mm | Cut-outNot published |

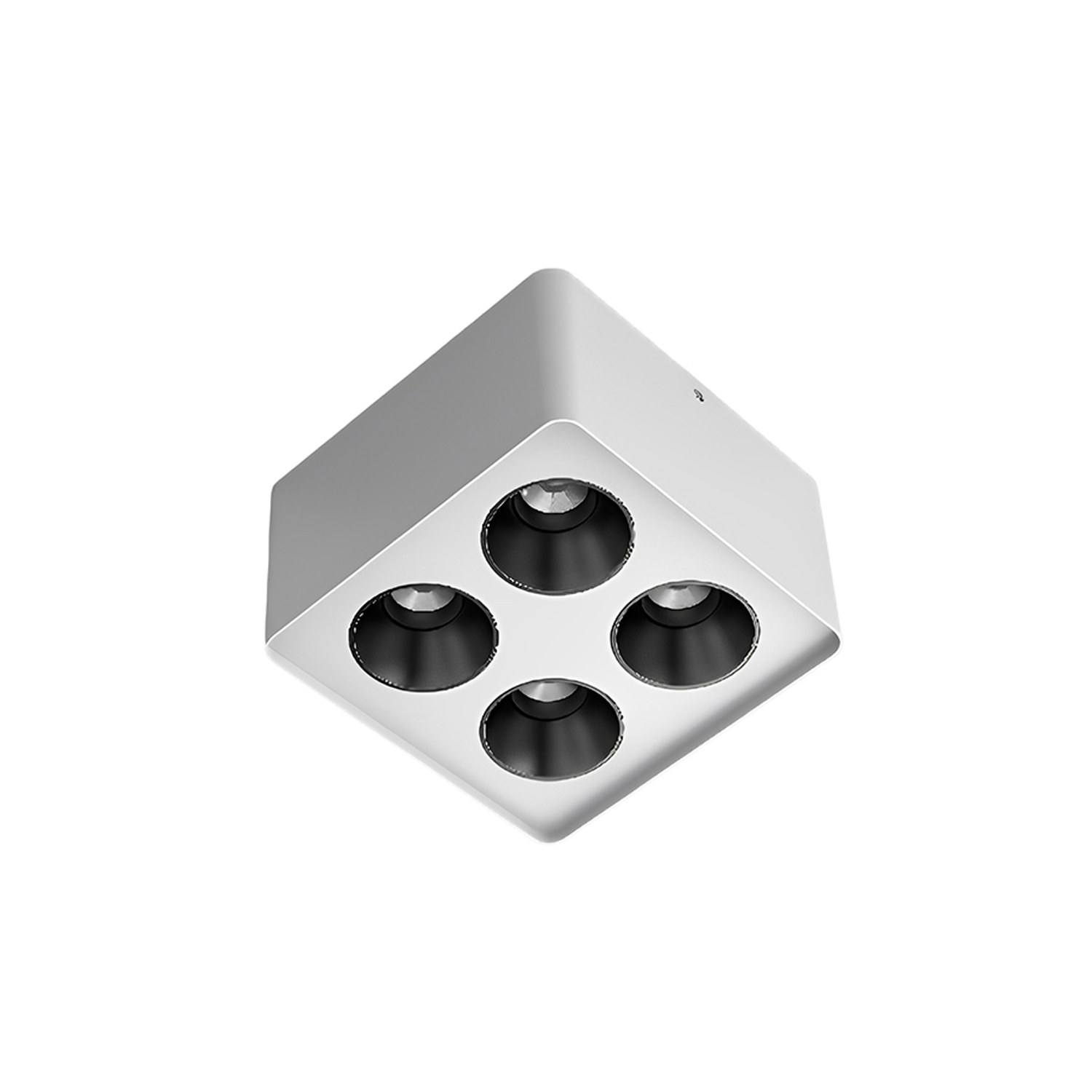

| LBE2024 | Wattage4x9W | CCT2700K/3000K/4000K/5000K | IPIP20 | Dimensions198x198x110mm | Cut-outNot published |
Technical Data
Full Specification
| Dimensions | 99x99xH110mm · 99x198x110mm · 99x298x110mm · 198x198x110mm |
|---|---|
| Cut-out | Not published — technical review required |
| Power | 9W · 2x9W · 3x9W · 4x9W |
| Lumen output | 430lm · 860lm · 1290lm · 1720lm |
| Efficacy | Not published — technical review required |
| Optics / beam angle | 24° · 36° |
| Colour temperature | 2700K · 3000K · 4000K · 5000K |
| CRI Ra | 90 · >90 |
| R9 | Not published — technical review required |
| TM-30 Rf / Rg | Not published — technical review required |
| UGR | Not published — technical review required |
| IP rating | IP20 |
| IK rating | Not published — technical review required |
| Ambient temperature (Ta) | Not published — technical review required |
| Driver | Not published — technical review required |
| Dimming / control | Not published — technical review required |
| Input voltage | 220-240VAC |
| Light source | Not published — technical review required |
| Material | Die-Cast Aluminium |
| Finish | White · White+Mirror Black · Black+Chrome · Black+Mirror Black +13 more |
| Mounting / installation | Not published — technical review required |
| Net weight | Not published — technical review required |
| Certification | Not published — technical review required |
| Lifetime | Not published — technical review required |
| Warranty | Not published — technical review required |
| Lead time | Not published — technical review required |
10 of 26 specification rows published from the 2026 master data. Values vary by model; missing test data is not estimated. Select an exact model for approval.
Configuration
Select Specification
Select attributes to narrow down variants
Product Lines
4 Products
Dimensions
Technical Drawing
Drawing and sizes shown for model LBE2021. This family has 4 models with different dimensions — select a model above, or open its row in the variant table, for its own drawing.
Size — model LBE2021
99x99xH110mm
Specifications
At a Glance
9–36W
Power Range
2 options
Beam: 24°, 36°
4 CCT
2700K, 3000K, 4000K, 5000K
CRI 90
Colour Rendering
IP20
Protection Rating
11 finishes
Body Finish Options
4 sizes
198x198x110mm, 99x198x110mm, 99x298x110mm, 99x99xH110mm
Configure your product
LBE2021
Order code
Listed configurationLBE2021.W.930.WWH+MBK.24
80 listed configurations · availability requires confirmation
