Lumi Indoor
TAZA
Application inspiration · not a project reference
TAZA is part of Lumi Indoor. Coordinate the selected article’s dimensions, installation details and configuration with the project specification; these details can vary between models in the same family.
Spot Light
TAZA
TAZA is a spot light family within the LUMIBRIGHT Lumi Indoor collection. Explore 5 models, including LBE2091, LBE2092, LBE2093, with model-specific specifications and configuration choices. LBE2091 specifications include power: 5W; colour temperature: 2700K/3000K/4000K/6000K; IP rating: IP20; dimensions: Ø60*37.5mm. Compare the TAZA range by power, colour temperature, protection rating and dimensions using the technical table below. Open an individual model to explore its available finishes and optics, select a listed order code and prepare a specification sheet where configuration data is available. Keep the chosen model reference with your project schedule so the lighting and installation teams can coordinate the same selection. For additional drawings, photometry or project-specific requirements, contact the LUMIBRIGHT specification team with your model code.
Model specifications
| Article | Wattage | CCT | IP | Dimensions | Cut-out |
|---|---|---|---|---|---|

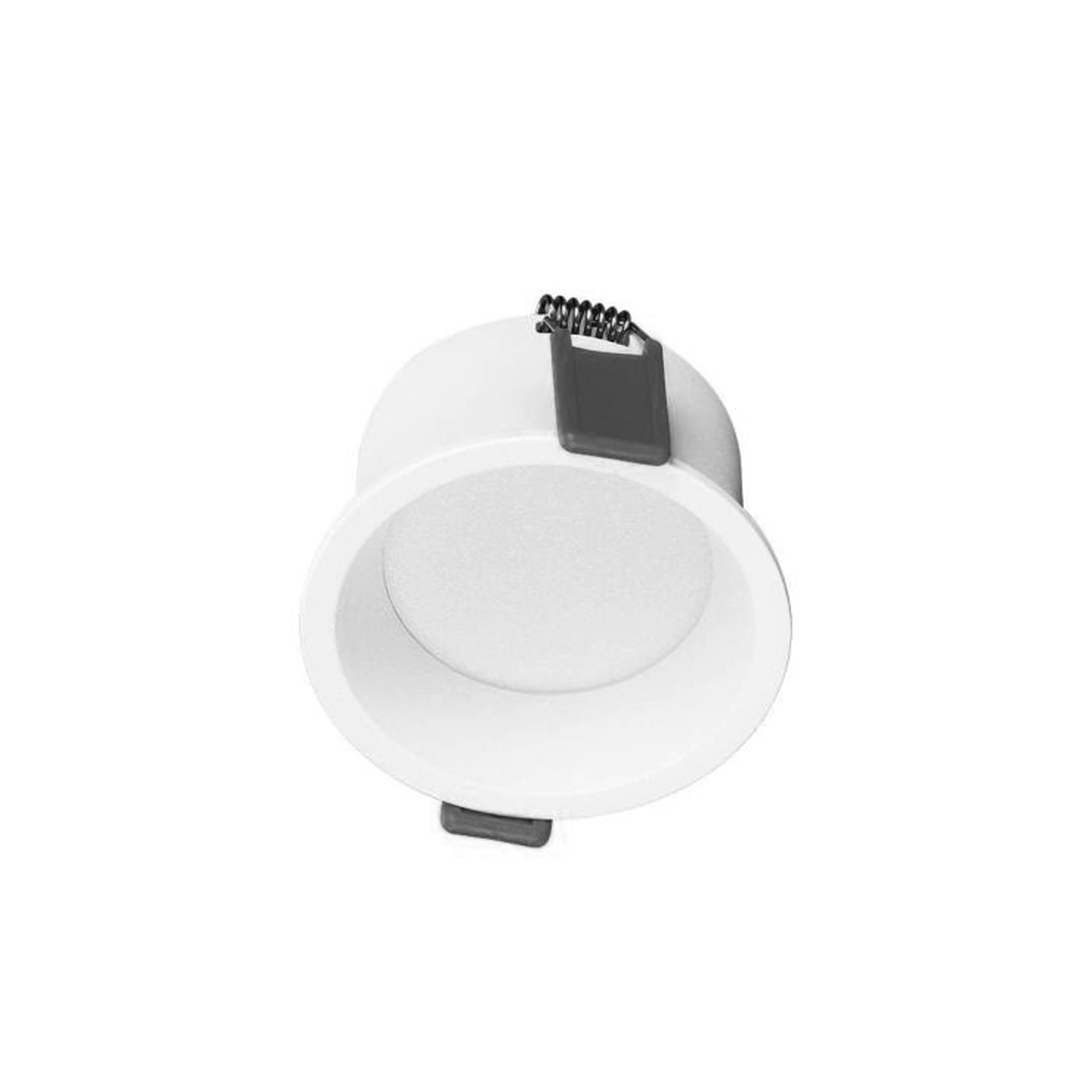

| LBE2091 | Wattage5W | CCT2700K/3000K/4000K/6000K | IPIP20 | DimensionsØ60*37.5mm | Cut-outØ55 |
| LBE2092 | Wattage8W | CCT2700K/3000K/4000K/6000K | IPIP20 | DimensionsØ80*44.5mm | Cut-outØ75 |
| LBE2093 | Wattage15W | CCT2700K/3000K/4000K/6000K | IPIP20 | DimensionsØ100.5*H52.5mm | Cut-outØ95mm |

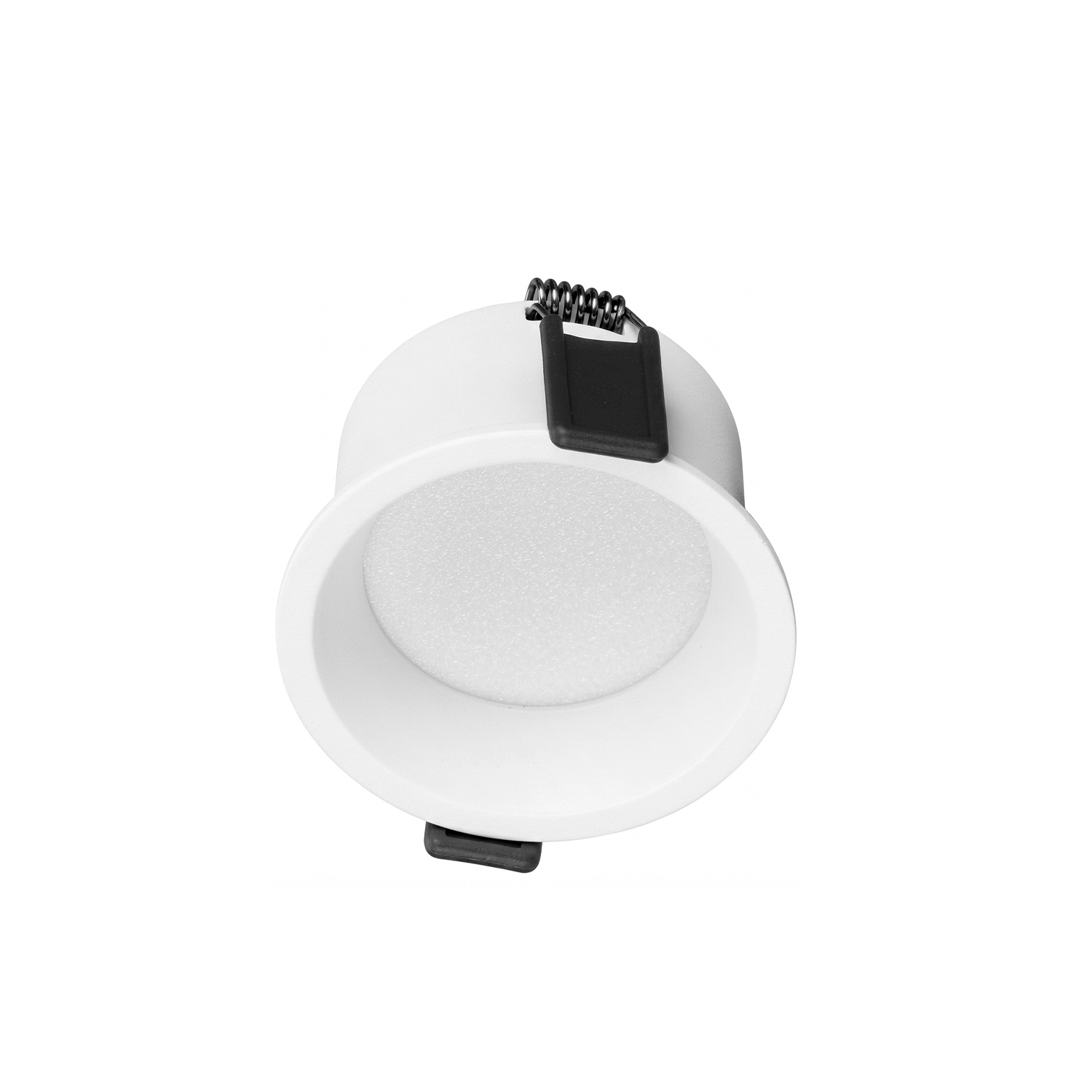

| LBE3011 | Wattage20W | CCT2700K/3000K/4000K/6000K | IPIP20 | DimensionsØ126*54.5mm | Cut-outØ120 |
| LBT3019 | Wattage8W | CCT3000K/4000K | IPIP20 | Dimensionsφ80*H44.5mm | Cut-outΦ75mm |
Technical Data
Full Specification
| Dimensions | Ø80*44.5mm · Ø60*37.5mm · Ø100.5*H52.5mm · Ø126*54.5mm +1 more |
|---|---|
| Cut-out | Ø75 · Ø55 · Ø95mm · Ø120 +1 more |
| Power | 8W · 5W · 15W · 20W |
| Lumen output | 570lm |
| Efficacy | Not published — technical review required |
| Optics / beam angle | 24° · 60° |
| Colour temperature | 2700K · 3000K · 4000K · 5000K +1 more |
| CRI Ra | 80 |
| R9 | Not published — technical review required |
| TM-30 Rf / Rg | Not published — technical review required |
| UGR | Not published — technical review required |
| IP rating | IP20 |
| IK rating | Not published — technical review required |
| Ambient temperature (Ta) | Not published — technical review required |
| Driver | Not published — technical review required |
| Dimming / control | Not published — technical review required |
| Input voltage | 220-240VAC |
| Light source | Not published — technical review required |
| Material | Not published — technical review required |
| Finish | white-sand · White · black-sand · White With Sand +1 more |
| Mounting / installation | Not published — technical review required |
| Net weight | Not published — technical review required |
| Certification | Not published — technical review required |
| Lifetime | Not published — technical review required |
| Warranty | Not published — technical review required |
| Lead time | Not published — technical review required |
10 of 26 specification rows published from the 2026 master data. Values vary by model; missing test data is not estimated. Select an exact model for approval.
Configuration
Select Specification
Select attributes to narrow down variants
Product Lines
5 Products
Dimensions
Technical Drawing
Drawing and sizes shown for model LBE2092. This family has 5 models with different dimensions — select a model above, or open its row in the variant table, for its own drawing.
Size — model LBE2092
Ø80*44.5mm
Cut-Out
Ø75
Specifications
At a Glance
5–20W
Power Range
1 options
Beam: 60°
4 CCT
2700K, 3000K, 4000K, 6000K
CRI 80
Colour Rendering
IP20
Protection Rating
3 finishes
Body Finish Options
5 sizes
Ø100.5*H52.5mm, Ø126*54.5mm, Ø60*37.5mm, Ø80*44.5mm, φ80*H44.5mm
5 cut-outs
Ø120, Ø55, Ø75, Ø95mm, Φ75mm
Configure your product

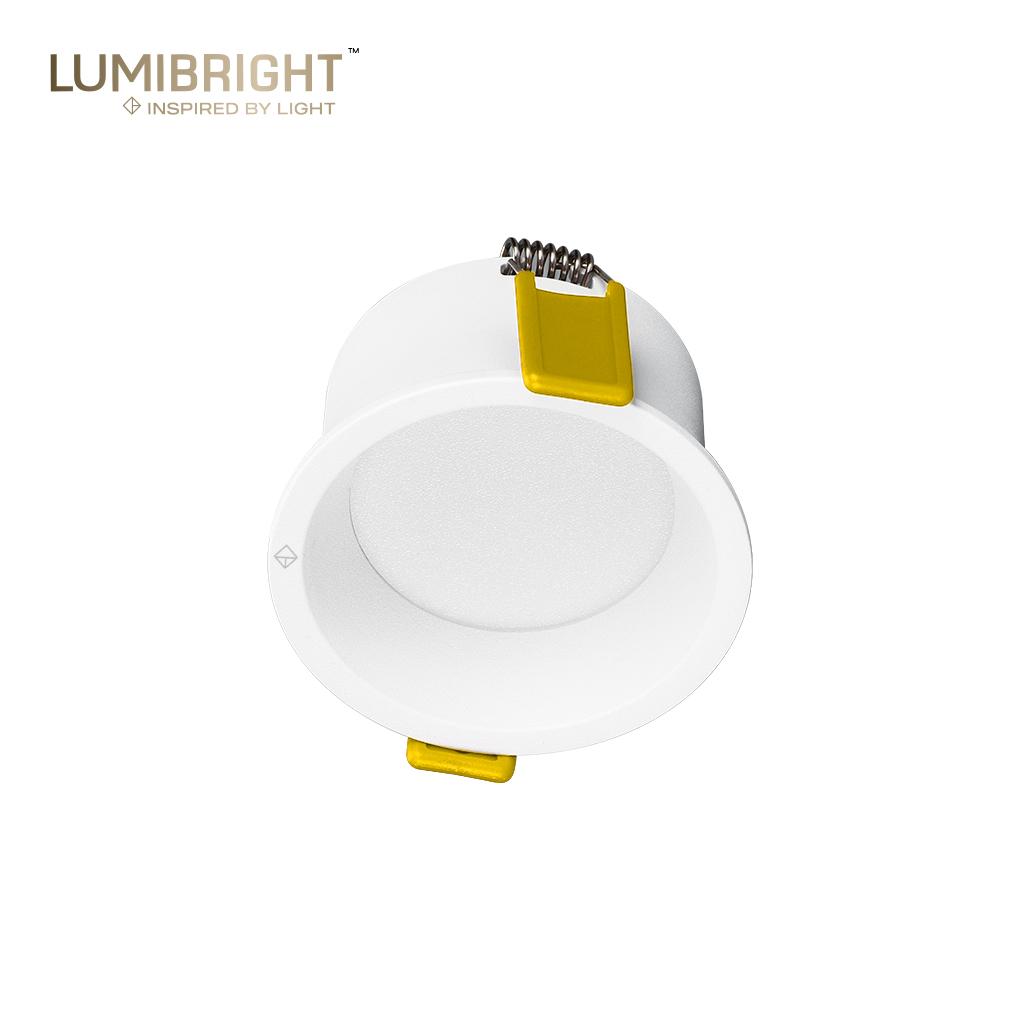

LBE2092
Order code
Listed configurationLBE2092.W.830.PAW.60.DR
8 listed configurations · availability requires confirmation
