Lumi Indoor
TILT
Application inspiration · not a project reference
TILT is part of Lumi Indoor. Coordinate the selected article’s dimensions, installation details and configuration with the project specification; these details can vary between models in the same family.
Spot Light
TILT
TILT is a track light family within the LUMIBRIGHT Lumi Indoor collection. Explore 10 models, including LB1044, LB2149, LB2150, with model-specific specifications and configuration choices. LB1044 specifications include colour temperature: 5000K; IP rating: IP20. Compare the TILT range by power, colour temperature, protection rating and dimensions using the technical table below. Open an individual model to explore its available finishes and optics, select a listed order code and prepare a specification sheet where configuration data is available. Keep the chosen model reference with your project schedule so the lighting and installation teams can coordinate the same selection. For additional drawings, photometry or project-specific requirements, contact the LUMIBRIGHT specification team with your model code.
Model specifications
| Article | Wattage | CCT | IP | Dimensions | Cut-out |
|---|---|---|---|---|---|
| LB1044 | WattageNot published | CCT5000K | IPIP20 | DimensionsNot published | Cut-outNot published |

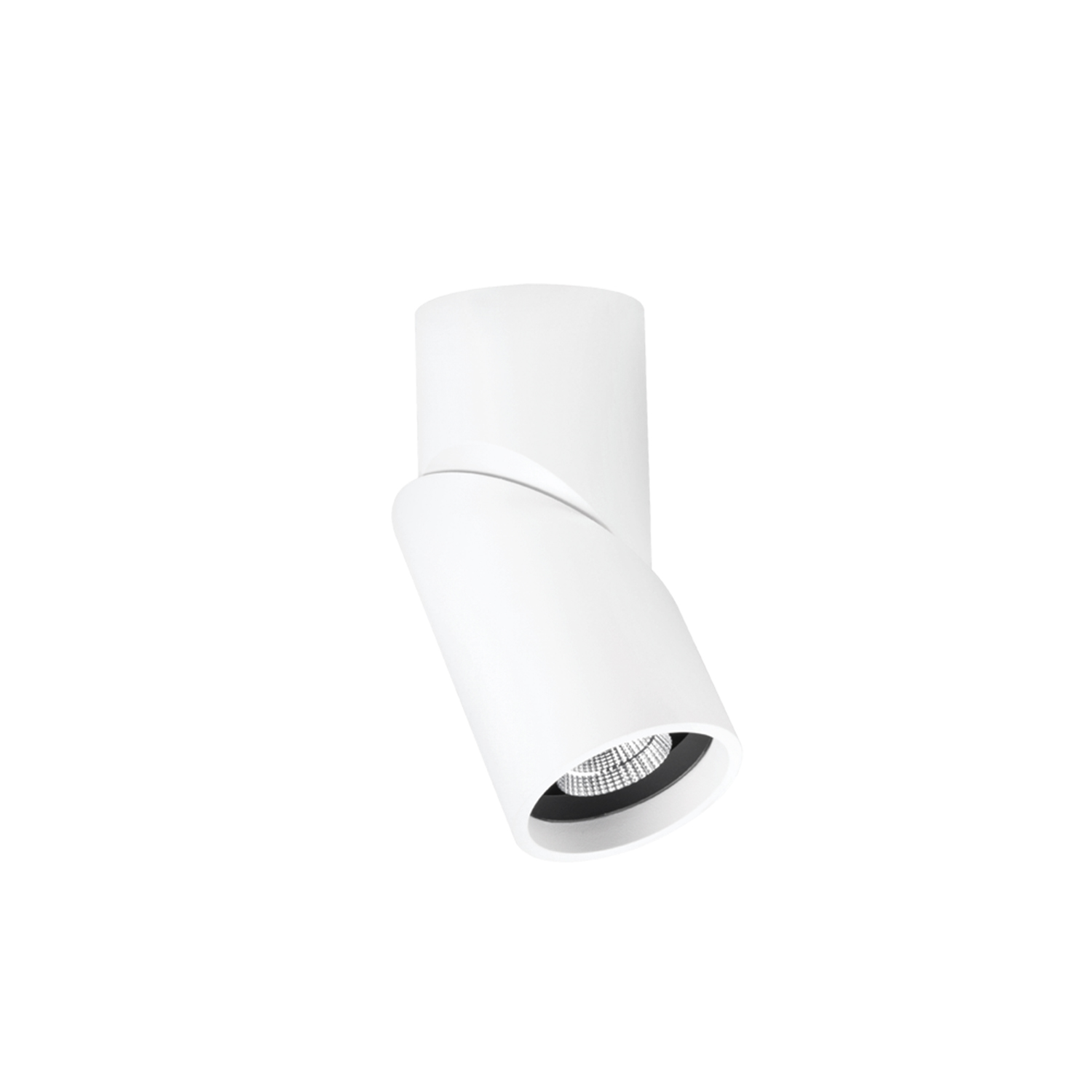

| LB2149 | Wattage15W | CCT3000K | IPIP20 | DimensionsØ80x222mm | Cut-outNot published |

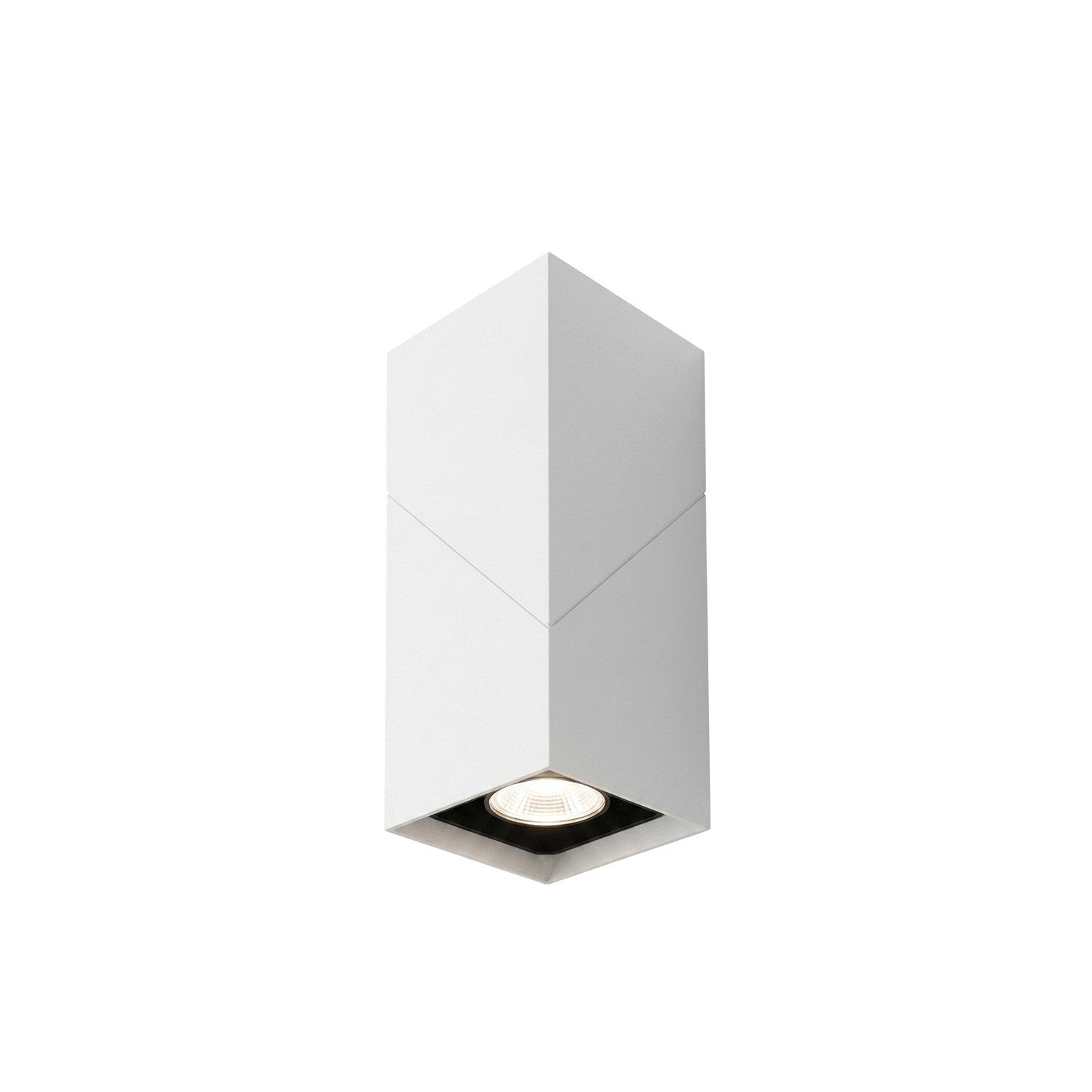

| LB2150 | WattageNot published | CCT2700K, 3000K, 4000K, 6000K | IPIP20 | DimensionsNot published | Cut-outNot published |

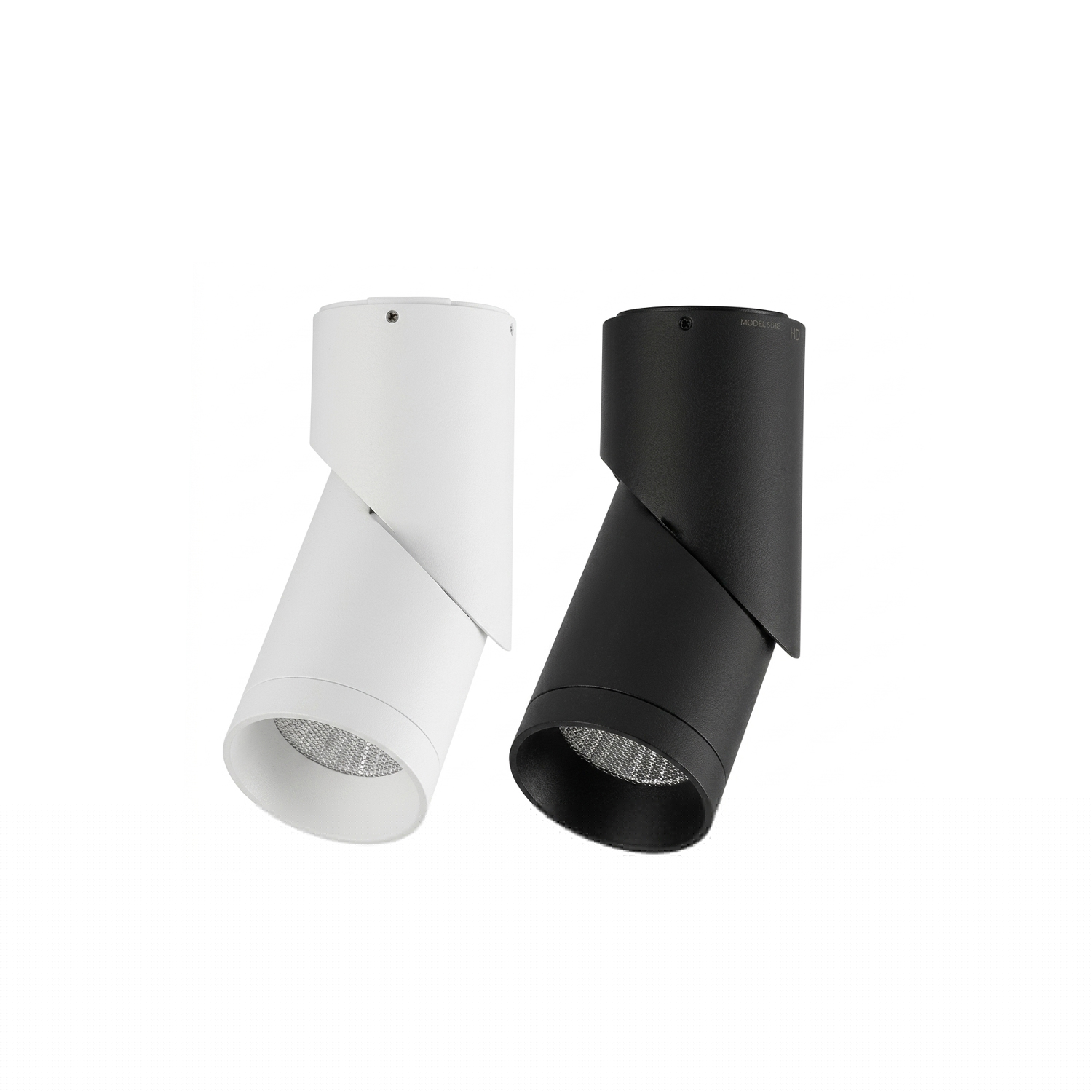

| LB2784 | Wattage12W | CCT3000K | IPIP20 | DimensionsØ65x180mm | Cut-outNot published |

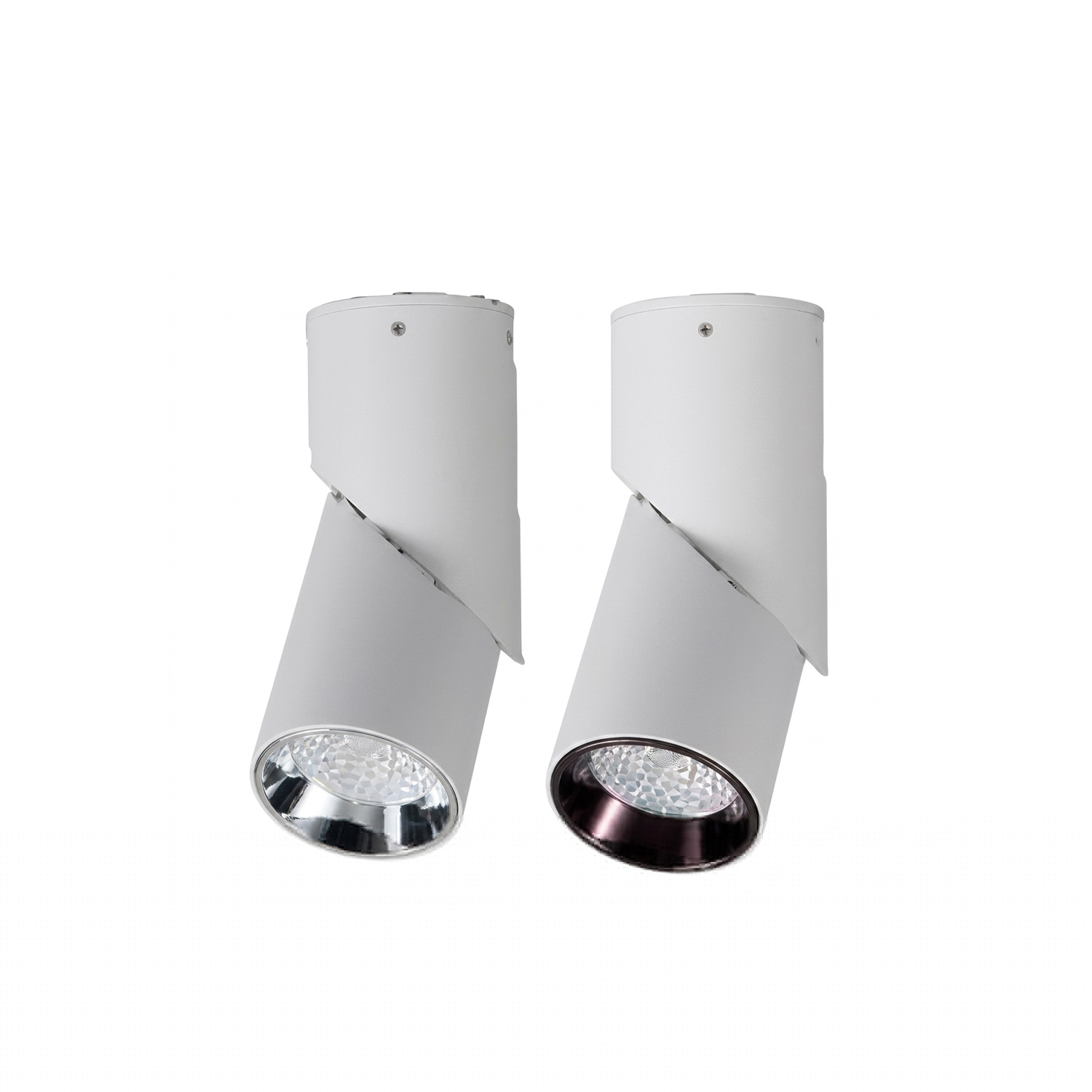

| LB2785 | WattageNot published | CCT2700K, 3000K, 4000K, 6000K | IPIP20 | DimensionsØ65x170mm | Cut-outNot published |

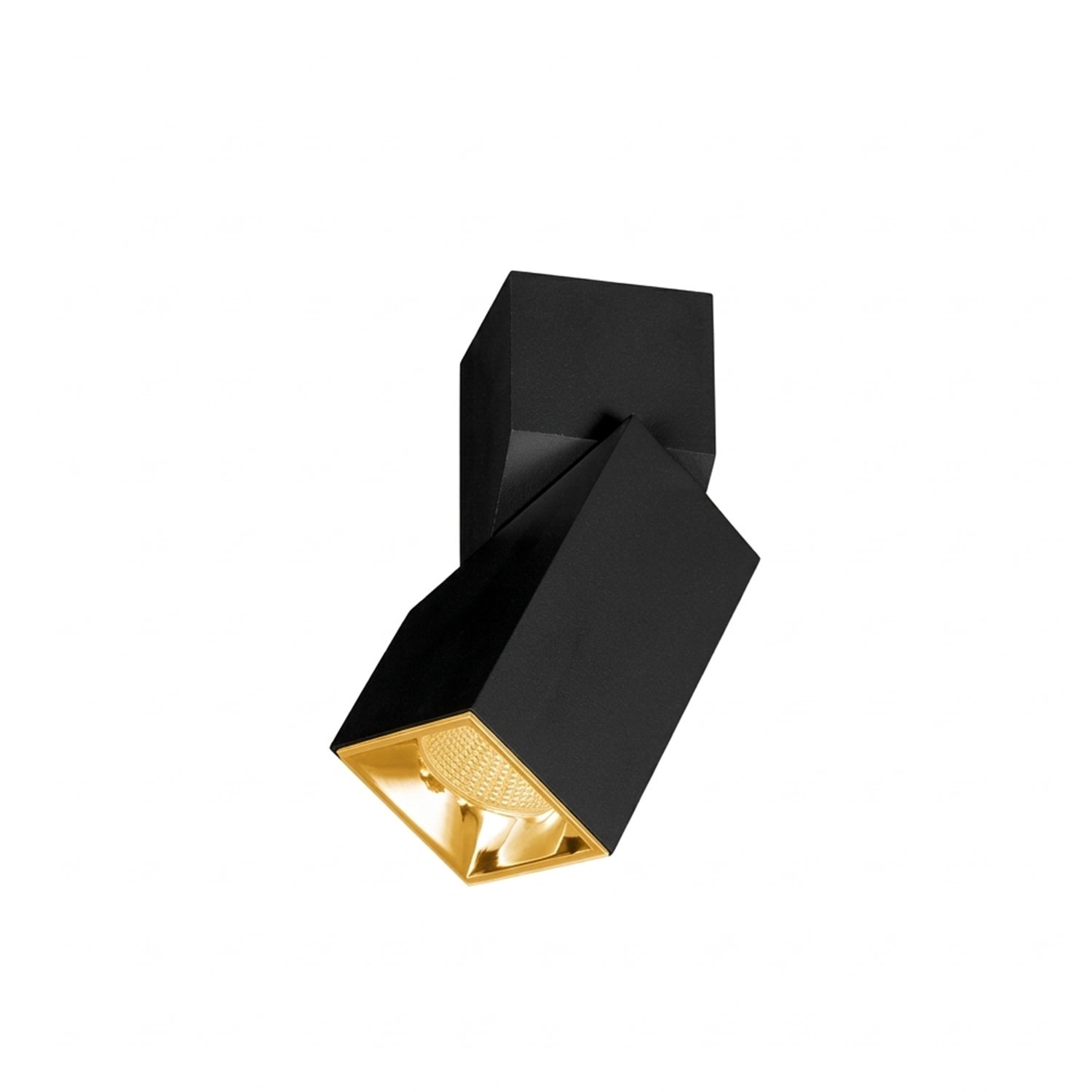

| LB2786 | Wattage12W | CCT2700K, 3000K, 4000K, 6000K | IPIP20 | Dimensions65x65x180mm | Cut-outNot published |

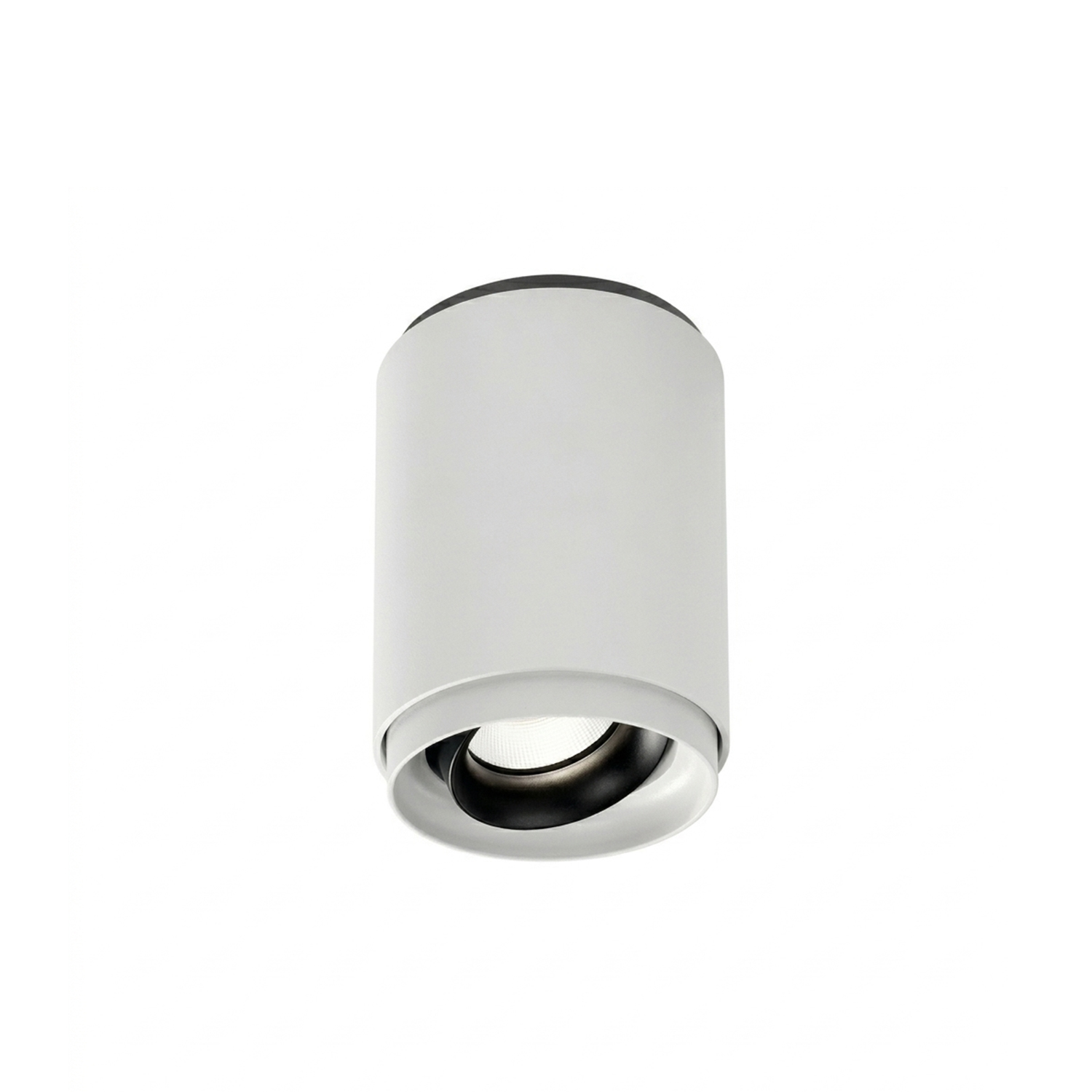

| LB2791 | Wattage9W | CCT5000K | IPIP20 | DimensionsØ90x129.5mm | Cut-outNot published |
| LB2961 | Wattage12W | CCT2700K/3000K/4000K/6000K | IPIP20 | DimensionsØ60xH185mm | Cut-outNot published |

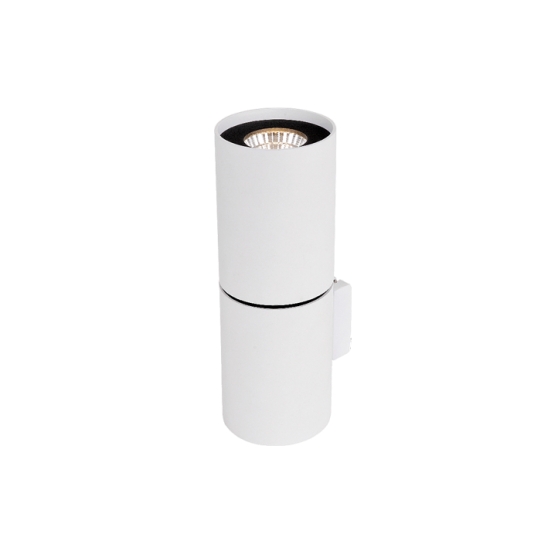

| LB4590 | Wattage2x4W | CCT4000K | IPIP20 | DimensionsØ80x91.5x235mm | Cut-outNot published |

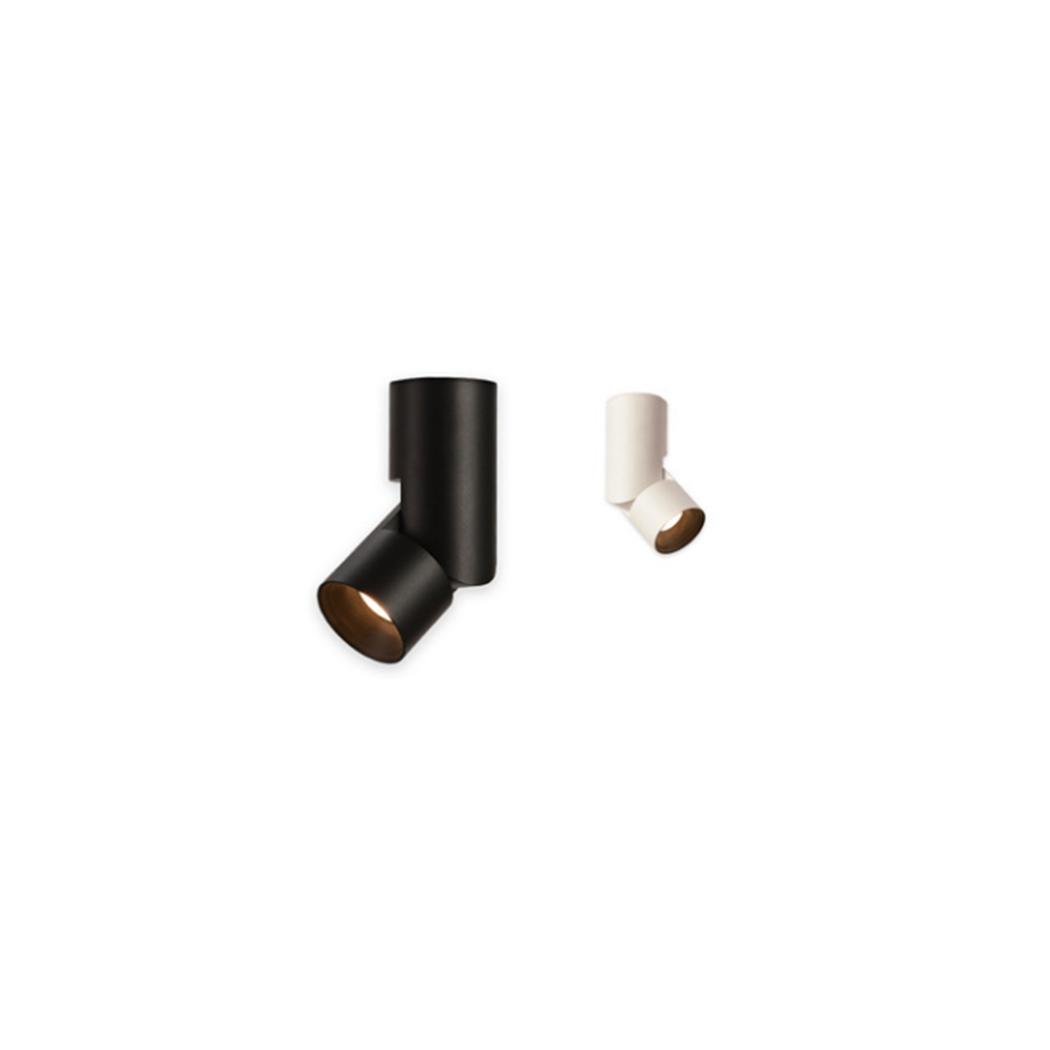

| LBE2037 | Wattage12W | CCT3000K | IPIP20 | DimensionsØ70mm | Cut-outNot published |
Technical Data
Full Specification
| Dimensions | Ø80x222mm · Ø65x180mm · Ø65x170mm · 65x65x180mm +5 more |
|---|---|
| Cut-out | Not published — technical review required |
| Power | 9W · 12W |
| Lumen output | Not published — technical review required |
| Efficacy | 80-85LM/W |
| Optics / beam angle | 24° · 32° · 50° · 36° +1 more |
| Colour temperature | 2700K · 3000K · 4000K · 5000K +2 more |
| CRI Ra | 80 · CRI 80 · 90 · >80 |
| R9 | Not published — technical review required |
| TM-30 Rf / Rg | Not published — technical review required |
| UGR | Not published — technical review required |
| IP rating | IP20 |
| IK rating | Not published — technical review required |
| Ambient temperature (Ta) | Not published — technical review required |
| Driver | Not published — technical review required |
| Dimming / control | Not published — technical review required |
| Input voltage | 220-240VAC · 100-240VAC |
| Light source | Not published — technical review required |
| Material | Die-cast Aluminium |
| Finish | black · White · black+white · white+black +17 more |
| Mounting / installation | Not published — technical review required |
| Net weight | Not published — technical review required |
| Certification | Not published — technical review required |
| Lifetime | Not published — technical review required |
| Warranty | Not published — technical review required |
| Lead time | Not published — technical review required |
10 of 26 specification rows published from the 2026 master data. Values vary by model; missing test data is not estimated. Select an exact model for approval.
Configuration
Select Specification
Select attributes to narrow down variants
Product Lines
10 Products
Dimensions
Technical Drawing
Drawing and sizes shown for model LB2791. This family has 10 models with different dimensions — select a model above, or open its row in the variant table, for its own drawing.
Size — model LB2791
Ø90x129.5mm
Specifications
At a Glance
4–15W
Power Range
9 options
Beam: 22°, 24°, 28°, 32°, 36°, 38°, 45°, 50°, 120°
6 CCT
2700K, 3000K, 4000K, 5000K, 5600K, 6000K
CRI 80/90
Colour Rendering
IP20
Protection Rating
13 finishes
Body Finish Options
8 sizes
65x65x180mm, Ø60xH185mm, Ø65x170mm, Ø65x180mm, Ø70mm, Ø80x222mm, Ø80x91.5x235mm, Ø90x129.5mm
Configure your product
LB2791
Order code
Listed configurationLB2791.C.850.WBK.24
120 listed configurations · availability requires confirmation
