Lumi Indoor
VENICE
Application inspiration · not a project reference
VENICE is part of Lumi Indoor. Coordinate the selected article’s dimensions, installation details and configuration with the project specification; these details can vary between models in the same family.
Down Light
VENICE

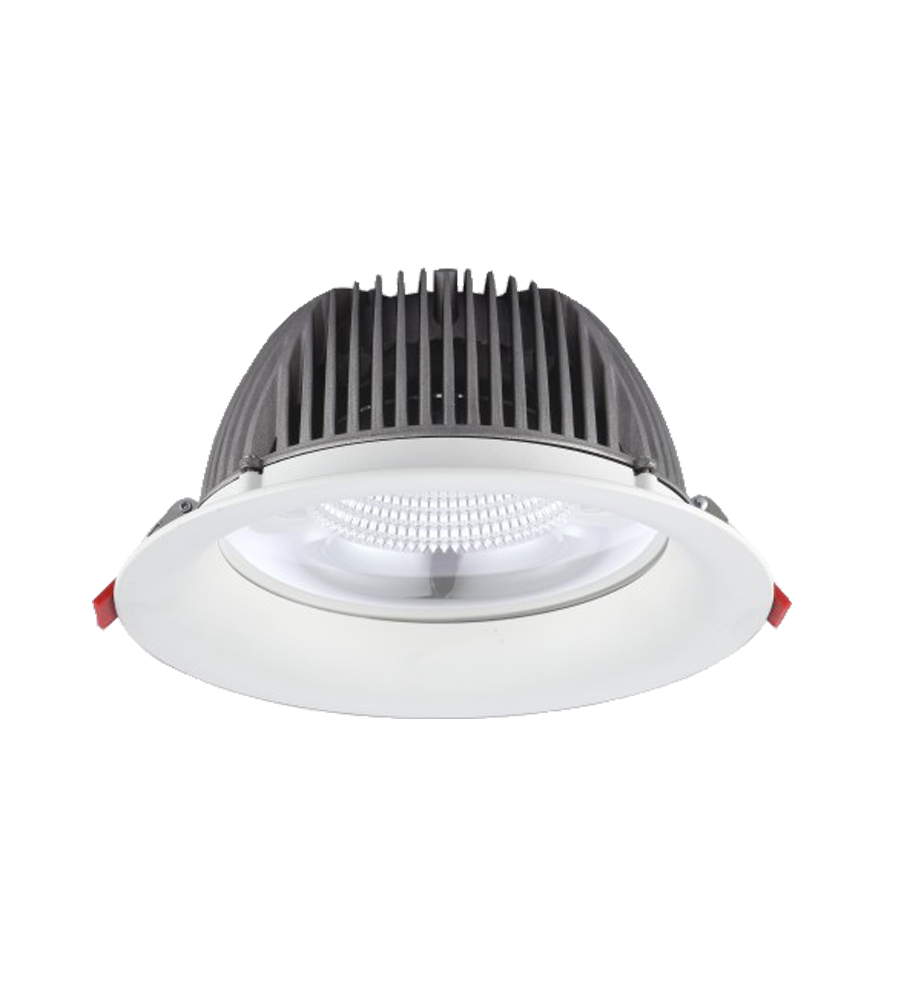

VENICE is a down light family within the LUMIBRIGHT Lumi Indoor collection. Explore 1 models, including LB3153, with model-specific specifications and configuration choices. LB3153 specifications include power: 50W; colour temperature: 5000K; IP rating: IP20; dimensions: Ø230x115mm. Compare the VENICE range by power, colour temperature, protection rating and dimensions using the technical table below. Open an individual model to explore its available finishes and optics, select a listed order code and prepare a specification sheet where configuration data is available. Keep the chosen model reference with your project schedule so the lighting and installation teams can coordinate the same selection. For additional drawings, photometry or project-specific requirements, contact the LUMIBRIGHT specification team with your model code.
Model specifications
| Article | Wattage | CCT | IP | Dimensions | Cut-out |
|---|---|---|---|---|---|
| LB3153 | Wattage50W | CCT5000K | IPIP20 | DimensionsØ230x115mm | Cut-outØ200mm |
Dimensions
Technical Drawing
Drawing and sizes shown for model LB3153.
Size — model LB3153
Ø230x115mm
Cut-Out
Ø200mm
Technical Data
Full Specification
| Dimensions | Ø230x115mm |
|---|---|
| Cut-out | Ø200mm |
| Power | 50W |
| Lumen output | Not published — technical review required |
| Efficacy | Not published — technical review required |
| Optics / beam angle | 40° |
| Colour temperature | 3000K · 4000K · 5000K |
| CRI Ra | 80 |
| R9 | Not published — technical review required |
| TM-30 Rf / Rg | Not published — technical review required |
| UGR | Not published — technical review required |
| IP rating | IP20 |
| IK rating | Not published — technical review required |
| Ambient temperature (Ta) | Not published — technical review required |
| Driver | Not published — technical review required |
| Dimming / control | Not published — technical review required |
| Input voltage | 42VDC |
| Light source | Not published — technical review required |
| Material | Not published — technical review required |
| Finish | white |
| Mounting / installation | Not published — technical review required |
| Net weight | Not published — technical review required |
| Certification | Not published — technical review required |
| Lifetime | Not published — technical review required |
| Warranty | Not published — technical review required |
| Lead time | Not published — technical review required |
9 of 26 specification rows published from the 2026 master data. Values vary by model; missing test data is not estimated. Select an exact model for approval.
Specifications
At a Glance
50W
Power
40°
Beam Angle
3 CCT
3000K, 4000K, 5000K
CRI 80
Colour Rendering
IP20
Protection Rating
2 finishes
Body Finish
Ø230x115mm
Dimensions
Ø200mm
Cut-Out
