Lumi Indoor
VHILSA 1
Application inspiration · not a project reference
VHILSA 1 is part of Lumi Indoor. Coordinate the selected article’s dimensions, installation details and configuration with the project specification; these details can vary between models in the same family.
Combo Light
VHILSA 1
VHILSA 1 is a combo light family within the LUMIBRIGHT Lumi Indoor collection. The current catalogue groups 3 article codes under this family, including LB35001, LB35003, LB35004. For LB35001, published values include power: 8W; colour temperature: 4000K; IP rating: IP20; dimensions: Ø80x35mm. Each article represents its own physical model; dimensions and electrical or optical options must be checked against that exact code. Compare the VHILSA 1 articles using the specification table and individual model pages before adding them to a lighting schedule. Wattage, colour temperature, protection rating and installation dimensions are catalogue values, not a guarantee that every combination can be ordered. Where a value is not published, request the relevant model documentation rather than assuming it matches another article. Confirm the selected configuration, driver requirements, installation detail and project documentation with the specification team before ordering.
Model specifications
| Article | Wattage | CCT | IP | Dimensions | Cut-out |
|---|---|---|---|---|---|

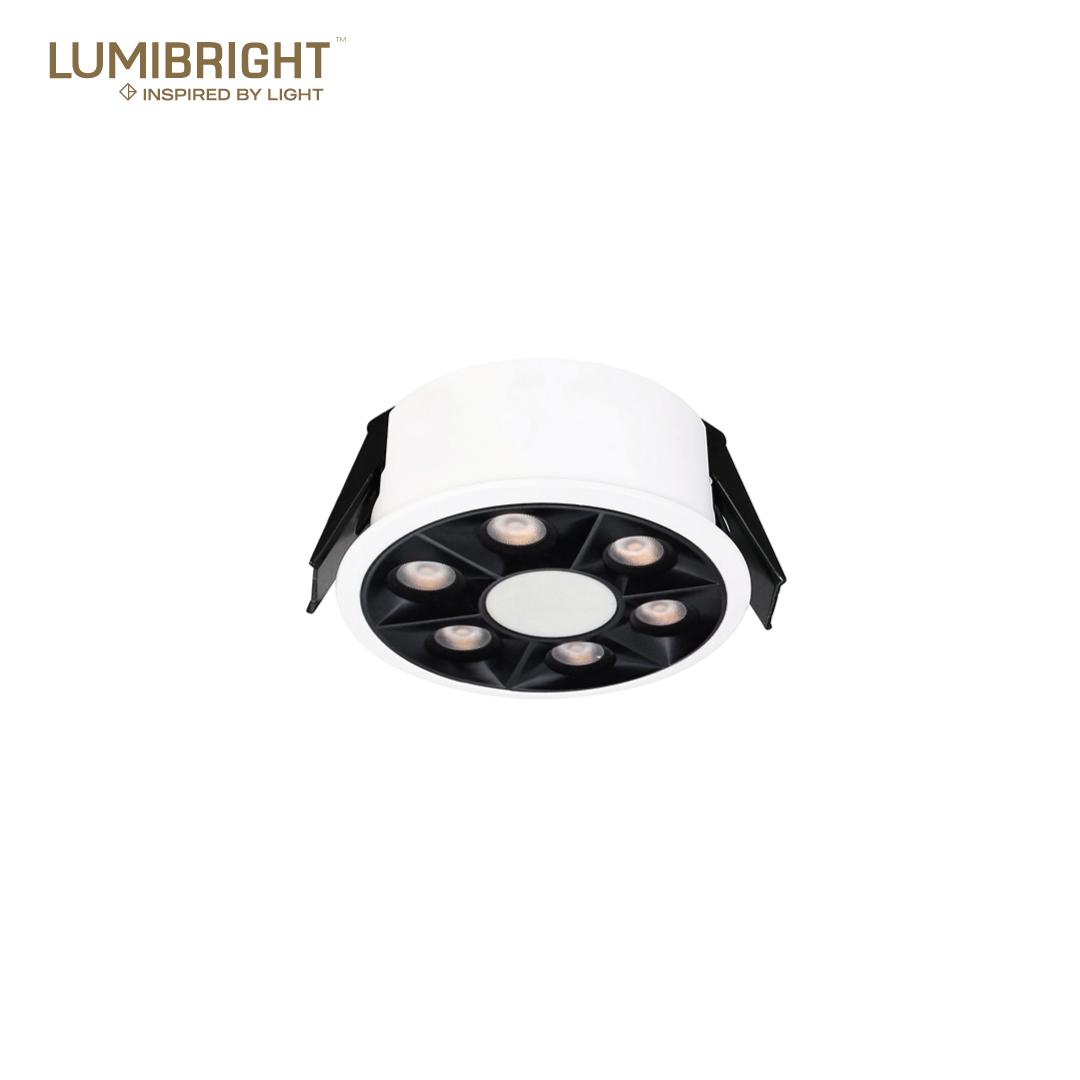

| LB35001 | Wattage8W | CCT4000K | IPIP20 | DimensionsØ80x35mm | Cut-outØ75mm |

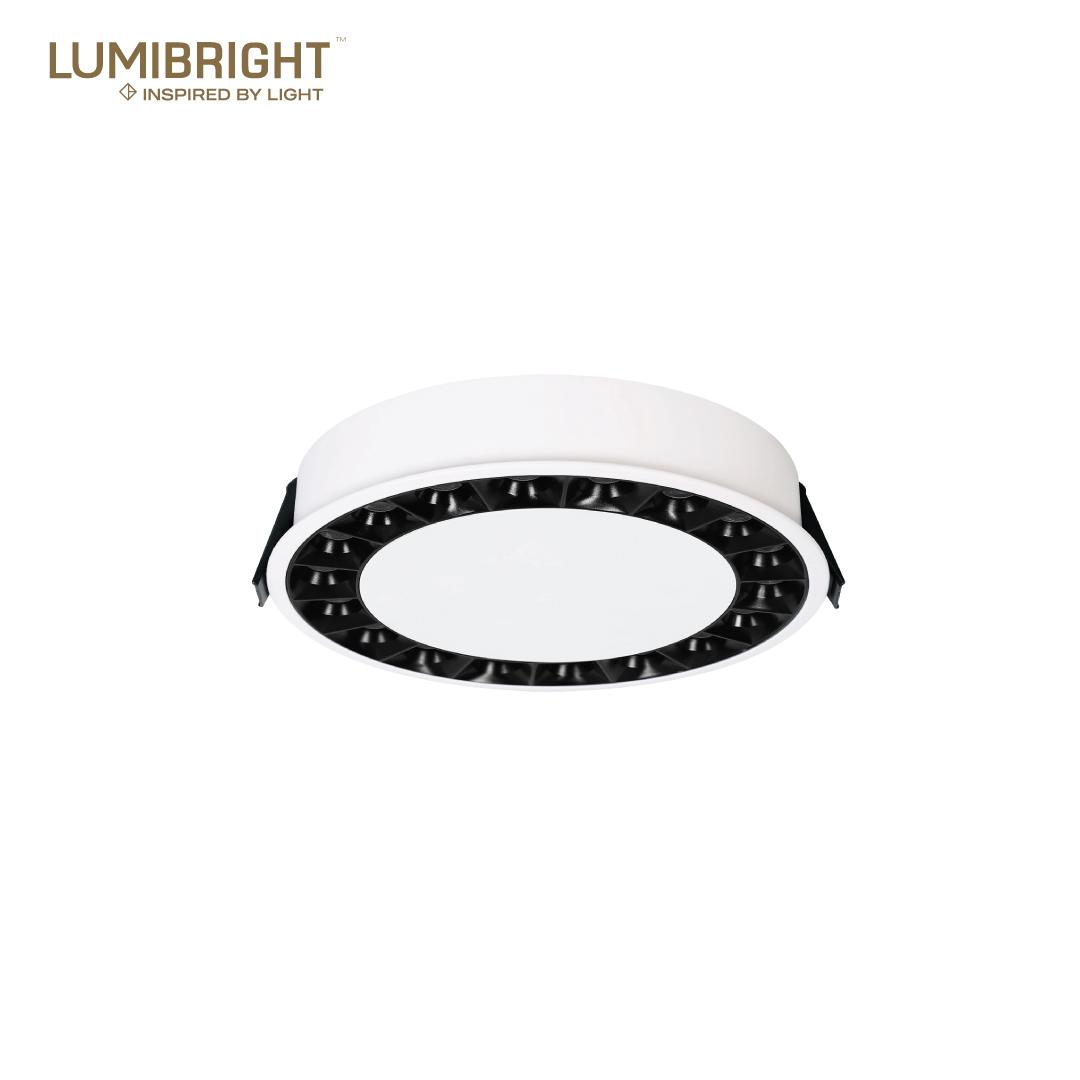

| LB35003 | Wattage20W | CCT4000K | IPIP20 | DimensionsØ173X35mm | Cut-outØ165mm |

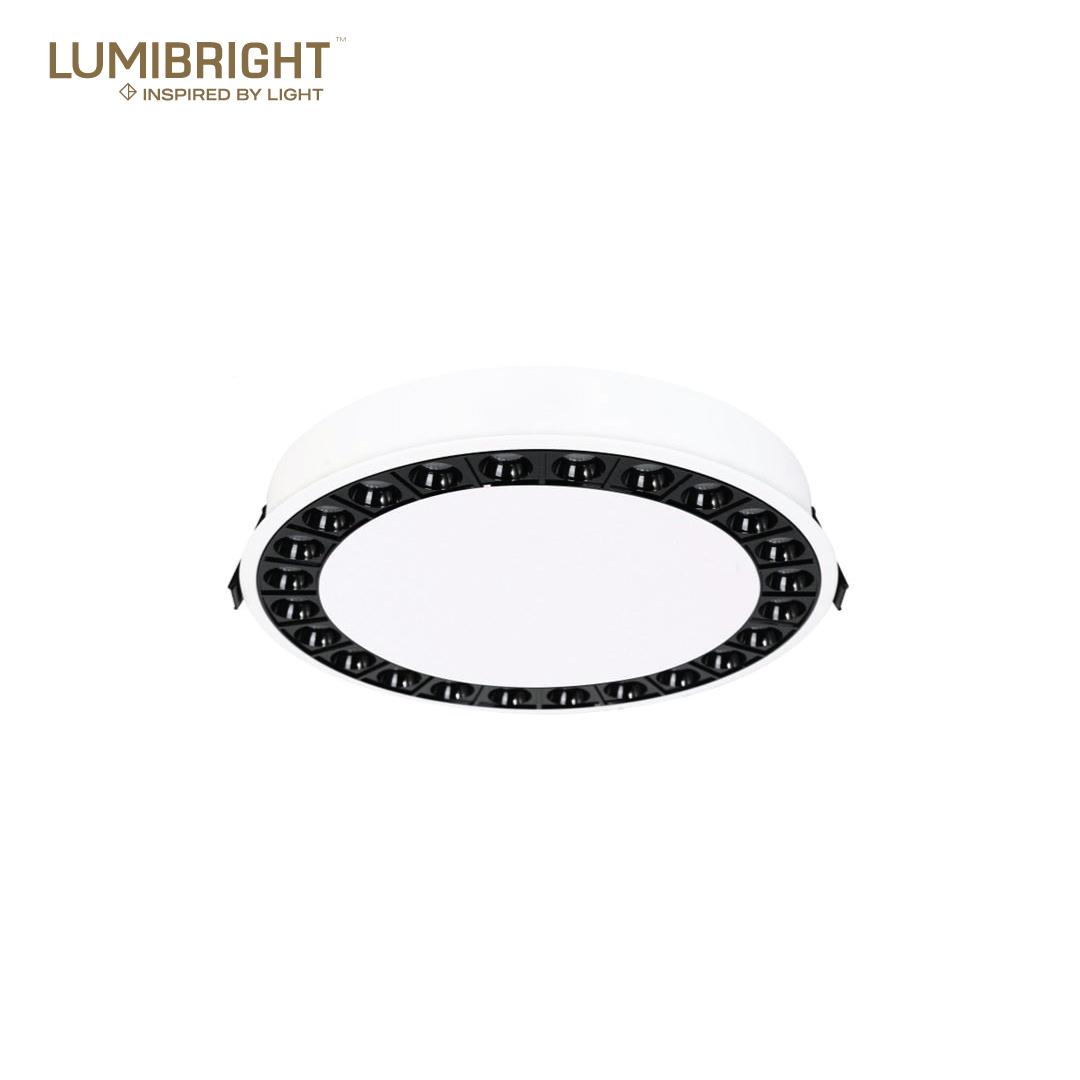

| LB35004 | Wattage30W | CCT4000K | IPIP20 | DimensionsØ218X35mm | Cut-outØ205mm |
Technical Data
Full Specification
| Dimensions | Ø80x35mm · Ø173X35mm · Ø218X35mm |
|---|---|
| Cut-out | Ø75mm · Ø165mm · Ø205mm |
| Power | 20W |
| Lumen output | Not published — technical review required |
| Efficacy | Not published — technical review required |
| Optics / beam angle | 20° · 34° · 36° · 48° |
| Colour temperature | 3000K · 4000K · 5000K |
| CRI Ra | 90 |
| R9 | Not published — technical review required |
| TM-30 Rf / Rg | Not published — technical review required |
| UGR | Not published — technical review required |
| IP rating | IP20 |
| IK rating | Not published — technical review required |
| Ambient temperature (Ta) | Not published — technical review required |
| Driver | Not published — technical review required |
| Dimming / control | Not published — technical review required |
| Input voltage | 220-240VAC |
| Light source | Not published — technical review required |
| Material | Not published — technical review required |
| Finish | matt-white+matt-black · White · Matt White+Matt Black |
| Mounting / installation | Not published — technical review required |
| Net weight | Not published — technical review required |
| Certification | Not published — technical review required |
| Lifetime | Not published — technical review required |
| Warranty | Not published — technical review required |
| Lead time | Not published — technical review required |
9 of 26 specification rows published from the 2026 master data. Values vary by model; missing test data is not estimated. Select an exact model for approval.
Configuration
Select Specification
Select attributes to narrow down variants
Product Lines
6 Products
Dimensions
Technical Drawing
Drawing and sizes shown for model LB35003. This family has 6 models with different dimensions — select a model above, or open its row in the variant table, for its own drawing.
Size — model LB35003
Ø173X35mm
Cut-Out
Ø165mm
Specifications
At a Glance
8–30W
Power Range
4 options
Beam: 20°, 34°, 36°, 48°
3 CCT
3000K, 4000K, 5000K
CRI 90
Colour Rendering
IP20
Protection Rating
3 finishes
Body Finish Options
3 sizes
Ø173X35mm, Ø218X35mm, Ø80x35mm
3 cut-outs
Ø165mm, Ø205mm, Ø75mm
Configure your product
LB35003
Order code
Listed configurationLB35003.N.940.PWH+PBK.48.DR
3 listed configurations · availability requires confirmation

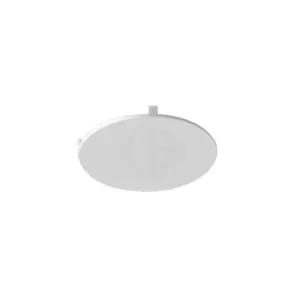

Accessories & components
