Lumi Indoor
VHILSA 5
Application inspiration · not a project reference
VHILSA 5 is part of Lumi Indoor. Coordinate the selected article’s dimensions, installation details and configuration with the project specification; these details can vary between models in the same family.
Combo Light
VHILSA 5
VHILSA 5 is a combo light family within the LUMIBRIGHT Lumi Indoor collection. Explore 3 models, including LB35017, LB35018, LB35019, with model-specific specifications and configuration choices. LB35017 specifications include power: 15W; colour temperature: 4000K; IP rating: IP20; dimensions: Ø119X45mm. Compare the VHILSA 5 range by power, colour temperature, protection rating and dimensions using the technical table below. Open an individual model to explore its available finishes and optics, select a listed order code and prepare a specification sheet where configuration data is available. Keep the chosen model reference with your project schedule so the lighting and installation teams can coordinate the same selection. For additional drawings, photometry or project-specific requirements, contact the LUMIBRIGHT specification team with your model code.
Model specifications
| Article | Wattage | CCT | IP | Dimensions | Cut-out |
|---|---|---|---|---|---|

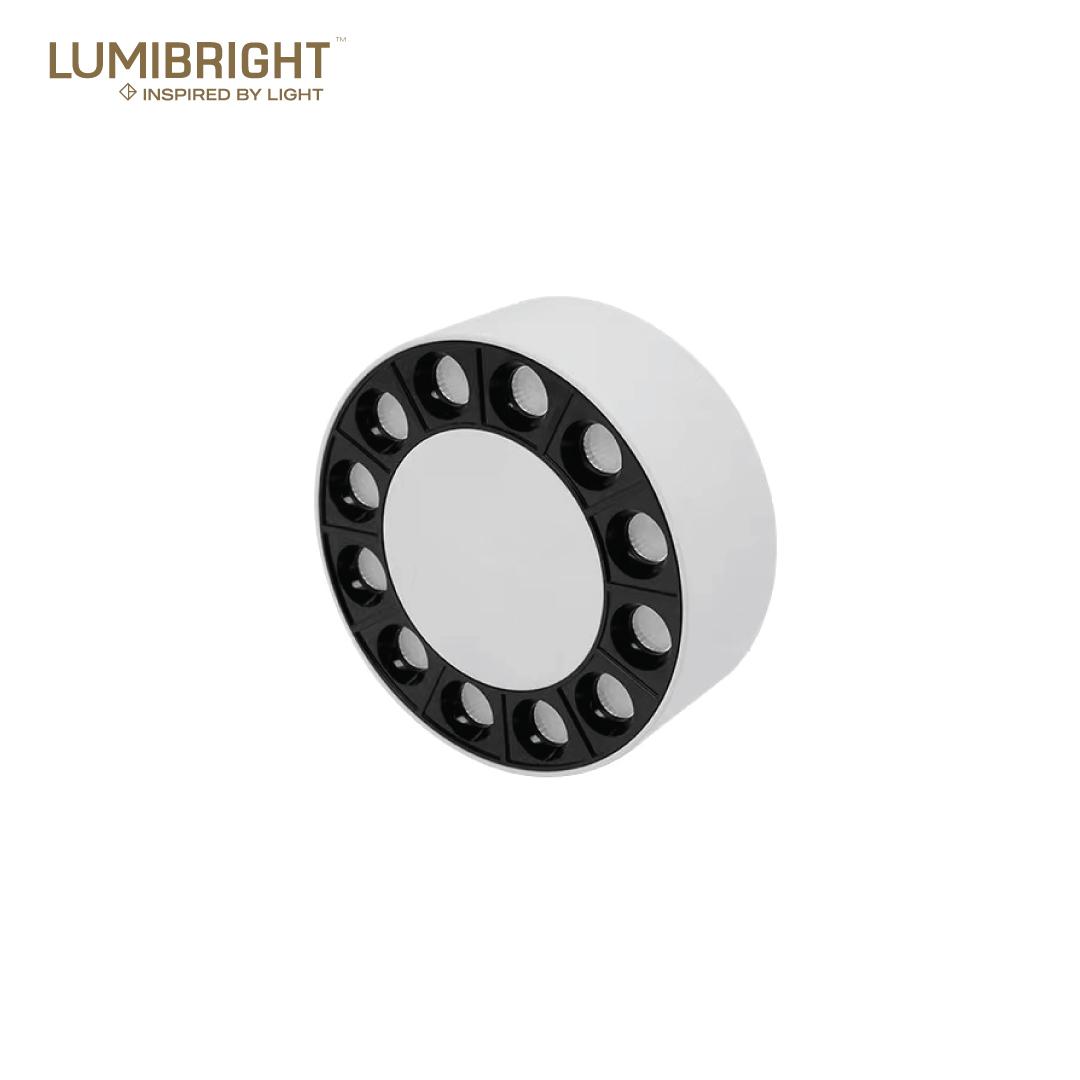

| LB35017 | Wattage15W | CCT4000K | IPIP20 | DimensionsØ119X45mm | Cut-outNot published |
| LB35018 | Wattage20W | CCT4000K | IPIP20 | DimensionsØ164X45mm | Cut-outNot published |

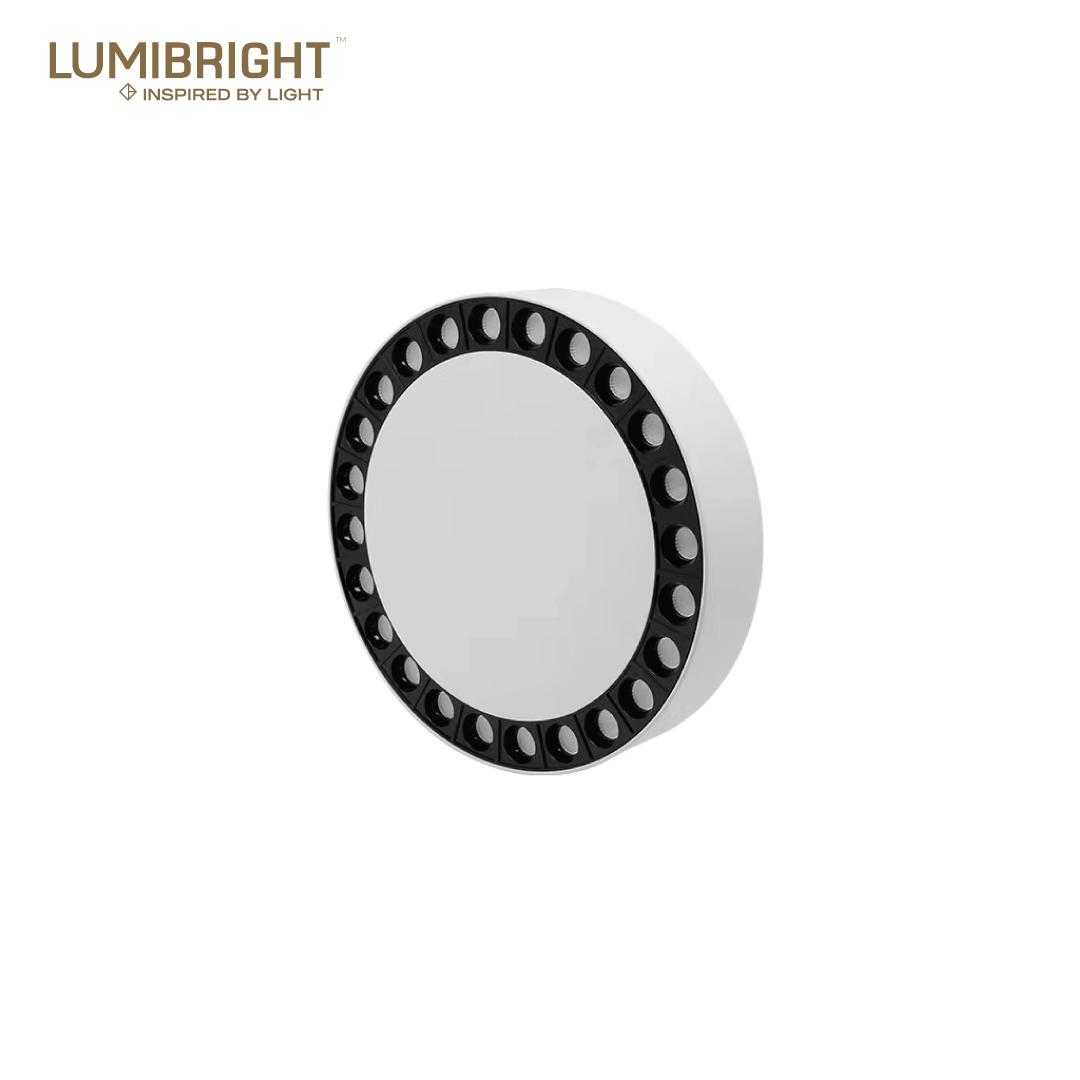

| LB35019 | Wattage30W | CCT4000K | IPIP20 | DimensionsØ209x45mm | Cut-outNot published |
Technical Data
Full Specification
| Dimensions | Ø119X45mm · Ø164X45mm · Ø209x45mm |
|---|---|
| Cut-out | Not published — technical review required |
| Power | 15W |
| Lumen output | Not published — technical review required |
| Efficacy | Not published — technical review required |
| Optics / beam angle | 20° · 30° · 34° · 48° |
| Colour temperature | 3000K · 4000K · 5000K |
| CRI Ra | 90 |
| R9 | Not published — technical review required |
| TM-30 Rf / Rg | Not published — technical review required |
| UGR | Not published — technical review required |
| IP rating | IP20 |
| IK rating | Not published — technical review required |
| Ambient temperature (Ta) | Not published — technical review required |
| Driver | Not published — technical review required |
| Dimming / control | Not published — technical review required |
| Input voltage | 220-240VAC |
| Light source | Not published — technical review required |
| Material | Not published — technical review required |
| Finish | matt-white+matt-black · White · Matt White+Matt Black |
| Mounting / installation | Not published — technical review required |
| Net weight | Not published — technical review required |
| Certification | Not published — technical review required |
| Lifetime | Not published — technical review required |
| Warranty | Not published — technical review required |
| Lead time | Not published — technical review required |
8 of 26 specification rows published from the 2026 master data. Values vary by model; missing test data is not estimated. Select an exact model for approval.
Configuration
Select Specification
Select attributes to narrow down variants
Dimensions
Technical Drawing
Drawing and sizes shown for model LB35017. This family has 3 models with different dimensions — select a model above, or open its row in the variant table, for its own drawing.
Size — model LB35017
Ø119X45mm
Specifications
At a Glance
15–30W
Power Range
4 options
Beam: 20°, 30°, 34°, 48°
3 CCT
3000K, 4000K, 5000K
CRI 90
Colour Rendering
IP20
Protection Rating
2 finishes
Body Finish Options
3 sizes
Ø119X45mm, Ø164X45mm, Ø209x45mm
Configure your product
LB35017
Order code
Listed configurationLB35017.N.940.PWH+PBK.20
7 listed configurations · availability requires confirmation
