Spot Light
WAY
WAY is a spot light family within the LUMIBRIGHT Lumi Indoor collection. Explore 7 models, including LB2085, LB2086, LB2087, with model-specific specifications and configuration choices. LB2085 specifications include power: 1W; colour temperature: AMBER; IP rating: IP40; dimensions: Ø27x35mm. Compare the WAY range by power, colour temperature, protection rating and dimensions using the technical table below. Open an individual model to explore its available finishes and optics, select a listed order code and prepare a specification sheet where configuration data is available. Keep the chosen model reference with your project schedule so the lighting and installation teams can coordinate the same selection. For additional drawings, photometry or project-specific requirements, contact the LUMIBRIGHT specification team with your model code.
Model specifications
| Article | Wattage | CCT | IP | Dimensions | Cut-out |
|---|---|---|---|---|---|

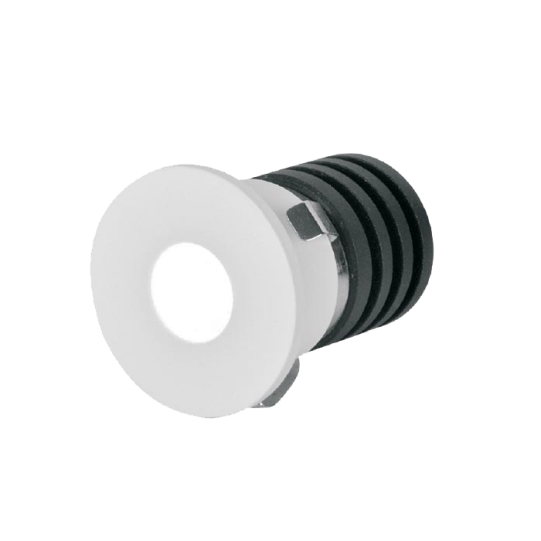

| LB2085 | Wattage1W | CCTAMBER | IPIP40 | DimensionsØ27x35mm | Cut-outØ23mm |

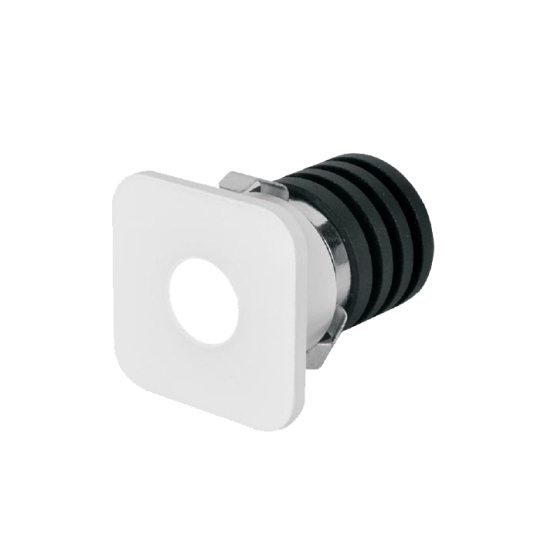

| LB2086 | Wattage1W | CCTRED | IPIP40 | Dimensions27x27x35mm | Cut-outØ23mm |

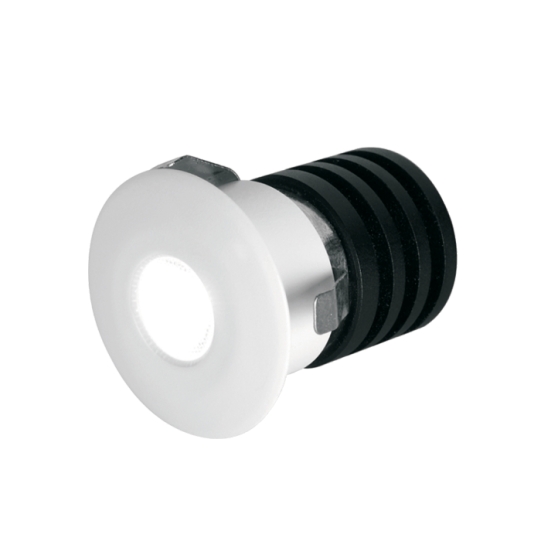

| LB2087 | Wattage1W | CCT6000K | IPIP40 | DimensionsØ27x35mm | Cut-outØ23mm |
| LB2137 | Wattage2.2W | CCT5000K | IPIP65 | DimensionsØ37x35mm | Cut-outØ32mm |

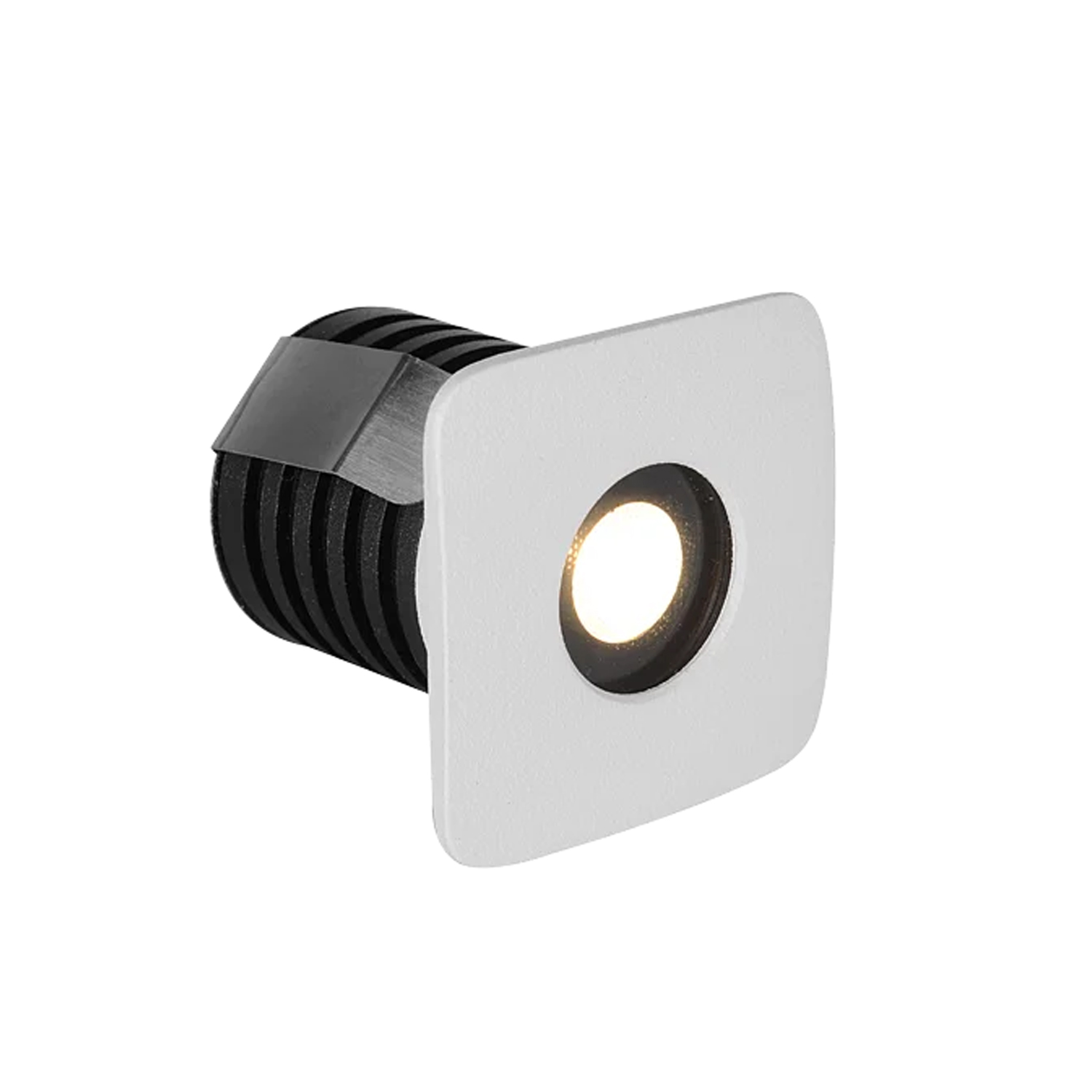

| LB2138 | WattageNot published | CCT3000K | IPIP65 | Dimensions37x37x35mm | Cut-outNot published |

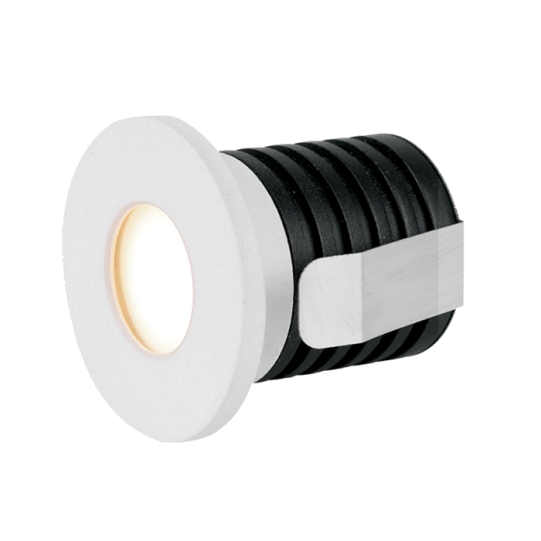

| LB2139 | Wattage2.2W | CCT4000K | IPIP65 | DimensionsØ37x35mm | Cut-outØ32mm |

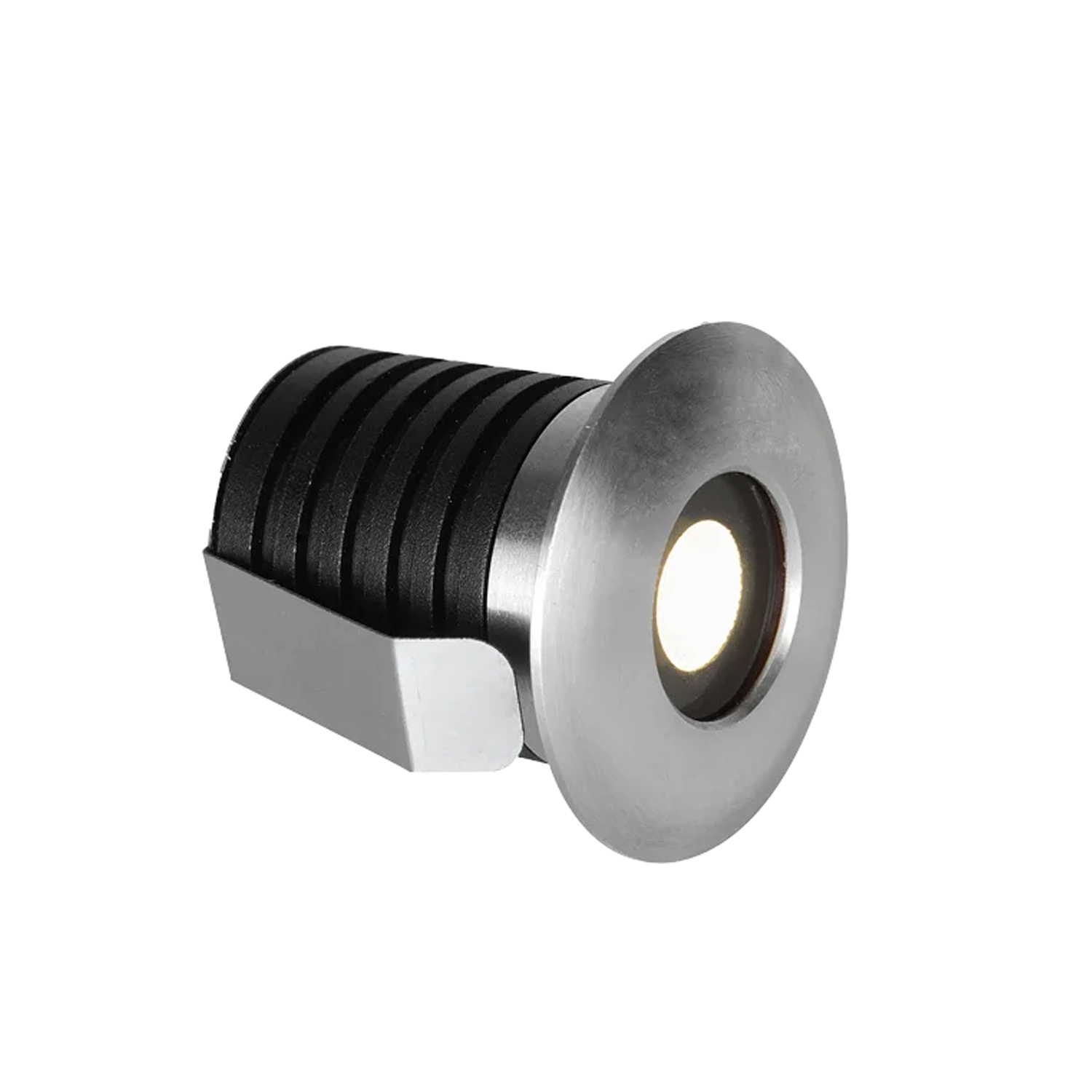

| LB2141 | Wattage2.2W | CCT3000K | IPIP65 | DimensionsØ37x35mm | Cut-outØ32mm |
Technical Data
Full Specification
| Dimensions | Ø27x35mm · 27x27x35mm · Ø37x35mm · 37x37x35mm |
|---|---|
| Cut-out | Ø23mm · Ø32mm |
| Power | 1W |
| Lumen output | Not published — technical review required |
| Efficacy | Not published — technical review required |
| Optics / beam angle | 15° · 24° · 25° · 45° +2 more |
| Colour temperature | 2700K · 3000K · 4000K · 5000K +5 more |
| CRI Ra | 80 · No CRI · ≥70 · 90 +1 more |
| R9 | Not published — technical review required |
| TM-30 Rf / Rg | Not published — technical review required |
| UGR | Not published — technical review required |
| IP rating | IP40 · IP65 |
| IK rating | Not published — technical review required |
| Ambient temperature (Ta) | Not published — technical review required |
| Driver | Not published — technical review required |
| Dimming / control | Not published — technical review required |
| Input voltage | 3VDC · constant-current |
| Light source | Not published — technical review required |
| Material | Not published — technical review required |
| Finish | white · black · Painted In Black · White With Sand +5 more |
| Mounting / installation | Not published — technical review required |
| Net weight | Not published — technical review required |
| Certification | Not published — technical review required |
| Lifetime | Not published — technical review required |
| Warranty | Not published — technical review required |
| Lead time | Not published — technical review required |
9 of 26 specification rows published from the 2026 master data. Values vary by model; missing test data is not estimated. Select an exact model for approval.
Configuration
Select Specification
Select attributes to narrow down variants
Product Lines
7 Products
Dimensions
Technical Drawing
Drawing and sizes shown for model LB2085. This family has 7 models with different dimensions — select a model above, or open its row in the variant table, for its own drawing.
Size — model LB2085
Ø27x35mm
Cut-Out
Ø23mm
Specifications
At a Glance
1–2.2W
Power Range
5 options
Beam: 15°, 24°, 25°, 45°, 60°
5 CCT
2700K, 3000K, 4000K, 5000K, 6000K
AMBER / BLUE / GREEN / RED
Colour Options
CRI 80
Colour Rendering
IP40 / IP65
Protection Rating
6 finishes
Body Finish Options
4 sizes
27x27x35mm, 37x37x35mm, Ø27x35mm, Ø37x35mm
2 cut-outs
Ø23mm, Ø32mm
Configure your product
LB2085
Order code
Listed configurationLB2085.W.827.WWH.15
65 listed configurations · availability requires confirmation
