Lumi Indoor
WAY-IP
Application inspiration · not a project reference
WAY-IP is part of Lumi Indoor. Coordinate the selected article’s dimensions, installation details and configuration with the project specification; these details can vary between models in the same family.
Spot Light
WAY-IP

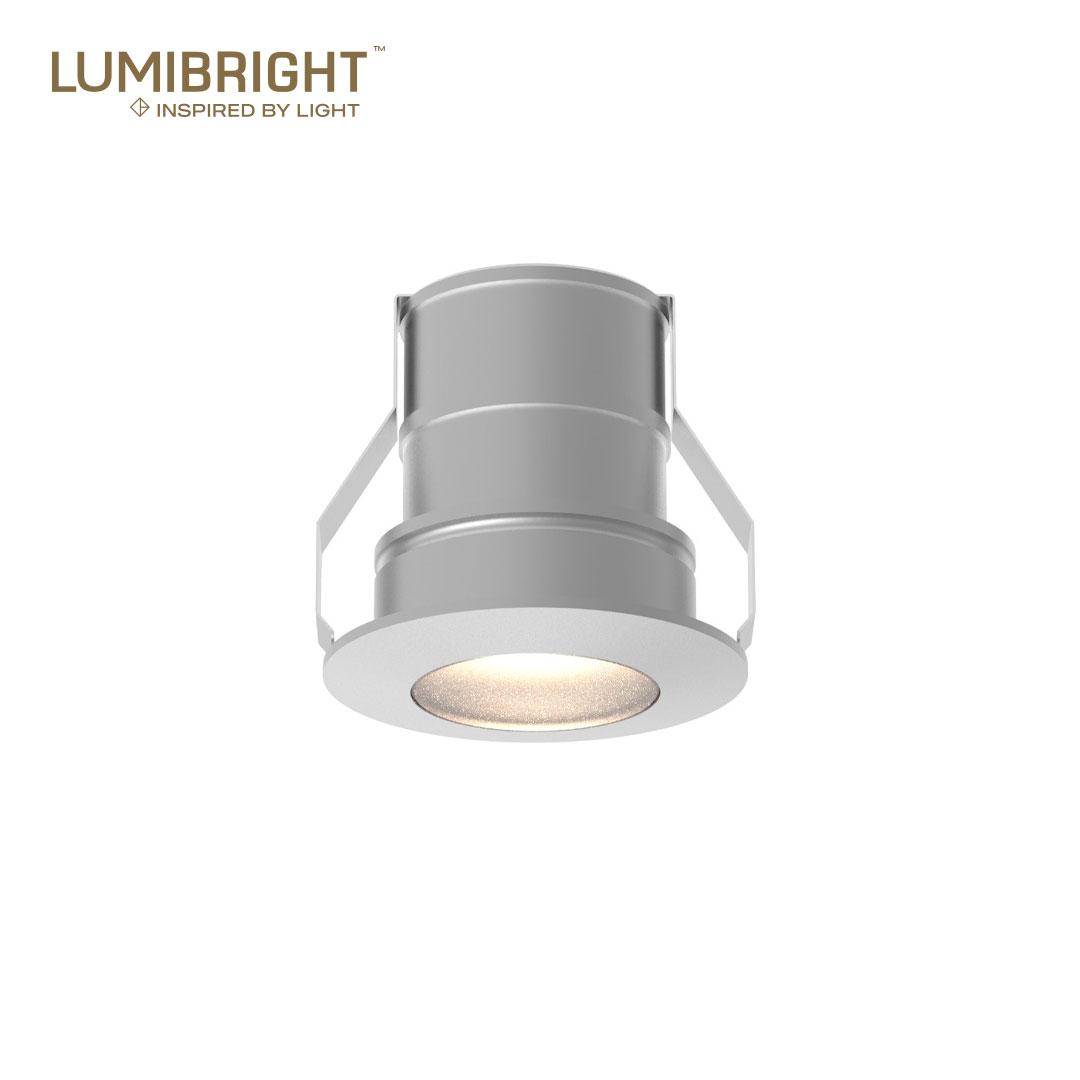

WAY-IP is a spot light family within the LUMIBRIGHT Lumi Indoor collection. Explore 1 models, including LBE2158, with model-specific specifications and configuration choices. LBE2158 specifications include power: 2W; colour temperature: 2700K/3000K/4000K; IP rating: IP65; dimensions: Ø45xH45mm. Compare the WAY-IP range by power, colour temperature, protection rating and dimensions using the technical table below. Open an individual model to explore its available finishes and optics, select a listed order code and prepare a specification sheet where configuration data is available. Keep the chosen model reference with your project schedule so the lighting and installation teams can coordinate the same selection. For additional drawings, photometry or project-specific requirements, contact the LUMIBRIGHT specification team with your model code.
Model specifications
| Article | Wattage | CCT | IP | Dimensions | Cut-out |
|---|---|---|---|---|---|
| LBE2158 | Wattage2W | CCT2700K/3000K/4000K | IPIP65 | DimensionsØ45xH45mm | Cut-outØ40mm |
Product View
Configuration
Select Specification
Select attributes to narrow down variants
All Variants (10)
| Code | Power | CCT | Beam | CRI | Finish | Size | |
|---|---|---|---|---|---|---|---|
| LBE2158 | 2W | 2700K, 3000K, 4000K | 15° | 90 | White | Ø45xH45mm | |
| LBE2158 | 2W | 2700K, 3000K, 4000K | 15° | 90 | White | Ø45xH45mm | |
| LBE2158 | 2W | 2700K, 3000K, 4000K | 15° | 90 | White | Ø45xH45mm | |
| LBE2158 | 2W | 2700K, 3000K, 4000K | 15° | 90 | White | Ø45xH45mm | |
| LBE2158 | 2W | 2700K, 3000K, 4000K | 15° | 90 | White | Ø45xH45mm | |
| LBE2158 | 2W | 2700K, 3000K, 4000K | 15° | 90 | White | Ø45xH45mm | |
| LBE2158 | 2W | 2700K, 3000K, 4000K | 15° | 90 | White | Ø45xH45mm | |
| LBE2158 | 2W | 2700K, 3000K, 4000K | 15° | 90 | White | Ø45xH45mm | |
| LBE2158 | 2W | 2700K, 3000K, 4000K | 15° | 90 | White | Ø45xH45mm | |
| LBE2158 | 2W | 2700K, 3000K, 4000K | 15° | 90 | White | Ø45xH45mm |
Dimensions
Technical Drawing
Drawing and sizes shown for model LBE2158.
Size — model LBE2158
Ø45xH45mm
Cut-Out
Ø40mm
Technical Data
Full Specification
| Dimensions | Ø45xH45mm |
|---|---|
| Cut-out | Ø40mm |
| Power | 2W |
| Lumen output | 220lm |
| Efficacy | Not published — technical review required |
| Optics / beam angle | 15° · 20° · 24° |
| Colour temperature | 2700K · 3000K · 4000K · 5000K |
| CRI Ra | 90 |
| R9 | Not published — technical review required |
| TM-30 Rf / Rg | Not published — technical review required |
| UGR | Not published — technical review required |
| IP rating | IP65 |
| IK rating | Not published — technical review required |
| Ambient temperature (Ta) | Not published — technical review required |
| Driver | Not published — technical review required |
| Dimming / control | Not published — technical review required |
| Input voltage | 220-240VAC |
| Light source | Not published — technical review required |
| Material | Aluminium |
| Finish | White |
| Mounting / installation | Not published — technical review required |
| Net weight | Not published — technical review required |
| Certification | Not published — technical review required |
| Lifetime | Not published — technical review required |
| Warranty | Not published — technical review required |
| Lead time | Not published — technical review required |
11 of 26 specification rows published from the 2026 master data. Values vary by model; missing test data is not estimated. Select an exact model for approval.
Specifications
At a Glance
2W
Power
15°
Beam Angle
3 CCT
2700K, 3000K, 4000K
CRI 90
Colour Rendering
IP65
Protection Rating
White
Body Finish
Ø45xH45mm
Dimensions
Ø40mm
Cut-Out
Configure your product
LBE2158
Order code
Listed configurationLBE2158.W.930.WWH.15.DR
8 listed configurations · availability requires confirmation
