WISDOM is part of Lumi Indoor. Coordinate the selected article’s dimensions, installation details and configuration with the project specification; these details can vary between models in the same family.
Spot Light
WISDOM
WISDOM is a spot light family within the LUMIBRIGHT Lumi Indoor collection. Explore 17 models, including LB2067, LB2069, LB2070, with model-specific specifications and configuration choices. LB2067 specifications include power: 2W; colour temperature: 2700K, 3000K, 4000K, 6000K; IP rating: IP20; dimensions: 158x109x105mm. Compare the WISDOM range by power, colour temperature, protection rating and dimensions using the technical table below. Open an individual model to explore its available finishes and optics, select a listed order code and prepare a specification sheet where configuration data is available. Keep the chosen model reference with your project schedule so the lighting and installation teams can coordinate the same selection. For additional drawings, photometry or project-specific requirements, contact the LUMIBRIGHT specification team with your model code.
Model specifications
| Article | Wattage | CCT | IP | Dimensions | Cut-out |
|---|---|---|---|---|---|
| LB2067 | Wattage2W | CCT2700K, 3000K, 4000K, 6000K | IPIP20 | Dimensions158x109x105mm | Cut-outNot published |

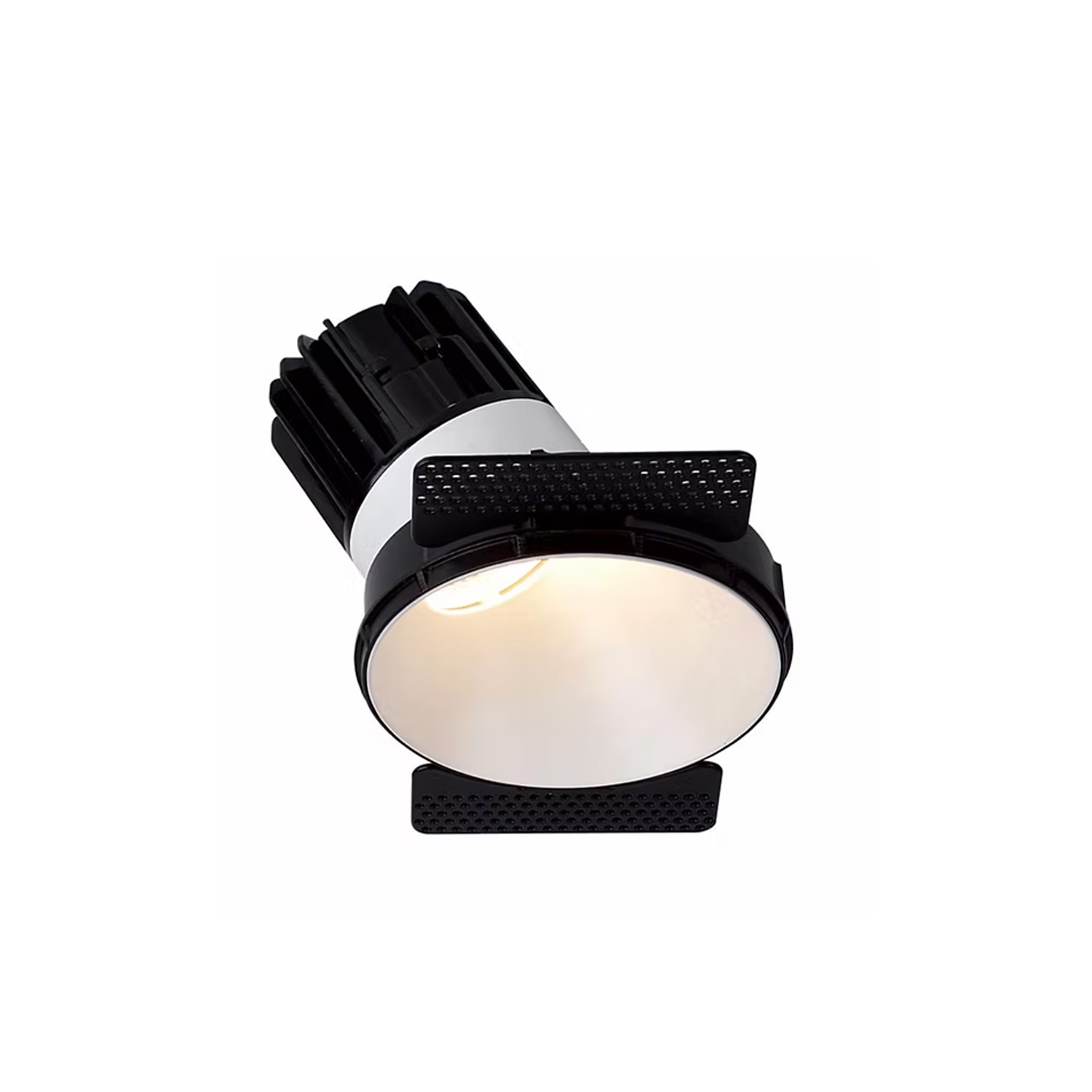

| LB2069 | Wattage2W | CCT4000K | IPIP20 | Dimensions158x130x114mm | Cut-outØ110mm |

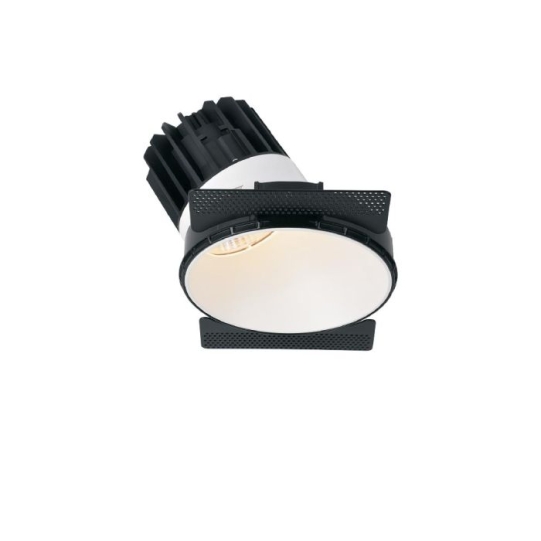

| LB2070 | Wattage2W | CCT6500K | IPIP20 | Dimensions221x196x162mm | Cut-outØ170mm |

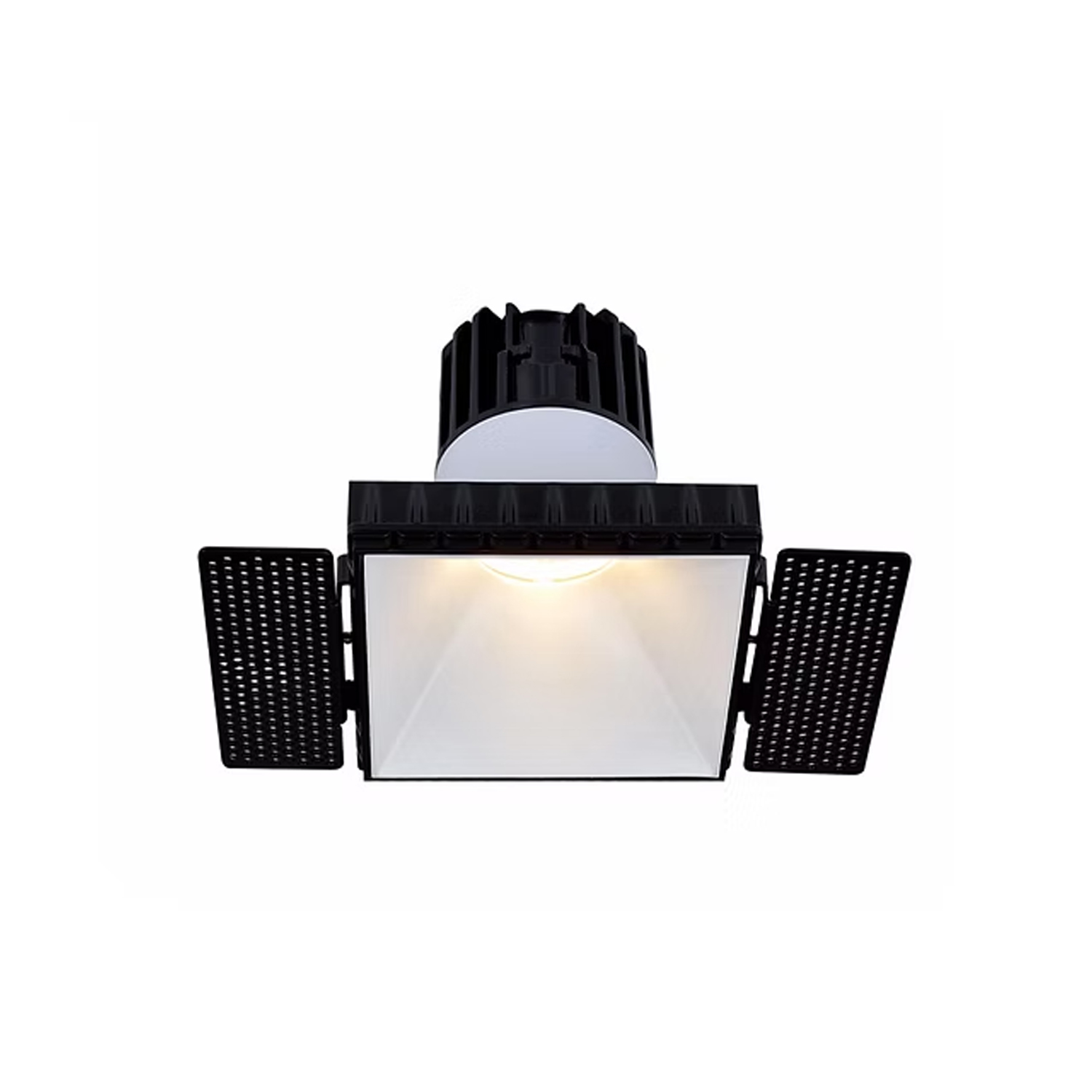

| LB2071 | Wattage2W | CCT3000K | IPIP20 | Dimensions182x109x114mm | Cut-out110x110mm |

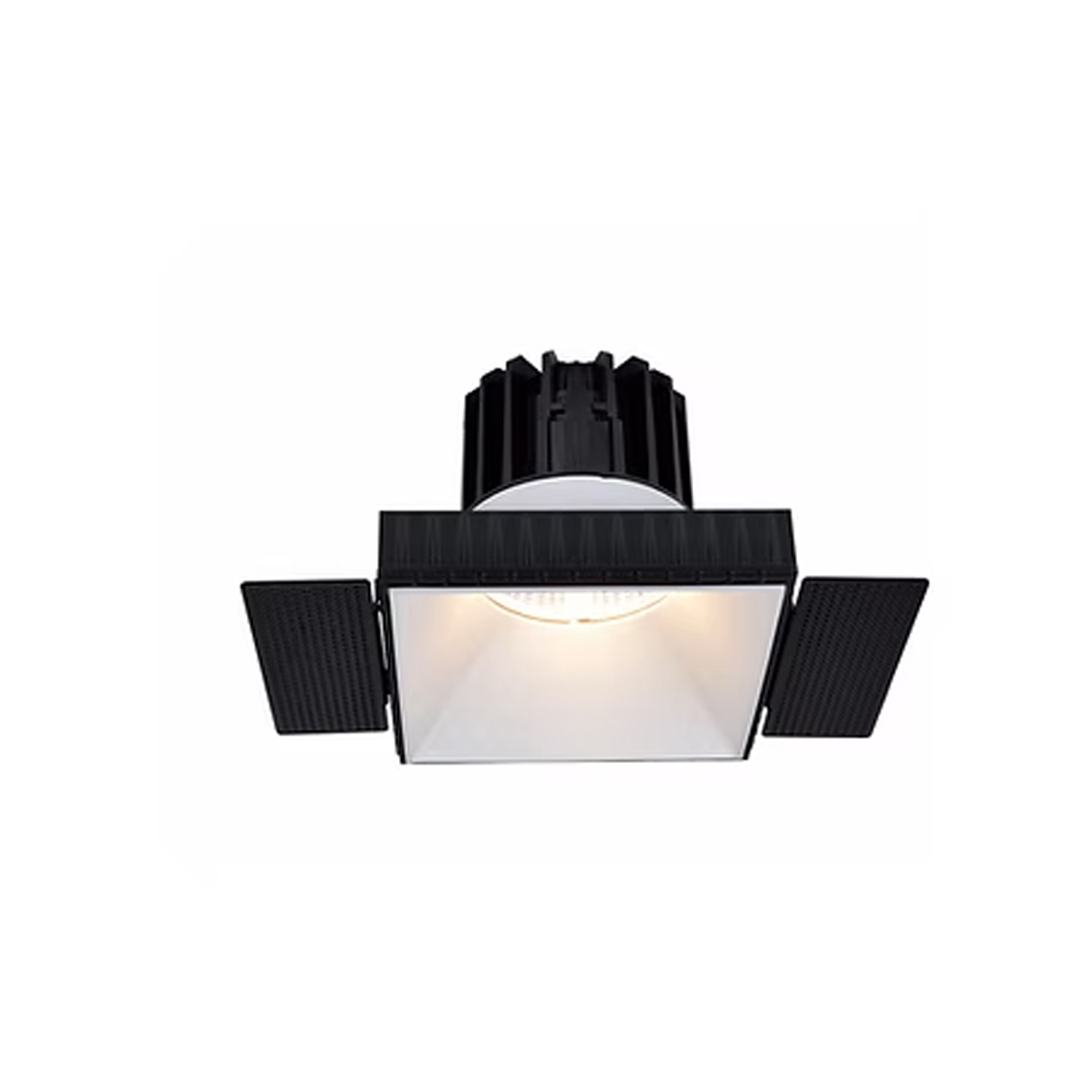

| LB2072 | Wattage2W | CCT3000K | IPIP20 | Dimensions163x266x145mm | Cut-out170x170mm |

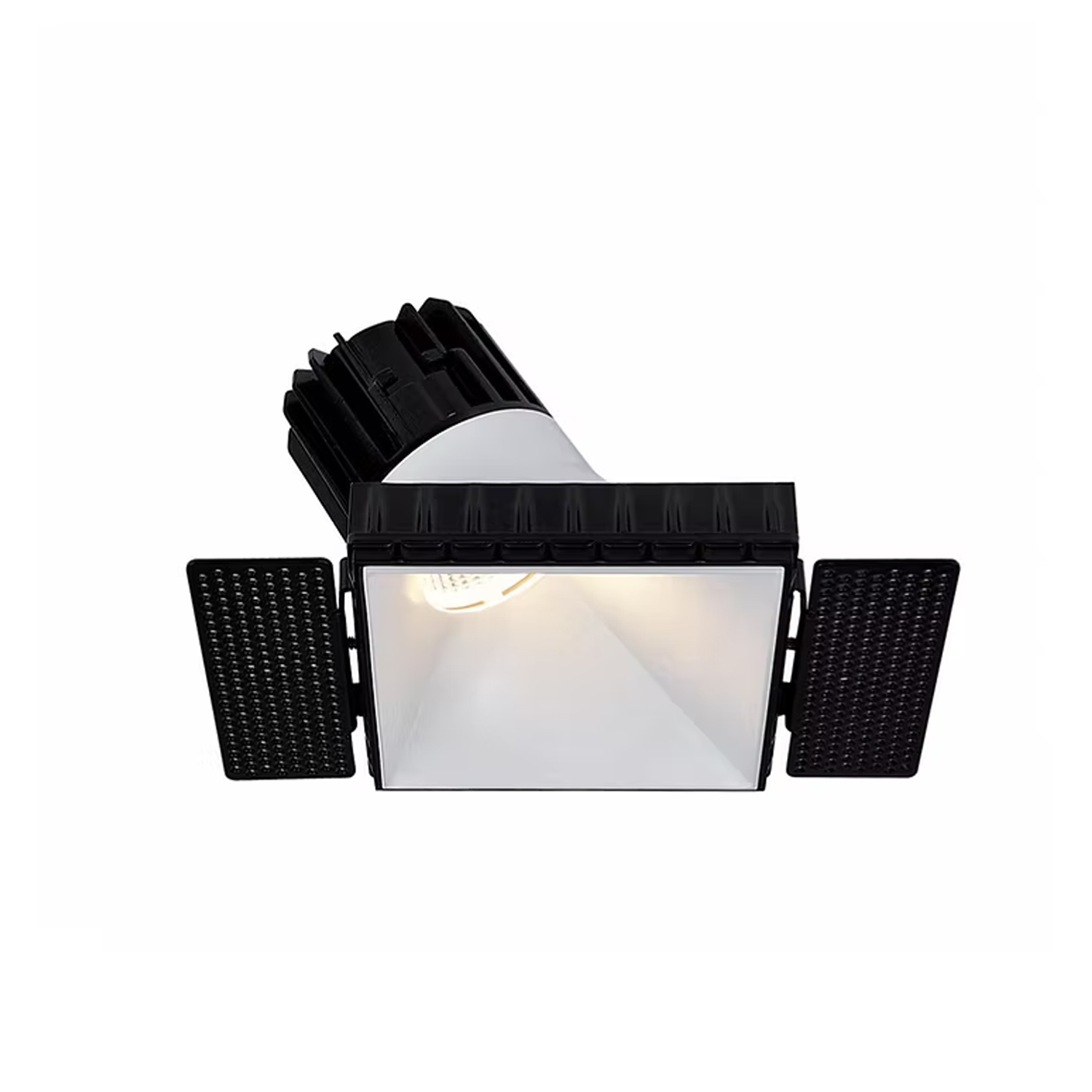

| LB2073 | Wattage2W | CCT3000K | IPIP20 | Dimensions109x182x117mm | Cut-out110x110mm |

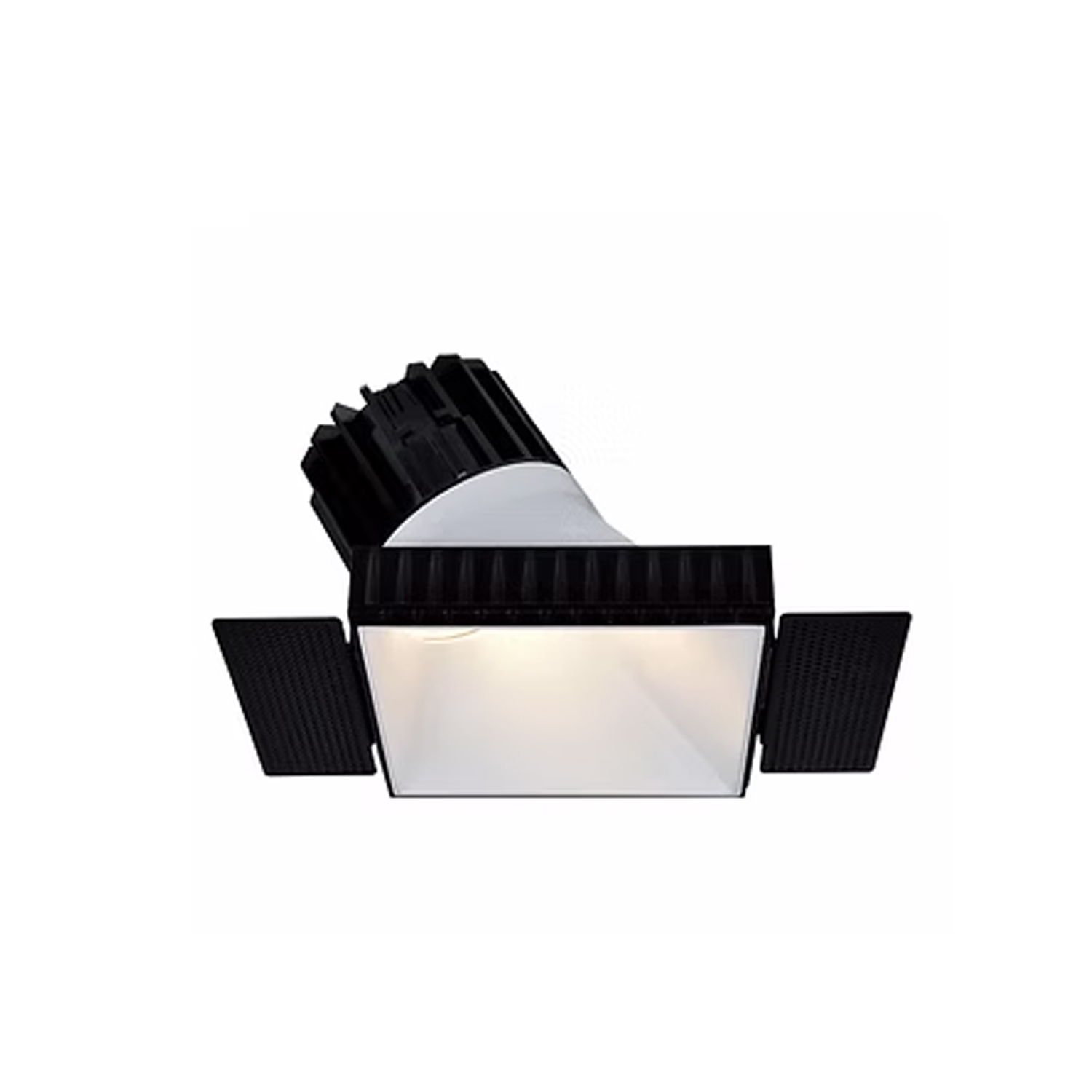

| LB2074 | Wattage2W | CCT3000K | IPIP20 | Dimensions163x266x170mm | Cut-out170x170mm |
| LB2464 | Wattage2W | CCT4000K | IPIP20 | DimensionsØ110x148mm | Cut-outØ103mm |
| LB2465 | Wattage2W | CCT2700K | IPIP20 | DimensionsØ110x148mm | Cut-outØ103mm |
| LB2469 | Wattage2W | CCT5000K | IPIP20 | Dimensions110x110x148mm | Cut-out103x103mm |

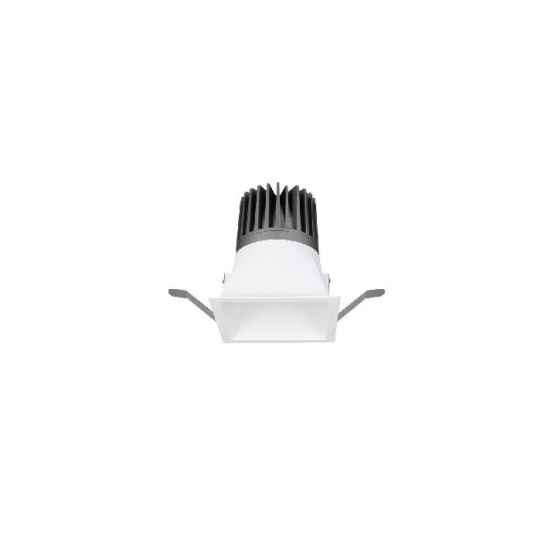

| LB2470 | Wattage2W | CCT2700K | IPIP20 | Dimensions101x101x148mm | Cut-out127x127mm |
| LB2471 | Wattage2W | CCT5000K | IPIP20 | Dimensions101x101x148mm | Cut-out127x127mm |

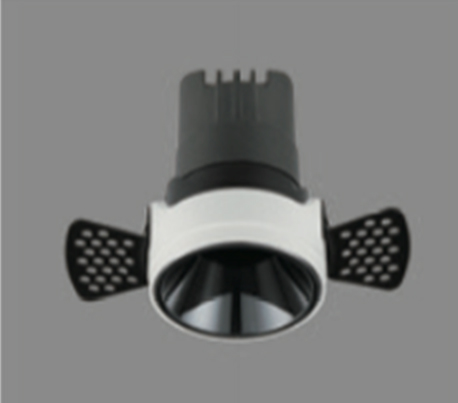

| LB2771 | Wattage2W | CCT2700K, 3000K, 4000K, 6000K | IPIP20 | DimensionsØ55x75mm | Cut-outØ55mm |

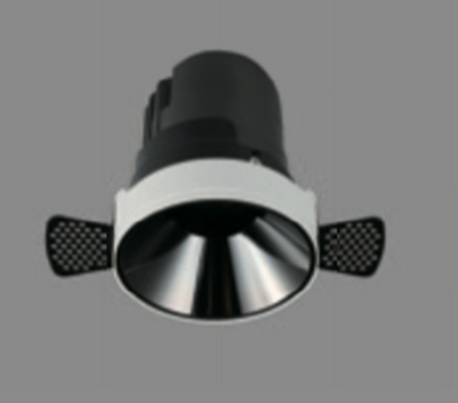

| LB2772 | Wattage2W | CCT3000K | IPIP20 | DimensionsØ99x113mm | Cut-outØ99mm |

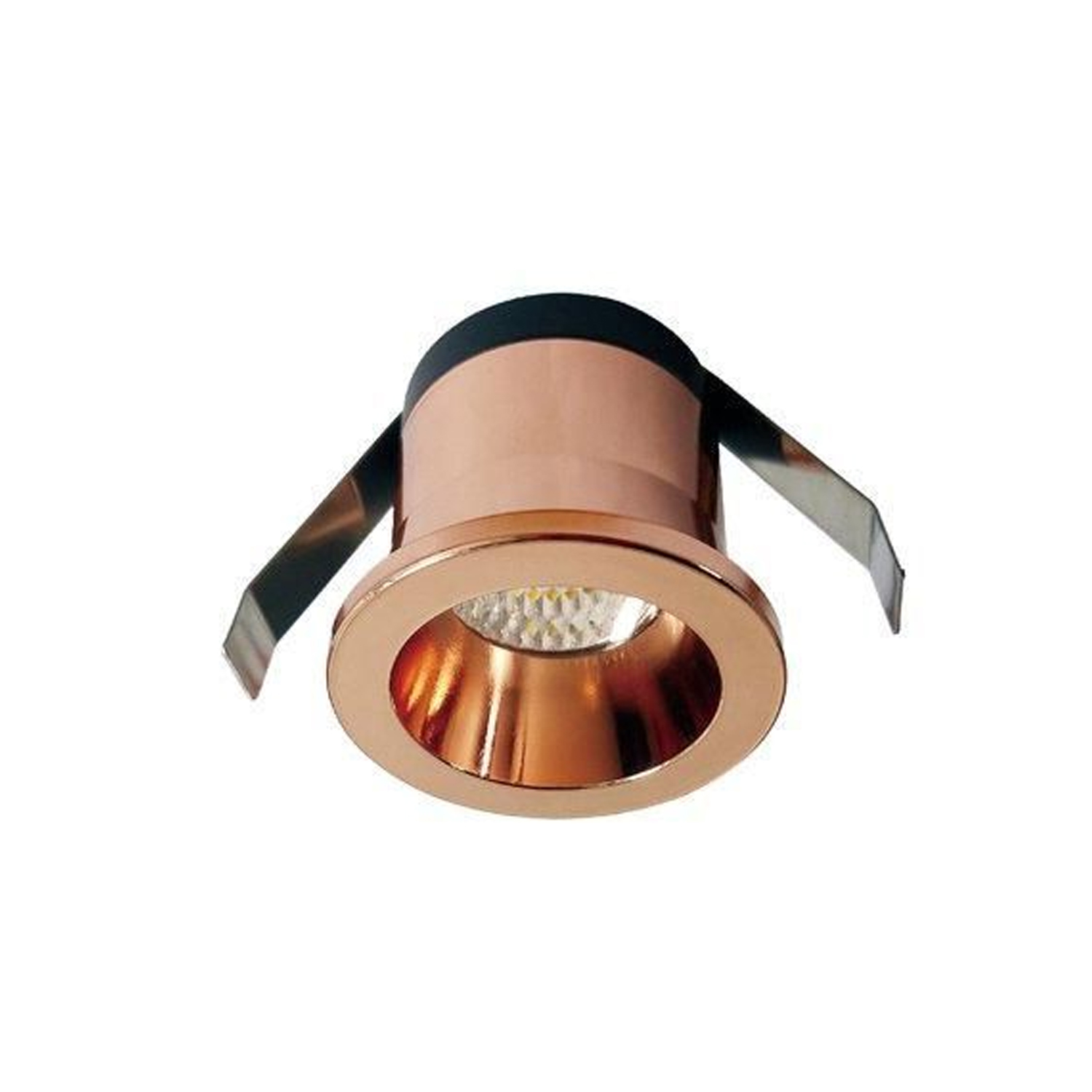

| LBE2138 | Wattage3W | CCT2700K/3000K/4000K/5000K/6000K/6500K | IPIP20 | DimensionsH34Xφ38mm | Cut-out33mm |
| LBT2104 | Wattage2W | CCT2700K, 3000K, 4000K, 6000K | IPIP20 | DimensionsØ52xH48mm | Cut-outØ45mm |
| LBT2116 | Wattage2W | CCT3000K | IPIP20 | DimensionsØ56xH48mm | Cut-outØ45mm |
Technical Data
Full Specification
| Dimensions | 158x109x105mm · 158x130x114mm · 221x196x162mm · 182x109x114mm +11 more |
|---|---|
| Cut-out | Ø110mm · Ø170mm · 110x110mm · 170x170mm +7 more |
| Power | 13.8W · 2W · 3W |
| Lumen output | 150LM |
| Efficacy | Not published — technical review required |
| Optics / beam angle | 20° · 24° · 35° · 52° +10 more |
| Colour temperature | 2700K · 3000K · 4000K · 5000K +3 more |
| CRI Ra | 80 · 90 · CRI 80 · ≥90 |
| R9 | Not published — technical review required |
| TM-30 Rf / Rg | Not published — technical review required |
| UGR | Not published — technical review required |
| IP rating | IP20 |
| IK rating | Not published — technical review required |
| Ambient temperature (Ta) | Not published — technical review required |
| Driver | Not published — technical review required |
| Dimming / control | Not published — technical review required |
| Input voltage | constant-current · 220-240VAC |
| Light source | Not published — technical review required |
| Material | Aluminium |
| Finish | black · White · gold · GREY WITH SAND +9 more |
| Mounting / installation | Not published — technical review required |
| Net weight | Not published — technical review required |
| Certification | Not published — technical review required |
| Lifetime | Not published — technical review required |
| Warranty | Not published — technical review required |
| Lead time | Not published — technical review required |
11 of 26 specification rows published from the 2026 master data. Values vary by model; missing test data is not estimated. Select an exact model for approval.
Configuration
Select Specification
Select attributes to narrow down variants
Product Lines
17 Products
Dimensions
Technical Drawing

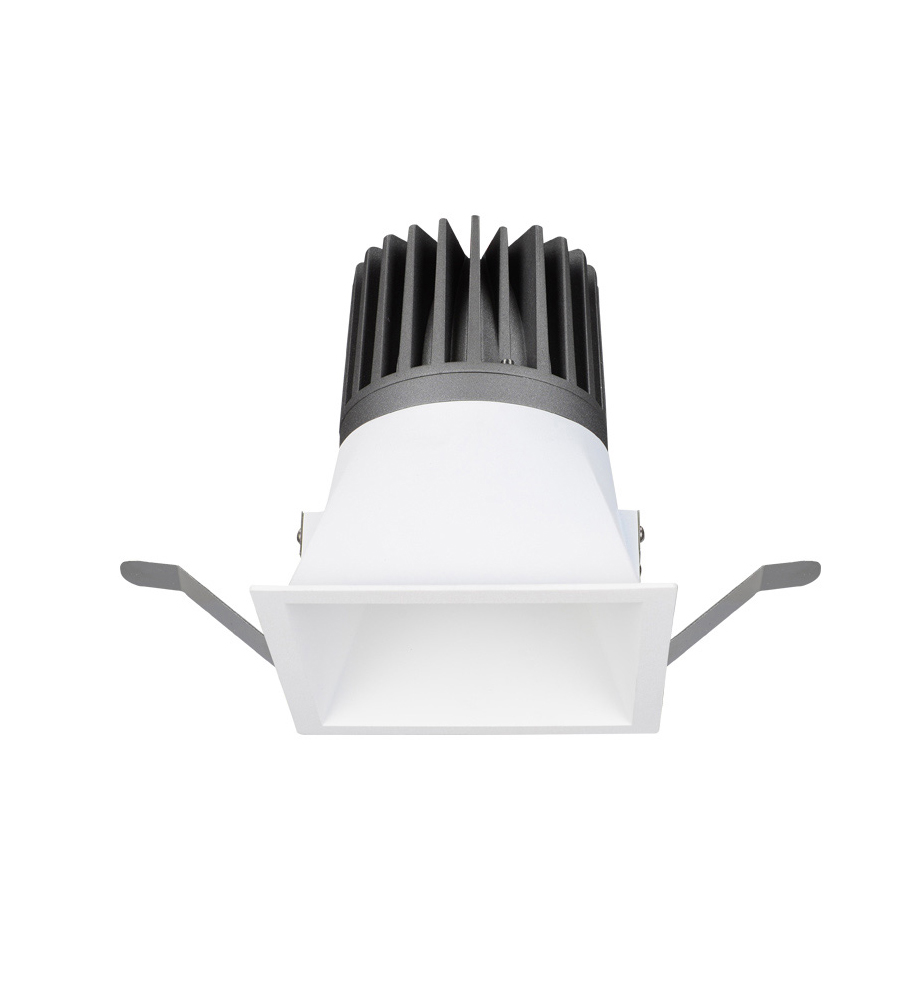

Drawing and sizes shown for model LB2469. This family has 17 models with different dimensions — select a model above, or open its row in the variant table, for its own drawing.
Size — model LB2469
110x110x148mm
Cut-Out
103x103mm
Specifications
At a Glance
3–38W
Power Range
14 options
Beam: 15°, 16°, 17°, 20°, 24°, 25°, 28°, 32°, 35°, 38°, 40°, 48°, 52°, 60°
7 CCT
2700K, 3000K, 4000K, 5000K, 5600K, 6000K, 6500K
CRI 80/90
Colour Rendering
IP20
Protection Rating
9 finishes
Body Finish Options
15 sizes
101x101x148mm, 109x182x117mm, 110x110x148mm, 158x109x105mm, 158x130x114mm, 163x266x145mm, 163x266x170mm, 182x109x114mm, 221x196x162mm, H34Xφ38mm, Ø110x148mm, Ø52xH48mm, Ø55x75mm, Ø56xH48mm, Ø99x113mm
11 cut-outs
103x103mm, 110x110mm, 127x127mm, 170x170mm, 33mm, Ø103mm, Ø110mm, Ø170mm, Ø45mm, Ø55mm, Ø99mm
Configure your product
LB2469
Order code
Listed configurationLB2469.C.850.WBK.20
90 listed configurations · availability requires confirmation
