Lumi Indoor
ZEPLIN
Application inspiration · not a project reference
ZEPLIN is part of Lumi Indoor. Coordinate the selected article’s dimensions, installation details and configuration with the project specification; these details can vary between models in the same family.
Track Light
ZEPLIN
ZEPLIN is a track light family within the LUMIBRIGHT Lumi Indoor collection. Explore 1 models, including LBP1012, with model-specific specifications and configuration choices. LBP1012 specifications include power: 30W; colour temperature: 2700K/3000K/4000K/5000K/6000K; IP rating: IP20; dimensions: 269x70x70x121. Compare the ZEPLIN range by power, colour temperature, protection rating and dimensions using the technical table below. Open an individual model to explore its available finishes and optics, select a listed order code and prepare a specification sheet where configuration data is available. Keep the chosen model reference with your project schedule so the lighting and installation teams can coordinate the same selection. For additional drawings, photometry or project-specific requirements, contact the LUMIBRIGHT specification team with your model code.
Model specifications
| Article | Wattage | CCT | IP | Dimensions | Cut-out |
|---|---|---|---|---|---|
| LBP1012 | Wattage30W | CCT2700K/3000K/4000K/5000K/6000K | IPIP20 | Dimensions269x70x70x121 | Cut-outNot published |

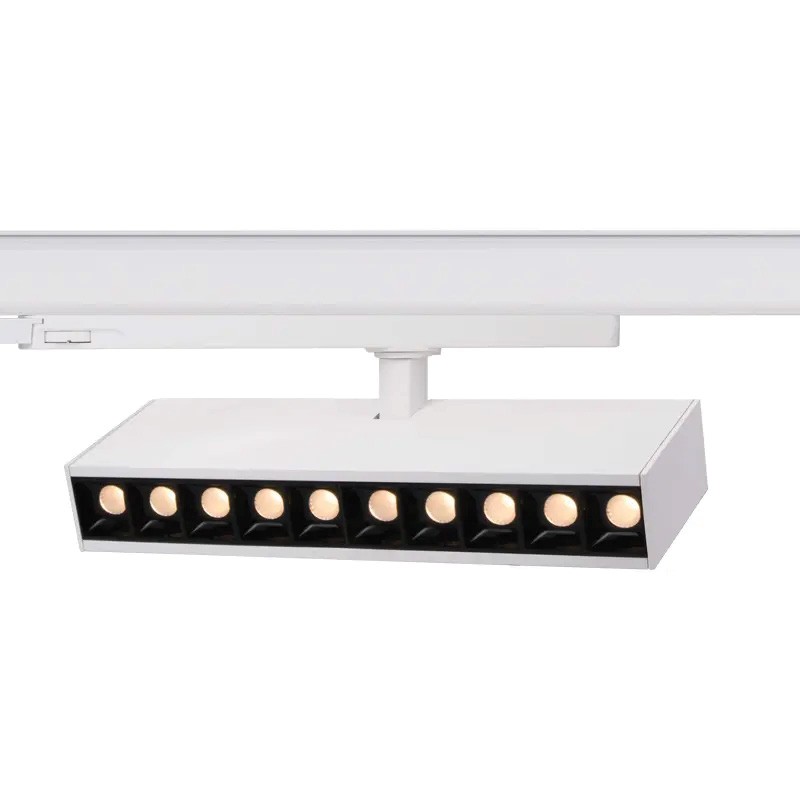

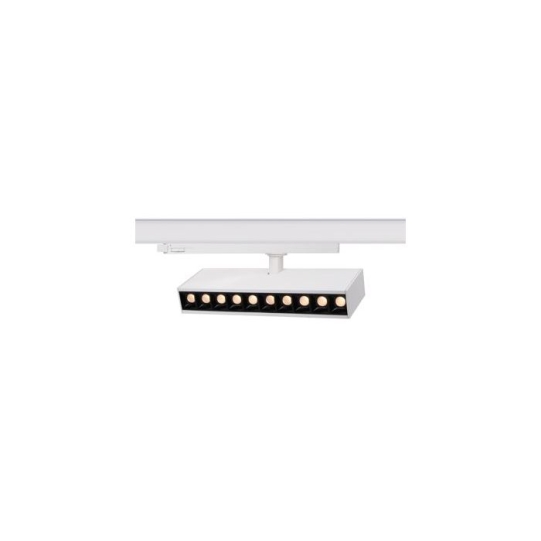

Product View
Configuration
Select Specification
Select attributes to narrow down variants
All Variants (3)
Dimensions

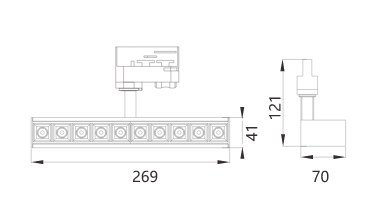

Technical Drawing
Drawing and sizes shown for model LBP1012.
Size — model LBP1012
269x70x70x121
Technical Data
Full Specification
| Dimensions | 269x70x70x121 |
|---|---|
| Cut-out | Not published — technical review required |
| Power | 30W |
| Lumen output | 3600lm |
| Efficacy | Not published — technical review required |
| Optics / beam angle | 15° · 24° · 30° · 36° +2 more |
| Colour temperature | 2700K · 3000K · 4000K · 5000K +1 more |
| CRI Ra | 90 · 80+/ 90+ |
| R9 | Not published — technical review required |
| TM-30 Rf / Rg | Not published — technical review required |
| UGR | Not published — technical review required |
| IP rating | IP20 |
| IK rating | Not published — technical review required |
| Ambient temperature (Ta) | Not published — technical review required |
| Driver | Not published — technical review required |
| Dimming / control | Not published — technical review required |
| Input voltage | 220-240VAC |
| Light source | Not published — technical review required |
| Material | Aluminium |
| Finish | white+black · White |
| Mounting / installation | Not published — technical review required |
| Net weight | Not published — technical review required |
| Certification | Not published — technical review required |
| Lifetime | Not published — technical review required |
| Warranty | Not published — technical review required |
| Lead time | Not published — technical review required |
10 of 26 specification rows published from the 2026 master data. Values vary by model; missing test data is not estimated. Select an exact model for approval.
Specifications
At a Glance
30W
Power
15°
Beam Angle
5 CCT
2700K, 3000K, 4000K, 5000K, 6000K
CRI 90
Colour Rendering
IP20
Protection Rating
2 finishes
Body Finish
269x70x70x121
Dimensions
Configure your product
LBP1012
Order code
Listed configurationLBP1012.W.930.WWH+WBK.30
1 listed configurations · availability requires confirmation
