Lumi Indoor
ZIRI

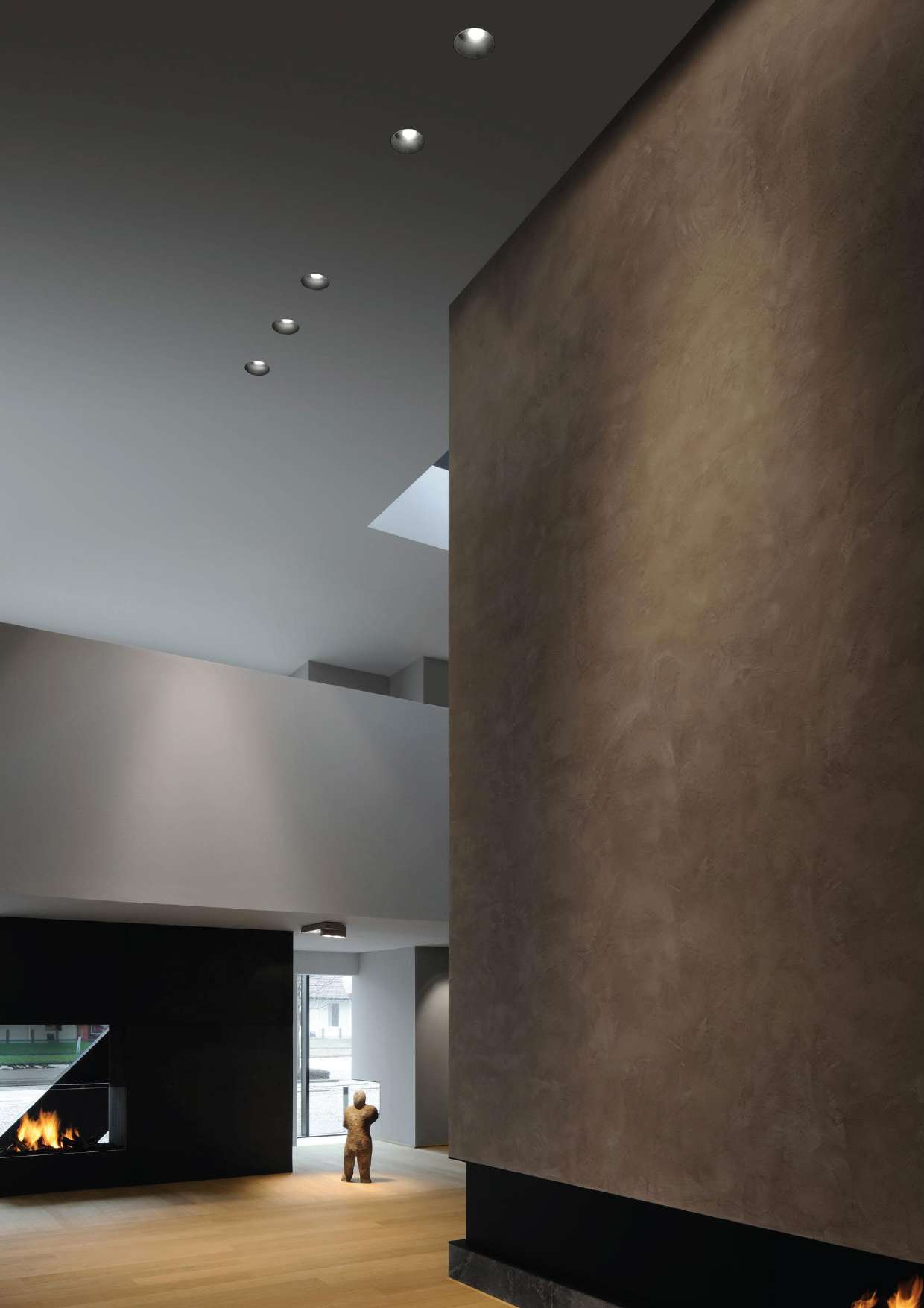

Application inspiration · not a project reference
ZIRI is part of Lumi Indoor. Coordinate the selected article’s dimensions, installation details and configuration with the project specification; these details can vary between models in the same family.
Ceiling Light
ZIRI
ZIRI is a ceiling light family within the LUMIBRIGHT Lumi Indoor collection. Explore 2 models, including L01264, L01273, with model-specific specifications and configuration choices. L01264 specifications include power: 10W; colour temperature: 2700K/3000K/4000K/6000K/6500K; IP rating: IP65; dimensions: Ø100xH48mm. Compare the ZIRI range by power, colour temperature, protection rating and dimensions using the technical table below. Open an individual model to explore its available finishes and optics, select a listed order code and prepare a specification sheet where configuration data is available. Keep the chosen model reference with your project schedule so the lighting and installation teams can coordinate the same selection. For additional drawings, photometry or project-specific requirements, contact the LUMIBRIGHT specification team with your model code.
Model specifications
| Article | Wattage | CCT | IP | Dimensions | Cut-out |
|---|---|---|---|---|---|

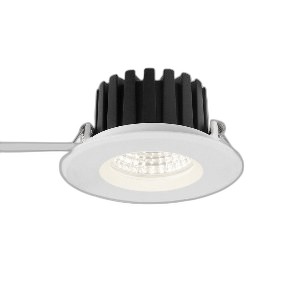

| L01264 | Wattage10W | CCT2700K/3000K/4000K/6000K/6500K | IPIP65 | DimensionsØ100xH48mm | Cut-outØ80mm |

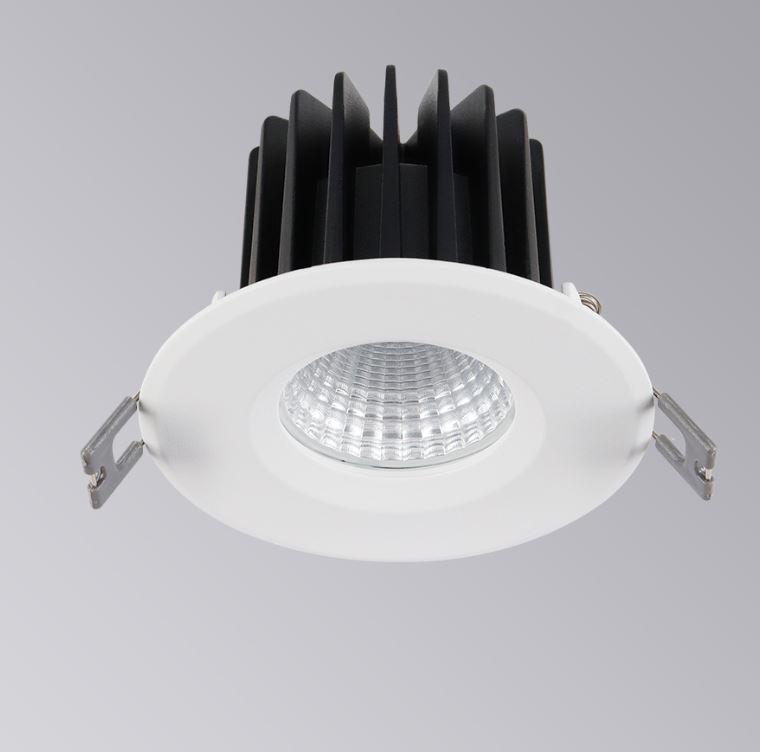

| L01273 | Wattage10W | CCT2700K/3000K/4000K/6000K/6500K | IPIP65 | DimensionsØ100×H.48mm | Cut-outØ80mm |
Technical Data
Full Specification
| Dimensions | Ø100xH48mm · Ø100×H.48mm |
|---|---|
| Cut-out | Ø80mm |
| Power | 10W |
| Lumen output | 100lm · 1000lm |
| Efficacy | Not published — technical review required |
| Optics / beam angle | 15° · 24° · 38° · 60° |
| Colour temperature | 2700K · 3000K · 4000K · 5000K +2 more |
| CRI Ra | 90 |
| R9 | Not published — technical review required |
| TM-30 Rf / Rg | Not published — technical review required |
| UGR | Not published — technical review required |
| IP rating | IP65 |
| IK rating | Not published — technical review required |
| Ambient temperature (Ta) | Not published — technical review required |
| Driver | Not published — technical review required |
| Dimming / control | Not published — technical review required |
| Input voltage | 220-240VAC |
| Light source | Not published — technical review required |
| Material | Aluminium |
| Finish | White |
| Mounting / installation | Not published — technical review required |
| Net weight | Not published — technical review required |
| Certification | Not published — technical review required |
| Lifetime | Not published — technical review required |
| Warranty | Not published — technical review required |
| Lead time | Not published — technical review required |
11 of 26 specification rows published from the 2026 master data. Values vary by model; missing test data is not estimated. Select an exact model for approval.
Configuration
Select Specification
Select attributes to narrow down variants
Dimensions
Technical Drawing
Drawing and sizes shown for model L01264. This family has 2 models with different dimensions — select a model above, or open its row in the variant table, for its own drawing.
Size — model L01264
Ø100xH48mm
Cut-Out
Ø80mm
Specifications
At a Glance
10W
Power Range
2 options
Beam: 15°, 38°
5 CCT
2700K, 3000K, 4000K, 6000K, 6500K
CRI 90
Colour Rendering
IP65
Protection Rating
1 finishes
Body Finish Options
2 sizes
Ø100xH48mm, Ø100×H.48mm
Ø80mm
Cut-Out
Configure your product
L01264
Order code
Listed configurationL01264.960.01.60.DR
16 listed configurations · availability requires confirmation
